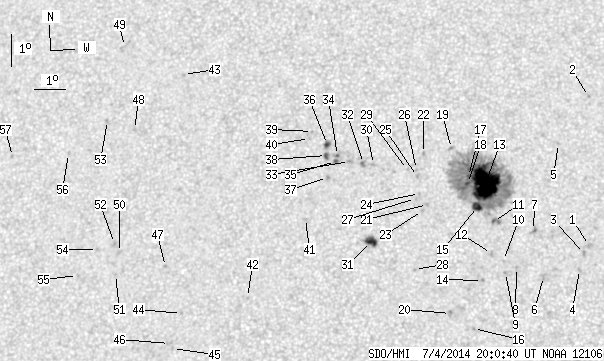

SDO HMI 2014-07-04 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 84.07 | 379.05 | 43.09 | 194.91 | 15.21 | 260.69 | -9.31 | 36.04 | 0.2636 | -486.7 | -214.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-04 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.18 | 0.00 | 1.61 | 13.55 | 265.22 | -4.78 | 24.39 | 0.1973 | -880.0 | -703.3 | |
| 0.00 | 0.73 | 0.00 | 0.37 | 18.20 | 265.08 | -4.92 | 17.53 | 0.2719 | -851.0 | -722.5 | |
| 0.00 | 2.27 | 0.00 | 1.15 | 13.30 | 265.06 | -4.94 | 25.62 | 0.1945 | -995.0 | -836.8 | |
| 0.00 | 1.63 | 0.00 | 0.82 | 12.80 | 264.92 | -5.08 | 27.49 | 0.1881 | -816.0 | -686.3 | |
| 0.00 | 0.45 | 0.00 | 0.23 | 16.72 | 264.16 | -5.84 | 22.70 | 0.2538 | -766.0 | -609.4 | |
| 0.00 | 3.36 | 0.00 | 1.70 | 12.58 | 263.79 | -6.21 | 33.02 | 0.1946 | -873.0 | -711.8 | |
| 0.00 | 3.45 | 0.00 | 1.75 | 14.00 | 263.44 | -6.56 | 30.68 | 0.2183 | 928.0 | 660.7 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 12.86 | 262.93 | -7.07 | 35.65 | 0.2067 | -971.0 | -755.8 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 12.70 | 262.59 | -7.41 | 37.39 | 0.2080 | -1088.0 | -821.6 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 13.07 | 262.52 | -7.48 | 36.57 | 0.2138 | -722.0 | -508.0 | |
| 0.64 | 4.09 | 0.32 | 2.08 | 14.28 | 262.16 | -7.84 | 34.58 | 0.2338 | -1082.4 | -925.3 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 13.28 | 262.13 | -7.87 | 37.33 | 0.2206 | -902.0 | -669.3 | |
| 62.19 | 277.64 | 31.84 | 142.24 | 15.46 | 261.87 | -8.13 | 32.76 | 0.2531 | -1446.9 | -360.3 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 12.45 | 261.88 | -8.12 | 40.72 | 0.2125 | -1063.0 | -871.9 | |
| 6.17 | -13.00 | 3.15 | -13.00 | 14.74 | 261.64 | -8.36 | 35.15 | 0.2453 | -1014.9 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 10.97 | 261.64 | -8.36 | 46.65 | 0.1973 | -691.0 | -579.9 | |
| 2.27 | -13.00 | 1.16 | -13.00 | 15.67 | 261.32 | -8.68 | 33.99 | 0.2612 | -912.8 | 999999 | |
| 1.18 | -13.00 | 0.61 | -13.00 | 15.45 | 261.29 | -8.71 | 34.55 | 0.2584 | -828.5 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.08 | 16.54 | 260.73 | -9.27 | 33.81 | 0.2787 | -645.0 | -538.9 | |
| 0.00 | 2.36 | 0.00 | 1.20 | 11.42 | 260.90 | -9.10 | 47.35 | 0.2117 | -965.0 | -792.1 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 14.79 | 260.04 | -9.96 | 39.79 | 0.2624 | -871.0 | -733.0 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 16.38 | 259.84 | -10.16 | 36.61 | 0.2852 | 879.0 | 749.2 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 14.60 | 259.89 | -10.11 | 40.69 | 0.2617 | -852.0 | -751.6 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 15.13 | 259.77 | -10.23 | 39.68 | 0.2697 | -668.0 | -568.6 | |
| 0.00 | 2.09 | 0.00 | 1.08 | 15.66 | 259.68 | -10.32 | 38.65 | 0.2774 | 848.0 | 659.0 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 15.88 | 259.64 | -10.36 | 38.26 | 0.2807 | 825.0 | 640.6 | |
| 0.00 | 0.54 | 0.00 | 0.28 | 14.97 | 259.65 | -10.35 | 40.40 | 0.2690 | -799.0 | -705.2 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 12.77 | 259.71 | -10.29 | 46.34 | 0.2418 | -810.0 | -583.5 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 15.87 | 259.35 | -10.65 | 39.02 | 0.2837 | 699.0 | 540.9 | |
| 0.00 | 1.82 | 0.00 | 0.94 | 16.02 | 258.24 | -11.76 | 41.41 | 0.2974 | 558.0 | 443.6 | |
| 6.63 | 10.08 | 3.41 | 5.18 | 13.62 | 258.30 | -11.70 | 47.40 | 0.2688 | -1049.5 | -756.5 | |
| 0.00 | 3.54 | 0.00 | 1.84 | 16.05 | 257.91 | -12.09 | 42.11 | 0.3014 | 964.0 | 819.5 | |
| 0.00 | 1.91 | 0.00 | 0.99 | 16.10 | 257.46 | -12.54 | 43.01 | 0.3072 | 967.0 | 854.0 | |
| 0.54 | 2.36 | 0.28 | 1.23 | 16.29 | 257.05 | -12.95 | 43.46 | 0.3140 | 1080.7 | 857.7 | |
| 0.91 | 2.63 | 0.47 | 1.37 | 16.10 | 257.00 | -13.00 | 44.01 | 0.3124 | 1165.6 | 926.2 | |
| 1.91 | 3.81 | 1.00 | 1.99 | 16.63 | 256.70 | -13.30 | 43.43 | 0.3219 | 984.8 | 833.2 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 15.60 | 256.77 | -13.23 | 45.68 | 0.3094 | 884.0 | 845.2 | |
| 1.63 | 3.36 | 0.85 | 1.75 | 16.28 | 256.70 | -13.30 | 44.23 | 0.3181 | 906.3 | 738.7 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 17.03 | 256.18 | -13.82 | 43.61 | 0.3325 | 749.0 | 536.7 | |
| 0.00 | 0.91 | 0.00 | 0.48 | 16.81 | 256.10 | -13.90 | 44.26 | 0.3309 | 752.0 | 584.4 | |
| 0.00 | 2.00 | 0.00 | 1.04 | 14.31 | 256.14 | -13.86 | 50.19 | 0.3034 | 929.0 | 668.8 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 11.85 | 254.41 | -15.59 | 60.06 | 0.3048 | 904.0 | 741.6 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 18.76 | 251.72 | -18.28 | 47.71 | 0.4031 | 685.0 | 624.4 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 11.32 | 252.30 | -17.70 | 64.37 | 0.3321 | 646.0 | 479.9 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 10.24 | 252.07 | -17.93 | 67.67 | 0.3289 | 809.0 | 660.2 | |
| 0.00 | 2.09 | 0.00 | 1.10 | 10.40 | 251.97 | -18.03 | 67.35 | 0.3314 | 747.0 | 689.8 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 12.76 | 251.68 | -18.32 | 61.28 | 0.3511 | 908.0 | 709.4 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 17.01 | 250.26 | -19.74 | 53.29 | 0.4047 | 940.0 | 711.1 | |
| 0.00 | 4.45 | 0.00 | 2.45 | 19.62 | 249.60 | -20.40 | 49.03 | 0.4366 | 564.0 | 550.0 | |
| 0.00 | 2.36 | 0.00 | 1.26 | 13.17 | 250.12 | -19.88 | 62.07 | 0.3763 | 718.0 | 561.9 | |
| 0.00 | 0.82 | 0.00 | 0.44 | 12.49 | 250.05 | -19.95 | 63.82 | 0.3729 | 792.0 | 632.8 | |
| 0.00 | 0.73 | 0.00 | 0.39 | 13.45 | 249.93 | -20.07 | 61.62 | 0.3809 | 837.0 | 716.9 | |
| 0.00 | 0.91 | 0.00 | 0.50 | 17.27 | 249.31 | -20.69 | 53.93 | 0.4191 | 812.0 | 678.4 | |
| 0.00 | 1.36 | 0.00 | 0.73 | 13.25 | 249.38 | -20.62 | 62.68 | 0.3874 | 711.0 | 633.1 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 12.43 | 248.78 | -21.22 | 65.20 | 0.3910 | 606.0 | 447.0 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 16.21 | 248.10 | -21.90 | 57.50 | 0.4264 | 631.0 | 491.0 | |
| 0.00 | 1.27 | 0.00 | 0.70 | 16.08 | 246.19 | -23.81 | 59.71 | 0.4512 | 610.0 | 564.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
