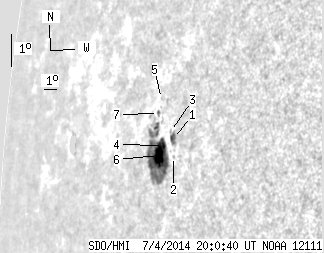

SDO HMI 2014-07-04 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.99 | 95.42 | 18.39 | 117.58 | 5.94 | 203.64 | -66.36 | 84.93 | 0.9164 | -557.4 | -119.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-04 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.90 | 0.00 | 6.99 | 6.42 | 204.55 | -65.45 | 84.43 | 0.9099 | -794.0 | -610.3 | |
| 0.00 | 0.73 | 0.00 | 0.86 | 5.87 | 204.68 | -65.32 | 85.04 | 0.9091 | -584.0 | -508.8 | |
| 0.00 | 0.27 | 0.00 | 0.33 | 6.62 | 204.27 | -65.73 | 84.21 | 0.9119 | -403.0 | -391.0 | |
| 1.73 | 86.34 | 2.09 | 106.68 | 6.17 | 203.85 | -66.15 | 84.70 | 0.9149 | -562.8 | -72.1 | |
| 0.00 | 0.27 | 0.00 | 0.34 | 7.58 | 203.31 | -66.69 | 83.14 | 0.9186 | -193.0 | -180.0 | |
| 13.26 | -4.00 | 16.30 | -4.00 | 5.84 | 203.55 | -66.45 | 85.04 | 0.9171 | -586.9 | 999999 | |
| 0.00 | 1.91 | 0.00 | 2.38 | 7.12 | 203.21 | -66.79 | 83.65 | 0.9193 | -321.0 | -268.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
