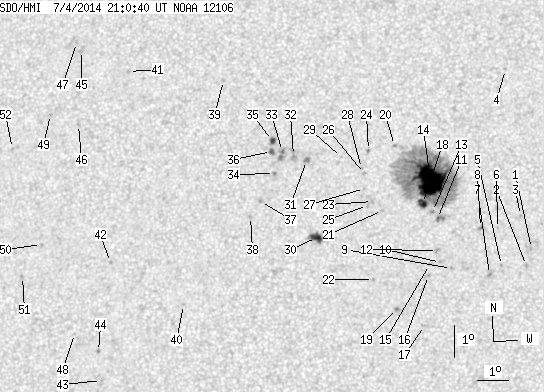

SDO HMI 2014-07-04 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 78.89 | 373.53 | 40.39 | 191.78 | 15.25 | 260.74 | -8.70 | 34.24 | 0.2577 | -578.4 | -217.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-04 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.73 | 0.00 | 0.37 | 13.34 | 265.11 | -4.34 | 22.80 | 0.1908 | -909.0 | -698.2 | |
| 0.00 | 2.18 | 0.00 | 1.10 | 12.81 | 264.96 | -4.49 | 24.66 | 0.1836 | -905.0 | -667.4 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 14.36 | 264.74 | -4.70 | 22.40 | 0.2094 | -866.0 | -658.5 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 18.93 | 264.15 | -5.30 | 17.90 | 0.2854 | -738.0 | -463.8 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 12.81 | 264.17 | -5.27 | 28.33 | 0.1896 | -840.0 | -661.5 | |
| 0.00 | 0.73 | 0.00 | 0.37 | 13.95 | 264.02 | -5.42 | 26.26 | 0.2081 | -555.0 | -485.8 | |
| 0.00 | 1.63 | 0.00 | 0.82 | 12.53 | 263.80 | -5.64 | 30.74 | 0.1886 | -902.0 | -791.2 | |
| 0.00 | 2.27 | 0.00 | 1.15 | 13.98 | 263.49 | -5.96 | 28.39 | 0.2128 | 1025.0 | 787.8 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 12.71 | 262.61 | -6.84 | 35.22 | 0.2023 | -1114.0 | -869.7 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 12.89 | 262.26 | -7.19 | 36.03 | 0.2084 | -729.0 | -616.8 | |
| 0.54 | 4.09 | 0.28 | 2.08 | 14.26 | 262.12 | -7.32 | 32.88 | 0.2286 | -1087.3 | -931.7 | |
| 0.00 | 2.45 | 0.00 | 1.24 | 13.26 | 262.15 | -7.29 | 35.36 | 0.2145 | -729.0 | -719.3 | |
| 0.00 | 2.00 | 0.00 | 1.02 | 14.47 | 261.95 | -7.49 | 32.93 | 0.2332 | -968.0 | -777.3 | |
| 62.28 | 274.65 | 31.84 | 140.53 | 15.44 | 261.86 | -7.59 | 31.05 | 0.2478 | -1448.9 | -357.7 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 12.83 | 261.91 | -7.53 | 37.49 | 0.2110 | -989.0 | -724.0 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 12.49 | 261.89 | -7.56 | 38.59 | 0.2067 | -1013.0 | -830.1 | |
| 0.00 | 2.36 | 0.00 | 1.19 | 10.95 | 261.80 | -7.64 | 44.19 | 0.1881 | -826.0 | -566.0 | |
| 5.54 | -14.00 | 2.83 | -14.00 | 14.72 | 261.63 | -7.82 | 33.44 | 0.2397 | -1053.0 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 11.47 | 260.91 | -8.53 | 45.41 | 0.2051 | -1150.0 | -986.2 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 16.52 | 260.66 | -8.78 | 32.47 | 0.2739 | -885.0 | -545.5 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 14.49 | 260.36 | -9.08 | 38.02 | 0.2492 | -807.0 | -591.5 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 12.35 | 260.16 | -9.29 | 44.79 | 0.2247 | -873.0 | -743.4 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 14.77 | 260.03 | -9.41 | 38.30 | 0.2563 | -876.0 | -733.4 | |
| 0.00 | 1.63 | 0.00 | 0.84 | 16.36 | 259.83 | -9.61 | 35.17 | 0.2794 | 852.0 | 670.7 | |
| 0.00 | 1.82 | 0.00 | 0.93 | 14.64 | 259.88 | -9.57 | 39.06 | 0.2563 | -741.0 | -666.0 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 15.64 | 259.74 | -9.71 | 37.04 | 0.2707 | 847.0 | 703.4 | |
| 0.00 | 0.73 | 0.00 | 0.37 | 15.17 | 259.76 | -9.69 | 38.09 | 0.2644 | -764.0 | -571.5 | |
| 0.00 | 0.73 | 0.00 | 0.37 | 15.79 | 259.63 | -9.81 | 36.97 | 0.2738 | 848.0 | 752.5 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 16.13 | 258.97 | -10.47 | 37.97 | 0.2850 | 478.0 | 401.8 | |
| 6.45 | 10.71 | 3.31 | 5.50 | 13.64 | 258.29 | -11.15 | 46.05 | 0.2622 | -1062.3 | -735.2 | |
| 0.00 | 3.54 | 0.00 | 1.84 | 16.03 | 257.85 | -11.60 | 41.02 | 0.2957 | 1004.0 | 901.4 | |
| 0.00 | 6.26 | 0.00 | 3.25 | 16.18 | 257.42 | -12.03 | 41.68 | 0.3023 | 961.0 | 695.2 | |
| 0.36 | 7.81 | 0.19 | 4.06 | 16.30 | 257.05 | -12.39 | 42.23 | 0.3078 | 1151.0 | 891.1 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 15.61 | 256.84 | -12.61 | 44.33 | 0.3022 | 1002.0 | 872.6 | |
| 2.27 | 3.45 | 1.18 | 1.80 | 16.64 | 256.71 | -12.74 | 42.23 | 0.3157 | 974.8 | 817.1 | |
| 1.45 | 3.09 | 0.76 | 1.61 | 16.30 | 256.70 | -12.75 | 43.03 | 0.3118 | 911.2 | 747.7 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 14.74 | 256.44 | -13.01 | 47.38 | 0.2971 | 908.0 | 694.2 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 14.27 | 256.14 | -13.30 | 49.22 | 0.2958 | 869.0 | 687.8 | |
| 0.00 | 1.63 | 0.00 | 0.87 | 18.51 | 254.95 | -14.49 | 41.87 | 0.3570 | -828.0 | -660.8 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 11.52 | 254.14 | -15.31 | 60.63 | 0.2982 | 833.0 | 715.7 | |
| 0.00 | 1.73 | 0.00 | 0.93 | 18.75 | 251.75 | -17.70 | 46.87 | 0.3960 | 815.0 | 608.4 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 12.78 | 251.68 | -17.76 | 60.55 | 0.3431 | 867.0 | 737.1 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 9.15 | 251.61 | -17.83 | 70.81 | 0.3216 | 743.0 | 587.7 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 10.03 | 251.47 | -17.98 | 68.34 | 0.3284 | 879.0 | 731.7 | |
| 0.00 | 4.36 | 0.00 | 2.38 | 19.39 | 250.08 | -19.37 | 48.09 | 0.4221 | 857.0 | 567.8 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 17.05 | 250.24 | -19.20 | 52.48 | 0.3981 | 896.0 | 736.2 | |
| 0.00 | 1.00 | 0.00 | 0.55 | 19.64 | 249.87 | -19.57 | 47.90 | 0.4270 | 831.0 | 631.5 | |
| 0.00 | 0.82 | 0.00 | 0.43 | 10.57 | 250.65 | -18.79 | 67.64 | 0.3439 | 709.0 | 520.7 | |
| 0.00 | 1.00 | 0.00 | 0.54 | 17.35 | 249.26 | -20.19 | 53.16 | 0.4133 | 901.0 | 653.5 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 13.30 | 249.36 | -20.09 | 62.01 | 0.3801 | 720.0 | 586.0 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 12.30 | 248.81 | -20.64 | 64.99 | 0.3816 | 745.0 | 519.6 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 16.26 | 248.09 | -21.36 | 56.80 | 0.4195 | 679.0 | 490.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
