SDO HMI 2014-07-04 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 159.62 | 640.94 | 94.56 | 378.54 | -7.59 | 238.32 | -31.12 | 109.52 | 0.5449 | -34.6 | -25.0 | |
|
previous
or next observation for the same group /

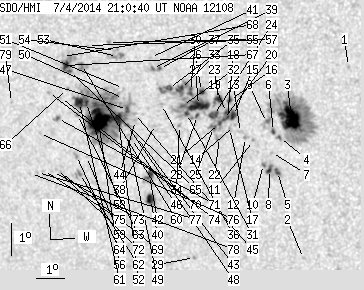

back to the solar disc SDO HMI 2014-07-04 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.60 | -5.88 | 244.42 | -25.03 | 110.05 | 0.4498 | 805.0 | 597.6 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -11.92 | 242.39 | -27.05 | 119.89 | 0.5152 | 616.0 | 428.6 | |
| 25.79 | 160.34 | 14.62 | 90.85 | -7.54 | 242.37 | -27.08 | 111.88 | 0.4882 | 1247.8 | 484.6 | |
| 0.64 | -3.00 | 0.36 | -3.00 | -8.14 | 241.91 | -27.54 | 112.69 | 0.4980 | 666.6 | 999999 | |
| 2.09 | 11.08 | 1.20 | 6.36 | -9.21 | 241.75 | -27.69 | 114.54 | 0.5063 | 942.4 | 611.2 | |
| 1.18 | 2.63 | 0.67 | 1.50 | -7.96 | 241.71 | -27.73 | 112.21 | 0.4997 | 809.8 | 610.7 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -8.62 | 241.59 | -27.85 | 113.34 | 0.5051 | 756.0 | 535.6 | |
| 2.63 | -5.00 | 1.51 | -5.00 | -9.15 | 241.48 | -27.97 | 114.23 | 0.5097 | 859.3 | 999999 | |
| 0.00 | 5.63 | 0.00 | 3.22 | -7.69 | 241.49 | -27.95 | 111.54 | 0.5014 | 761.0 | 615.1 | |
| 0.00 | 1.91 | 0.00 | 1.10 | -9.00 | 241.28 | -28.16 | 113.81 | 0.5116 | 739.0 | 605.5 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -8.26 | 240.99 | -28.45 | 112.25 | 0.5114 | 764.0 | 605.8 | |
| 0.00 | 1.91 | 0.00 | 1.10 | -8.17 | 240.72 | -28.73 | 111.91 | 0.5148 | 676.0 | 540.2 | |
| 0.00 | 2.09 | 0.00 | 1.21 | -8.02 | 240.55 | -28.89 | 111.52 | 0.5163 | 574.0 | 433.0 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -7.81 | 240.36 | -29.08 | 111.01 | 0.5179 | 364.0 | 305.5 | |
| 3.45 | 128.93 | 1.99 | 75.39 | -7.50 | 240.35 | -29.10 | 110.43 | 0.5165 | 1052.7 | 245.9 | |
| 1.54 | 2.81 | 0.89 | 1.63 | -7.04 | 240.24 | -29.20 | 109.52 | 0.5158 | 1101.6 | 877.6 | |
| 0.00 | 2.00 | 0.00 | 1.16 | -7.91 | 240.18 | -29.27 | 111.07 | 0.5210 | -59.0 | -34.9 | |
| 1.45 | -15.00 | 0.84 | -15.00 | -7.57 | 240.13 | -29.31 | 110.42 | 0.5199 | 938.7 | 999999 | |
| 1.27 | -15.00 | 0.74 | -15.00 | -7.41 | 240.11 | -29.34 | 110.12 | 0.5195 | 927.6 | 999999 | |
| 0.27 | -15.00 | 0.16 | -15.00 | -7.64 | 239.99 | -29.46 | 110.45 | 0.5223 | 774.3 | 999999 | |
| 1.27 | -15.00 | 0.74 | -15.00 | -7.76 | 239.83 | -29.61 | 110.58 | 0.5250 | 576.2 | 999999 | |
| 0.00 | 5.27 | 0.00 | 3.07 | -8.20 | 239.80 | -29.65 | 111.34 | 0.5277 | -597.0 | -553.5 | |
| 4.09 | 10.17 | 2.37 | 5.90 | -7.02 | 239.85 | -29.59 | 109.24 | 0.5211 | 978.1 | 736.0 | |
| 4.63 | -15.00 | 2.69 | -15.00 | -7.52 | 239.64 | -29.80 | 110.03 | 0.5265 | 853.0 | 999999 | |
| 1.54 | -15.00 | 0.90 | -15.00 | -7.89 | 239.61 | -29.83 | 110.68 | 0.5288 | 533.5 | 999999 | |
| 2.45 | -15.00 | 1.43 | -15.00 | -6.79 | 239.27 | -30.18 | 108.48 | 0.5283 | 787.1 | 999999 | |
| 14.62 | -15.00 | 8.54 | -15.00 | -7.23 | 239.13 | -30.32 | 109.19 | 0.5323 | 729.1 | 999999 | |
| 1.00 | -15.00 | 0.58 | -15.00 | -7.54 | 239.07 | -30.38 | 109.71 | 0.5346 | 644.3 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.71 | -11.99 | 238.50 | -30.95 | 116.90 | 0.5662 | 630.0 | 562.2 | |
| 2.63 | -15.00 | 1.54 | -15.00 | -6.80 | 238.88 | -30.57 | 108.28 | 0.5339 | 781.4 | 999999 | |
| 1.63 | -15.00 | 0.96 | -15.00 | -7.49 | 238.68 | -30.76 | 109.39 | 0.5397 | 472.9 | 999999 | |
| 1.54 | -15.00 | 0.91 | -15.00 | -7.24 | 238.56 | -30.89 | 108.89 | 0.5404 | -221.9 | 999999 | |
| 3.81 | -15.00 | 2.24 | -15.00 | -6.75 | 238.52 | -30.92 | 107.99 | 0.5387 | 826.4 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -7.87 | 238.40 | -31.05 | 109.90 | 0.5454 | 467.0 | 292.3 | |
| 2.54 | -15.00 | 1.50 | -15.00 | -6.73 | 238.09 | -31.35 | 107.73 | 0.5446 | 542.3 | 999999 | |
| 0.00 | 1.91 | 0.00 | 1.13 | -7.23 | 237.80 | -31.64 | 108.46 | 0.5508 | -288.0 | -258.4 | |
| 0.73 | 5.27 | 0.43 | 3.11 | -6.12 | 237.81 | -31.63 | 106.51 | 0.5460 | 747.4 | 315.7 | |
| 0.00 | 0.54 | 0.00 | 0.32 | -7.86 | 237.53 | -31.91 | 109.40 | 0.5573 | -192.0 | -215.0 | |
| 0.64 | -37.00 | 0.38 | -37.00 | -6.13 | 237.56 | -31.89 | 106.40 | 0.5496 | 479.7 | 999999 | |
| 5.72 | 8.35 | 3.46 | 5.05 | -10.21 | 237.11 | -32.34 | 113.08 | 0.5744 | -994.2 | -717.6 | |
| 0.00 | 1.45 | 0.00 | 0.86 | -5.79 | 237.51 | -31.94 | 105.78 | 0.5490 | 569.0 | 424.9 | |
| 4.18 | 10.71 | 2.51 | 6.45 | -9.46 | 237.16 | -32.29 | 111.87 | 0.5699 | 823.3 | 296.5 | |
| 0.00 | 1.09 | 0.00 | 0.66 | -8.26 | 236.80 | -32.64 | 109.66 | 0.5690 | -700.0 | -606.2 | |
| 0.00 | 0.91 | 0.00 | 0.54 | -7.76 | 236.81 | -32.63 | 108.83 | 0.5667 | -272.0 | -250.9 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -7.54 | 236.79 | -32.65 | 108.46 | 0.5660 | -300.0 | -293.6 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -8.32 | 236.61 | -32.83 | 109.67 | 0.5719 | -757.0 | -645.3 | |
| 2.45 | 198.57 | 1.47 | 120.76 | -7.43 | 236.55 | -32.90 | 108.13 | 0.5689 | -1101.4 | -598.7 | |
| 1.18 | -47.00 | 0.71 | -47.00 | -7.92 | 236.50 | -32.94 | 108.95 | 0.5716 | -937.4 | 999999 | |
| 0.00 | 2.18 | 0.00 | 1.32 | -8.23 | 236.47 | -32.97 | 109.45 | 0.5734 | -814.0 | -622.8 | |
| 0.00 | 0.64 | 0.00 | 0.38 | -7.09 | 236.43 | -33.02 | 107.50 | 0.5691 | -886.0 | -703.9 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -6.78 | 236.45 | -32.99 | 106.99 | 0.5675 | 546.0 | 288.5 | |
| 7.90 | -47.00 | 4.77 | -47.00 | -7.75 | 236.19 | -33.26 | 108.49 | 0.5751 | -1111.9 | 999999 | |
| 0.00 | 6.45 | 0.00 | 3.87 | -5.79 | 236.31 | -33.14 | 105.24 | 0.5658 | 318.0 | 438.1 | |
| 0.00 | 1.73 | 0.00 | 1.03 | -5.61 | 236.25 | -33.20 | 104.90 | 0.5660 | 541.0 | 519.7 | |
| 0.00 | 2.00 | 0.00 | 1.20 | -5.37 | 236.00 | -33.44 | 104.39 | 0.5686 | 613.0 | 476.0 | |
| 37.41 | -47.00 | 22.81 | -47.00 | -7.80 | 235.44 | -34.00 | 108.21 | 0.5854 | -1168.6 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.44 | -5.49 | 235.22 | -34.22 | 104.26 | 0.5798 | -487.0 | -463.8 | |
| 2.36 | -47.00 | 1.44 | -47.00 | -7.25 | 235.05 | -34.40 | 107.12 | 0.5886 | -932.4 | 999999 | |
| 0.00 | 0.64 | 0.00 | 0.39 | -8.94 | 234.88 | -34.57 | 109.76 | 0.5978 | -643.0 | -505.9 | |
| 0.64 | 7.17 | 0.39 | 4.37 | -6.08 | 234.96 | -34.49 | 105.15 | 0.5855 | -1064.0 | -825.3 | |
| 7.54 | -47.00 | 4.62 | -47.00 | -7.26 | 234.78 | -34.66 | 107.01 | 0.5922 | -894.7 | 999999 | |
| 0.54 | 4.99 | 0.34 | 3.10 | -9.48 | 234.55 | -34.89 | 110.45 | 0.6044 | -937.2 | -695.3 | |
| 0.00 | 1.54 | 0.00 | 0.95 | -7.64 | 234.67 | -34.77 | 107.57 | 0.5951 | -643.0 | -515.9 | |
| 0.00 | 2.63 | 0.00 | 1.63 | -8.92 | 234.50 | -34.94 | 109.54 | 0.6026 | -812.0 | -631.4 | |
| 1.27 | 18.07 | 0.78 | 11.09 | -6.31 | 234.49 | -34.96 | 105.33 | 0.5927 | -956.6 | -732.3 | |
| 0.00 | 1.00 | 0.00 | 0.62 | -6.84 | 234.37 | -35.07 | 106.15 | 0.5962 | -642.0 | -561.8 | |
| 4.27 | -65.00 | 2.62 | -65.00 | -6.13 | 234.35 | -35.09 | 104.98 | 0.5939 | -927.2 | 999999 | |
| 0.00 | 2.63 | 0.00 | 1.62 | -5.86 | 234.26 | -35.18 | 104.49 | 0.5942 | -180.0 | -238.3 | |
| 0.00 | 1.18 | 0.00 | 0.74 | -9.47 | 233.83 | -35.61 | 110.07 | 0.6137 | -612.0 | -507.8 | |
| 0.00 | 0.82 | 0.00 | 0.51 | -7.13 | 234.08 | -35.36 | 106.49 | 0.6011 | -438.0 | -417.4 | |
| 0.73 | 2.81 | 0.45 | 1.75 | -7.79 | 233.91 | -35.54 | 107.46 | 0.6059 | -862.8 | -653.6 | |
| 0.00 | 1.00 | 0.00 | 0.63 | -9.38 | 233.69 | -35.75 | 109.87 | 0.6152 | -502.0 | -456.5 | |
| 0.00 | 0.91 | 0.00 | 0.57 | -9.45 | 233.53 | -35.92 | 109.89 | 0.6176 | -432.0 | -366.7 | |
| 0.00 | 1.27 | 0.00 | 0.79 | -6.99 | 233.64 | -35.81 | 106.07 | 0.6065 | -650.0 | -520.1 | |
| 0.00 | 1.45 | 0.00 | 0.92 | -9.43 | 233.19 | -36.26 | 109.69 | 0.6219 | -278.0 | -333.4 | |
| 0.00 | 1.18 | 0.00 | 0.74 | -8.28 | 233.17 | -36.28 | 107.90 | 0.6175 | -582.0 | -427.8 | |
| 0.00 | 0.91 | 0.00 | 0.58 | -9.50 | 232.95 | -36.50 | 109.69 | 0.6253 | -606.0 | -476.3 | |
| 0.00 | 0.82 | 0.00 | 0.52 | -9.54 | 232.67 | -36.77 | 109.62 | 0.6290 | -289.0 | -284.2 | |
| 0.00 | 1.00 | 0.00 | 0.63 | -7.35 | 232.19 | -37.26 | 106.04 | 0.6270 | -462.0 | -366.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
