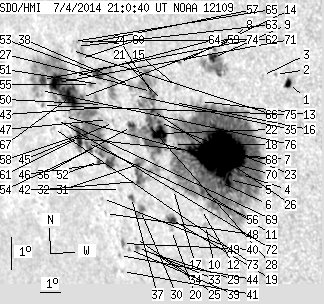

SDO HMI 2014-07-04 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 298.79 | 1433.31 | 237.76 | 1139.36 | -7.65 | 219.21 | -50.23 | 102.57 | 0.7817 | 282.5 | -18.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-04 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.09 | 6.45 | 2.87 | 4.53 | -5.82 | 225.14 | -44.30 | 101.53 | 0.7114 | 819.7 | 554.2 | |
| 0.00 | 1.18 | 0.00 | 0.84 | -5.56 | 224.61 | -44.84 | 101.04 | 0.7173 | 704.0 | 562.4 | |
| 0.00 | 0.73 | 0.00 | 0.52 | -5.61 | 224.04 | -45.41 | 100.97 | 0.7242 | 537.0 | 375.0 | |
| 0.27 | 747.42 | 0.20 | 564.97 | -8.74 | 222.64 | -46.80 | 104.78 | 0.7475 | 870.0 | 285.6 | |
| 6.45 | -4.00 | 4.84 | -4.00 | -8.92 | 222.06 | -47.38 | 104.85 | 0.7544 | 848.4 | 999999 | |
| 1.00 | -4.00 | 0.76 | -4.00 | -9.03 | 221.68 | -47.77 | 104.89 | 0.7589 | 457.2 | 999999 | |
| 151.90 | -4.00 | 114.44 | -4.00 | -8.12 | 221.78 | -47.66 | 103.74 | 0.7556 | 1185.9 | 999999 | |
| 0.54 | 40.95 | 0.40 | 30.47 | -4.90 | 221.97 | -47.48 | 99.55 | 0.7469 | -593.3 | -397.3 | |
| 4.99 | -8.00 | 3.72 | -8.00 | -5.15 | 221.90 | -47.55 | 99.87 | 0.7482 | -764.9 | 999999 | |
| 0.00 | 3.00 | 0.00 | 2.33 | -10.41 | 220.71 | -48.74 | 106.38 | 0.7728 | -267.0 | -232.8 | |
| 2.00 | -4.00 | 1.54 | -4.00 | -9.34 | 220.78 | -48.66 | 105.05 | 0.7694 | -327.5 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.99 | -9.91 | 220.62 | -48.82 | 105.73 | 0.7725 | -305.0 | -273.4 | |
| 0.00 | 1.36 | 0.00 | 1.03 | -6.54 | 221.14 | -48.31 | 101.52 | 0.7594 | 304.0 | 267.9 | |
| 0.45 | 1.82 | 0.35 | 1.39 | -5.37 | 220.30 | -49.14 | 99.83 | 0.7665 | -553.6 | -416.3 | |
| 0.00 | 3.81 | 0.00 | 2.95 | -6.12 | 220.07 | -49.38 | 100.75 | 0.7704 | 244.0 | 162.8 | |
| 0.00 | 1.18 | 0.00 | 0.92 | -6.62 | 219.91 | -49.54 | 101.36 | 0.7731 | 242.0 | 200.7 | |
| 0.00 | 1.00 | 0.00 | 0.79 | -9.34 | 219.40 | -50.05 | 104.68 | 0.7841 | 107.0 | 105.2 | |
| 0.00 | 0.73 | 0.00 | 0.57 | -7.93 | 219.66 | -49.79 | 102.97 | 0.7784 | 391.0 | 341.8 | |
| 4.18 | 8.72 | 3.35 | 7.00 | -10.29 | 219.10 | -50.34 | 105.78 | 0.7894 | 472.6 | 233.8 | |
| 0.00 | 1.18 | 0.00 | 0.95 | -10.64 | 219.02 | -50.42 | 106.19 | 0.7910 | 414.0 | 365.6 | |
| 0.00 | 1.63 | 0.00 | 1.29 | -6.58 | 219.34 | -50.11 | 101.18 | 0.7792 | -199.0 | -181.2 | |
| 17.25 | 200.47 | 13.72 | 161.19 | -7.62 | 219.04 | -50.41 | 102.42 | 0.7844 | 803.6 | -162.6 | |
| 1.63 | -22.00 | 1.30 | -22.00 | -7.27 | 219.09 | -50.35 | 102.01 | 0.7831 | 699.9 | 999999 | |
| 1.27 | -22.00 | 1.01 | -22.00 | -6.45 | 218.92 | -50.52 | 100.92 | 0.7834 | 765.9 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.68 | -11.38 | 217.95 | -51.49 | 106.80 | 0.8036 | -640.0 | -512.3 | |
| 2.09 | -22.00 | 1.66 | -22.00 | -6.92 | 218.81 | -50.64 | 101.49 | 0.7855 | 563.3 | 999999 | |
| 0.27 | -22.00 | 0.22 | -22.00 | -6.33 | 218.84 | -50.60 | 100.76 | 0.7840 | 701.3 | 999999 | |
| 0.91 | -22.00 | 0.73 | -22.00 | -7.36 | 218.54 | -50.90 | 101.99 | 0.7891 | 215.9 | 999999 | |
| 0.00 | 0.36 | 0.00 | 0.30 | -11.36 | 217.55 | -51.89 | 106.68 | 0.8075 | -648.0 | -613.2 | |
| 0.00 | 8.08 | 0.00 | 6.70 | -10.08 | 217.61 | -51.83 | 105.13 | 0.8041 | -380.0 | -146.9 | |
| 1.73 | -22.00 | 1.42 | -22.00 | -8.63 | 217.82 | -51.63 | 103.41 | 0.7990 | -890.3 | 999999 | |
| 1.36 | -22.00 | 1.12 | -22.00 | -9.17 | 217.66 | -51.78 | 104.03 | 0.8017 | -842.1 | 999999 | |
| 0.91 | 2.72 | 0.77 | 2.30 | -11.26 | 217.17 | -52.27 | 106.45 | 0.8110 | -811.4 | -657.0 | |
| 0.00 | 1.00 | 0.00 | 0.84 | -10.97 | 217.14 | -52.30 | 106.10 | 0.8107 | -467.0 | -411.3 | |
| 0.00 | 2.00 | 0.00 | 1.62 | -6.49 | 217.99 | -51.46 | 100.78 | 0.7933 | 137.0 | 40.5 | |
| 3.99 | -22.00 | 3.27 | -22.00 | -7.46 | 217.68 | -51.76 | 101.93 | 0.7982 | 106.6 | 999999 | |
| 1.91 | 3.99 | 1.59 | 3.33 | -9.69 | 217.25 | -52.20 | 104.57 | 0.8069 | -684.2 | -523.8 | |
| 0.00 | 5.45 | 0.00 | 4.42 | -6.19 | 217.83 | -51.61 | 100.38 | 0.7944 | -324.0 | -243.4 | |
| 0.00 | 1.45 | 0.00 | 1.24 | -11.34 | 216.74 | -52.71 | 106.43 | 0.8154 | -609.0 | -551.2 | |
| 0.00 | 3.45 | 0.00 | 2.96 | -11.16 | 216.42 | -53.02 | 106.15 | 0.8181 | -704.0 | -609.8 | |
| 0.00 | 1.18 | 0.00 | 1.02 | -12.06 | 216.17 | -53.27 | 107.15 | 0.8224 | -359.0 | -304.8 | |
| 0.00 | 2.18 | 0.00 | 1.84 | -9.46 | 216.74 | -52.71 | 104.17 | 0.8115 | -384.0 | -361.5 | |
| 0.00 | 1.73 | 0.00 | 1.42 | -6.86 | 217.18 | -52.27 | 101.09 | 0.8023 | -354.0 | -341.6 | |
| 0.00 | 0.91 | 0.00 | 0.78 | -11.55 | 216.16 | -53.28 | 106.54 | 0.8214 | -404.0 | -372.8 | |
| 0.00 | 2.09 | 0.00 | 1.74 | -7.38 | 216.79 | -52.65 | 101.64 | 0.8072 | 108.0 | 39.7 | |
| 7.35 | 302.07 | 6.23 | 265.05 | -8.64 | 216.40 | -53.05 | 103.09 | 0.8133 | -675.4 | -400.5 | |
| 0.00 | 1.36 | 0.00 | 1.14 | -7.30 | 216.50 | -52.95 | 101.48 | 0.8100 | -357.0 | -297.9 | |
| 0.00 | 0.82 | 0.00 | 0.71 | -10.26 | 215.77 | -53.68 | 104.90 | 0.8225 | -378.0 | -288.2 | |
| 0.00 | 1.09 | 0.00 | 0.94 | -9.79 | 215.73 | -53.72 | 104.33 | 0.8220 | -455.0 | -396.3 | |
| 0.00 | 0.64 | 0.00 | 0.54 | -6.84 | 216.32 | -53.13 | 100.89 | 0.8110 | -374.0 | -313.1 | |
| 0.00 | 0.91 | 0.00 | 0.76 | -6.22 | 216.31 | -53.13 | 100.13 | 0.8101 | -373.0 | -356.9 | |
| 1.27 | 2.45 | 1.09 | 2.11 | -8.63 | 215.77 | -53.67 | 102.95 | 0.8194 | -426.9 | -384.2 | |
| 5.99 | 33.68 | 5.04 | 28.09 | -5.89 | 216.21 | -53.24 | 99.71 | 0.8107 | -839.6 | -608.7 | |
| 1.82 | -46.00 | 1.57 | -46.00 | -8.28 | 215.43 | -54.02 | 102.45 | 0.8222 | -634.4 | 999999 | |
| 0.91 | 2.00 | 0.77 | 1.70 | -6.25 | 215.79 | -53.65 | 100.07 | 0.8154 | -745.3 | -653.6 | |
| 0.27 | -46.00 | 0.24 | -46.00 | -8.07 | 215.26 | -54.19 | 102.16 | 0.8235 | -726.7 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.92 | -4.99 | 215.70 | -53.74 | 98.52 | 0.8144 | -730.0 | -581.4 | |
| 4.45 | -46.00 | 3.86 | -46.00 | -7.79 | 215.21 | -54.24 | 101.82 | 0.8235 | -905.9 | 999999 | |
| 1.27 | -46.00 | 1.10 | -46.00 | -6.67 | 215.25 | -54.19 | 100.49 | 0.8213 | -831.9 | 999999 | |
| 0.00 | 12.26 | 0.00 | 10.51 | -5.46 | 215.38 | -54.06 | 99.05 | 0.8183 | -628.0 | -546.9 | |
| 10.62 | -46.00 | 9.31 | -46.00 | -7.93 | 214.92 | -54.53 | 101.93 | 0.8266 | -716.0 | 999999 | |
| 0.00 | 1.27 | 0.00 | 1.09 | -4.95 | 215.29 | -54.16 | 98.40 | 0.8185 | -566.0 | -542.8 | |
| 0.00 | 1.09 | 0.00 | 0.94 | -5.10 | 215.22 | -54.23 | 98.58 | 0.8194 | -519.0 | -542.3 | |
| 0.00 | 1.00 | 0.00 | 0.87 | -6.04 | 214.98 | -54.46 | 99.67 | 0.8230 | -568.0 | -516.2 | |
| 0.00 | 0.82 | 0.00 | 0.70 | -4.96 | 215.08 | -54.37 | 98.38 | 0.8206 | -391.0 | -392.9 | |
| 0.00 | 0.64 | 0.00 | 0.55 | -5.24 | 214.93 | -54.51 | 98.70 | 0.8224 | -469.0 | -413.4 | |
| 27.06 | -46.00 | 23.72 | -46.00 | -6.67 | 214.67 | -54.78 | 100.38 | 0.8270 | -878.1 | 999999 | |
| 0.00 | 2.18 | 0.00 | 1.93 | -7.95 | 214.43 | -55.02 | 101.86 | 0.8313 | -358.0 | -277.2 | |
| 0.00 | 0.91 | 0.00 | 0.81 | -7.49 | 214.25 | -55.20 | 101.28 | 0.8323 | -400.0 | -316.2 | |
| 0.00 | 0.73 | 0.00 | 0.65 | -7.31 | 214.23 | -55.22 | 101.06 | 0.8322 | -449.0 | -373.2 | |
| 22.24 | -46.00 | 19.78 | -46.00 | -6.27 | 214.03 | -55.41 | 99.78 | 0.8325 | -713.7 | 999999 | |
| 0.00 | 1.36 | 0.00 | 1.22 | -7.42 | 213.77 | -55.67 | 101.11 | 0.8367 | -231.0 | -203.9 | |
| 0.00 | 1.91 | 0.00 | 1.73 | -7.71 | 213.55 | -55.90 | 101.41 | 0.8392 | -292.0 | -173.0 | |
| 5.90 | -46.00 | 5.36 | -46.00 | -6.21 | 213.22 | -56.23 | 99.58 | 0.8402 | -395.6 | 999999 | |
| 0.45 | 1.63 | 0.41 | 1.49 | -7.02 | 213.07 | -56.37 | 100.51 | 0.8426 | -345.0 | -211.5 | |
| 0.00 | 1.09 | 0.00 | 0.99 | -6.56 | 213.04 | -56.40 | 99.96 | 0.8422 | -176.0 | -111.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
