SDO HMI 2014-07-04 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.33 | 98.25 | 26.80 | 118.32 | 6.06 | 203.62 | -65.82 | 84.83 | 0.9125 | -529.8 | -99.8 | |
|
previous
or next observation for the same group /

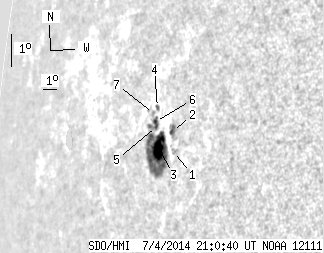

back to the solar disc SDO HMI 2014-07-04 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.18 | 0.00 | 3.66 | 5.84 | 204.72 | -64.73 | 85.08 | 0.9047 | -616.0 | -586.2 | |
| 1.36 | 6.36 | 1.58 | 7.39 | 6.45 | 204.51 | -64.94 | 84.41 | 0.9062 | -760.8 | -545.0 | |
| 18.79 | 75.09 | 22.57 | 90.58 | 5.91 | 203.59 | -65.85 | 84.99 | 0.9128 | -585.1 | -66.5 | |
| 0.64 | 2.09 | 0.77 | 2.54 | 7.12 | 203.21 | -66.24 | 83.66 | 0.9155 | -344.3 | -275.6 | |
| 0.27 | 9.62 | 0.33 | 11.80 | 6.54 | 203.29 | -66.16 | 84.29 | 0.9149 | -289.0 | 72.7 | |
| 1.27 | -5.00 | 1.55 | -5.00 | 6.68 | 203.17 | -66.27 | 84.13 | 0.9157 | -227.1 | 999999 | |
| 0.00 | 1.91 | 0.00 | 2.35 | 6.92 | 202.95 | -66.49 | 83.87 | 0.9172 | 238.0 | 198.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
