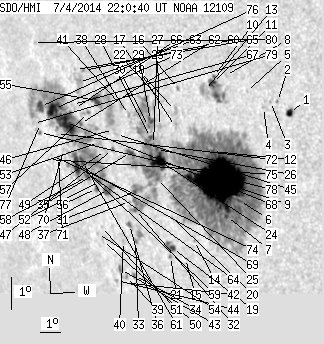

SDO HMI 2014-07-04 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 313.24 | 1474.04 | 245.84 | 1156.21 | -7.68 | 219.43 | -49.46 | 102.79 | 0.7735 | 320.0 | -25.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-04 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.00 | 5.54 | 2.78 | 3.85 | -5.88 | 225.18 | -43.71 | 101.78 | 0.7044 | 700.4 | 484.2 | |
| 0.00 | 1.18 | 0.00 | 0.83 | -5.56 | 224.70 | -44.19 | 101.21 | 0.7095 | 505.0 | 527.3 | |
| 0.00 | 0.91 | 0.00 | 0.64 | -5.58 | 224.40 | -44.49 | 101.15 | 0.7132 | 513.0 | 340.9 | |
| 0.00 | 1.00 | 0.00 | 0.71 | -5.77 | 224.08 | -44.81 | 101.34 | 0.7175 | 491.0 | 401.9 | |
| 0.00 | 0.82 | 0.00 | 0.59 | -5.31 | 223.38 | -45.51 | 100.54 | 0.7248 | 598.0 | 405.4 | |
| 1.82 | 997.32 | 1.34 | 755.79 | -8.71 | 222.63 | -46.26 | 104.91 | 0.7413 | 979.0 | 170.2 | |
| 1.54 | -6.00 | 1.15 | -6.00 | -9.24 | 221.95 | -46.94 | 105.41 | 0.7503 | 672.5 | 999999 | |
| 0.00 | 1.63 | 0.00 | 1.19 | -4.85 | 222.50 | -46.39 | 99.72 | 0.7343 | -525.0 | -374.3 | |
| 169.07 | -6.00 | 125.94 | -6.00 | -8.16 | 221.82 | -47.07 | 103.95 | 0.7491 | 1185.4 | 999999 | |
| 0.54 | 27.06 | 0.40 | 19.86 | -4.90 | 221.96 | -46.94 | 99.68 | 0.7407 | -652.8 | -569.3 | |
| 4.45 | -10.00 | 3.28 | -10.00 | -5.12 | 221.89 | -47.00 | 99.96 | 0.7419 | -739.4 | 999999 | |
| 0.27 | -6.00 | 0.20 | -6.00 | -7.23 | 221.64 | -47.25 | 102.69 | 0.7490 | 641.0 | 999999 | |
| 0.00 | 9.53 | 0.00 | 7.08 | -5.35 | 221.50 | -47.39 | 100.18 | 0.7467 | -63.0 | 65.6 | |
| 0.00 | 1.09 | 0.00 | 0.84 | -10.06 | 220.32 | -48.57 | 105.99 | 0.7702 | -605.0 | -525.6 | |
| 0.00 | 0.73 | 0.00 | 0.57 | -10.64 | 219.77 | -49.12 | 106.57 | 0.7775 | 458.0 | 382.8 | |
| 0.00 | 1.63 | 0.00 | 1.24 | -5.34 | 220.31 | -48.58 | 99.92 | 0.7602 | -499.0 | -424.3 | |
| 0.00 | 1.54 | 0.00 | 1.18 | -6.53 | 220.03 | -48.86 | 101.39 | 0.7656 | 529.0 | 417.6 | |
| 0.00 | 3.18 | 0.00 | 2.43 | -6.03 | 220.09 | -48.80 | 100.76 | 0.7639 | 234.0 | 109.9 | |
| 3.18 | 8.90 | 2.52 | 7.06 | -10.36 | 219.21 | -49.68 | 106.05 | 0.7827 | 538.7 | 268.5 | |
| 0.00 | 1.09 | 0.00 | 0.86 | -9.38 | 219.37 | -49.52 | 104.87 | 0.7787 | 160.0 | 66.8 | |
| 0.45 | 1.73 | 0.36 | 1.37 | -10.61 | 219.06 | -49.83 | 106.33 | 0.7849 | 394.6 | 275.6 | |
| 0.00 | 1.45 | 0.00 | 1.12 | -5.78 | 219.51 | -49.38 | 100.31 | 0.7699 | -624.0 | -562.8 | |
| 0.00 | 2.54 | 0.00 | 1.98 | -6.56 | 219.27 | -49.62 | 101.27 | 0.7739 | 51.0 | 6.4 | |
| 18.43 | -6.00 | 14.49 | -6.00 | -7.62 | 219.06 | -49.83 | 102.57 | 0.7782 | 780.1 | 999999 | |
| 1.54 | -6.00 | 1.22 | -6.00 | -8.19 | 218.92 | -49.97 | 103.25 | 0.7809 | -402.8 | 999999 | |
| 1.82 | -6.00 | 1.42 | -6.00 | -7.28 | 219.02 | -49.87 | 102.13 | 0.7780 | 694.5 | 999999 | |
| 0.27 | -6.00 | 0.21 | -6.00 | -7.13 | 218.90 | -49.99 | 101.91 | 0.7790 | 414.3 | 999999 | |
| 1.45 | -6.00 | 1.14 | -6.00 | -6.92 | 218.78 | -50.11 | 101.62 | 0.7798 | 602.4 | 999999 | |
| 3.00 | -6.00 | 2.35 | -6.00 | -6.39 | 218.86 | -50.03 | 100.96 | 0.7780 | 762.8 | 999999 | |
| 0.73 | -6.00 | 0.57 | -6.00 | -6.58 | 218.74 | -50.15 | 101.18 | 0.7797 | 575.0 | 999999 | |
| 1.82 | -6.00 | 1.47 | -6.00 | -8.64 | 217.76 | -51.13 | 103.54 | 0.7940 | -917.9 | 999999 | |
| 1.36 | -6.00 | 1.11 | -6.00 | -9.21 | 217.65 | -51.24 | 104.21 | 0.7963 | -851.0 | 999999 | |
| 0.54 | 8.90 | 0.45 | 7.28 | -10.18 | 217.44 | -51.46 | 105.36 | 0.8005 | 282.0 | -305.4 | |
| 0.64 | 2.00 | 0.53 | 1.67 | -11.29 | 217.11 | -51.78 | 106.63 | 0.8062 | -760.3 | -682.3 | |
| 2.81 | -6.00 | 2.27 | -6.00 | -7.43 | 217.73 | -51.16 | 102.03 | 0.7919 | 344.0 | 999999 | |
| 1.36 | 3.54 | 1.12 | 2.92 | -9.69 | 217.25 | -51.65 | 104.71 | 0.8014 | -687.9 | -549.7 | |
| 0.00 | 0.82 | 0.00 | 0.67 | -8.97 | 217.40 | -51.49 | 103.86 | 0.7983 | -611.0 | -548.9 | |
| 0.00 | 2.45 | 0.00 | 1.97 | -6.25 | 217.81 | -51.08 | 100.57 | 0.7890 | -322.0 | -246.5 | |
| 0.00 | 1.63 | 0.00 | 1.37 | -11.35 | 216.70 | -52.20 | 106.58 | 0.8105 | -704.0 | -572.4 | |
| 0.00 | 1.63 | 0.00 | 1.36 | -10.24 | 216.82 | -52.07 | 105.28 | 0.8068 | -566.0 | -485.4 | |
| 0.00 | 1.91 | 0.00 | 1.54 | -5.99 | 217.50 | -51.39 | 100.18 | 0.7918 | -310.0 | -318.0 | |
| 0.00 | 0.82 | 0.00 | 0.69 | -11.55 | 216.39 | -52.51 | 106.74 | 0.8139 | -469.0 | -383.4 | |
| 1.18 | 2.72 | 1.00 | 2.30 | -11.14 | 216.44 | -52.45 | 106.26 | 0.8125 | -633.0 | -546.1 | |
| 0.00 | 1.18 | 0.00 | 1.01 | -11.50 | 216.14 | -52.75 | 106.62 | 0.8162 | -460.0 | -335.1 | |
| 0.00 | 1.63 | 0.00 | 1.34 | -6.90 | 217.12 | -51.77 | 101.24 | 0.7973 | -478.0 | -405.8 | |
| 0.00 | 1.00 | 0.00 | 0.82 | -6.75 | 216.99 | -51.90 | 101.03 | 0.7984 | -441.0 | -426.6 | |
| 0.64 | 1.82 | 0.52 | 1.49 | -7.38 | 216.84 | -52.05 | 101.77 | 0.8010 | 175.9 | 69.5 | |
| 7.17 | 288.10 | 6.00 | 249.23 | -8.64 | 216.41 | -52.48 | 103.23 | 0.8077 | -651.2 | -438.0 | |
| 0.00 | 2.45 | 0.00 | 2.04 | -7.43 | 216.48 | -52.41 | 101.76 | 0.8048 | -413.0 | -289.3 | |
| 0.00 | 1.09 | 0.00 | 0.93 | -10.26 | 215.74 | -53.15 | 105.03 | 0.8175 | -398.0 | -318.2 | |
| 0.00 | 0.64 | 0.00 | 0.54 | -9.82 | 215.79 | -53.10 | 104.52 | 0.8161 | -531.0 | -448.0 | |
| 1.73 | -48.00 | 1.46 | -48.00 | -8.41 | 215.99 | -52.90 | 102.85 | 0.8114 | -824.3 | 999999 | |
| 0.00 | 5.36 | 0.00 | 4.48 | -7.19 | 216.17 | -52.73 | 101.41 | 0.8076 | -441.0 | -468.8 | |
| 0.00 | 1.00 | 0.00 | 0.86 | -10.05 | 215.53 | -53.36 | 104.73 | 0.8191 | -309.0 | -277.4 | |
| 6.45 | 38.32 | 5.35 | 31.53 | -5.89 | 216.26 | -52.63 | 99.82 | 0.8045 | -807.1 | -594.6 | |
| 1.54 | 3.18 | 1.31 | 2.70 | -8.64 | 215.79 | -53.10 | 103.09 | 0.8139 | -477.7 | -347.8 | |
| 0.54 | 4.18 | 0.46 | 3.52 | -6.28 | 215.80 | -53.09 | 100.22 | 0.8098 | -752.8 | -633.8 | |
| 3.18 | -48.00 | 2.72 | -48.00 | -8.28 | 215.40 | -53.49 | 102.57 | 0.8171 | -625.9 | 999999 | |
| 0.54 | -48.00 | 0.47 | -48.00 | -8.07 | 215.23 | -53.66 | 102.28 | 0.8184 | -717.2 | 999999 | |
| 0.00 | 1.27 | 0.00 | 1.07 | -4.99 | 215.72 | -53.17 | 98.62 | 0.8087 | -627.0 | -594.0 | |
| 3.45 | -48.00 | 2.96 | -48.00 | -7.82 | 215.23 | -53.66 | 101.98 | 0.8180 | -949.3 | 999999 | |
| 1.45 | -48.00 | 1.24 | -48.00 | -6.64 | 215.33 | -53.56 | 100.57 | 0.8151 | -832.4 | 999999 | |
| 0.00 | 15.44 | 0.00 | 13.04 | -5.38 | 215.41 | -53.48 | 99.04 | 0.8124 | -745.0 | -522.5 | |
| 9.62 | -48.00 | 8.31 | -48.00 | -7.96 | 214.88 | -54.01 | 102.08 | 0.8216 | -722.9 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.69 | -4.98 | 215.30 | -53.59 | 98.54 | 0.8129 | -557.0 | -530.4 | |
| 0.00 | 0.82 | 0.00 | 0.70 | -6.19 | 215.09 | -53.80 | 99.98 | 0.8168 | -721.0 | -664.7 | |
| 0.00 | 1.18 | 0.00 | 1.01 | -6.07 | 215.00 | -53.89 | 99.82 | 0.8175 | -616.0 | -521.6 | |
| 30.87 | -48.00 | 26.73 | -48.00 | -6.65 | 214.59 | -54.30 | 100.44 | 0.8223 | -851.3 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.72 | -7.74 | 214.29 | -54.60 | 101.70 | 0.8270 | -346.0 | -278.9 | |
| 0.00 | 0.91 | 0.00 | 0.80 | -7.50 | 214.28 | -54.61 | 101.40 | 0.8266 | -477.0 | -414.6 | |
| 0.00 | 1.36 | 0.00 | 1.20 | -7.76 | 213.96 | -54.93 | 101.65 | 0.8301 | -289.0 | -231.4 | |
| 0.00 | 0.82 | 0.00 | 0.72 | -7.01 | 214.00 | -54.89 | 100.77 | 0.8286 | -220.0 | -231.4 | |
| 16.89 | -48.00 | 14.82 | -48.00 | -6.24 | 214.02 | -54.87 | 99.85 | 0.8273 | -728.1 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.24 | -7.71 | 213.59 | -55.30 | 101.53 | 0.8336 | -262.0 | -258.7 | |
| 0.00 | 0.82 | 0.00 | 0.73 | -7.85 | 213.40 | -55.49 | 101.65 | 0.8356 | -191.0 | -140.9 | |
| 6.36 | -48.00 | 5.68 | -48.00 | -6.21 | 213.27 | -55.62 | 99.69 | 0.8345 | -401.8 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.73 | -6.74 | 213.18 | -55.71 | 100.30 | 0.8361 | -39.0 | -37.4 | |
| 0.54 | 1.45 | 0.49 | 1.31 | -7.03 | 213.07 | -55.82 | 100.62 | 0.8375 | -214.5 | -148.5 | |
| 0.00 | 1.18 | 0.00 | 1.07 | -6.76 | 212.79 | -56.10 | 100.26 | 0.8397 | 305.0 | 267.0 | |
| 0.00 | 0.82 | 0.00 | 0.73 | -4.25 | 213.16 | -55.73 | 97.33 | 0.8331 | -358.0 | -355.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
