SDO HMI 2014-07-04 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.96 | 103.78 | 30.44 | 122.47 | 6.09 | 203.63 | -65.26 | 84.81 | 0.9085 | -512.5 | -103.4 | |
|
previous
or next observation for the same group /

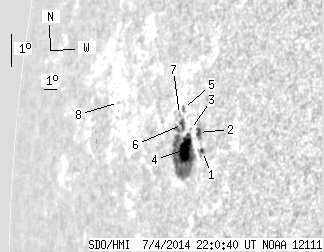

back to the solar disc SDO HMI 2014-07-04 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.18 | 3.90 | 1.33 | 4.41 | 5.91 | 204.87 | -64.02 | 85.02 | 0.8994 | -597.5 | -537.5 | |
| 2.54 | 9.26 | 2.90 | 10.55 | 6.47 | 204.45 | -64.44 | 84.39 | 0.9025 | -731.7 | -473.7 | |
| 0.00 | 0.91 | 0.00 | 1.06 | 6.53 | 203.86 | -65.03 | 84.31 | 0.9069 | -349.0 | -330.0 | |
| 19.61 | 75.82 | 23.07 | 89.51 | 5.91 | 203.64 | -65.25 | 85.00 | 0.9085 | -591.9 | -72.1 | |
| 0.00 | 2.18 | 0.00 | 2.60 | 7.14 | 203.18 | -65.71 | 83.64 | 0.9117 | -252.0 | -258.8 | |
| 2.63 | 9.35 | 3.14 | 11.21 | 6.65 | 203.23 | -65.66 | 84.17 | 0.9114 | -312.6 | 109.2 | |
| 0.00 | 1.45 | 0.00 | 1.75 | 6.95 | 202.93 | -65.96 | 83.85 | 0.9135 | 215.0 | 185.4 | |
| 0.00 | 0.91 | 0.00 | 1.38 | 7.04 | 197.70 | -71.19 | 83.67 | 0.9466 | 288.0 | 267.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
