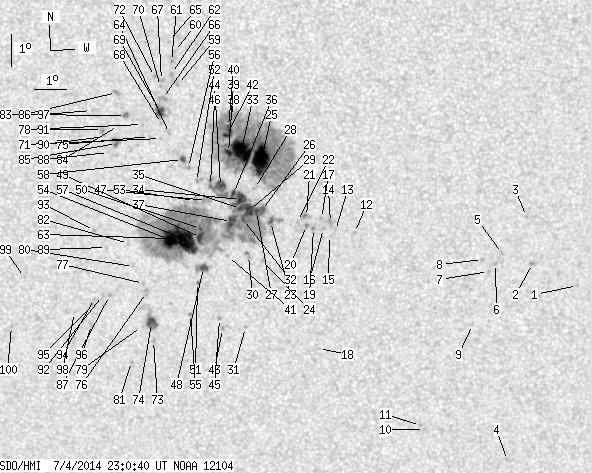

SDO HMI 2014-07-04 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 216.30 | 1122.66 | 110.96 | 576.18 | -11.66 | 268.50 | 0.16 | 180.70 | 0.2601 | 355.1 | 124.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-04 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.72 | -14.54 | 279.69 | 11.36 | 212.02 | 0.3611 | 653.0 | 492.3 | |
| 0.00 | 2.27 | 0.00 | 1.19 | -13.82 | 278.22 | 9.89 | 209.63 | 0.3387 | 920.0 | 719.4 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -12.32 | 277.97 | 9.64 | 211.38 | 0.3154 | 772.0 | 604.6 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -20.22 | 277.74 | 9.40 | 201.07 | 0.4282 | 759.0 | 628.1 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -13.49 | 277.26 | 8.92 | 207.65 | 0.3263 | 851.0 | 649.7 | |
| 0.00 | 1.91 | 0.00 | 1.00 | -13.81 | 277.04 | 8.71 | 206.64 | 0.3293 | 807.0 | 683.3 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -14.06 | 276.83 | 8.50 | 205.73 | 0.3315 | 723.0 | 592.8 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -13.67 | 276.63 | 8.29 | 205.72 | 0.3243 | 854.0 | 692.7 | |
| 0.00 | 0.82 | 0.00 | 0.43 | -15.75 | 276.39 | 8.05 | 202.49 | 0.3538 | 659.0 | 529.0 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -19.16 | 274.97 | 6.64 | 195.98 | 0.3983 | 667.0 | 446.2 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -19.03 | 274.84 | 6.50 | 195.76 | 0.3957 | 883.0 | 671.9 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -12.78 | 272.57 | 4.24 | 194.61 | 0.2870 | 912.0 | 723.0 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -12.72 | 271.98 | 3.64 | 192.68 | 0.2835 | 866.0 | 599.4 | |
| 0.00 | 3.81 | 0.00 | 1.97 | -12.46 | 271.82 | 3.48 | 192.34 | 0.2788 | 1013.0 | 748.7 | |
| 0.00 | 0.54 | 0.00 | 0.28 | -12.87 | 271.79 | 3.46 | 191.93 | 0.2855 | 553.0 | 523.2 | |
| 0.00 | 1.63 | 0.00 | 0.84 | -12.65 | 271.60 | 3.27 | 191.45 | 0.2811 | 888.0 | 651.4 | |
| 0.00 | 1.91 | 0.00 | 0.98 | -12.34 | 271.54 | 3.20 | 191.46 | 0.2757 | 836.0 | 633.3 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -16.50 | 271.50 | 3.16 | 188.88 | 0.3438 | 559.0 | 432.4 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -12.65 | 271.29 | 2.95 | 190.38 | 0.2801 | 1091.0 | 854.2 | |
| 0.00 | 2.45 | 0.00 | 1.26 | -12.55 | 271.07 | 2.73 | 189.68 | 0.2779 | 1191.0 | 920.9 | |
| 0.00 | 4.45 | 0.00 | 2.29 | -12.27 | 271.07 | 2.73 | 189.85 | 0.2732 | 949.0 | 825.9 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -12.43 | 270.79 | 2.45 | 188.77 | 0.2750 | 743.0 | 567.1 | |
| 1.82 | 529.11 | 0.93 | 272.61 | -12.42 | 269.94 | 1.61 | 185.78 | 0.2732 | 957.9 | -207.4 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -13.66 | 269.70 | 1.36 | 184.54 | 0.2935 | -870.0 | -690.3 | |
| 35.60 | 421.60 | 18.16 | 214.78 | -10.47 | 269.66 | 1.32 | 185.45 | 0.2397 | 1405.3 | 487.3 | |
| 4.00 | -23.00 | 2.05 | -23.00 | -12.08 | 269.66 | 1.33 | 184.88 | 0.2669 | 1015.2 | 999999 | |
| 3.63 | -23.00 | 1.87 | -23.00 | -12.11 | 269.51 | 1.17 | 184.30 | 0.2672 | 1034.2 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -11.38 | 269.44 | 1.11 | 184.27 | 0.2548 | 817.0 | 669.8 | |
| 11.08 | -23.00 | 5.69 | -23.00 | -12.07 | 269.26 | 0.92 | 183.40 | 0.2663 | 1041.5 | 999999 | |
| 0.00 | 3.72 | 0.00 | 1.93 | -13.50 | 269.26 | 0.92 | 183.11 | 0.2903 | -780.0 | -658.6 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -15.81 | 269.17 | 0.84 | 182.46 | 0.3287 | 939.0 | 595.1 | |
| 3.00 | -23.00 | 1.54 | -23.00 | -12.36 | 269.10 | 0.77 | 182.77 | 0.2710 | 618.2 | 999999 | |
| 31.51 | -25.00 | 16.05 | -25.00 | -10.19 | 269.04 | 0.70 | 182.96 | 0.2341 | 1482.2 | 999999 | |
| 9.35 | -23.00 | 4.80 | -23.00 | -11.73 | 269.01 | 0.67 | 182.53 | 0.2603 | 1170.2 | 999999 | |
| 2.91 | -23.00 | 1.49 | -23.00 | -12.01 | 269.01 | 0.67 | 182.49 | 0.2651 | 969.2 | 999999 | |
| 2.36 | -23.00 | 1.21 | -23.00 | -11.54 | 268.79 | 0.45 | 181.73 | 0.2569 | 1099.7 | 999999 | |
| 8.81 | -23.00 | 4.53 | -23.00 | -12.42 | 268.73 | 0.39 | 181.41 | 0.2718 | 529.2 | 999999 | |
| 2.72 | -25.00 | 1.38 | -25.00 | -9.59 | 268.67 | 0.33 | 181.45 | 0.2237 | 1294.7 | 999999 | |
| 3.72 | -25.00 | 1.90 | -25.00 | -10.25 | 268.63 | 0.30 | 181.25 | 0.2349 | 1186.7 | 999999 | |
| 0.91 | -25.00 | 0.46 | -25.00 | -9.43 | 268.63 | 0.30 | 181.33 | 0.2211 | 1252.0 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -13.53 | 268.60 | 0.27 | 180.89 | 0.2905 | -932.0 | -706.4 | |
| 3.00 | -25.00 | 1.52 | -25.00 | -9.72 | 268.57 | 0.24 | 181.03 | 0.2258 | 1376.0 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -15.84 | 268.44 | 0.11 | 180.32 | 0.3289 | 852.0 | 654.7 | |
| 8.26 | -23.00 | 4.23 | -23.00 | -11.32 | 268.39 | 0.05 | 180.19 | 0.2530 | 1075.3 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.86 | -15.52 | 268.35 | 0.01 | 180.04 | 0.3235 | 903.0 | 624.7 | |
| 0.54 | -23.00 | 0.28 | -23.00 | -11.28 | 268.07 | -0.26 | 178.98 | 0.2525 | 757.5 | 999999 | |
| 0.00 | 6.36 | 0.00 | 3.26 | -11.76 | 267.95 | -0.39 | 178.54 | 0.2606 | -249.0 | -211.0 | |
| 3.90 | 10.26 | 2.02 | 5.32 | -13.88 | 267.85 | -0.49 | 178.40 | 0.2964 | -1055.6 | -861.3 | |
| 5.63 | -23.00 | 2.90 | -23.00 | -12.93 | 267.76 | -0.58 | 177.98 | 0.2804 | -1313.4 | 999999 | |
| 1.63 | -23.00 | 0.84 | -23.00 | -12.64 | 267.76 | -0.58 | 177.95 | 0.2756 | -1140.6 | 999999 | |
| 0.36 | 1.54 | 0.19 | 0.80 | -14.36 | 267.66 | -0.68 | 177.83 | 0.3045 | -947.0 | -779.2 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -11.16 | 267.64 | -0.70 | 177.26 | 0.2506 | 679.0 | 611.3 | |
| 0.00 | 4.36 | 0.00 | 2.24 | -11.76 | 267.58 | -0.76 | 177.13 | 0.2608 | -242.0 | -249.4 | |
| 4.36 | -23.00 | 2.25 | -23.00 | -13.31 | 267.54 | -0.80 | 177.28 | 0.2870 | -1039.0 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -15.39 | 267.43 | -0.90 | 177.28 | 0.3218 | 936.0 | 671.3 | |
| 0.00 | 1.82 | 0.00 | 0.93 | -10.72 | 267.39 | -0.94 | 176.17 | 0.2434 | 833.0 | 667.2 | |
| 30.24 | -23.00 | 15.61 | -23.00 | -12.99 | 267.26 | -1.08 | 176.25 | 0.2819 | -1449.2 | 999999 | |
| 1.91 | 3.63 | 0.97 | 1.85 | -10.47 | 267.21 | -1.13 | 175.34 | 0.2394 | 1136.0 | 912.2 | |
| 0.00 | 1.45 | 0.00 | 0.73 | -8.12 | 267.07 | -1.27 | 173.66 | 0.1998 | 870.0 | 669.1 | |
| 0.00 | 0.82 | 0.00 | 0.41 | -7.10 | 266.98 | -1.36 | 172.55 | 0.1824 | 791.0 | 598.2 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -7.41 | 266.88 | -1.45 | 172.28 | 0.1880 | 1031.0 | 877.8 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -7.78 | 266.88 | -1.45 | 172.53 | 0.1943 | 1027.0 | 826.1 | |
| 21.88 | -23.00 | 11.30 | -23.00 | -12.96 | 266.82 | -1.52 | 174.73 | 0.2820 | -1278.4 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -9.65 | 266.81 | -1.53 | 173.31 | 0.2262 | 864.0 | 742.4 | |
| 0.00 | 0.91 | 0.00 | 0.46 | -6.79 | 266.79 | -1.54 | 171.31 | 0.1776 | 748.0 | 561.9 | |
| 0.00 | 4.18 | 0.00 | 2.12 | -8.56 | 266.60 | -1.74 | 171.69 | 0.2082 | 1111.0 | 893.7 | |
| 0.00 | 2.36 | 0.00 | 1.19 | -8.00 | 266.57 | -1.76 | 171.14 | 0.1988 | 832.0 | 758.4 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -9.34 | 266.57 | -1.77 | 172.05 | 0.2215 | 778.0 | 621.7 | |
| 5.45 | 14.26 | 2.76 | 7.23 | -8.97 | 266.54 | -1.80 | 171.68 | 0.2152 | 1221.3 | 732.6 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -8.19 | 266.54 | -1.79 | 171.13 | 0.2020 | 960.0 | 759.8 | |
| 0.00 | 0.82 | 0.00 | 0.42 | -9.81 | 266.53 | -1.81 | 172.19 | 0.2295 | 840.0 | 677.0 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -7.88 | 266.36 | -1.98 | 169.97 | 0.1973 | 773.0 | 697.8 | |
| 0.00 | 2.18 | 0.00 | 1.15 | -16.23 | 266.25 | -2.08 | 174.03 | 0.3371 | -828.0 | -696.2 | |
| 6.45 | 14.71 | 3.38 | 7.71 | -15.65 | 266.20 | -2.14 | 173.67 | 0.3276 | -1032.0 | -802.1 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -9.75 | 266.19 | -2.14 | 170.70 | 0.2293 | 842.0 | 715.2 | |
| 0.00 | 3.00 | 0.00 | 1.56 | -14.68 | 266.05 | -2.29 | 172.86 | 0.3120 | -622.0 | -738.5 | |
| 0.00 | 1.63 | 0.00 | 0.85 | -14.39 | 265.96 | -2.38 | 172.46 | 0.3075 | -936.0 | -697.6 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -9.37 | 265.98 | -2.36 | 169.49 | 0.2236 | 642.0 | 539.8 | |
| 0.00 | 0.54 | 0.00 | 0.29 | -15.77 | 265.88 | -2.46 | 172.79 | 0.3304 | -575.0 | -588.0 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -13.85 | 265.65 | -2.69 | 171.22 | 0.2992 | -691.0 | -515.5 | |
| 0.00 | 1.63 | 0.00 | 0.86 | -16.91 | 265.54 | -2.79 | 172.30 | 0.3496 | -770.0 | -613.7 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -13.12 | 265.50 | -2.83 | 170.32 | 0.2875 | -583.0 | -486.1 | |
| 0.00 | 3.63 | 0.00 | 1.84 | -9.09 | 265.46 | -2.88 | 166.95 | 0.2208 | 1044.0 | 896.2 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -9.40 | 265.24 | -3.10 | 166.33 | 0.2268 | 818.0 | 613.6 | |
| 1.27 | 5.81 | 0.65 | 2.96 | -9.97 | 265.17 | -3.17 | 166.63 | 0.2364 | 907.3 | 900.5 | |
| 0.00 | 3.27 | 0.00 | 1.66 | -8.38 | 265.18 | -3.15 | 164.92 | 0.2100 | 975.0 | 726.8 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -14.78 | 264.88 | -3.45 | 169.35 | 0.3166 | -989.0 | -860.2 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -10.25 | 264.92 | -3.42 | 165.90 | 0.2421 | 669.0 | 460.2 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -13.25 | 264.81 | -3.52 | 168.12 | 0.2918 | -784.0 | -661.1 | |
| 0.00 | 0.73 | 0.00 | 0.37 | -9.75 | 264.80 | -3.54 | 164.89 | 0.2344 | 733.0 | 528.1 | |
| 0.00 | 2.09 | 0.00 | 1.06 | -9.53 | 264.74 | -3.60 | 164.40 | 0.2310 | 936.0 | 829.4 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -14.78 | 264.66 | -3.68 | 168.69 | 0.3174 | -811.0 | -693.4 | |
| 0.00 | 1.63 | 0.00 | 0.84 | -12.71 | 264.45 | -3.89 | 166.48 | 0.2843 | -1001.0 | -771.8 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -14.88 | 264.41 | -3.93 | 167.99 | 0.3198 | -594.0 | -468.8 | |
| 0.00 | 2.36 | 0.00 | 1.24 | -15.07 | 264.37 | -3.97 | 168.02 | 0.3230 | -856.0 | -621.8 | |
| 0.00 | 3.00 | 0.00 | 1.57 | -15.71 | 264.29 | -4.04 | 168.22 | 0.3337 | -855.0 | -627.6 | |
| 0.00 | 0.73 | 0.00 | 0.37 | -8.94 | 264.41 | -3.93 | 162.24 | 0.2230 | 658.0 | 577.1 | |
| 0.00 | 0.82 | 0.00 | 0.43 | -15.33 | 263.76 | -4.57 | 166.44 | 0.3294 | -848.0 | -651.3 | |
| 0.00 | 0.64 | 0.00 | 0.33 | -14.21 | 262.21 | -6.13 | 160.99 | 0.3189 | -635.0 | -547.6 | |
| 0.00 | 0.73 | 0.00 | 0.38 | -15.79 | 261.75 | -6.59 | 161.30 | 0.3459 | -62.0 | -103.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
