SDO HMI 2014-07-04 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 73.66 | 371.72 | 37.58 | 190.14 | 15.19 | 260.95 | -7.38 | 344.03 | 0.2450 | -598.5 | -263.7 | |
|
previous
or next observation for the same group /

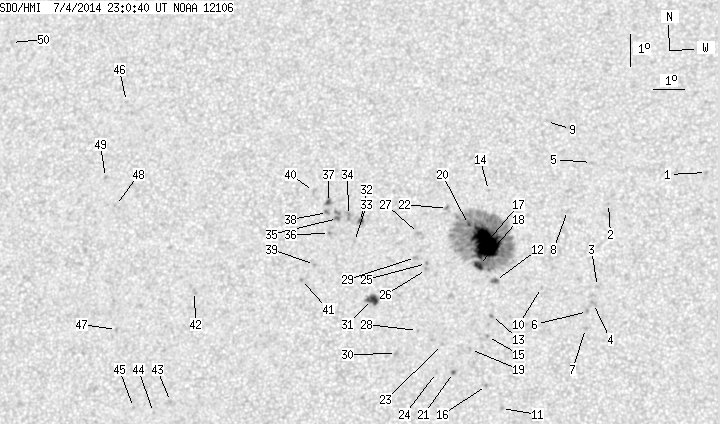

back to the solar disc SDO HMI 2014-07-04 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.74 | 17.63 | 268.84 | 0.50 | 358.07 | 0.2491 | -800.0 | -683.0 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 16.66 | 265.72 | -2.62 | 10.71 | 0.2366 | -874.0 | -568.2 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 14.07 | 265.40 | -2.94 | 14.85 | 0.1947 | -856.0 | -624.6 | |
| 0.00 | 2.54 | 0.00 | 1.28 | 13.54 | 265.28 | -3.05 | 16.20 | 0.1865 | -836.0 | -754.8 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 17.94 | 265.16 | -3.18 | 11.77 | 0.2599 | -718.0 | -461.5 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 13.29 | 265.10 | -3.24 | 17.54 | 0.1834 | -1004.0 | -813.4 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 12.77 | 265.04 | -3.30 | 18.77 | 0.1751 | -922.0 | -759.1 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 16.43 | 264.42 | -3.92 | 16.06 | 0.2381 | -814.0 | -622.2 | |
| 0.00 | 0.73 | 0.00 | 0.38 | 19.24 | 263.68 | -4.66 | 15.57 | 0.2869 | -345.0 | -301.0 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 14.03 | 263.64 | -4.70 | 23.04 | 0.2040 | 831.0 | 612.8 | |
| 0.00 | 1.63 | 0.00 | 0.82 | 10.30 | 262.46 | -5.88 | 39.44 | 0.1594 | 828.0 | 673.9 | |
| 0.91 | 4.36 | 0.46 | 2.21 | 14.25 | 262.18 | -6.15 | 28.60 | 0.2181 | -1040.1 | -855.4 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 13.16 | 262.08 | -6.25 | 31.66 | 0.2030 | -1032.0 | -857.5 | |
| 0.00 | 0.73 | 0.00 | 0.37 | 17.05 | 261.88 | -6.46 | 24.28 | 0.2628 | 637.0 | 469.9 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 12.51 | 261.97 | -6.36 | 33.93 | 0.1947 | -1024.0 | -904.9 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 11.00 | 261.98 | -6.36 | 38.90 | 0.1740 | -1017.0 | -821.5 | |
| 54.85 | 276.22 | 27.97 | 140.95 | 15.39 | 261.83 | -6.50 | 27.44 | 0.2380 | -1464.5 | -394.3 | |
| 5.27 | -17.00 | 2.68 | -17.00 | 14.71 | 261.63 | -6.71 | 29.63 | 0.2295 | -1046.2 | 999999 | |
| 0.00 | 1.82 | 0.00 | 0.92 | 12.11 | 261.45 | -6.89 | 37.29 | 0.1944 | -755.0 | -602.5 | |
| 1.73 | -17.00 | 0.88 | -17.00 | 15.98 | 261.27 | -7.06 | 28.21 | 0.2512 | -691.9 | 999999 | |
| 0.64 | 1.82 | 0.32 | 0.92 | 11.40 | 260.93 | -7.40 | 41.71 | 0.1907 | -1109.4 | -889.8 | |
| 0.00 | 2.45 | 0.00 | 1.26 | 16.48 | 260.58 | -7.75 | 29.47 | 0.2641 | -379.0 | -428.8 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 12.26 | 260.57 | -7.77 | 40.15 | 0.2058 | -929.0 | -670.3 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 11.39 | 260.40 | -7.94 | 43.68 | 0.1968 | -833.0 | -633.8 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 14.76 | 259.98 | -8.36 | 35.15 | 0.2453 | -1006.0 | -814.0 | |
| 0.00 | 1.73 | 0.00 | 0.88 | 14.57 | 259.98 | -8.35 | 35.58 | 0.2427 | -819.0 | -715.4 | |
| 0.00 | 2.54 | 0.00 | 1.30 | 15.69 | 259.68 | -8.65 | 33.88 | 0.2609 | 926.0 | 738.8 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 12.68 | 259.76 | -8.57 | 41.55 | 0.2202 | -812.0 | -635.9 | |
| 0.00 | 2.63 | 0.00 | 1.35 | 14.94 | 259.62 | -8.72 | 35.82 | 0.2513 | -739.0 | -650.2 | |
| 0.00 | 2.09 | 0.00 | 1.06 | 11.97 | 259.13 | -9.21 | 45.88 | 0.2191 | -755.0 | -522.3 | |
| 6.72 | 9.08 | 3.44 | 4.64 | 13.63 | 258.30 | -10.03 | 43.16 | 0.2487 | -1059.2 | -760.9 | |
| 1.54 | 3.54 | 0.80 | 1.83 | 16.05 | 257.80 | -10.53 | 38.34 | 0.2844 | 1036.8 | 848.2 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 15.43 | 257.64 | -10.69 | 40.23 | 0.2782 | 830.0 | 629.0 | |
| 0.00 | 3.81 | 0.00 | 1.97 | 16.24 | 257.41 | -10.93 | 38.94 | 0.2909 | 897.0 | 756.5 | |
| 0.82 | 6.90 | 0.42 | 3.58 | 16.14 | 257.06 | -11.28 | 40.03 | 0.2934 | 1165.3 | 914.7 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 15.67 | 256.82 | -11.51 | 41.69 | 0.2902 | 901.0 | 822.1 | |
| 1.18 | 4.54 | 0.61 | 2.36 | 16.64 | 256.74 | -11.60 | 39.68 | 0.3031 | 1028.2 | 757.1 | |
| 0.00 | 2.36 | 0.00 | 1.23 | 16.32 | 256.72 | -11.61 | 40.42 | 0.2993 | 901.0 | 792.0 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 14.70 | 256.39 | -11.94 | 45.13 | 0.2837 | 880.0 | 637.7 | |
| 0.00 | 2.45 | 0.00 | 1.28 | 16.98 | 256.23 | -12.11 | 40.12 | 0.3127 | 877.0 | 611.2 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 14.23 | 256.00 | -12.33 | 47.27 | 0.2831 | 1019.0 | 760.2 | |
| 0.00 | 2.45 | 0.00 | 1.28 | 13.81 | 252.56 | -15.77 | 54.98 | 0.3238 | 679.0 | 628.4 | |
| 0.00 | 2.18 | 0.00 | 1.13 | 10.41 | 251.99 | -16.35 | 65.44 | 0.3057 | 843.0 | 684.4 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 10.07 | 251.46 | -16.88 | 67.12 | 0.3116 | 996.0 | 777.0 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 10.21 | 250.80 | -17.53 | 67.42 | 0.3225 | 820.0 | 632.1 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 19.73 | 249.75 | -18.59 | 46.37 | 0.4164 | 696.0 | 522.4 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 12.60 | 250.09 | -18.24 | 61.65 | 0.3486 | 911.0 | 735.4 | |
| 0.00 | 0.91 | 0.00 | 0.49 | 16.45 | 249.73 | -18.61 | 52.97 | 0.3849 | 711.0 | 668.5 | |
| 0.00 | 2.00 | 0.00 | 1.08 | 17.32 | 249.31 | -19.03 | 51.72 | 0.3982 | 813.0 | 493.7 | |
| 0.00 | 1.45 | 0.00 | 0.82 | 21.54 | 245.48 | -22.85 | 48.68 | 0.4830 | 338.0 | 231.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
