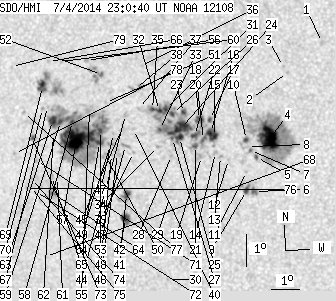

SDO HMI 2014-07-04 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 180.60 | 694.22 | 105.80 | 405.62 | -7.56 | 238.23 | -30.10 | 110.09 | 0.5307 | -47.4 | -26.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-04 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.09 | 0.00 | 1.14 | -4.55 | 244.34 | -24.00 | 107.95 | 0.4279 | 713.0 | 544.7 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -5.50 | 243.12 | -25.21 | 109.15 | 0.4507 | 856.0 | 633.2 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -5.32 | 243.00 | -25.34 | 108.67 | 0.4517 | 802.0 | 624.4 | |
| 27.51 | 150.19 | 15.45 | 84.25 | -7.56 | 242.39 | -25.94 | 112.80 | 0.4724 | 1268.0 | 506.8 | |
| 1.00 | 2.45 | 0.56 | 1.39 | -8.16 | 241.90 | -26.43 | 113.59 | 0.4827 | 680.3 | 511.8 | |
| 2.09 | 4.54 | 1.19 | 2.58 | -9.23 | 241.75 | -26.58 | 115.48 | 0.4913 | 943.4 | 743.5 | |
| 0.64 | 2.18 | 0.36 | 1.23 | -7.95 | 241.71 | -26.62 | 113.04 | 0.4842 | 810.9 | 500.6 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -7.83 | 241.62 | -26.72 | 112.73 | 0.4848 | 684.0 | 555.2 | |
| 2.36 | 6.63 | 1.34 | 3.78 | -9.20 | 241.48 | -26.86 | 115.21 | 0.4949 | 819.8 | 614.7 | |
| 1.63 | 6.27 | 0.92 | 3.55 | -7.61 | 241.60 | -26.74 | 112.30 | 0.4839 | 885.1 | 584.2 | |
| 0.00 | 0.45 | 0.00 | 0.26 | -8.61 | 241.53 | -26.81 | 114.14 | 0.4907 | 636.0 | 619.4 | |
| 0.00 | 0.73 | 0.00 | 0.41 | -8.25 | 240.93 | -27.41 | 113.01 | 0.4969 | 644.0 | 509.5 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -8.17 | 240.66 | -27.68 | 112.65 | 0.5002 | 706.0 | 569.4 | |
| 0.00 | 2.45 | 0.00 | 1.40 | -8.05 | 240.49 | -27.84 | 112.31 | 0.5019 | 540.0 | 390.0 | |
| 4.90 | 152.19 | 2.80 | 87.76 | -7.55 | 240.50 | -27.84 | 111.38 | 0.4992 | 1011.2 | 323.5 | |
| 5.18 | -15.00 | 2.96 | -15.00 | -7.43 | 240.37 | -27.97 | 111.06 | 0.5004 | 1098.8 | 999999 | |
| 1.36 | 3.09 | 0.78 | 1.76 | -7.03 | 240.36 | -27.98 | 110.30 | 0.4984 | 1112.9 | 843.0 | |
| 2.00 | -15.00 | 1.15 | -15.00 | -7.65 | 240.10 | -28.23 | 111.31 | 0.5052 | 750.6 | 999999 | |
| 0.00 | 8.90 | 0.00 | 5.12 | -8.18 | 239.99 | -28.34 | 112.21 | 0.5096 | -376.0 | -231.1 | |
| 4.81 | -15.00 | 2.76 | -15.00 | -7.04 | 240.01 | -28.33 | 110.08 | 0.5034 | 1015.1 | 999999 | |
| 1.91 | -15.00 | 1.10 | -15.00 | -7.85 | 239.81 | -28.53 | 111.47 | 0.5104 | 586.4 | 999999 | |
| 2.72 | -15.00 | 1.57 | -15.00 | -7.54 | 239.80 | -28.54 | 110.88 | 0.5089 | 938.0 | 999999 | |
| 2.00 | -15.00 | 1.15 | -15.00 | -6.83 | 239.46 | -28.87 | 109.36 | 0.5102 | 797.6 | 999999 | |
| 17.43 | -15.00 | 10.06 | -15.00 | -7.33 | 239.32 | -29.02 | 110.20 | 0.5146 | 840.6 | 999999 | |
| 4.09 | -15.00 | 2.36 | -15.00 | -7.61 | 239.27 | -29.07 | 110.68 | 0.5168 | 779.6 | 999999 | |
| 2.09 | -15.00 | 1.21 | -15.00 | -6.87 | 239.07 | -29.26 | 109.20 | 0.5159 | 773.5 | 999999 | |
| 0.64 | -15.00 | 0.37 | -15.00 | -7.65 | 239.02 | -29.32 | 110.59 | 0.5205 | 173.4 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -8.18 | 238.94 | -29.40 | 111.49 | 0.5243 | 731.0 | 531.9 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -9.49 | 238.75 | -29.59 | 113.69 | 0.5339 | -646.0 | -420.9 | |
| 0.00 | 0.91 | 0.00 | 0.54 | -12.08 | 238.39 | -29.95 | 117.80 | 0.5539 | 590.0 | 479.3 | |
| 2.54 | -15.00 | 1.47 | -15.00 | -6.73 | 238.84 | -29.50 | 108.78 | 0.5186 | 893.4 | 999999 | |
| 1.82 | -15.00 | 1.05 | -15.00 | -6.79 | 238.62 | -29.72 | 108.78 | 0.5220 | 711.6 | 999999 | |
| 1.27 | -15.00 | 0.74 | -15.00 | -7.38 | 238.58 | -29.76 | 109.83 | 0.5253 | 301.1 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.90 | -7.91 | 238.46 | -29.87 | 110.71 | 0.5295 | 485.0 | 337.8 | |
| 1.45 | -15.00 | 0.84 | -15.00 | -6.77 | 238.37 | -29.96 | 108.59 | 0.5253 | 688.1 | 999999 | |
| 0.00 | 0.36 | 0.00 | 0.21 | -5.42 | 238.07 | -30.27 | 105.95 | 0.5239 | 753.0 | 646.2 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -6.75 | 237.88 | -30.46 | 108.28 | 0.5323 | 219.0 | -16.2 | |
| 0.00 | 5.54 | 0.00 | 3.23 | -6.14 | 237.81 | -30.53 | 107.13 | 0.5305 | 413.0 | 479.6 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -8.13 | 237.59 | -30.75 | 110.55 | 0.5426 | -609.0 | -478.6 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -7.41 | 237.65 | -30.69 | 109.33 | 0.5384 | -329.0 | -282.8 | |
| 4.36 | 10.26 | 2.59 | 6.10 | -9.44 | 237.21 | -31.13 | 112.58 | 0.5544 | 833.5 | 387.8 | |
| 6.45 | 9.08 | 3.85 | 5.42 | -10.20 | 237.09 | -31.24 | 113.77 | 0.5599 | -989.8 | -630.5 | |
| 0.00 | 3.09 | 0.00 | 1.82 | -7.92 | 237.32 | -31.02 | 110.02 | 0.5453 | -721.0 | -625.6 | |
| 0.00 | 2.72 | 0.00 | 1.60 | -6.95 | 237.40 | -30.94 | 108.37 | 0.5399 | -277.0 | -241.7 | |
| 0.00 | 2.27 | 0.00 | 1.34 | -7.42 | 237.22 | -31.12 | 109.10 | 0.5445 | -709.0 | -545.7 | |
| 0.00 | 2.91 | 0.00 | 1.72 | -8.17 | 237.01 | -31.33 | 110.29 | 0.5508 | -126.0 | -165.2 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -7.56 | 236.92 | -31.42 | 109.17 | 0.5492 | -675.0 | -515.1 | |
| 0.00 | 0.64 | 0.00 | 0.38 | -8.21 | 236.79 | -31.55 | 110.22 | 0.5540 | -747.0 | -614.7 | |
| 0.00 | 2.91 | 0.00 | 1.72 | -7.90 | 236.78 | -31.56 | 109.69 | 0.5527 | -1026.0 | -733.3 | |
| 0.00 | 4.18 | 0.00 | 2.49 | -8.25 | 236.57 | -31.77 | 110.16 | 0.5572 | -828.0 | -657.7 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -6.60 | 236.70 | -31.63 | 107.38 | 0.5480 | -235.0 | -234.6 | |
| 1.00 | 12.26 | 0.59 | 7.25 | -5.74 | 236.62 | -31.72 | 105.82 | 0.5458 | 935.1 | 588.5 | |
| 2.00 | 211.75 | 1.19 | 127.13 | -7.48 | 236.45 | -31.88 | 108.77 | 0.5552 | -1182.3 | -554.3 | |
| 3.27 | -53.00 | 1.95 | -53.00 | -7.85 | 236.39 | -31.95 | 109.38 | 0.5578 | -990.6 | 999999 | |
| 0.00 | 5.45 | 0.00 | 3.25 | -6.84 | 236.11 | -32.23 | 107.49 | 0.5573 | -196.0 | -179.4 | |
| 0.00 | 2.18 | 0.00 | 1.29 | -5.32 | 236.10 | -32.24 | 104.84 | 0.5515 | 634.0 | 419.2 | |
| 52.03 | -53.00 | 31.28 | -53.00 | -7.78 | 235.55 | -32.78 | 108.81 | 0.5689 | -1130.6 | 999999 | |
| 1.54 | -53.00 | 0.93 | -53.00 | -7.23 | 235.45 | -32.88 | 107.83 | 0.5679 | -1091.8 | 999999 | |
| 2.45 | -53.00 | 1.48 | -53.00 | -7.24 | 235.01 | -33.33 | 107.63 | 0.5740 | -1058.6 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.33 | -5.38 | 235.15 | -33.19 | 104.53 | 0.5651 | -656.0 | -577.5 | |
| 0.00 | 0.54 | 0.00 | 0.33 | -8.99 | 234.73 | -33.60 | 110.37 | 0.5853 | -625.0 | -598.0 | |
| 0.00 | 1.00 | 0.00 | 0.61 | -7.62 | 234.72 | -33.62 | 108.12 | 0.5796 | -660.0 | -519.3 | |
| 6.17 | -53.00 | 3.74 | -53.00 | -7.22 | 234.72 | -33.62 | 107.45 | 0.5779 | -914.0 | 999999 | |
| 1.27 | 7.45 | 0.78 | 4.56 | -9.50 | 234.49 | -33.85 | 111.06 | 0.5908 | -827.7 | -575.7 | |
| 0.00 | 2.54 | 0.00 | 1.55 | -8.97 | 234.51 | -33.82 | 110.22 | 0.5881 | -639.0 | -537.1 | |
| 0.00 | 1.09 | 0.00 | 0.66 | -5.40 | 234.71 | -33.63 | 104.37 | 0.5713 | -691.0 | -582.8 | |
| 0.00 | 0.91 | 0.00 | 0.55 | -6.79 | 234.57 | -33.77 | 106.67 | 0.5783 | -547.0 | -486.8 | |
| 0.00 | 0.91 | 0.00 | 0.57 | -11.49 | 233.97 | -34.36 | 113.89 | 0.6072 | -664.0 | -581.5 | |
| 7.26 | 33.60 | 4.40 | 20.29 | -6.18 | 234.43 | -33.90 | 105.57 | 0.5779 | -944.6 | -764.2 | |
| 0.00 | 1.45 | 0.00 | 0.88 | -6.86 | 234.38 | -33.96 | 106.69 | 0.5811 | -659.0 | -516.4 | |
| 0.00 | 1.27 | 0.00 | 0.78 | -8.48 | 234.00 | -34.33 | 109.17 | 0.5928 | -721.0 | -618.3 | |
| 0.00 | 1.09 | 0.00 | 0.67 | -9.45 | 233.86 | -34.48 | 110.65 | 0.5989 | -537.0 | -433.8 | |
| 1.36 | 3.00 | 0.83 | 1.84 | -7.80 | 233.92 | -34.41 | 108.03 | 0.5910 | -825.3 | -680.4 | |
| 0.00 | 1.00 | 0.00 | 0.62 | -9.05 | 233.75 | -34.58 | 109.96 | 0.5985 | -622.0 | -523.7 | |
| 0.00 | 0.91 | 0.00 | 0.56 | -9.30 | 233.69 | -34.65 | 110.32 | 0.6005 | -587.0 | -538.1 | |
| 0.00 | 1.36 | 0.00 | 0.84 | -9.37 | 233.53 | -34.81 | 110.35 | 0.6029 | -480.0 | -463.1 | |
| 0.00 | 1.36 | 0.00 | 0.84 | -7.01 | 233.66 | -34.68 | 106.60 | 0.5915 | -650.0 | -531.5 | |
| 0.00 | 0.82 | 0.00 | 0.51 | -8.29 | 233.20 | -35.14 | 108.47 | 0.6027 | -745.0 | -611.2 | |
| 0.00 | 0.64 | 0.00 | 0.39 | -5.60 | 233.32 | -35.02 | 104.14 | 0.5911 | -472.0 | -379.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
