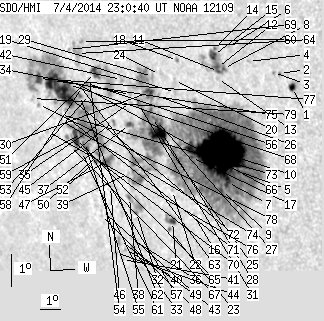

SDO HMI 2014-07-04 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 306.35 | 1478.08 | 237.94 | 1147.20 | -7.62 | 219.40 | -48.93 | 102.86 | 0.7677 | 296.5 | -14.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-04 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.63 | 5.99 | 2.50 | 4.13 | -5.98 | 225.25 | -43.09 | 102.08 | 0.6971 | 808.5 | 482.6 | |
| 0.00 | 1.36 | 0.00 | 0.94 | -5.56 | 224.74 | -43.59 | 101.37 | 0.7023 | 632.0 | 540.5 | |
| 0.00 | 1.27 | 0.00 | 0.89 | -5.54 | 224.49 | -43.85 | 101.27 | 0.7054 | 706.0 | 495.4 | |
| 0.00 | 1.27 | 0.00 | 0.90 | -5.25 | 223.44 | -44.89 | 100.60 | 0.7174 | 488.0 | 302.4 | |
| 0.82 | 993.30 | 0.60 | 745.34 | -8.69 | 222.57 | -45.77 | 105.03 | 0.7357 | 940.7 | 177.1 | |
| 0.00 | 1.36 | 0.00 | 0.98 | -4.82 | 222.61 | -45.73 | 99.83 | 0.7264 | -319.0 | -292.5 | |
| 0.27 | -5.00 | 0.20 | -5.00 | -9.05 | 222.02 | -46.32 | 105.35 | 0.7429 | 888.3 | 999999 | |
| 0.82 | 38.05 | 0.59 | 27.74 | -5.51 | 222.32 | -46.02 | 100.70 | 0.7312 | -888.2 | -353.8 | |
| 2.00 | -5.00 | 1.48 | -5.00 | -9.31 | 221.70 | -46.64 | 105.60 | 0.7471 | 255.2 | 999999 | |
| 155.46 | -5.00 | 114.58 | -5.00 | -8.12 | 221.85 | -46.48 | 104.08 | 0.7424 | 1226.4 | 999999 | |
| 0.91 | -8.00 | 0.66 | -8.00 | -5.61 | 222.09 | -46.25 | 100.78 | 0.7341 | -17.2 | 999999 | |
| 2.63 | -8.00 | 1.92 | -8.00 | -5.49 | 222.06 | -46.28 | 100.61 | 0.7342 | -529.3 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.99 | -5.83 | 222.02 | -46.32 | 101.06 | 0.7353 | 67.0 | 117.5 | |
| 0.45 | -8.00 | 0.33 | -8.00 | -4.90 | 221.98 | -46.36 | 99.81 | 0.7340 | -670.4 | 999999 | |
| 4.90 | -8.00 | 3.57 | -8.00 | -5.12 | 221.91 | -46.42 | 100.09 | 0.7352 | -736.5 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.63 | -10.12 | 220.26 | -48.07 | 106.22 | 0.7650 | -775.0 | -646.3 | |
| 2.09 | -5.00 | 1.58 | -5.00 | -8.34 | 220.50 | -47.84 | 103.99 | 0.7581 | 300.0 | 999999 | |
| 0.45 | 1.45 | 0.34 | 1.09 | -5.35 | 220.26 | -48.08 | 100.03 | 0.7546 | -542.0 | -427.5 | |
| 0.00 | 1.91 | 0.00 | 1.44 | -6.34 | 220.05 | -48.28 | 101.29 | 0.7588 | 494.0 | 423.4 | |
| 0.00 | 2.45 | 0.00 | 1.85 | -5.97 | 220.05 | -48.28 | 100.80 | 0.7581 | 159.0 | 118.0 | |
| 3.36 | 9.63 | 2.63 | 7.55 | -10.39 | 219.22 | -49.12 | 106.25 | 0.7768 | 560.5 | 258.7 | |
| 0.00 | 1.09 | 0.00 | 0.85 | -9.41 | 219.42 | -48.92 | 105.07 | 0.7724 | 168.0 | 153.0 | |
| 0.73 | 1.82 | 0.57 | 1.43 | -10.65 | 219.02 | -49.32 | 106.52 | 0.7796 | 338.1 | 270.5 | |
| 0.00 | 0.64 | 0.00 | 0.49 | -5.82 | 219.37 | -48.96 | 100.46 | 0.7654 | -490.0 | -550.9 | |
| 21.34 | -5.00 | 16.57 | -5.00 | -7.65 | 219.07 | -49.27 | 102.75 | 0.7723 | 773.4 | 999999 | |
| 0.00 | 2.36 | 0.00 | 1.82 | -6.50 | 219.24 | -49.10 | 101.31 | 0.7681 | 85.0 | 43.0 | |
| 1.27 | -5.00 | 0.99 | -5.00 | -7.25 | 219.04 | -49.30 | 102.23 | 0.7718 | 645.2 | 999999 | |
| 0.27 | -5.00 | 0.21 | -5.00 | -7.17 | 218.86 | -49.48 | 102.08 | 0.7735 | 428.3 | 999999 | |
| 0.00 | 2.72 | 0.00 | 2.10 | -5.89 | 219.03 | -49.30 | 100.48 | 0.7692 | -135.0 | -70.6 | |
| 5.72 | -5.00 | 4.45 | -5.00 | -6.40 | 218.78 | -49.56 | 101.08 | 0.7729 | 693.5 | 999999 | |
| 1.54 | -5.00 | 1.21 | -5.00 | -6.76 | 218.25 | -50.09 | 101.42 | 0.7793 | 76.1 | 999999 | |
| 0.64 | 17.53 | 0.52 | 14.19 | -10.18 | 217.52 | -50.81 | 105.53 | 0.7940 | 309.4 | -371.6 | |
| 0.36 | 1.54 | 0.30 | 1.27 | -11.30 | 217.06 | -51.28 | 106.78 | 0.8013 | -819.0 | -780.2 | |
| 0.00 | 1.27 | 0.00 | 1.01 | -6.50 | 217.90 | -50.44 | 101.02 | 0.7826 | -148.0 | -184.6 | |
| 0.00 | 1.63 | 0.00 | 1.30 | -6.75 | 217.87 | -50.47 | 101.32 | 0.7834 | -536.0 | -471.1 | |
| 0.00 | 1.00 | 0.00 | 0.82 | -11.02 | 217.03 | -51.31 | 106.42 | 0.8009 | -484.0 | -339.8 | |
| 2.72 | -5.00 | 2.17 | -5.00 | -7.43 | 217.71 | -50.63 | 102.16 | 0.7863 | 410.5 | 999999 | |
| 1.00 | -32.00 | 0.81 | -32.00 | -9.72 | 217.28 | -51.06 | 104.90 | 0.7955 | -696.4 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.22 | -8.97 | 217.39 | -50.95 | 104.00 | 0.7928 | -710.0 | -634.3 | |
| 0.00 | 1.27 | 0.00 | 1.06 | -11.38 | 216.69 | -51.65 | 106.77 | 0.8052 | -610.0 | -587.6 | |
| 0.00 | 0.91 | 0.00 | 0.76 | -11.70 | 216.45 | -51.89 | 107.10 | 0.8083 | -189.0 | -236.9 | |
| 0.00 | 2.72 | 0.00 | 2.17 | -6.05 | 217.53 | -50.81 | 100.38 | 0.7858 | -501.0 | -421.7 | |
| 0.00 | 3.00 | 0.00 | 2.50 | -11.11 | 216.45 | -51.88 | 106.38 | 0.8069 | -652.0 | -573.3 | |
| 0.00 | 1.09 | 0.00 | 0.92 | -11.50 | 216.15 | -52.19 | 106.77 | 0.8107 | -526.0 | -390.7 | |
| 0.45 | 2.63 | 0.37 | 2.14 | -7.37 | 216.93 | -51.40 | 101.91 | 0.7944 | 134.2 | 92.6 | |
| 0.00 | 0.45 | 0.00 | 0.38 | -9.42 | 216.40 | -51.94 | 104.31 | 0.8038 | -578.0 | -506.2 | |
| 6.90 | 11.80 | 5.70 | 9.74 | -8.64 | 216.41 | -51.93 | 103.36 | 0.8022 | -665.8 | -438.9 | |
| 0.00 | 1.45 | 0.00 | 1.23 | -10.32 | 215.73 | -52.61 | 105.25 | 0.8123 | -402.0 | -275.2 | |
| 0.00 | 0.27 | 0.00 | 0.23 | -10.20 | 215.76 | -52.58 | 105.10 | 0.8117 | -227.0 | -317.0 | |
| 1.45 | 279.40 | 1.21 | 238.80 | -8.44 | 215.99 | -52.35 | 103.02 | 0.8060 | -805.8 | -422.0 | |
| 6.81 | 36.14 | 5.58 | 29.37 | -5.89 | 216.26 | -52.08 | 99.93 | 0.7988 | -819.2 | -586.3 | |
| 1.27 | 3.18 | 1.06 | 2.66 | -8.67 | 215.79 | -52.54 | 103.25 | 0.8084 | -496.6 | -375.3 | |
| 0.00 | 2.18 | 0.00 | 1.81 | -6.59 | 215.86 | -52.48 | 100.72 | 0.8041 | -710.0 | -672.9 | |
| 0.00 | 1.00 | 0.00 | 0.83 | -6.09 | 215.93 | -52.41 | 100.12 | 0.8025 | -495.0 | -510.4 | |
| 2.18 | -50.00 | 1.84 | -50.00 | -8.28 | 215.41 | -52.93 | 102.70 | 0.8115 | -686.6 | 999999 | |
| 0.73 | 4.18 | 0.60 | 3.48 | -6.25 | 215.76 | -52.58 | 100.28 | 0.8046 | -710.4 | -641.3 | |
| 0.27 | -50.00 | 0.23 | -50.00 | -8.10 | 215.29 | -53.05 | 102.45 | 0.8124 | -768.0 | 999999 | |
| 0.36 | -56.00 | 0.30 | -56.00 | -6.36 | 215.54 | -52.80 | 100.37 | 0.8070 | -719.2 | 999999 | |
| 4.90 | -50.00 | 4.15 | -50.00 | -7.82 | 215.24 | -53.10 | 102.10 | 0.8124 | -928.3 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.28 | -4.96 | 215.67 | -52.66 | 98.68 | 0.8035 | -736.0 | -631.6 | |
| 0.00 | 2.36 | 0.00 | 2.00 | -8.39 | 215.13 | -53.21 | 102.77 | 0.8145 | -367.0 | -246.4 | |
| 1.54 | -50.00 | 1.30 | -50.00 | -6.64 | 215.34 | -53.00 | 100.68 | 0.8094 | -834.5 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.84 | -6.27 | 215.35 | -52.99 | 100.23 | 0.8088 | -689.0 | -554.6 | |
| 0.00 | 14.80 | 0.00 | 12.35 | -5.34 | 215.42 | -52.91 | 99.10 | 0.8066 | -858.0 | -560.6 | |
| 8.63 | -50.00 | 7.35 | -50.00 | -7.99 | 214.95 | -53.39 | 102.25 | 0.8156 | -755.5 | 999999 | |
| 0.00 | 1.73 | 0.00 | 1.46 | -6.22 | 215.04 | -53.29 | 100.12 | 0.8117 | -716.0 | -605.1 | |
| 0.00 | 0.82 | 0.00 | 0.70 | -8.23 | 214.59 | -53.75 | 102.46 | 0.8195 | -207.0 | -180.9 | |
| 1.54 | -50.00 | 1.31 | -50.00 | -6.33 | 214.82 | -53.52 | 100.20 | 0.8141 | -889.3 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.22 | -5.24 | 214.97 | -53.36 | 98.90 | 0.8110 | -465.0 | -412.6 | |
| 1.00 | 2.09 | 0.86 | 1.80 | -7.98 | 214.48 | -53.86 | 102.14 | 0.8202 | -324.5 | -240.8 | |
| 0.00 | 0.91 | 0.00 | 0.78 | -7.36 | 214.54 | -53.79 | 101.40 | 0.8185 | -717.0 | -639.4 | |
| 29.06 | -50.00 | 24.82 | -50.00 | -6.65 | 214.61 | -53.72 | 100.55 | 0.8167 | -865.5 | 999999 | |
| 0.00 | 1.27 | 0.00 | 1.10 | -7.28 | 214.24 | -54.09 | 101.25 | 0.8213 | -460.0 | -350.3 | |
| 0.00 | 1.09 | 0.00 | 0.94 | -7.47 | 214.21 | -54.13 | 101.47 | 0.8220 | -449.0 | -376.2 | |
| 19.98 | -50.00 | 17.28 | -50.00 | -6.24 | 214.00 | -54.34 | 99.95 | 0.8222 | -732.0 | 999999 | |
| 0.00 | 1.27 | 0.00 | 1.12 | -7.85 | 213.44 | -54.89 | 101.77 | 0.8299 | -223.0 | -149.9 | |
| 5.90 | -50.00 | 5.20 | -50.00 | -6.21 | 213.25 | -55.08 | 99.78 | 0.8293 | -409.2 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.29 | -7.02 | 213.11 | -55.22 | 100.73 | 0.8318 | -248.0 | -185.4 | |
| 0.00 | 2.54 | 0.00 | 2.27 | -6.85 | 212.82 | -55.52 | 100.47 | 0.8344 | 282.0 | 232.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
