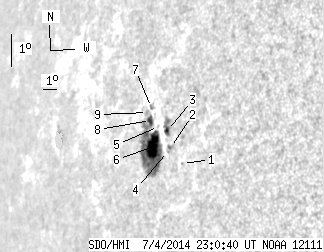

SDO HMI 2014-07-04 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.43 | 106.70 | 29.26 | 123.04 | 6.10 | 203.71 | -64.63 | 84.80 | 0.9039 | -536.8 | -113.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-04 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.73 | 0.00 | 0.78 | 5.50 | 205.76 | -62.57 | 85.51 | 0.8881 | 160.0 | 169.4 | |
| 0.00 | 2.00 | 0.00 | 2.20 | 5.94 | 204.86 | -63.48 | 84.99 | 0.8952 | -695.0 | -613.3 | |
| 2.18 | 10.17 | 2.43 | 11.37 | 6.45 | 204.54 | -63.80 | 84.42 | 0.8976 | -705.1 | -460.3 | |
| 0.00 | 0.91 | 0.00 | 1.01 | 5.81 | 204.68 | -63.66 | 85.14 | 0.8966 | -580.0 | -561.6 | |
| 0.00 | 0.82 | 0.00 | 0.93 | 6.54 | 203.88 | -64.46 | 84.32 | 0.9026 | -344.0 | -295.4 | |
| 19.98 | 87.35 | 23.01 | 101.20 | 5.91 | 203.66 | -64.68 | 85.01 | 0.9043 | -630.3 | -59.4 | |
| 0.00 | 2.09 | 0.00 | 2.44 | 7.09 | 203.23 | -65.11 | 83.70 | 0.9074 | -388.0 | -256.0 | |
| 3.27 | -6.00 | 3.82 | -6.00 | 6.69 | 203.26 | -65.08 | 84.14 | 0.9072 | -298.5 | 999999 | |
| 0.00 | 2.63 | 0.00 | 3.11 | 6.92 | 202.98 | -65.36 | 83.89 | 0.9092 | 277.0 | 173.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
