SDO HMI 2014-07-05 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.18 | 74.66 | 3.39 | 48.45 | 10.48 | 307.63 | 39.85 | 282.46 | 0.6472 | 65.4 | 97.2 | |
|
previous
or next observation for the same group /

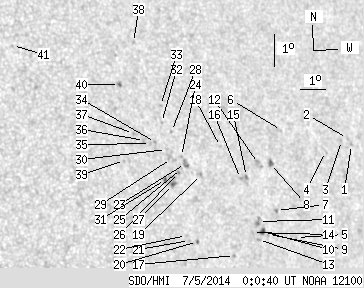

back to the solar disc SDO HMI 2014-07-05 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.84 | 11.10 | 313.68 | 45.90 | 282.26 | 0.7234 | -538.0 | -437.7 | |
| 0.00 | 0.91 | 0.00 | 0.65 | 11.29 | 313.54 | 45.76 | 282.54 | 0.7220 | -452.0 | -357.8 | |
| 0.00 | 0.64 | 0.00 | 0.45 | 11.24 | 313.27 | 45.48 | 282.52 | 0.7187 | -605.0 | -547.9 | |
| 0.00 | 1.82 | 0.00 | 1.27 | 10.93 | 312.50 | 44.71 | 282.20 | 0.7090 | -371.0 | -380.9 | |
| 0.00 | 0.91 | 0.00 | 0.62 | 8.35 | 310.82 | 43.04 | 278.72 | 0.6854 | -529.0 | -466.3 | |
| 0.00 | 0.64 | 0.00 | 0.43 | 11.65 | 310.73 | 42.95 | 283.53 | 0.6886 | -602.0 | -496.7 | |
| 0.00 | 1.45 | 0.00 | 0.98 | 9.21 | 310.10 | 42.32 | 280.07 | 0.6772 | -701.0 | -606.1 | |
| 1.27 | 3.18 | 0.86 | 2.14 | 10.66 | 310.08 | 42.30 | 282.20 | 0.6790 | -651.5 | -476.9 | |
| 0.00 | 0.73 | 0.00 | 0.48 | 8.49 | 309.67 | 41.88 | 279.05 | 0.6709 | -523.0 | -526.0 | |
| 1.91 | 3.45 | 1.27 | 2.29 | 8.59 | 309.43 | 41.65 | 279.23 | 0.6680 | -829.2 | -656.1 | |
| 0.00 | 4.63 | 0.00 | 3.07 | 8.90 | 309.31 | 41.52 | 279.72 | 0.6668 | -787.0 | -695.3 | |
| 0.00 | 4.00 | 0.00 | 2.67 | 10.68 | 309.58 | 41.80 | 282.32 | 0.6727 | -737.0 | -555.7 | |
| 0.00 | 1.45 | 0.00 | 0.96 | 8.35 | 309.23 | 41.45 | 278.90 | 0.6652 | -817.0 | -718.6 | |
| 0.00 | 1.54 | 0.00 | 1.02 | 8.58 | 309.02 | 41.23 | 279.26 | 0.6626 | -690.0 | -578.8 | |
| 0.00 | 0.91 | 0.00 | 0.60 | 10.30 | 309.02 | 41.24 | 281.85 | 0.6650 | -713.0 | -643.0 | |
| 0.00 | 1.45 | 0.00 | 0.96 | 10.25 | 308.77 | 40.98 | 281.82 | 0.6616 | -503.0 | -548.1 | |
| 0.00 | 1.27 | 0.00 | 0.83 | 7.90 | 308.19 | 40.41 | 278.33 | 0.6512 | 567.0 | 391.9 | |
| 0.00 | 0.91 | 0.00 | 0.59 | 11.26 | 308.11 | 40.33 | 283.47 | 0.6550 | -685.0 | -552.1 | |
| 0.00 | 1.91 | 0.00 | 1.23 | 10.43 | 307.21 | 39.42 | 282.39 | 0.6417 | 563.0 | 488.7 | |
| 0.00 | 1.18 | 0.00 | 0.75 | 8.38 | 306.77 | 38.98 | 279.26 | 0.6328 | 632.0 | 581.2 | |
| 0.00 | 1.00 | 0.00 | 0.63 | 8.43 | 306.46 | 38.67 | 279.38 | 0.6287 | 709.0 | 583.0 | |
| 0.00 | 1.09 | 0.00 | 0.69 | 8.58 | 306.36 | 38.57 | 279.64 | 0.6276 | 457.0 | 406.4 | |
| 0.00 | 4.45 | 0.00 | 2.85 | 10.79 | 306.62 | 38.84 | 283.07 | 0.6347 | 693.0 | 547.2 | |
| 0.00 | 1.09 | 0.00 | 0.70 | 11.01 | 306.50 | 38.71 | 283.45 | 0.6335 | 509.0 | 436.2 | |
| 0.00 | 1.09 | 0.00 | 0.70 | 10.64 | 306.44 | 38.66 | 282.88 | 0.6320 | 668.0 | 574.8 | |
| 0.00 | 1.18 | 0.00 | 0.75 | 10.52 | 306.30 | 38.52 | 282.72 | 0.6300 | 609.0 | 536.9 | |
| 0.82 | 8.26 | 0.52 | 5.24 | 10.16 | 306.05 | 38.27 | 282.21 | 0.6260 | 704.1 | 629.3 | |
| 0.00 | 1.18 | 0.00 | 0.75 | 11.79 | 306.23 | 38.44 | 284.74 | 0.6316 | 591.0 | 466.1 | |
| 0.00 | 4.99 | 0.00 | 3.17 | 10.96 | 306.09 | 38.31 | 283.46 | 0.6280 | 549.0 | 577.7 | |
| 0.00 | 1.09 | 0.00 | 0.69 | 11.24 | 305.94 | 38.15 | 283.95 | 0.6266 | 531.0 | 454.5 | |
| 0.64 | 1.73 | 0.40 | 1.09 | 10.33 | 305.76 | 37.98 | 282.53 | 0.6224 | 795.4 | 745.0 | |
| 0.00 | 0.64 | 0.00 | 0.40 | 12.08 | 305.88 | 38.09 | 285.29 | 0.6276 | 307.0 | 295.7 | |
| 0.00 | 1.00 | 0.00 | 0.64 | 12.61 | 305.93 | 38.15 | 286.09 | 0.6296 | 566.0 | 460.5 | |
| 0.00 | 1.18 | 0.00 | 0.75 | 11.47 | 305.54 | 37.76 | 284.41 | 0.6218 | 703.0 | 659.1 | |
| 0.00 | 1.36 | 0.00 | 0.86 | 11.45 | 305.34 | 37.56 | 284.43 | 0.6191 | 504.0 | 506.9 | |
| 0.00 | 2.72 | 0.00 | 1.71 | 11.55 | 305.12 | 37.34 | 284.65 | 0.6164 | 571.0 | 648.6 | |
| 0.00 | 1.09 | 0.00 | 0.68 | 11.78 | 304.73 | 36.94 | 285.13 | 0.6117 | 765.0 | 623.9 | |
| 0.00 | 1.45 | 0.00 | 0.92 | 14.59 | 305.23 | 37.45 | 289.42 | 0.6262 | 525.0 | 393.5 | |
| 0.00 | 0.64 | 0.00 | 0.39 | 10.96 | 304.25 | 36.47 | 283.92 | 0.6034 | 656.0 | 530.1 | |
| 0.54 | 2.18 | 0.34 | 1.36 | 13.31 | 304.44 | 36.65 | 287.67 | 0.6119 | 779.3 | 662.4 | |
| 0.00 | 1.09 | 0.00 | 0.65 | 14.65 | 300.57 | 32.79 | 291.46 | 0.5651 | -626.0 | -451.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
