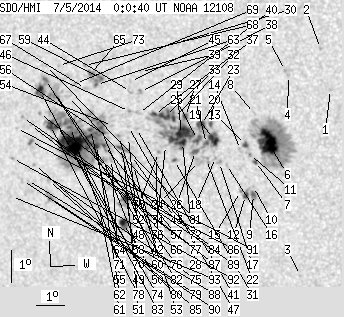

SDO HMI 2014-07-05 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 191.99 | 720.40 | 111.59 | 418.83 | -7.53 | 238.16 | -29.62 | 110.34 | 0.5239 | 31.1 | -50.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-05 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.64 | -5.86 | 244.57 | -23.22 | 111.47 | 0.4231 | 692.0 | 590.5 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -4.60 | 244.29 | -23.50 | 108.42 | 0.4206 | 783.0 | 612.8 | |
| 0.00 | 0.54 | 0.00 | 0.31 | -11.68 | 243.14 | -24.64 | 121.80 | 0.4823 | 658.0 | 502.5 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -5.46 | 243.18 | -24.61 | 109.50 | 0.4415 | 650.0 | 402.0 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -5.30 | 243.08 | -24.70 | 109.10 | 0.4421 | 865.0 | 703.2 | |
| 34.51 | 144.12 | 19.29 | 80.44 | -7.55 | 242.39 | -25.40 | 113.22 | 0.4645 | 1210.2 | 514.9 | |
| 1.00 | 2.27 | 0.56 | 1.28 | -8.15 | 241.90 | -25.88 | 114.01 | 0.4750 | 671.2 | 518.4 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -6.66 | 241.96 | -25.82 | 111.10 | 0.4656 | 623.0 | 445.0 | |
| 2.00 | 10.44 | 1.13 | 5.91 | -9.18 | 241.75 | -26.03 | 115.87 | 0.4834 | 1002.3 | 696.0 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -8.93 | 241.77 | -26.01 | 115.41 | 0.4815 | 732.0 | 555.7 | |
| 0.00 | 1.82 | 0.00 | 1.02 | -7.93 | 241.71 | -26.07 | 113.44 | 0.4764 | 847.0 | 733.2 | |
| 2.45 | -9.00 | 1.39 | -9.00 | -9.22 | 241.48 | -26.31 | 115.70 | 0.4875 | 773.8 | 999999 | |
| 1.82 | 3.09 | 1.02 | 1.74 | -7.63 | 241.59 | -26.19 | 112.75 | 0.4763 | 880.8 | 707.4 | |
| 0.00 | 2.36 | 0.00 | 1.33 | -7.79 | 241.41 | -26.37 | 112.92 | 0.4798 | 550.0 | 536.9 | |
| 0.00 | 1.63 | 0.00 | 0.93 | -9.10 | 241.31 | -26.47 | 115.34 | 0.4890 | 718.0 | 573.1 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -8.27 | 240.89 | -26.89 | 113.44 | 0.4898 | 724.0 | 502.2 | |
| 0.00 | 2.36 | 0.00 | 1.34 | -8.21 | 240.66 | -27.13 | 113.15 | 0.4928 | 681.0 | 528.2 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -8.06 | 240.53 | -27.25 | 112.77 | 0.4937 | 464.0 | 373.5 | |
| 8.99 | 152.75 | 5.11 | 87.55 | -7.47 | 240.50 | -27.28 | 111.63 | 0.4909 | 1091.2 | 343.1 | |
| 1.09 | 3.36 | 0.62 | 1.91 | -7.04 | 240.43 | -27.36 | 110.75 | 0.4896 | 1191.0 | 813.8 | |
| 1.82 | -19.00 | 1.03 | -19.00 | -7.63 | 240.25 | -27.54 | 111.76 | 0.4953 | 808.0 | 999999 | |
| 0.00 | 3.36 | 0.00 | 1.92 | -8.13 | 240.21 | -27.57 | 112.67 | 0.4986 | 124.0 | 23.1 | |
| 5.09 | -19.00 | 2.89 | -19.00 | -7.04 | 240.12 | -27.67 | 110.55 | 0.4941 | 1020.3 | 999999 | |
| 0.00 | 6.08 | 0.00 | 3.48 | -8.20 | 239.93 | -27.86 | 112.59 | 0.5029 | -338.0 | -354.5 | |
| 3.81 | -19.00 | 2.18 | -19.00 | -7.51 | 239.94 | -27.84 | 111.33 | 0.4990 | 978.0 | 999999 | |
| 2.27 | -19.00 | 1.30 | -19.00 | -7.89 | 239.85 | -27.94 | 111.96 | 0.5024 | 650.6 | 999999 | |
| 2.09 | -19.00 | 1.19 | -19.00 | -6.81 | 239.57 | -28.21 | 109.75 | 0.5007 | 808.5 | 999999 | |
| 3.81 | -19.00 | 2.19 | -19.00 | -7.62 | 239.41 | -28.37 | 111.16 | 0.5071 | 868.2 | 999999 | |
| 18.71 | -19.00 | 10.73 | -19.00 | -7.37 | 239.40 | -28.39 | 110.69 | 0.5060 | 837.4 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -4.53 | 239.42 | -28.36 | 105.25 | 0.4928 | 424.0 | 411.2 | |
| 0.82 | 2.18 | 0.47 | 1.26 | -8.19 | 239.09 | -28.70 | 111.99 | 0.5146 | 418.3 | 154.0 | |
| 2.27 | -19.00 | 1.30 | -19.00 | -6.88 | 239.15 | -28.63 | 109.62 | 0.5071 | 760.2 | 999999 | |
| 6.54 | -19.00 | 3.76 | -19.00 | -6.80 | 238.88 | -28.91 | 109.29 | 0.5106 | 850.3 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -7.73 | 238.81 | -28.98 | 110.96 | 0.5161 | -16.0 | -55.9 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -7.95 | 238.54 | -29.24 | 111.20 | 0.5209 | 597.0 | 355.5 | |
| 0.00 | 1.82 | 0.00 | 1.05 | -8.14 | 238.46 | -29.33 | 111.49 | 0.5231 | -234.0 | -218.3 | |
| 1.73 | -19.00 | 1.00 | -19.00 | -6.78 | 238.49 | -29.29 | 109.01 | 0.5159 | 677.7 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.31 | -6.08 | 238.04 | -29.74 | 107.46 | 0.5192 | 808.0 | 673.6 | |
| 0.00 | 0.64 | 0.00 | 0.37 | -5.46 | 238.08 | -29.71 | 106.33 | 0.5161 | 744.0 | 611.0 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -6.76 | 237.93 | -29.86 | 108.65 | 0.5239 | -177.0 | -78.1 | |
| 0.00 | 1.73 | 0.00 | 1.00 | -7.23 | 237.82 | -29.96 | 109.44 | 0.5275 | -290.0 | -247.5 | |
| 0.00 | 1.54 | 0.00 | 0.90 | -8.38 | 237.62 | -30.16 | 111.37 | 0.5359 | -370.0 | -437.4 | |
| 0.00 | 0.36 | 0.00 | 0.21 | -8.08 | 237.57 | -30.21 | 110.80 | 0.5350 | -506.0 | -511.0 | |
| 0.00 | 2.18 | 0.00 | 1.27 | -6.09 | 237.69 | -30.10 | 107.29 | 0.5243 | 327.0 | 354.1 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -5.78 | 237.71 | -30.08 | 106.73 | 0.5227 | 561.0 | 494.3 | |
| 0.00 | 1.45 | 0.00 | 0.85 | -6.71 | 237.61 | -30.17 | 108.38 | 0.5281 | 538.0 | 397.8 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -7.18 | 237.54 | -30.24 | 109.18 | 0.5312 | -678.0 | -563.7 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -7.52 | 237.51 | -30.27 | 109.77 | 0.5331 | -714.0 | -592.9 | |
| 3.36 | 11.62 | 1.98 | 6.87 | -9.42 | 237.27 | -30.51 | 112.95 | 0.5460 | 806.2 | 384.5 | |
| 6.54 | 8.81 | 3.88 | 5.23 | -10.21 | 237.08 | -30.70 | 114.16 | 0.5529 | -978.3 | -680.6 | |
| 0.00 | 2.00 | 0.00 | 1.17 | -8.11 | 237.29 | -30.50 | 110.69 | 0.5392 | -239.0 | -229.7 | |
| 1.54 | 5.72 | 0.91 | 3.36 | -7.84 | 237.20 | -30.58 | 110.15 | 0.5390 | -842.1 | -577.3 | |
| 0.00 | 1.82 | 0.00 | 1.07 | -7.50 | 237.16 | -30.63 | 109.53 | 0.5380 | -698.0 | -549.5 | |
| 0.00 | 0.54 | 0.00 | 0.32 | -7.16 | 236.97 | -30.81 | 108.82 | 0.5391 | -369.0 | -362.8 | |
| 0.00 | 2.45 | 0.00 | 1.45 | -8.22 | 236.85 | -30.94 | 110.61 | 0.5457 | -685.0 | -559.9 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -7.54 | 236.80 | -30.99 | 109.39 | 0.5432 | -621.0 | -518.6 | |
| 1.36 | 233.75 | 0.80 | 139.40 | -7.79 | 236.63 | -31.15 | 109.74 | 0.5466 | -1074.7 | -550.1 | |
| 0.00 | 4.27 | 0.00 | 2.53 | -8.26 | 236.55 | -31.23 | 110.51 | 0.5499 | -758.0 | -632.3 | |
| 0.82 | 14.89 | 0.48 | 8.76 | -5.72 | 236.68 | -31.11 | 106.09 | 0.5371 | 1013.4 | 534.5 | |
| 1.91 | -57.00 | 1.13 | -57.00 | -7.24 | 236.53 | -31.25 | 108.71 | 0.5455 | -1019.4 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -9.76 | 236.26 | -31.52 | 112.88 | 0.5614 | 360.0 | 247.8 | |
| 3.18 | -57.00 | 1.88 | -57.00 | -7.80 | 236.34 | -31.44 | 109.59 | 0.5507 | -1046.8 | 999999 | |
| 0.82 | -59.00 | 0.48 | -59.00 | -5.91 | 236.48 | -31.30 | 106.33 | 0.5406 | 648.4 | 999999 | |
| 1.54 | -57.00 | 0.91 | -57.00 | -7.31 | 236.17 | -31.62 | 108.64 | 0.5509 | -1041.5 | 999999 | |
| 1.63 | -59.00 | 0.96 | -59.00 | -5.57 | 236.29 | -31.49 | 105.64 | 0.5420 | 674.7 | 999999 | |
| 1.73 | -57.00 | 1.03 | -57.00 | -7.87 | 235.97 | -31.81 | 109.51 | 0.5561 | -1034.2 | 999999 | |
| 0.00 | 2.45 | 0.00 | 1.45 | -6.04 | 236.08 | -31.70 | 106.38 | 0.5468 | -333.0 | -257.7 | |
| 0.00 | 1.63 | 0.00 | 0.96 | -5.33 | 236.09 | -31.70 | 105.12 | 0.5440 | 573.0 | 452.6 | |
| 0.00 | 1.82 | 0.00 | 1.08 | -5.90 | 235.73 | -32.06 | 105.95 | 0.5512 | -218.0 | -187.9 | |
| 43.86 | -57.00 | 26.22 | -57.00 | -7.76 | 235.51 | -32.27 | 109.06 | 0.5619 | -1138.2 | 999999 | |
| 1.82 | -57.00 | 1.08 | -57.00 | -7.27 | 235.44 | -32.34 | 108.19 | 0.5607 | -1030.3 | 999999 | |
| 0.00 | 2.82 | 0.00 | 1.68 | -6.31 | 235.45 | -32.34 | 106.53 | 0.5567 | -284.0 | -262.1 | |
| 0.00 | 0.82 | 0.00 | 0.49 | -5.36 | 235.14 | -32.64 | 104.74 | 0.5574 | -831.0 | -663.8 | |
| 4.00 | -57.00 | 2.40 | -57.00 | -7.22 | 234.97 | -32.81 | 107.86 | 0.5669 | -1032.8 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.66 | -9.03 | 234.73 | -33.06 | 110.75 | 0.5782 | -690.0 | -541.7 | |
| 0.00 | 16.80 | 0.00 | 10.05 | -6.20 | 234.94 | -32.84 | 106.11 | 0.5633 | -1011.0 | -789.5 | |
| 0.00 | 1.73 | 0.00 | 1.04 | -7.63 | 234.72 | -33.07 | 108.43 | 0.5722 | -666.0 | -461.6 | |
| 6.08 | -57.00 | 3.66 | -57.00 | -7.23 | 234.72 | -33.07 | 107.75 | 0.5705 | -901.4 | 999999 | |
| 1.18 | 7.17 | 0.72 | 4.37 | -9.51 | 234.49 | -33.29 | 111.39 | 0.5836 | -829.2 | -682.0 | |
| 0.00 | 2.36 | 0.00 | 1.43 | -8.95 | 234.48 | -33.31 | 110.47 | 0.5812 | -724.0 | -595.8 | |
| 0.00 | 0.91 | 0.00 | 0.54 | -5.38 | 234.71 | -33.08 | 104.58 | 0.5636 | -632.0 | -570.2 | |
| 1.54 | 14.89 | 0.93 | 8.96 | -5.81 | 234.64 | -33.14 | 105.30 | 0.5660 | -854.2 | -756.1 | |
| 6.99 | -82.00 | 4.21 | -82.00 | -6.19 | 234.43 | -33.35 | 105.85 | 0.5703 | -932.2 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.77 | -6.87 | 234.34 | -33.44 | 106.96 | 0.5742 | -656.0 | -553.9 | |
| 0.00 | 1.18 | 0.00 | 0.72 | -8.46 | 234.01 | -33.77 | 109.43 | 0.5853 | -795.0 | -667.2 | |
| 1.27 | 2.63 | 0.77 | 1.60 | -7.75 | 233.93 | -33.85 | 108.23 | 0.5833 | -855.4 | -675.0 | |
| 0.00 | 0.54 | 0.00 | 0.33 | -7.25 | 233.98 | -33.81 | 107.42 | 0.5807 | -720.0 | -557.7 | |
| 0.00 | 1.18 | 0.00 | 0.72 | -8.97 | 233.70 | -34.09 | 110.09 | 0.5917 | -499.0 | -399.3 | |
| 0.00 | 1.18 | 0.00 | 0.72 | -7.01 | 233.70 | -34.08 | 106.90 | 0.5835 | -643.0 | -598.0 | |
| 0.00 | 1.73 | 0.00 | 1.06 | -8.98 | 233.51 | -34.28 | 110.00 | 0.5942 | -414.0 | -463.4 | |
| 0.00 | 0.91 | 0.00 | 0.56 | -7.36 | 233.45 | -34.34 | 107.35 | 0.5883 | -628.0 | -513.7 | |
| 0.00 | 1.36 | 0.00 | 0.84 | -8.30 | 233.21 | -34.58 | 108.76 | 0.5953 | -645.0 | -514.0 | |
| 0.00 | 0.73 | 0.00 | 0.45 | -9.49 | 233.04 | -34.75 | 110.57 | 0.6027 | -320.0 | -359.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
