SDO HMI 2014-07-05 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 133.70 | 741.84 | 73.12 | 405.83 | -19.31 | 256.66 | -10.57 | 155.73 | 0.4244 | 577.2 | 324.6 | |
|
previous
or next observation for the same group /

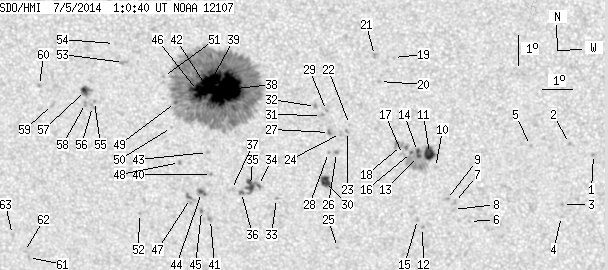

back to the solar disc SDO HMI 2014-07-05 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.74 | -20.95 | 268.18 | 0.95 | 182.16 | 0.4125 | 819.0 | 698.7 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -20.58 | 267.40 | 0.17 | 180.39 | 0.4063 | 873.0 | 683.1 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -22.63 | 267.17 | -0.06 | 179.87 | 0.4389 | 774.0 | 591.4 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -23.04 | 267.14 | -0.10 | 179.80 | 0.4453 | 559.0 | 493.9 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -20.64 | 266.13 | -1.10 | 177.46 | 0.4078 | 709.0 | 558.4 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -23.21 | 264.08 | -3.15 | 173.54 | 0.4508 | 691.0 | 545.0 | |
| 0.00 | 2.63 | 0.00 | 1.45 | -22.56 | 263.60 | -3.63 | 172.36 | 0.4417 | 823.0 | 639.0 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -22.80 | 263.56 | -3.67 | 172.36 | 0.4455 | 453.0 | 452.0 | |
| 0.00 | 2.18 | 0.00 | 1.20 | -22.46 | 263.34 | -3.89 | 171.78 | 0.4407 | 848.0 | 687.0 | |
| 0.00 | 1.63 | 0.00 | 0.89 | -21.38 | 263.01 | -4.22 | 170.67 | 0.4247 | 645.0 | 491.3 | |
| 9.54 | 46.23 | 5.20 | 25.23 | -20.92 | 262.83 | -4.40 | 170.07 | 0.4178 | 1095.2 | 323.8 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -23.42 | 262.51 | -4.72 | 170.46 | 0.4574 | -839.0 | -758.2 | |
| 1.18 | -11.00 | 0.64 | -11.00 | -21.02 | 262.46 | -4.77 | 169.32 | 0.4205 | 878.2 | 999999 | |
| 1.63 | -11.00 | 0.89 | -11.00 | -20.85 | 262.44 | -4.80 | 169.18 | 0.4179 | 1035.5 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.91 | -23.15 | 262.36 | -4.88 | 170.04 | 0.4537 | -818.0 | -688.7 | |
| 0.54 | -11.00 | 0.30 | -11.00 | -20.89 | 262.24 | -4.99 | 168.77 | 0.4191 | 791.3 | 999999 | |
| 0.00 | 2.18 | 0.00 | 1.19 | -20.95 | 261.94 | -5.29 | 168.15 | 0.4211 | 122.0 | 86.7 | |
| 0.00 | 8.45 | 0.00 | 4.60 | -20.65 | 261.92 | -5.31 | 167.94 | 0.4165 | 971.0 | 766.8 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -17.75 | 261.76 | -5.47 | 165.79 | 0.3717 | 647.0 | 592.6 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -18.54 | 261.28 | -5.95 | 165.18 | 0.3859 | -757.0 | -623.8 | |
| 0.00 | 2.09 | 0.00 | 1.11 | -17.69 | 261.15 | -6.08 | 164.24 | 0.3732 | 883.0 | 723.0 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -19.96 | 260.25 | -6.98 | 163.84 | 0.4123 | -651.0 | -528.2 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -20.20 | 260.17 | -7.06 | 163.84 | 0.4162 | -1005.0 | -831.5 | |
| 0.00 | 1.82 | 0.00 | 0.99 | -20.26 | 259.94 | -7.29 | 163.39 | 0.4183 | -832.0 | -583.2 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -24.12 | 259.63 | -7.60 | 165.29 | 0.4774 | -694.0 | -567.1 | |
| 0.00 | 1.73 | 0.00 | 0.95 | -20.90 | 259.78 | -7.45 | 163.50 | 0.4286 | -905.0 | -779.3 | |
| 0.64 | 2.00 | 0.35 | 1.09 | -20.23 | 259.58 | -7.65 | 162.60 | 0.4195 | -965.0 | -838.3 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -20.90 | 259.51 | -7.72 | 162.96 | 0.4299 | -771.0 | -696.9 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -19.50 | 259.52 | -7.71 | 161.90 | 0.4088 | -982.0 | -820.5 | |
| 6.72 | 8.99 | 3.71 | 4.97 | -21.87 | 259.36 | -7.87 | 163.34 | 0.4452 | 909.2 | 604.6 | |
| 0.00 | 2.00 | 0.00 | 1.09 | -19.67 | 259.35 | -7.88 | 161.66 | 0.4122 | -902.0 | -716.4 | |
| 0.00 | 1.82 | 0.00 | 0.99 | -19.37 | 259.17 | -8.06 | 161.02 | 0.4086 | -895.0 | -761.3 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -22.46 | 257.69 | -9.54 | 160.55 | 0.4619 | -759.0 | -514.4 | |
| 0.82 | 15.17 | 0.46 | 8.46 | -22.03 | 257.12 | -10.11 | 159.13 | 0.4587 | -1037.1 | -746.3 | |
| 5.36 | -34.00 | 2.99 | -34.00 | -22.03 | 256.85 | -10.38 | 158.63 | 0.4602 | -1056.7 | 999999 | |
| 1.00 | -34.00 | 0.56 | -34.00 | -22.27 | 256.53 | -10.70 | 158.25 | 0.4654 | -865.3 | 999999 | |
| 0.00 | 2.91 | 0.00 | 1.63 | -22.17 | 256.21 | -11.03 | 157.57 | 0.4660 | -743.0 | -583.9 | |
| 57.13 | 571.26 | 31.13 | 311.70 | -18.84 | 256.29 | -10.94 | 154.44 | 0.4182 | 1527.1 | 447.2 | |
| 19.07 | -38.00 | 10.39 | -38.00 | -18.51 | 255.82 | -11.41 | 153.13 | 0.4169 | 1557.4 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -21.67 | 255.58 | -11.65 | 155.96 | 0.4628 | 474.0 | 402.0 | |
| 0.00 | 2.00 | 0.00 | 1.13 | -23.20 | 255.41 | -11.82 | 157.06 | 0.4851 | -804.0 | -722.0 | |
| 12.44 | -38.00 | 6.80 | -38.00 | -18.84 | 255.70 | -11.54 | 153.26 | 0.4224 | 1303.9 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -20.94 | 255.50 | -11.73 | 155.11 | 0.4530 | 727.0 | 471.4 | |
| 2.18 | 4.54 | 1.22 | 2.55 | -22.28 | 255.19 | -12.04 | 155.85 | 0.4737 | -1001.6 | -743.0 | |
| 0.00 | 1.82 | 0.00 | 1.03 | -22.90 | 255.13 | -12.10 | 156.31 | 0.4825 | -981.0 | -811.7 | |
| 10.54 | -38.00 | 5.76 | -38.00 | -18.88 | 255.33 | -11.90 | 152.59 | 0.4256 | 1110.2 | 999999 | |
| 0.00 | 5.90 | 0.00 | 3.33 | -22.49 | 254.80 | -12.43 | 155.36 | 0.4791 | -780.0 | -642.2 | |
| 0.00 | 1.73 | 0.00 | 0.96 | -21.28 | 254.54 | -12.69 | 153.72 | 0.4642 | 795.0 | 609.8 | |
| 0.82 | -38.00 | 0.45 | -38.00 | -19.29 | 254.58 | -12.66 | 151.61 | 0.4367 | 178.6 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -20.12 | 254.37 | -12.86 | 152.17 | 0.4495 | 607.0 | 418.1 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -18.43 | 254.25 | -12.99 | 149.97 | 0.4277 | 661.0 | 489.9 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -23.02 | 253.01 | -14.22 | 152.89 | 0.4982 | -799.0 | -643.2 | |
| 0.00 | 3.36 | 0.00 | 1.84 | -17.99 | 252.96 | -14.27 | 147.02 | 0.4325 | -831.0 | -585.6 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -17.38 | 252.72 | -14.52 | 145.74 | 0.4267 | -695.0 | -508.3 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -19.29 | 251.88 | -15.35 | 146.81 | 0.4584 | -926.0 | -702.5 | |
| 0.00 | 2.18 | 0.00 | 1.22 | -19.46 | 251.79 | -15.44 | 146.88 | 0.4612 | -826.0 | -713.6 | |
| 4.09 | 9.72 | 2.27 | 5.40 | -18.93 | 251.61 | -15.62 | 145.90 | 0.4561 | -985.5 | -605.2 | |
| 0.00 | 1.91 | 0.00 | 1.06 | -19.36 | 251.57 | -15.66 | 146.38 | 0.4619 | -918.0 | -798.2 | |
| 0.00 | 2.45 | 0.00 | 1.38 | -19.41 | 250.45 | -16.78 | 144.63 | 0.4723 | -791.0 | -631.3 | |
| 0.00 | 1.82 | 0.00 | 1.02 | -18.79 | 250.08 | -17.15 | 143.22 | 0.4682 | -965.0 | -761.0 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -24.60 | 248.95 | -18.28 | 148.48 | 0.5477 | -778.0 | -598.7 | |
| 0.00 | 0.91 | 0.00 | 0.54 | -24.39 | 248.84 | -18.39 | 148.12 | 0.5461 | -639.0 | -551.9 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -23.81 | 248.51 | -18.72 | 147.03 | 0.5418 | -53.0 | -78.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
