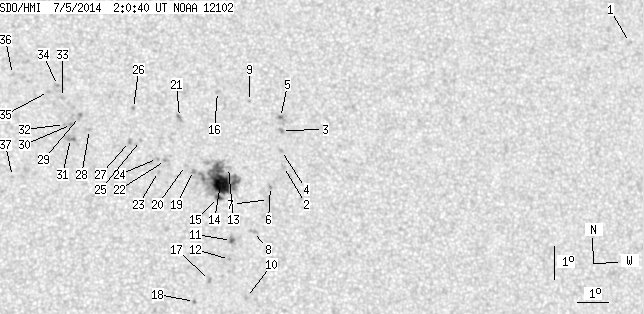

SDO HMI 2014-07-05 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.61 | 157.50 | 14.19 | 80.84 | 11.32 | 279.40 | 12.72 | 303.61 | 0.2609 | -519.0 | -444.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-05 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.82 | 0.00 | 1.03 | 15.08 | 293.88 | 27.20 | 295.47 | 0.4908 | -694.0 | -628.7 | |
| 0.00 | 2.72 | 0.00 | 1.41 | 11.49 | 281.89 | 15.21 | 299.33 | 0.2962 | -736.0 | -583.0 | |
| 0.00 | 2.36 | 0.00 | 1.23 | 12.60 | 281.89 | 15.21 | 302.58 | 0.3052 | -909.0 | -757.7 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 11.98 | 281.85 | 15.17 | 300.86 | 0.2996 | -824.0 | -679.2 | |
| 0.45 | 2.00 | 0.24 | 1.04 | 13.00 | 281.88 | 15.20 | 303.72 | 0.3085 | -937.6 | -765.9 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 10.88 | 281.44 | 14.76 | 298.15 | 0.2850 | -1027.0 | -839.3 | |
| 0.00 | 2.27 | 0.00 | 1.17 | 10.48 | 281.35 | 14.67 | 297.00 | 0.2808 | -878.0 | -743.3 | |
| 0.00 | 3.45 | 0.00 | 1.77 | 9.51 | 280.83 | 14.15 | 294.51 | 0.2661 | -868.0 | -706.1 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 13.51 | 280.91 | 14.23 | 306.84 | 0.3000 | -712.0 | -574.9 | |
| 0.00 | 1.82 | 0.00 | 0.93 | 7.49 | 280.53 | 13.85 | 287.50 | 0.2499 | -905.0 | -781.0 | |
| 0.91 | 3.91 | 0.47 | 2.00 | 9.24 | 280.12 | 13.44 | 294.63 | 0.2534 | -1123.3 | -796.6 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 8.66 | 280.03 | 13.35 | 292.60 | 0.2484 | -826.0 | -648.7 | |
| 0.00 | 2.00 | 0.00 | 1.03 | 11.49 | 280.12 | 13.44 | 302.29 | 0.2707 | -298.0 | -239.3 | |
| 23.80 | 89.56 | 12.22 | 45.96 | 11.00 | 279.85 | 13.16 | 301.21 | 0.2626 | -1219.4 | -704.0 | |
| 2.45 | -14.00 | 1.26 | -14.00 | 10.57 | 279.76 | 13.08 | 299.92 | 0.2578 | -1009.4 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.03 | 13.84 | 279.90 | 13.22 | 309.71 | 0.2899 | -851.0 | -601.7 | |
| 0.00 | 2.18 | 0.00 | 1.11 | 8.03 | 279.38 | 12.70 | 291.08 | 0.2343 | -1063.0 | -841.4 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 7.39 | 278.89 | 12.20 | 289.13 | 0.2229 | 720.0 | 614.2 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 11.41 | 279.00 | 12.32 | 304.24 | 0.2542 | -864.0 | -726.4 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 11.57 | 278.76 | 12.08 | 305.29 | 0.2522 | -670.0 | -484.0 | |
| 0.00 | 2.91 | 0.00 | 1.49 | 13.05 | 278.64 | 11.95 | 310.21 | 0.2654 | -863.0 | -704.8 | |
| 0.00 | 2.09 | 0.00 | 1.07 | 11.73 | 278.13 | 11.45 | 307.24 | 0.2452 | -958.0 | -764.7 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 11.39 | 277.89 | 11.21 | 306.67 | 0.2387 | -858.0 | -699.2 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 11.79 | 277.88 | 11.20 | 308.06 | 0.2425 | -804.0 | -685.7 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 12.35 | 277.36 | 10.68 | 311.18 | 0.2416 | -659.0 | -592.7 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 13.35 | 277.18 | 10.50 | 314.69 | 0.2505 | 943.0 | 712.5 | |
| 0.00 | 2.54 | 0.00 | 1.30 | 12.33 | 277.01 | 10.33 | 312.02 | 0.2369 | -819.0 | -685.7 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 12.71 | 275.76 | 9.08 | 316.86 | 0.2261 | 931.0 | 761.0 | |
| 0.00 | 3.45 | 0.00 | 1.76 | 13.12 | 275.46 | 8.78 | 319.04 | 0.2277 | 966.0 | 780.4 | |
| 0.00 | 1.82 | 0.00 | 0.92 | 12.87 | 275.20 | 8.51 | 319.15 | 0.2217 | 1037.0 | 858.4 | |
| 0.00 | 5.09 | 0.00 | 2.58 | 12.44 | 275.15 | 8.47 | 317.96 | 0.2157 | 827.0 | 832.9 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 12.87 | 274.98 | 8.29 | 319.89 | 0.2192 | 822.0 | 640.5 | |
| 0.00 | 1.82 | 0.00 | 0.92 | 13.71 | 274.94 | 8.26 | 322.41 | 0.2298 | 867.0 | 672.1 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 14.08 | 274.80 | 8.12 | 323.89 | 0.2334 | 916.0 | 755.9 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 13.90 | 274.50 | 7.82 | 324.39 | 0.2279 | 910.0 | 681.6 | |
| 0.00 | 1.91 | 0.00 | 0.97 | 14.44 | 273.38 | 6.70 | 329.72 | 0.2251 | 939.0 | 654.8 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 11.28 | 273.29 | 6.61 | 320.97 | 0.1801 | 664.0 | 571.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
