SDO HMI 2014-07-05 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.99 | 63.56 | 8.42 | 39.80 | -15.56 | 233.82 | -32.86 | 121.08 | 0.6115 | -95.9 | 74.8 | |
|
previous
or next observation for the same group /

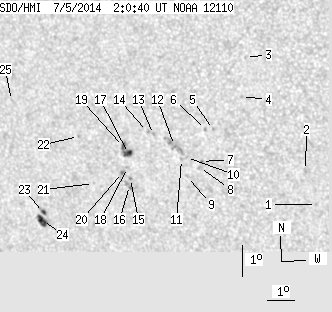

back to the solar disc SDO HMI 2014-07-05 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.59 | -16.60 | 240.21 | -26.47 | 128.07 | 0.5447 | 582.0 | 520.5 | |
| 0.00 | 1.54 | 0.00 | 0.91 | -15.51 | 239.98 | -26.70 | 126.16 | 0.5384 | 624.0 | 538.5 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -11.95 | 238.31 | -28.37 | 118.87 | 0.5329 | 593.0 | 432.3 | |
| 0.00 | 0.91 | 0.00 | 0.54 | -13.20 | 238.02 | -28.66 | 120.68 | 0.5451 | 593.0 | 482.7 | |
| 0.00 | 0.82 | 0.00 | 0.49 | -14.28 | 236.86 | -29.82 | 121.44 | 0.5670 | 704.0 | 577.9 | |
| 0.00 | 1.27 | 0.00 | 0.77 | -14.29 | 236.57 | -30.12 | 121.21 | 0.5707 | 516.0 | 460.5 | |
| 0.00 | 1.27 | 0.00 | 0.77 | -15.32 | 236.26 | -30.42 | 122.54 | 0.5815 | 878.0 | 691.4 | |
| 0.00 | 1.63 | 0.00 | 1.00 | -15.52 | 236.15 | -30.53 | 122.75 | 0.5842 | 728.0 | 520.0 | |
| 0.00 | 1.18 | 0.00 | 0.72 | -15.82 | 235.66 | -31.02 | 122.81 | 0.5922 | 593.0 | 495.6 | |
| 0.00 | 0.91 | 0.00 | 0.55 | -15.21 | 235.72 | -30.96 | 121.95 | 0.5872 | 745.0 | 604.0 | |
| 0.00 | 1.36 | 0.00 | 0.83 | -15.28 | 235.53 | -31.15 | 121.90 | 0.5900 | 578.0 | 420.3 | |
| 0.00 | 14.26 | 0.00 | 8.73 | -14.84 | 235.34 | -31.34 | 121.09 | 0.5893 | 723.0 | 586.0 | |
| 0.00 | 1.36 | 0.00 | 0.84 | -14.51 | 234.62 | -32.06 | 120.05 | 0.5959 | 747.0 | 554.1 | |
| 0.00 | 1.63 | 0.00 | 1.01 | -14.42 | 234.41 | -32.27 | 119.76 | 0.5979 | 674.0 | 548.7 | |
| 0.00 | 1.00 | 0.00 | 0.63 | -15.95 | 233.50 | -33.18 | 121.36 | 0.6185 | -727.0 | -586.4 | |
| 0.00 | 4.63 | 0.00 | 2.92 | -16.18 | 233.42 | -33.27 | 121.63 | 0.6209 | -655.0 | -530.9 | |
| 3.91 | 9.90 | 2.44 | 6.19 | -15.15 | 233.57 | -33.11 | 120.24 | 0.6126 | -1023.1 | -752.6 | |
| 0.00 | 1.18 | 0.00 | 0.74 | -15.60 | 233.45 | -33.23 | 120.82 | 0.6168 | -628.0 | -531.5 | |
| 1.45 | -17.00 | 0.91 | -17.00 | -14.93 | 233.42 | -33.26 | 119.81 | 0.6130 | -931.5 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.26 | -15.77 | 233.23 | -33.45 | 120.90 | 0.6205 | -925.0 | -770.1 | |
| 0.00 | 0.91 | 0.00 | 0.58 | -16.16 | 232.04 | -34.64 | 120.64 | 0.6368 | -523.0 | -349.7 | |
| 0.00 | 0.91 | 0.00 | 0.58 | -14.66 | 231.75 | -34.93 | 118.31 | 0.6314 | -718.0 | -636.1 | |
| 1.54 | 3.63 | 1.02 | 2.41 | -17.18 | 229.85 | -36.83 | 120.61 | 0.6677 | -884.8 | -656.0 | |
| 6.09 | 8.63 | 4.05 | 5.75 | -17.44 | 229.75 | -36.93 | 120.90 | 0.6703 | -790.0 | -501.9 | |
| 0.00 | 0.45 | 0.00 | 0.30 | -13.60 | 229.34 | -37.35 | 115.34 | 0.6546 | -477.0 | -392.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
