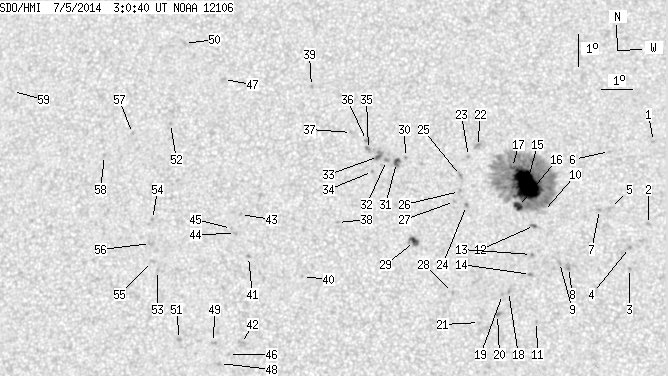

SDO HMI 2014-07-05 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 68.04 | 390.07 | 34.58 | 198.80 | 15.06 | 260.60 | -5.53 | 23.48 | 0.2303 | -444.2 | -228.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-05 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.56 | 16.72 | 265.87 | -0.27 | 1.10 | 0.2331 | -813.0 | -600.3 | |
| 0.00 | 2.00 | 0.00 | 1.01 | 14.13 | 265.71 | -0.42 | 2.18 | 0.1888 | -736.0 | -560.7 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 12.77 | 265.12 | -1.02 | 6.00 | 0.1661 | -879.0 | -696.4 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 13.42 | 265.11 | -1.02 | 5.62 | 0.1773 | -1011.0 | -884.1 | |
| 0.00 | 3.36 | 0.00 | 1.70 | 14.63 | 264.51 | -1.62 | 7.93 | 0.1992 | -783.0 | -608.6 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 16.41 | 264.47 | -1.66 | 7.00 | 0.2294 | -822.0 | -542.9 | |
| 0.00 | 1.64 | 0.00 | 0.83 | 14.60 | 264.17 | -1.97 | 9.62 | 0.1996 | -904.0 | -784.4 | |
| 0.00 | 3.82 | 0.00 | 1.92 | 12.80 | 263.21 | -2.92 | 16.77 | 0.1731 | -1029.0 | -800.3 | |
| 0.00 | 2.36 | 0.00 | 1.19 | 12.95 | 262.93 | -3.21 | 18.01 | 0.1771 | -898.0 | -679.4 | |
| 0.00 | 2.00 | 0.00 | 1.01 | 14.53 | 262.40 | -3.73 | 17.92 | 0.2057 | -198.0 | -157.8 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 11.13 | 262.23 | -3.90 | 26.10 | 0.1525 | -802.0 | -644.9 | |
| 0.64 | 2.63 | 0.32 | 1.33 | 14.10 | 262.12 | -4.01 | 19.89 | 0.2002 | -993.7 | -788.0 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 13.20 | 262.04 | -4.09 | 21.98 | 0.1863 | -885.0 | -775.9 | |
| 0.00 | 1.91 | 0.00 | 0.96 | 12.58 | 262.02 | -4.11 | 23.44 | 0.1766 | -1109.0 | -854.0 | |
| 52.32 | 282.87 | 26.58 | 143.81 | 15.37 | 261.85 | -4.28 | 18.99 | 0.2223 | -1456.7 | -384.0 | |
| 5.27 | -15.00 | 2.67 | -15.00 | 14.69 | 261.61 | -4.52 | 21.12 | 0.2127 | -1104.2 | 999999 | |
| 2.91 | -15.00 | 1.48 | -15.00 | 15.90 | 261.39 | -4.74 | 20.00 | 0.2333 | -962.2 | 999999 | |
| 0.00 | 1.91 | 0.00 | 0.96 | 12.05 | 261.34 | -4.79 | 28.19 | 0.1736 | -1019.0 | -801.3 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 11.96 | 261.16 | -4.98 | 29.38 | 0.1737 | -914.0 | -746.3 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 11.34 | 261.01 | -5.12 | 31.99 | 0.1659 | -1090.0 | -839.4 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 11.10 | 260.45 | -5.68 | 35.55 | 0.1677 | -724.0 | -502.6 | |
| 0.00 | 3.91 | 0.00 | 2.00 | 16.55 | 260.26 | -5.87 | 23.14 | 0.2506 | 34.0 | 87.7 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 16.24 | 259.98 | -6.15 | 24.65 | 0.2477 | 804.0 | 591.7 | |
| 0.00 | 2.09 | 0.00 | 1.06 | 14.71 | 259.96 | -6.17 | 27.69 | 0.2247 | -951.0 | -839.6 | |
| 0.00 | 2.09 | 0.00 | 1.07 | 15.64 | 259.75 | -6.39 | 26.58 | 0.2404 | 986.0 | 788.3 | |
| 0.00 | 1.82 | 0.00 | 0.93 | 15.15 | 259.73 | -6.40 | 27.64 | 0.2331 | -759.0 | -639.2 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 14.83 | 259.58 | -6.55 | 28.85 | 0.2296 | -791.0 | -576.1 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 12.02 | 259.59 | -6.54 | 36.28 | 0.1892 | -842.0 | -697.1 | |
| 3.45 | 5.18 | 1.75 | 2.63 | 13.58 | 258.35 | -7.78 | 36.33 | 0.2232 | -1121.3 | -919.6 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 16.20 | 257.97 | -8.16 | 31.37 | 0.2631 | 861.0 | 737.6 | |
| 2.27 | 4.54 | 1.17 | 2.33 | 16.04 | 257.69 | -8.44 | 32.56 | 0.2634 | 1020.1 | 833.0 | |
| 0.00 | 2.18 | 0.00 | 1.12 | 16.10 | 257.36 | -8.77 | 33.40 | 0.2672 | 1040.0 | 882.2 | |
| 1.18 | 5.54 | 0.61 | 2.85 | 16.22 | 257.10 | -9.03 | 33.91 | 0.2714 | 1088.5 | 910.6 | |
| 0.00 | 0.82 | 0.00 | 0.42 | 15.75 | 256.93 | -9.20 | 35.44 | 0.2666 | 906.0 | 811.2 | |
| 0.00 | 2.73 | 0.00 | 1.40 | 16.44 | 256.77 | -9.36 | 34.39 | 0.2775 | 915.0 | 766.0 | |
| 0.00 | 2.36 | 0.00 | 1.22 | 16.72 | 256.69 | -9.44 | 34.02 | 0.2820 | 976.0 | 790.3 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 16.97 | 256.19 | -9.94 | 34.86 | 0.2901 | 710.0 | 520.9 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 14.16 | 255.88 | -10.25 | 42.38 | 0.2572 | 801.0 | 633.8 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 18.40 | 254.81 | -11.32 | 35.47 | 0.3225 | -771.0 | -636.8 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 12.47 | 254.84 | -11.29 | 50.00 | 0.2507 | 665.0 | 451.0 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 13.07 | 253.08 | -13.05 | 52.11 | 0.2799 | 968.0 | 864.1 | |
| 0.00 | 4.81 | 0.00 | 2.47 | 10.39 | 252.99 | -13.15 | 60.83 | 0.2573 | 847.0 | 713.4 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 14.37 | 252.75 | -13.38 | 49.20 | 0.2974 | 894.0 | 705.5 | |
| 0.00 | 1.64 | 0.00 | 0.85 | 13.78 | 252.63 | -13.51 | 51.05 | 0.2930 | 988.0 | 733.6 | |
| 0.00 | 0.73 | 0.00 | 0.38 | 13.93 | 252.49 | -13.64 | 50.91 | 0.2963 | 796.0 | 701.8 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 10.05 | 252.59 | -13.55 | 62.71 | 0.2607 | 832.0 | 632.5 | |
| 0.00 | 2.45 | 0.00 | 1.30 | 18.59 | 251.89 | -14.24 | 41.31 | 0.3547 | 772.0 | 634.2 | |
| 0.00 | 1.73 | 0.00 | 0.89 | 9.77 | 252.31 | -13.82 | 64.12 | 0.2628 | 946.0 | 718.9 | |
| 0.00 | 2.27 | 0.00 | 1.17 | 10.41 | 252.09 | -14.04 | 62.27 | 0.2707 | 857.0 | 731.5 | |
| 0.00 | 1.82 | 0.00 | 0.97 | 19.71 | 250.49 | -15.64 | 41.74 | 0.3829 | 678.0 | 539.8 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 10.49 | 251.00 | -15.13 | 63.67 | 0.2876 | 945.0 | 808.8 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 17.18 | 250.26 | -15.88 | 47.21 | 0.3577 | 843.0 | 644.8 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 12.60 | 250.17 | -15.96 | 58.61 | 0.3157 | 724.0 | 660.8 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 14.18 | 249.90 | -16.23 | 54.84 | 0.3329 | 841.0 | 637.5 | |
| 0.00 | 1.82 | 0.00 | 0.95 | 12.88 | 249.99 | -16.14 | 58.12 | 0.3205 | 778.0 | 596.6 | |
| 0.00 | 3.27 | 0.00 | 1.71 | 13.43 | 249.89 | -16.24 | 56.79 | 0.3266 | 828.0 | 663.5 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 16.85 | 249.02 | -17.11 | 49.96 | 0.3694 | 791.0 | 582.6 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 16.15 | 248.15 | -17.98 | 52.81 | 0.3738 | 661.0 | 535.5 | |
| 0.00 | 0.64 | 0.00 | 0.35 | 18.10 | 244.82 | -21.31 | 53.13 | 0.4336 | 646.0 | 441.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
