SDO HMI 2014-07-05 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.25 | 111.74 | 30.16 | 119.72 | 6.14 | 203.56 | -62.57 | 84.79 | 0.8880 | -561.2 | -108.1 | |
|
previous
or next observation for the same group /

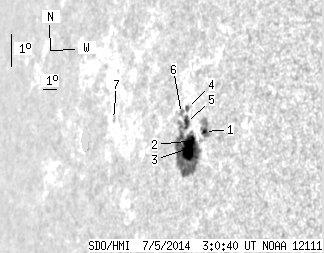

back to the solar disc SDO HMI 2014-07-05 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.91 | 12.54 | 1.98 | 12.99 | 6.48 | 204.53 | -61.60 | 84.42 | 0.8801 | -789.1 | -458.5 | |
| 0.00 | 0.73 | 0.00 | 0.76 | 6.18 | 204.07 | -62.06 | 84.76 | 0.8839 | -428.0 | -397.0 | |
| 22.16 | 91.75 | 23.67 | 98.41 | 5.91 | 203.59 | -62.54 | 85.05 | 0.8878 | -659.6 | -68.0 | |
| 0.00 | 2.45 | 0.00 | 2.65 | 7.12 | 203.26 | -62.88 | 83.69 | 0.8904 | -418.0 | -249.0 | |
| 4.18 | -3.00 | 4.51 | -3.00 | 6.69 | 203.29 | -62.84 | 84.17 | 0.8902 | -360.4 | 999999 | |
| 0.00 | 3.18 | 0.00 | 3.47 | 6.95 | 202.89 | -63.25 | 83.88 | 0.8933 | 282.0 | 249.0 | |
| 0.00 | 1.09 | 0.00 | 1.44 | 6.51 | 197.86 | -68.27 | 84.31 | 0.9291 | 193.0 | 164.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
