SDO HMI 2014-07-05 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.73 | 58.96 | 1.19 | 39.84 | 10.54 | 308.08 | 42.49 | 282.02 | 0.6807 | 138.5 | 138.4 | |
|
previous
or next observation for the same group /

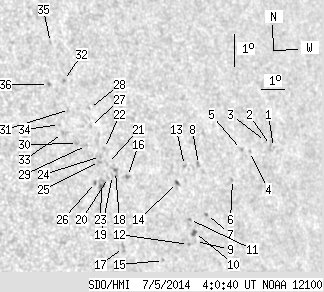

back to the solar disc SDO HMI 2014-07-05 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.55 | 0.00 | 0.41 | 11.06 | 313.68 | 48.09 | 281.89 | 0.7487 | -396.0 | -459.7 | |
| 0.00 | 4.18 | 0.00 | 3.11 | 11.13 | 313.55 | 47.97 | 281.99 | 0.7473 | -626.0 | -495.7 | |
| 0.00 | 1.00 | 0.00 | 0.74 | 11.26 | 313.35 | 47.77 | 282.20 | 0.7452 | -573.0 | -435.7 | |
| 0.00 | 1.09 | 0.00 | 0.79 | 10.99 | 312.55 | 46.97 | 281.93 | 0.7357 | -342.0 | -333.4 | |
| 0.00 | 1.09 | 0.00 | 0.79 | 11.07 | 312.20 | 46.62 | 282.08 | 0.7317 | -613.0 | -537.6 | |
| 0.00 | 1.27 | 0.00 | 0.91 | 10.16 | 311.62 | 46.03 | 280.92 | 0.7238 | -560.0 | -456.6 | |
| 0.00 | 1.09 | 0.00 | 0.76 | 9.14 | 310.29 | 44.71 | 279.65 | 0.7068 | -652.0 | -629.9 | |
| 0.00 | 2.27 | 0.00 | 1.59 | 10.68 | 310.21 | 44.63 | 281.84 | 0.7076 | -611.0 | -431.9 | |
| 0.00 | 0.73 | 0.00 | 0.50 | 8.34 | 309.69 | 44.11 | 278.56 | 0.6987 | -473.0 | -430.1 | |
| 1.18 | 3.18 | 0.82 | 2.19 | 8.61 | 309.69 | 44.10 | 278.96 | 0.6989 | -733.3 | -536.0 | |
| 0.00 | 1.36 | 0.00 | 0.94 | 9.02 | 309.53 | 43.95 | 279.56 | 0.6974 | -671.0 | -622.3 | |
| 0.00 | 1.09 | 0.00 | 0.75 | 8.26 | 309.38 | 43.79 | 278.48 | 0.6948 | -647.0 | -624.8 | |
| 0.00 | 1.45 | 0.00 | 1.01 | 10.68 | 309.60 | 44.02 | 281.92 | 0.7002 | -637.0 | -543.6 | |
| 0.55 | 2.00 | 0.37 | 1.37 | 10.17 | 309.21 | 43.62 | 281.25 | 0.6947 | -671.8 | -582.3 | |
| 0.00 | 1.00 | 0.00 | 0.67 | 7.81 | 308.26 | 42.67 | 277.93 | 0.6803 | 421.0 | 393.3 | |
| 0.00 | 1.82 | 0.00 | 1.21 | 10.44 | 307.14 | 41.56 | 281.97 | 0.6692 | 571.0 | 485.4 | |
| 0.00 | 3.45 | 0.00 | 2.27 | 8.27 | 306.66 | 41.07 | 278.79 | 0.6602 | 544.0 | 518.8 | |
| 0.00 | 4.18 | 0.00 | 2.76 | 10.61 | 306.67 | 41.09 | 282.31 | 0.6635 | 570.0 | 470.2 | |
| 0.00 | 1.54 | 0.00 | 1.02 | 10.49 | 306.53 | 40.94 | 282.16 | 0.6614 | 512.0 | 431.2 | |
| 0.00 | 1.00 | 0.00 | 0.66 | 10.44 | 306.35 | 40.77 | 282.11 | 0.6591 | 622.0 | 500.9 | |
| 0.00 | 0.27 | 0.00 | 0.18 | 10.87 | 306.38 | 40.80 | 282.76 | 0.6602 | 637.0 | 549.0 | |
| 0.00 | 1.27 | 0.00 | 0.84 | 11.33 | 306.34 | 40.76 | 283.46 | 0.6605 | 531.0 | 418.1 | |
| 0.00 | 7.36 | 0.00 | 4.81 | 10.23 | 306.04 | 40.45 | 281.86 | 0.6547 | 780.0 | 616.1 | |
| 0.00 | 1.09 | 0.00 | 0.71 | 11.09 | 306.14 | 40.55 | 283.15 | 0.6574 | 560.0 | 496.1 | |
| 0.00 | 1.54 | 0.00 | 1.01 | 10.94 | 306.07 | 40.49 | 282.93 | 0.6563 | 815.0 | 654.5 | |
| 0.00 | 1.73 | 0.00 | 1.12 | 10.30 | 305.80 | 40.22 | 282.01 | 0.6518 | 932.0 | 677.4 | |
| 0.00 | 1.27 | 0.00 | 0.83 | 12.03 | 305.89 | 40.31 | 284.61 | 0.6561 | 422.0 | 378.0 | |
| 0.00 | 0.82 | 0.00 | 0.54 | 12.58 | 305.95 | 40.37 | 285.44 | 0.6581 | 500.0 | 401.4 | |
| 0.00 | 0.82 | 0.00 | 0.53 | 11.45 | 305.62 | 40.04 | 283.80 | 0.6515 | 636.0 | 563.4 | |
| 0.00 | 1.64 | 0.00 | 1.06 | 11.53 | 305.27 | 39.69 | 283.99 | 0.6471 | 807.0 | 621.2 | |
| 0.00 | 0.45 | 0.00 | 0.29 | 12.58 | 305.14 | 39.55 | 285.64 | 0.6477 | 407.0 | 487.0 | |
| 0.00 | 1.36 | 0.00 | 0.89 | 13.49 | 305.07 | 39.48 | 287.04 | 0.6490 | 482.0 | 474.1 | |
| 0.00 | 0.73 | 0.00 | 0.47 | 11.86 | 304.72 | 39.14 | 284.63 | 0.6407 | 586.0 | 433.9 | |
| 0.00 | 0.91 | 0.00 | 0.58 | 12.14 | 304.65 | 39.07 | 285.08 | 0.6404 | 679.0 | 584.5 | |
| 0.00 | 1.00 | 0.00 | 0.65 | 14.68 | 304.79 | 39.20 | 288.93 | 0.6487 | 691.0 | 549.3 | |
| 0.00 | 1.36 | 0.00 | 0.88 | 13.39 | 304.44 | 38.86 | 287.07 | 0.6407 | 631.0 | 641.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
