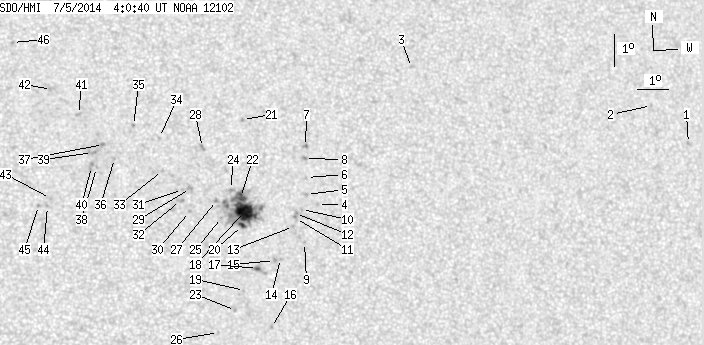

SDO HMI 2014-07-05 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.98 | 169.70 | 18.04 | 87.58 | 11.43 | 279.54 | 13.95 | 301.78 | 0.2794 | -552.2 | -399.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-05 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.09 | 0.00 | 1.20 | 12.76 | 294.97 | 29.39 | 289.71 | 0.5104 | -805.0 | -593.7 | |
| 0.00 | 1.27 | 0.00 | 0.73 | 13.97 | 293.81 | 28.22 | 292.67 | 0.4993 | -769.0 | -582.9 | |
| 0.00 | 1.64 | 0.00 | 0.88 | 15.35 | 285.67 | 20.09 | 302.63 | 0.3949 | -608.0 | -421.9 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 11.18 | 282.23 | 16.65 | 296.35 | 0.3150 | -636.0 | -503.5 | |
| 0.00 | 1.91 | 0.00 | 0.99 | 11.49 | 281.89 | 16.31 | 297.71 | 0.3122 | -888.0 | -724.1 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 12.01 | 281.92 | 16.34 | 299.16 | 0.3165 | -813.0 | -684.0 | |
| 0.00 | 2.09 | 0.00 | 1.09 | 12.97 | 281.96 | 16.37 | 301.76 | 0.3245 | -942.0 | -749.7 | |
| 0.00 | 2.00 | 0.00 | 1.04 | 12.60 | 281.90 | 16.31 | 300.84 | 0.3207 | -964.0 | -781.0 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 10.02 | 281.74 | 16.16 | 293.47 | 0.3001 | -616.0 | -511.2 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 11.03 | 281.70 | 16.12 | 296.61 | 0.3061 | -740.0 | -650.1 | |
| 0.00 | 1.82 | 0.00 | 0.94 | 10.76 | 281.49 | 15.91 | 296.07 | 0.3011 | -811.0 | -642.8 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 10.91 | 281.50 | 15.92 | 296.53 | 0.3023 | -778.0 | -718.2 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 10.51 | 281.42 | 15.83 | 295.42 | 0.2983 | -900.0 | -738.6 | |
| 0.00 | 0.45 | 0.00 | 0.23 | 9.54 | 280.95 | 15.36 | 292.92 | 0.2850 | -721.0 | -602.0 | |
| 0.00 | 1.64 | 0.00 | 0.84 | 9.48 | 280.75 | 15.17 | 292.98 | 0.2816 | -887.0 | -749.6 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 7.43 | 280.57 | 14.99 | 286.05 | 0.2681 | -926.0 | -732.3 | |
| 1.00 | 5.63 | 0.51 | 2.90 | 9.24 | 280.20 | 14.62 | 292.90 | 0.2716 | -1082.3 | -748.7 | |
| 26.35 | 93.39 | 13.59 | 48.15 | 11.00 | 279.87 | 14.28 | 299.23 | 0.2787 | -1193.8 | -610.9 | |
| 0.00 | 0.64 | 0.00 | 0.33 | 8.58 | 279.76 | 14.17 | 291.11 | 0.2607 | -570.0 | -514.9 | |
| 2.27 | -18.00 | 1.17 | -18.00 | 10.57 | 279.78 | 14.20 | 297.98 | 0.2742 | -1034.4 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 13.84 | 279.97 | 14.38 | 307.41 | 0.3050 | -856.0 | -741.4 | |
| 5.36 | -18.00 | 2.77 | -18.00 | 11.43 | 279.76 | 14.18 | 300.78 | 0.2806 | -974.4 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 7.97 | 279.45 | 13.86 | 289.25 | 0.2525 | -919.0 | -741.3 | |
| 0.00 | 2.54 | 0.00 | 1.31 | 11.68 | 279.45 | 13.87 | 302.09 | 0.2783 | -744.0 | -630.3 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 10.82 | 279.12 | 13.54 | 299.92 | 0.2665 | -846.0 | -641.6 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 7.30 | 278.89 | 13.30 | 287.32 | 0.2402 | 625.0 | 479.2 | |
| 0.00 | 2.00 | 0.00 | 1.03 | 11.35 | 278.99 | 13.40 | 301.88 | 0.2689 | -904.0 | -691.5 | |
| 0.00 | 3.09 | 0.00 | 1.59 | 12.99 | 278.62 | 13.04 | 307.64 | 0.2789 | -860.0 | -721.9 | |
| 0.00 | 3.36 | 0.00 | 1.72 | 11.73 | 278.18 | 12.59 | 304.69 | 0.2608 | -941.0 | -795.0 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 11.02 | 278.11 | 12.53 | 302.48 | 0.2535 | -830.0 | -685.4 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 11.70 | 277.92 | 12.34 | 305.14 | 0.2570 | -901.0 | -748.5 | |
| 0.00 | 2.82 | 0.00 | 1.44 | 11.37 | 277.84 | 12.26 | 304.19 | 0.2527 | -774.0 | -760.5 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 12.30 | 277.31 | 11.73 | 308.40 | 0.2545 | -827.0 | -673.0 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 13.32 | 277.26 | 11.68 | 311.60 | 0.2646 | 891.0 | 625.3 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 13.70 | 276.45 | 10.87 | 314.71 | 0.2589 | -700.0 | -493.7 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 12.69 | 275.80 | 10.22 | 313.42 | 0.2393 | 722.0 | 515.5 | |
| 0.00 | 2.00 | 0.00 | 1.02 | 13.12 | 275.47 | 9.89 | 315.68 | 0.2404 | 960.0 | 810.7 | |
| 0.00 | 0.73 | 0.00 | 0.37 | 12.41 | 275.22 | 9.64 | 314.21 | 0.2291 | 760.0 | 572.4 | |
| 0.00 | 4.45 | 0.00 | 2.27 | 12.88 | 275.11 | 9.53 | 315.98 | 0.2333 | 909.0 | 776.9 | |
| 0.00 | 4.36 | 0.00 | 2.22 | 12.45 | 275.06 | 9.48 | 314.77 | 0.2275 | 840.0 | 750.1 | |
| 0.00 | 2.45 | 0.00 | 1.25 | 14.06 | 274.71 | 9.13 | 320.57 | 0.2435 | 1106.0 | 824.0 | |
| 0.00 | 3.54 | 0.00 | 1.81 | 14.84 | 273.89 | 8.30 | 325.16 | 0.2454 | 806.0 | 634.4 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 11.47 | 273.74 | 8.15 | 315.72 | 0.2000 | 887.0 | 769.3 | |
| 0.00 | 0.64 | 0.00 | 0.32 | 11.23 | 273.64 | 8.05 | 315.19 | 0.1958 | 837.0 | 672.6 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 11.26 | 273.35 | 7.77 | 316.31 | 0.1928 | 875.0 | 632.9 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 16.32 | 272.70 | 7.12 | 332.21 | 0.2561 | 789.0 | 590.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
