SDO HMI 2014-07-05 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.63 | 0.00 | 7.86 | 7.19 | 265.00 | -0.59 | 211.13 | 0.1466 | 718.0 | 570.7 | |
|
previous
or next observation for the same group /

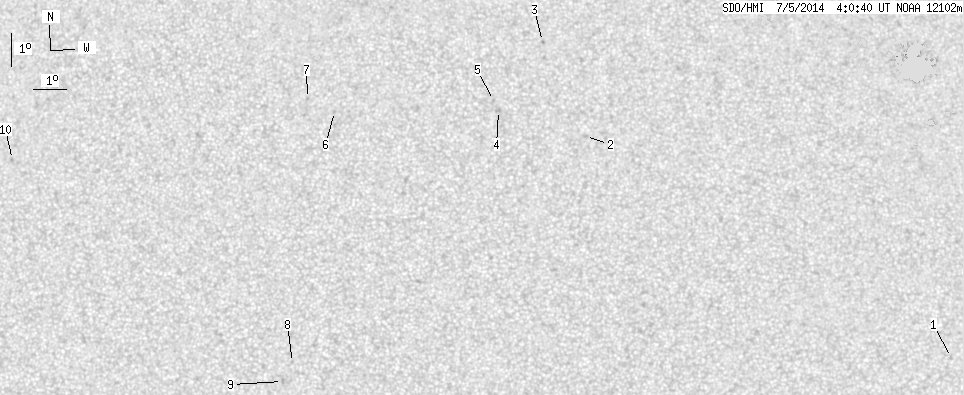

back to the solar disc SDO HMI 2014-07-05 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.64 | 0.00 | 0.84 | 2.06 | 280.67 | 15.08 | 265.64 | 0.2620 | -149.0 | -102.8 | |
| 0.00 | 1.73 | 0.00 | 0.86 | 8.93 | 269.39 | 3.80 | 326.21 | 0.1184 | 855.0 | 631.7 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 11.85 | 268.09 | 2.50 | 343.95 | 0.1552 | 967.0 | 860.9 | |
| 0.00 | 3.18 | 0.00 | 1.59 | 9.73 | 266.70 | 1.12 | 350.22 | 0.1140 | 838.0 | 668.0 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 10.04 | 266.55 | 0.97 | 351.92 | 0.1189 | 798.0 | 652.7 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 9.70 | 261.63 | -3.95 | 31.37 | 0.1311 | 798.0 | 566.0 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 10.10 | 260.79 | -4.79 | 34.81 | 0.1448 | 814.0 | 609.7 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 2.03 | 260.39 | -5.19 | 103.70 | 0.0935 | 760.0 | 583.7 | |
| 0.00 | 2.18 | 0.00 | 1.09 | 1.45 | 260.09 | -5.50 | 108.55 | 0.1015 | 823.0 | 671.9 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 8.15 | 251.60 | -13.99 | 70.20 | 0.2554 | 676.0 | 616.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
