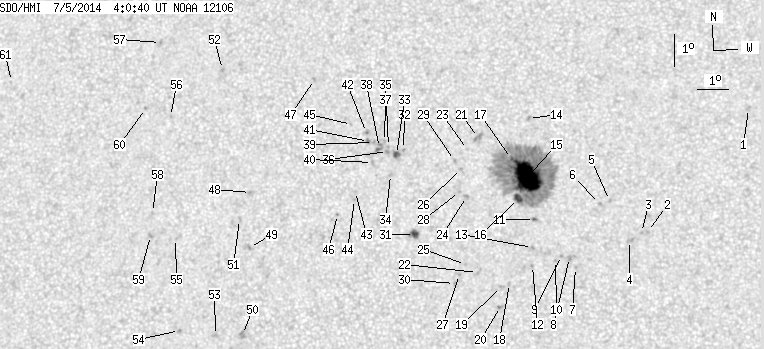

SDO HMI 2014-07-05 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 66.58 | 391.35 | 33.80 | 199.17 | 15.10 | 260.78 | -4.80 | 357.21 | 0.2253 | -420.0 | -233.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-05 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.09 | 0.00 | 1.07 | 17.51 | 268.89 | 3.31 | 347.34 | 0.2525 | -658.0 | -553.0 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 13.68 | 265.66 | 0.08 | 359.59 | 0.1808 | -838.0 | -678.2 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 13.65 | 265.47 | -0.11 | 0.61 | 0.1802 | -808.0 | -628.6 | |
| 0.00 | 3.63 | 0.00 | 1.83 | 13.40 | 265.10 | -0.49 | 2.71 | 0.1762 | -822.0 | -707.7 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 14.64 | 264.46 | -1.12 | 5.50 | 0.1983 | -811.0 | -723.5 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 14.55 | 264.15 | -1.43 | 7.09 | 0.1972 | -825.0 | -723.4 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 12.56 | 263.41 | -2.17 | 12.96 | 0.1658 | -787.0 | -526.8 | |
| 0.00 | 2.54 | 0.00 | 1.28 | 12.87 | 263.22 | -2.36 | 13.60 | 0.1717 | -977.0 | -848.5 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 12.93 | 262.97 | -2.61 | 14.89 | 0.1738 | -1013.0 | -806.6 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 12.78 | 262.78 | -2.80 | 16.15 | 0.1721 | -900.0 | -619.5 | |
| 0.45 | 1.82 | 0.23 | 0.92 | 14.05 | 262.11 | -3.47 | 17.51 | 0.1963 | -931.0 | -779.6 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 12.62 | 262.06 | -3.52 | 20.30 | 0.1734 | -1006.0 | -811.6 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 13.18 | 262.06 | -3.53 | 19.25 | 0.1825 | -977.0 | -806.4 | |
| 0.00 | 1.91 | 0.00 | 0.98 | 17.20 | 261.87 | -3.72 | 14.46 | 0.2491 | 930.0 | 741.0 | |
| 54.96 | 280.99 | 27.90 | 142.73 | 15.38 | 261.87 | -3.72 | 16.63 | 0.2194 | -1452.6 | -394.9 | |
| 4.72 | -15.00 | 2.39 | -15.00 | 14.70 | 261.59 | -3.99 | 18.81 | 0.2097 | -1152.5 | 999999 | |
| 1.00 | -15.00 | 0.51 | -15.00 | 15.94 | 261.35 | -4.23 | 17.97 | 0.2311 | -913.6 | 999999 | |
| 0.00 | 1.91 | 0.00 | 0.96 | 12.07 | 261.35 | -4.23 | 25.33 | 0.1693 | -879.0 | -713.7 | |
| 0.00 | 2.18 | 0.00 | 1.10 | 11.97 | 261.10 | -4.48 | 26.87 | 0.1698 | -890.0 | -706.6 | |
| 0.00 | 1.91 | 0.00 | 0.96 | 11.36 | 261.08 | -4.50 | 28.77 | 0.1606 | -1048.0 | -893.5 | |
| 0.00 | 5.27 | 0.00 | 2.69 | 16.60 | 260.28 | -5.30 | 21.05 | 0.2476 | 18.0 | 88.4 | |
| 0.00 | 3.91 | 0.00 | 1.97 | 12.40 | 260.35 | -5.24 | 29.39 | 0.1824 | -874.0 | -675.7 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 16.22 | 259.94 | -5.64 | 22.88 | 0.2439 | 725.0 | 522.4 | |
| 0.00 | 2.45 | 0.00 | 1.25 | 14.75 | 259.95 | -5.63 | 25.54 | 0.2212 | -952.0 | -779.2 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 12.65 | 259.96 | -5.62 | 30.45 | 0.1894 | -845.0 | -674.1 | |
| 0.00 | 0.82 | 0.00 | 0.42 | 15.63 | 259.77 | -5.82 | 24.56 | 0.2359 | 952.0 | 744.1 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 12.34 | 259.78 | -5.80 | 32.13 | 0.1865 | -827.0 | -671.7 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 14.91 | 259.72 | -5.86 | 26.11 | 0.2252 | -877.0 | -614.1 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 15.87 | 259.54 | -6.05 | 24.94 | 0.2413 | 822.0 | 654.4 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 12.06 | 259.63 | -5.95 | 33.63 | 0.1839 | -787.0 | -648.6 | |
| 3.45 | 6.90 | 1.75 | 3.50 | 13.57 | 258.34 | -7.25 | 34.49 | 0.2175 | -1122.3 | -777.4 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 16.21 | 257.90 | -7.69 | 29.86 | 0.2591 | 844.0 | 687.5 | |
| 2.00 | 4.27 | 1.02 | 2.19 | 16.05 | 257.68 | -7.90 | 30.87 | 0.2587 | 1031.1 | 841.2 | |
| 0.00 | 1.91 | 0.00 | 0.98 | 15.43 | 257.51 | -8.07 | 32.75 | 0.2513 | 801.0 | 616.4 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 16.30 | 257.41 | -8.17 | 31.19 | 0.2646 | 907.0 | 739.3 | |
| 0.00 | 2.00 | 0.00 | 1.03 | 16.14 | 257.39 | -8.20 | 31.59 | 0.2626 | 1076.0 | 887.5 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 16.46 | 257.28 | -8.31 | 31.28 | 0.2680 | 677.0 | 584.7 | |
| 0.00 | 5.45 | 0.00 | 2.80 | 16.27 | 257.13 | -8.46 | 32.13 | 0.2666 | 892.0 | 899.4 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 16.42 | 256.93 | -8.66 | 32.41 | 0.2706 | 917.0 | 718.2 | |
| 0.00 | 2.27 | 0.00 | 1.17 | 15.80 | 256.92 | -8.66 | 33.76 | 0.2620 | 930.0 | 697.9 | |
| 0.00 | 2.27 | 0.00 | 1.17 | 16.45 | 256.76 | -8.82 | 32.82 | 0.2725 | 961.0 | 817.7 | |
| 0.00 | 1.82 | 0.00 | 0.94 | 16.73 | 256.69 | -8.90 | 32.46 | 0.2771 | 947.0 | 796.8 | |
| 0.00 | 0.82 | 0.00 | 0.42 | 14.89 | 256.41 | -9.17 | 37.40 | 0.2547 | 767.0 | 616.9 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 14.64 | 256.39 | -9.19 | 38.09 | 0.2516 | 859.0 | 655.5 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 16.98 | 256.19 | -9.39 | 33.36 | 0.2851 | 712.0 | 490.7 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 14.17 | 255.87 | -9.71 | 40.85 | 0.2512 | 803.0 | 646.1 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 18.39 | 254.91 | -10.67 | 33.95 | 0.3161 | -737.0 | -573.8 | |
| 0.00 | 1.73 | 0.00 | 0.89 | 14.83 | 253.05 | -12.54 | 46.24 | 0.2918 | 898.0 | 710.9 | |
| 0.00 | 2.09 | 0.00 | 1.08 | 13.12 | 253.11 | -12.48 | 50.78 | 0.2728 | 1060.0 | 853.1 | |
| 0.00 | 4.45 | 0.00 | 2.28 | 10.44 | 253.00 | -12.58 | 59.65 | 0.2493 | 929.0 | 788.3 | |
| 0.00 | 2.00 | 0.00 | 1.03 | 13.98 | 252.74 | -12.84 | 49.14 | 0.2865 | 745.0 | 675.5 | |
| 0.00 | 1.73 | 0.00 | 0.91 | 18.67 | 251.86 | -13.72 | 40.14 | 0.3500 | 877.0 | 793.6 | |
| 0.00 | 2.54 | 0.00 | 1.31 | 10.40 | 252.15 | -13.44 | 61.34 | 0.2616 | 970.0 | 711.6 | |
| 0.00 | 1.64 | 0.00 | 0.84 | 10.54 | 250.99 | -14.59 | 62.74 | 0.2799 | 951.0 | 802.1 | |
| 0.00 | 0.45 | 0.00 | 0.24 | 13.37 | 250.71 | -14.88 | 54.75 | 0.3072 | 730.0 | 534.8 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 17.17 | 250.27 | -15.32 | 46.27 | 0.3508 | 778.0 | 632.8 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 19.50 | 249.72 | -15.86 | 42.53 | 0.3828 | 773.0 | 580.1 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 14.17 | 249.91 | -15.68 | 53.99 | 0.3253 | 768.0 | 615.5 | |
| 0.00 | 2.09 | 0.00 | 1.09 | 13.45 | 249.89 | -15.69 | 55.89 | 0.3191 | 913.0 | 715.0 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 17.41 | 249.42 | -16.17 | 47.23 | 0.3634 | 731.0 | 566.9 | |
| 0.00 | 0.64 | 0.00 | 0.35 | 18.18 | 244.81 | -20.77 | 52.32 | 0.4275 | 568.0 | 461.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
