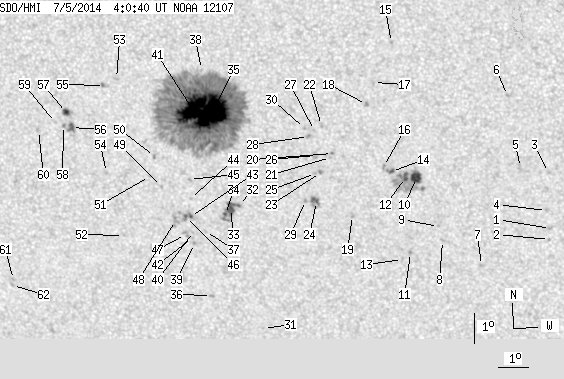

SDO HMI 2014-07-05 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 128.38 | 757.20 | 69.85 | 412.46 | -19.32 | 256.69 | -8.89 | 159.20 | 0.4147 | 559.3 | 299.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-05 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.00 | 0.00 | 1.10 | -22.68 | 267.24 | 1.65 | 183.47 | 0.4409 | 667.0 | 500.6 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -23.06 | 267.21 | 1.62 | 183.36 | 0.4467 | 608.0 | 394.2 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -20.80 | 267.15 | 1.57 | 183.58 | 0.4109 | 813.0 | 686.7 | |
| 0.00 | 1.64 | 0.00 | 0.90 | -22.07 | 267.10 | 1.51 | 183.27 | 0.4311 | 719.0 | 577.2 | |
| 0.00 | 3.72 | 0.00 | 2.02 | -20.63 | 266.24 | 0.65 | 181.51 | 0.4076 | 515.0 | 436.8 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -18.24 | 265.81 | 0.23 | 180.59 | 0.3690 | 907.0 | 744.9 | |
| 0.00 | 2.00 | 0.00 | 1.11 | -23.94 | 264.95 | -0.64 | 178.73 | 0.4599 | 669.0 | 515.6 | |
| 0.00 | 1.82 | 0.00 | 1.01 | -23.09 | 263.66 | -1.92 | 176.03 | 0.4475 | 672.0 | 520.7 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -22.61 | 263.54 | -2.05 | 175.68 | 0.4402 | 740.0 | 569.3 | |
| 8.36 | 44.24 | 4.55 | 24.11 | -20.96 | 262.84 | -2.74 | 173.80 | 0.4152 | 1064.3 | 302.8 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -23.50 | 262.59 | -2.99 | 173.94 | 0.4553 | -856.0 | -740.7 | |
| 2.45 | -10.00 | 1.33 | -10.00 | -20.96 | 262.48 | -3.10 | 172.99 | 0.4158 | 962.1 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -23.74 | 262.32 | -3.27 | 173.46 | 0.4595 | -788.0 | -594.0 | |
| 1.09 | 3.45 | 0.59 | 1.88 | -20.76 | 262.03 | -3.55 | 171.91 | 0.4136 | 953.7 | 743.1 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -16.52 | 262.12 | -3.46 | 170.32 | 0.3455 | -739.0 | -539.6 | |
| 0.00 | 2.00 | 0.00 | 1.09 | -20.60 | 261.77 | -3.81 | 171.27 | 0.4116 | 849.0 | 642.2 | |
| 0.00 | 1.64 | 0.00 | 0.87 | -17.82 | 261.52 | -4.06 | 169.40 | 0.3682 | 668.0 | 488.7 | |
| 0.00 | 2.18 | 0.00 | 1.17 | -18.54 | 261.28 | -4.31 | 169.17 | 0.3805 | -755.0 | -674.1 | |
| 0.00 | 2.54 | 0.00 | 1.40 | -22.25 | 260.70 | -4.88 | 169.65 | 0.4401 | -801.0 | -677.8 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -20.17 | 260.12 | -5.46 | 167.36 | 0.4098 | -956.0 | -725.9 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -20.30 | 260.05 | -5.53 | 167.28 | 0.4121 | -628.0 | -520.7 | |
| 0.00 | 1.73 | 0.00 | 0.93 | -19.24 | 259.80 | -5.78 | 166.06 | 0.3966 | -731.0 | -545.1 | |
| 0.00 | 2.18 | 0.00 | 1.19 | -20.80 | 259.71 | -5.88 | 166.80 | 0.4211 | -935.0 | -738.0 | |
| 0.73 | 8.99 | 0.40 | 4.95 | -21.78 | 259.53 | -6.05 | 166.99 | 0.4367 | 903.9 | 727.0 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -20.84 | 259.54 | -6.04 | 166.47 | 0.4222 | -874.0 | -633.5 | |
| 0.00 | 4.72 | 0.00 | 2.57 | -20.24 | 259.53 | -6.05 | 166.09 | 0.4130 | -296.0 | -518.6 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -19.41 | 259.57 | -6.02 | 165.63 | 0.4001 | -702.0 | -627.2 | |
| 0.00 | 2.00 | 0.00 | 1.08 | -19.61 | 259.36 | -6.22 | 165.30 | 0.4040 | -850.0 | -704.4 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -21.75 | 259.17 | -6.41 | 166.23 | 0.4375 | 790.0 | 662.7 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -19.34 | 259.24 | -6.34 | 164.85 | 0.4004 | -809.0 | -707.4 | |
| 0.00 | 0.27 | 0.00 | 0.16 | -26.15 | 257.50 | -8.08 | 165.60 | 0.5093 | -729.0 | -640.3 | |
| 0.64 | 17.81 | 0.35 | 9.89 | -21.93 | 256.94 | -8.64 | 161.88 | 0.4499 | -1035.6 | -765.0 | |
| 6.09 | -32.00 | 3.38 | -32.00 | -22.03 | 256.67 | -8.91 | 161.42 | 0.4528 | -1020.0 | 999999 | |
| 0.91 | -32.00 | 0.51 | -32.00 | -22.24 | 256.49 | -9.09 | 161.23 | 0.4566 | -977.2 | 999999 | |
| 59.87 | 582.33 | 32.46 | 316.23 | -18.80 | 256.27 | -9.31 | 157.83 | 0.4075 | 1547.7 | 427.6 | |
| 0.00 | 1.82 | 0.00 | 1.04 | -25.02 | 255.81 | -9.77 | 162.01 | 0.5001 | -619.0 | -560.9 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -22.82 | 255.78 | -9.80 | 160.35 | 0.4687 | -789.0 | -571.3 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -17.43 | 255.99 | -9.59 | 155.78 | 0.3891 | 208.0 | 233.4 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -23.23 | 255.38 | -10.21 | 159.95 | 0.4767 | -840.0 | -774.1 | |
| 0.00 | 0.55 | 0.00 | 0.31 | -22.82 | 255.38 | -10.21 | 159.62 | 0.4709 | -505.0 | -512.8 | |
| 41.24 | -35.00 | 22.39 | -35.00 | -18.71 | 255.63 | -9.96 | 156.36 | 0.4101 | 1378.0 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -23.03 | 255.33 | -10.26 | 159.69 | 0.4741 | -517.0 | -510.4 | |
| 1.00 | 6.54 | 0.56 | 3.66 | -22.32 | 255.31 | -10.27 | 159.09 | 0.4640 | -1024.2 | -698.7 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -21.71 | 255.36 | -10.22 | 158.66 | 0.4550 | 461.0 | 399.8 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -21.07 | 255.37 | -10.21 | 158.12 | 0.4458 | 871.0 | 655.7 | |
| 0.73 | -43.00 | 0.41 | -43.00 | -22.32 | 255.15 | -10.44 | 158.78 | 0.4649 | -924.6 | 999999 | |
| 0.00 | 3.45 | 0.00 | 1.94 | -22.93 | 255.10 | -10.49 | 159.20 | 0.4739 | -702.0 | -683.8 | |
| 0.00 | 6.18 | 0.00 | 3.46 | -22.46 | 254.80 | -10.78 | 158.27 | 0.4689 | -685.0 | -591.7 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -21.31 | 254.42 | -11.16 | 156.55 | 0.4550 | 672.0 | 479.1 | |
| 0.00 | 1.82 | 0.00 | 1.00 | -20.31 | 254.27 | -11.32 | 155.28 | 0.4418 | 778.0 | 572.3 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -20.98 | 254.05 | -11.54 | 155.53 | 0.4527 | 489.0 | 268.2 | |
| 0.00 | 0.64 | 0.00 | 0.36 | -22.99 | 253.00 | -12.59 | 155.58 | 0.4871 | -792.0 | -604.4 | |
| 0.00 | 2.09 | 0.00 | 1.14 | -17.75 | 253.20 | -12.38 | 150.31 | 0.4140 | -691.0 | -655.5 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -20.87 | 252.62 | -12.96 | 152.82 | 0.4607 | -701.0 | -511.1 | |
| 0.00 | 3.18 | 0.00 | 1.73 | -17.99 | 252.79 | -12.79 | 149.80 | 0.4204 | -804.0 | -593.7 | |
| 2.36 | 5.36 | 1.31 | 2.97 | -19.38 | 251.58 | -14.00 | 149.29 | 0.4487 | -975.8 | -758.5 | |
| 2.91 | 4.63 | 1.61 | 2.56 | -18.89 | 251.46 | -14.12 | 148.47 | 0.4432 | -1001.7 | -780.8 | |
| 0.00 | 1.64 | 0.00 | 0.91 | -19.32 | 251.32 | -14.26 | 148.76 | 0.4500 | -946.0 | -771.2 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -19.23 | 251.07 | -14.52 | 148.19 | 0.4508 | -647.0 | -500.5 | |
| 0.00 | 2.00 | 0.00 | 1.11 | -19.50 | 250.47 | -15.11 | 147.50 | 0.4593 | -695.0 | -552.3 | |
| 0.00 | 1.54 | 0.00 | 0.90 | -24.55 | 249.03 | -16.56 | 150.87 | 0.5346 | -788.0 | -694.8 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -24.76 | 248.96 | -16.62 | 150.99 | 0.5376 | -706.0 | -599.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
