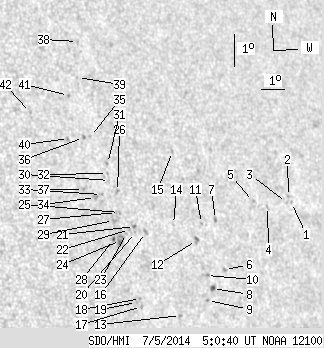

SDO HMI 2014-07-05 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.63 | 60.33 | 1.12 | 40.77 | 10.89 | 307.53 | 42.49 | 282.54 | 0.6816 | 226.9 | 175.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-05 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.73 | 0.00 | 0.55 | 11.07 | 313.74 | 48.71 | 281.82 | 0.7556 | -412.0 | -441.0 | |
| 0.00 | 1.36 | 0.00 | 1.03 | 11.26 | 313.65 | 48.61 | 282.08 | 0.7547 | -615.0 | -516.9 | |
| 0.00 | 0.82 | 0.00 | 0.61 | 11.08 | 313.51 | 48.48 | 281.86 | 0.7530 | -568.0 | -532.0 | |
| 0.00 | 0.82 | 0.00 | 0.60 | 11.00 | 312.61 | 47.57 | 281.86 | 0.7426 | -458.0 | -336.8 | |
| 0.00 | 1.36 | 0.00 | 0.99 | 11.18 | 312.00 | 46.96 | 282.18 | 0.7359 | -509.0 | -454.0 | |
| 0.00 | 1.91 | 0.00 | 1.35 | 9.15 | 310.31 | 45.28 | 279.60 | 0.7138 | -709.0 | -533.2 | |
| 0.00 | 1.91 | 0.00 | 1.35 | 10.70 | 310.19 | 45.16 | 281.78 | 0.7140 | -610.0 | -413.2 | |
| 1.18 | 2.45 | 0.82 | 1.71 | 8.59 | 309.70 | 44.67 | 278.87 | 0.7058 | -745.3 | -543.3 | |
| 0.00 | 0.91 | 0.00 | 0.63 | 8.24 | 309.43 | 44.40 | 278.39 | 0.7022 | -716.0 | -641.0 | |
| 0.00 | 2.09 | 0.00 | 1.45 | 9.00 | 309.50 | 44.47 | 279.47 | 0.7037 | -529.0 | -494.2 | |
| 0.00 | 1.00 | 0.00 | 0.70 | 10.60 | 309.56 | 44.53 | 281.73 | 0.7063 | -534.0 | -498.9 | |
| 0.00 | 2.91 | 0.00 | 2.02 | 10.09 | 309.25 | 44.22 | 281.05 | 0.7018 | -768.0 | -659.9 | |
| 0.00 | 1.27 | 0.00 | 0.86 | 7.83 | 308.22 | 43.18 | 277.91 | 0.6867 | 527.0 | 442.4 | |
| 0.00 | 0.27 | 0.00 | 0.19 | 10.62 | 308.35 | 43.32 | 281.94 | 0.6915 | 285.0 | 187.7 | |
| 0.00 | 1.45 | 0.00 | 1.01 | 12.86 | 308.76 | 43.72 | 285.07 | 0.7001 | -513.0 | -404.0 | |
| 0.00 | 2.18 | 0.00 | 1.46 | 10.42 | 307.13 | 42.10 | 281.85 | 0.6760 | 524.0 | 427.1 | |
| 0.00 | 1.27 | 0.00 | 0.84 | 8.16 | 306.63 | 41.60 | 278.56 | 0.6668 | 504.0 | 488.4 | |
| 0.00 | 1.00 | 0.00 | 0.66 | 8.41 | 306.62 | 41.59 | 278.93 | 0.6670 | 640.0 | 502.1 | |
| 0.00 | 1.09 | 0.00 | 0.72 | 8.29 | 306.44 | 41.41 | 278.78 | 0.6645 | 594.0 | 590.2 | |
| 0.00 | 0.73 | 0.00 | 0.48 | 10.44 | 306.72 | 41.68 | 281.95 | 0.6708 | 510.0 | 375.4 | |
| 0.00 | 1.54 | 0.00 | 1.03 | 10.62 | 306.71 | 41.67 | 282.22 | 0.6709 | 629.0 | 551.8 | |
| 0.00 | 1.00 | 0.00 | 0.66 | 10.54 | 306.49 | 41.45 | 282.14 | 0.6680 | 560.0 | 451.3 | |
| 0.00 | 0.73 | 0.00 | 0.48 | 10.42 | 306.34 | 41.31 | 281.99 | 0.6659 | 591.0 | 482.2 | |
| 0.00 | 6.36 | 0.00 | 4.19 | 10.22 | 306.06 | 41.03 | 281.73 | 0.6620 | 752.0 | 642.4 | |
| 0.00 | 1.27 | 0.00 | 0.84 | 11.08 | 306.16 | 41.13 | 283.00 | 0.6647 | 538.0 | 460.8 | |
| 0.00 | 2.09 | 0.00 | 1.38 | 11.72 | 306.20 | 41.16 | 283.96 | 0.6663 | 589.0 | 347.0 | |
| 0.00 | 0.82 | 0.00 | 0.54 | 11.08 | 306.04 | 41.00 | 283.03 | 0.6632 | 614.0 | 464.9 | |
| 0.45 | 1.36 | 0.30 | 0.89 | 10.26 | 305.78 | 40.74 | 281.84 | 0.6585 | 640.2 | 496.5 | |
| 0.00 | 2.36 | 0.00 | 1.56 | 10.84 | 305.87 | 40.84 | 282.70 | 0.6607 | 654.0 | 556.4 | |
| 0.00 | 0.64 | 0.00 | 0.42 | 12.07 | 305.93 | 40.89 | 284.54 | 0.6636 | 545.0 | 428.1 | |
| 0.00 | 1.27 | 0.00 | 0.84 | 12.60 | 305.95 | 40.91 | 285.32 | 0.6650 | 543.0 | 377.5 | |
| 0.00 | 0.91 | 0.00 | 0.60 | 12.29 | 305.89 | 40.85 | 284.88 | 0.6636 | 465.0 | 407.9 | |
| 0.00 | 0.82 | 0.00 | 0.54 | 11.66 | 305.52 | 40.49 | 284.01 | 0.6576 | 485.0 | 491.8 | |
| 0.00 | 2.73 | 0.00 | 1.78 | 11.57 | 305.26 | 40.23 | 283.94 | 0.6541 | 782.0 | 618.6 | |
| 0.00 | 1.09 | 0.00 | 0.72 | 13.46 | 305.42 | 40.38 | 286.74 | 0.6602 | 517.0 | 357.9 | |
| 0.00 | 1.54 | 0.00 | 1.01 | 13.44 | 305.12 | 40.09 | 286.79 | 0.6565 | 643.0 | 557.0 | |
| 0.00 | 1.18 | 0.00 | 0.77 | 11.84 | 304.82 | 39.78 | 284.44 | 0.6490 | 765.0 | 677.2 | |
| 0.00 | 0.91 | 0.00 | 0.60 | 16.42 | 305.56 | 40.52 | 291.07 | 0.6702 | 502.0 | 472.7 | |
| 0.00 | 0.82 | 0.00 | 0.54 | 15.30 | 305.28 | 40.25 | 289.52 | 0.6635 | 569.0 | 445.0 | |
| 0.00 | 1.45 | 0.00 | 0.94 | 13.43 | 304.51 | 39.47 | 286.95 | 0.6487 | 690.0 | 550.4 | |
| 0.00 | 1.09 | 0.00 | 0.71 | 14.76 | 304.79 | 39.75 | 288.87 | 0.6558 | 693.0 | 642.5 | |
| 0.00 | 0.82 | 0.00 | 0.52 | 14.29 | 303.15 | 38.11 | 288.69 | 0.6336 | 565.0 | 508.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
