SDO HMI 2014-07-05 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 64.05 | 409.76 | 32.50 | 208.51 | 15.04 | 260.47 | -4.57 | 345.17 | 0.2250 | -359.7 | -195.7 | |
|
previous
or next observation for the same group /

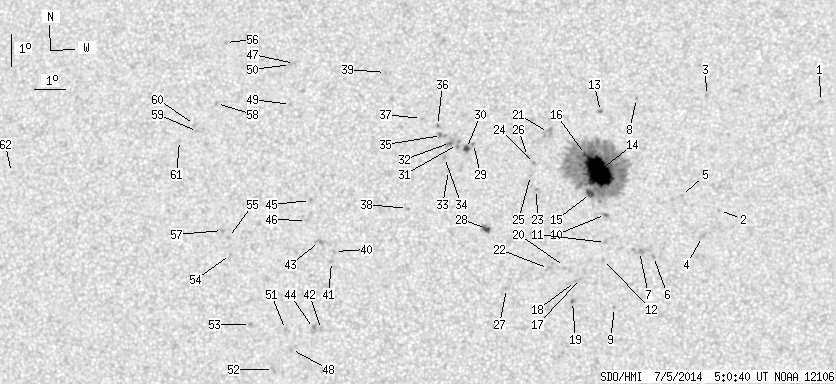

back to the solar disc SDO HMI 2014-07-05 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.36 | 0.00 | 1.21 | 17.54 | 268.92 | 3.89 | 345.26 | 0.2553 | -724.0 | -556.9 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 14.15 | 265.68 | 0.64 | 356.69 | 0.1891 | -783.0 | -647.0 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 17.74 | 265.28 | 0.24 | 359.07 | 0.2503 | -850.0 | -724.1 | |
| 0.00 | 3.36 | 0.00 | 1.69 | 13.34 | 265.14 | 0.11 | 359.40 | 0.1749 | -784.0 | -660.4 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 14.62 | 264.48 | -0.55 | 2.73 | 0.1970 | -839.0 | -711.7 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 12.73 | 263.61 | -1.43 | 8.44 | 0.1660 | -1041.0 | -833.9 | |
| 0.00 | 6.00 | 0.00 | 3.01 | 12.88 | 263.17 | -1.86 | 10.80 | 0.1699 | -864.0 | -770.9 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 17.65 | 263.04 | -2.00 | 7.64 | 0.2509 | -807.0 | -623.1 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 11.15 | 262.40 | -2.63 | 18.27 | 0.1443 | -673.0 | -521.9 | |
| 0.36 | 2.27 | 0.18 | 1.15 | 14.02 | 262.09 | -2.94 | 14.99 | 0.1933 | -986.2 | -754.7 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 13.16 | 262.10 | -2.93 | 16.23 | 0.1789 | -1059.0 | -781.0 | |
| 0.00 | 1.73 | 0.00 | 0.87 | 12.63 | 262.05 | -2.99 | 17.44 | 0.1705 | -971.0 | -732.4 | |
| 0.00 | 1.91 | 0.00 | 0.98 | 17.24 | 261.89 | -3.14 | 12.27 | 0.2474 | 969.0 | 813.8 | |
| 54.51 | 292.28 | 27.66 | 148.36 | 15.36 | 261.86 | -3.18 | 14.36 | 0.2165 | -1468.5 | -390.0 | |
| 4.09 | -14.00 | 2.07 | -14.00 | 14.68 | 261.61 | -3.42 | 16.33 | 0.2063 | -1142.6 | 999999 | |
| 0.27 | -14.00 | 0.14 | -14.00 | 15.89 | 261.44 | -3.60 | 15.49 | 0.2270 | -983.0 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 12.04 | 261.34 | -3.70 | 22.57 | 0.1652 | -860.0 | -705.2 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 11.95 | 261.18 | -3.85 | 23.64 | 0.1648 | -859.0 | -773.8 | |
| 0.00 | 1.73 | 0.00 | 0.87 | 11.33 | 261.10 | -3.94 | 25.76 | 0.1557 | -1052.0 | -868.6 | |
| 0.00 | 0.64 | 0.00 | 0.32 | 12.41 | 260.83 | -4.20 | 24.35 | 0.1745 | -617.0 | -572.6 | |
| 0.00 | 7.36 | 0.00 | 3.76 | 16.57 | 260.25 | -4.79 | 19.22 | 0.2442 | 11.0 | 174.0 | |
| 0.00 | 2.82 | 0.00 | 1.42 | 12.35 | 260.33 | -4.70 | 27.01 | 0.1772 | -876.0 | -728.6 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 14.79 | 259.91 | -5.13 | 23.46 | 0.2181 | -1015.0 | -840.1 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 15.60 | 259.82 | -5.21 | 22.33 | 0.2314 | 849.0 | 750.5 | |
| 0.00 | 0.73 | 0.00 | 0.37 | 15.23 | 259.70 | -5.33 | 23.45 | 0.2263 | -798.0 | -614.1 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 15.82 | 259.59 | -5.44 | 22.82 | 0.2362 | 881.0 | 635.7 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 11.73 | 259.03 | -6.01 | 34.96 | 0.1797 | -848.0 | -671.2 | |
| 2.73 | 5.45 | 1.38 | 2.76 | 13.58 | 258.36 | -6.68 | 32.35 | 0.2123 | -1080.2 | -764.1 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 16.22 | 257.86 | -7.18 | 28.19 | 0.2550 | 822.0 | 703.6 | |
| 2.09 | 3.45 | 1.07 | 1.77 | 16.06 | 257.64 | -7.39 | 29.22 | 0.2544 | 1070.6 | 897.9 | |
| 0.00 | 3.54 | 0.00 | 1.82 | 16.19 | 257.35 | -7.69 | 29.92 | 0.2587 | 1024.0 | 901.2 | |
| 0.00 | 6.09 | 0.00 | 3.12 | 16.25 | 257.12 | -7.91 | 30.51 | 0.2615 | 1137.0 | 817.5 | |
| 0.00 | 0.82 | 0.00 | 0.42 | 15.37 | 257.09 | -7.94 | 32.47 | 0.2493 | 851.0 | 648.8 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 15.78 | 256.95 | -8.09 | 32.04 | 0.2563 | 969.0 | 717.6 | |
| 0.00 | 4.36 | 0.00 | 2.24 | 16.46 | 256.82 | -8.21 | 30.99 | 0.2672 | 852.0 | 774.3 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 16.78 | 256.68 | -8.35 | 30.80 | 0.2728 | 854.0 | 795.8 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 16.99 | 256.16 | -8.88 | 31.90 | 0.2805 | 804.0 | 539.4 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 14.18 | 255.83 | -9.20 | 39.34 | 0.2457 | 810.0 | 533.0 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 18.43 | 254.91 | -10.12 | 32.51 | 0.3115 | -784.0 | -617.8 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 12.83 | 253.56 | -11.47 | 49.37 | 0.2567 | 874.0 | 608.6 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 12.52 | 253.48 | -11.55 | 50.52 | 0.2545 | 834.0 | 692.2 | |
| 0.00 | 3.09 | 0.00 | 1.58 | 10.42 | 253.25 | -11.79 | 58.13 | 0.2376 | 734.0 | 520.8 | |
| 0.00 | 4.09 | 0.00 | 2.10 | 13.13 | 253.07 | -11.97 | 49.62 | 0.2662 | 1019.0 | 796.2 | |
| 0.00 | 4.91 | 0.00 | 2.50 | 10.45 | 252.99 | -12.04 | 58.56 | 0.2415 | 988.0 | 748.2 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 14.40 | 252.71 | -12.32 | 46.88 | 0.2844 | 979.0 | 875.6 | |
| 0.00 | 0.64 | 0.00 | 0.33 | 13.78 | 252.62 | -12.42 | 48.79 | 0.2788 | 911.0 | 755.1 | |
| 0.00 | 0.91 | 0.00 | 0.48 | 18.68 | 251.91 | -13.13 | 38.92 | 0.3439 | 816.0 | 708.2 | |
| 0.00 | 1.82 | 0.00 | 0.93 | 9.80 | 252.32 | -12.71 | 62.21 | 0.2462 | 781.0 | 677.2 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 17.39 | 251.88 | -13.16 | 41.61 | 0.3286 | 801.0 | 595.1 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 18.65 | 251.78 | -13.26 | 39.25 | 0.3449 | 927.0 | 682.7 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 10.41 | 252.11 | -12.93 | 60.41 | 0.2542 | 949.0 | 779.4 | |
| 0.00 | 2.63 | 0.00 | 1.35 | 9.18 | 251.77 | -13.26 | 65.40 | 0.2502 | 745.0 | 598.7 | |
| 0.00 | 1.91 | 0.00 | 0.98 | 10.55 | 250.99 | -14.05 | 61.87 | 0.2718 | 1041.0 | 811.5 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 12.70 | 250.23 | -14.80 | 56.52 | 0.3002 | 930.0 | 723.5 | |
| 0.00 | 1.64 | 0.00 | 0.85 | 13.22 | 250.13 | -14.90 | 55.21 | 0.3061 | 862.0 | 641.8 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 19.32 | 249.56 | -15.48 | 42.20 | 0.3765 | 728.0 | 533.0 | |
| 0.00 | 1.73 | 0.00 | 0.90 | 13.44 | 249.93 | -15.11 | 54.98 | 0.3109 | 985.0 | 771.3 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 17.39 | 249.43 | -15.60 | 46.30 | 0.3565 | 762.0 | 549.2 | |
| 0.00 | 0.91 | 0.00 | 0.48 | 16.50 | 248.88 | -16.15 | 49.19 | 0.3540 | 685.0 | 631.8 | |
| 0.00 | 1.82 | 0.00 | 0.96 | 16.72 | 248.76 | -16.27 | 48.91 | 0.3576 | 660.0 | 593.5 | |
| 0.00 | 1.73 | 0.00 | 0.92 | 16.21 | 248.31 | -16.73 | 50.78 | 0.3582 | 677.0 | 440.7 | |
| 0.00 | 1.00 | 0.00 | 0.55 | 15.12 | 242.77 | -22.27 | 60.30 | 0.4229 | 641.0 | 516.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
