SDO HMI 2014-07-05 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 134.45 | 753.80 | 73.03 | 410.04 | -19.33 | 256.49 | -8.55 | 159.96 | 0.4126 | 600.2 | 295.7 | |
|
previous
or next observation for the same group /

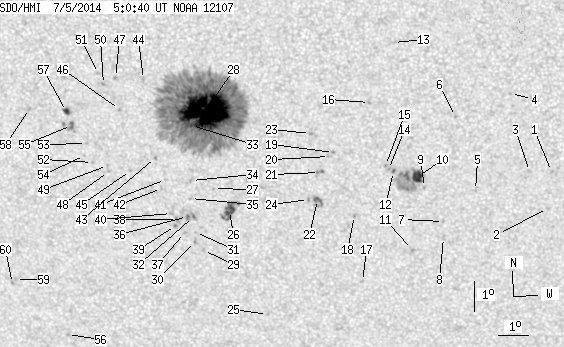

back to the solar disc SDO HMI 2014-07-05 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.59 | -20.79 | 267.19 | 2.15 | 184.92 | 0.4117 | 744.0 | 691.8 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -22.04 | 267.07 | 2.04 | 184.41 | 0.4312 | 766.0 | 630.9 | |
| 0.00 | 1.73 | 0.00 | 0.94 | -20.79 | 266.47 | 1.44 | 183.28 | 0.4108 | 768.0 | 531.1 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -18.21 | 265.84 | 0.81 | 182.09 | 0.3687 | 826.0 | 638.7 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -21.42 | 264.71 | -0.33 | 179.27 | 0.4203 | 595.0 | 385.3 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -18.96 | 264.07 | -0.96 | 177.60 | 0.3810 | 870.0 | 729.9 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -22.47 | 263.65 | -1.39 | 177.06 | 0.4374 | 805.0 | 614.4 | |
| 0.00 | 2.45 | 0.00 | 1.36 | -23.01 | 263.64 | -1.39 | 177.11 | 0.4459 | 727.0 | 536.8 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -21.32 | 263.04 | -2.00 | 175.55 | 0.4199 | 743.0 | 530.5 | |
| 8.99 | 42.97 | 4.89 | 23.41 | -20.95 | 262.82 | -2.22 | 174.97 | 0.4143 | 1081.9 | 350.0 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -23.42 | 262.61 | -2.43 | 175.06 | 0.4534 | -779.0 | -749.9 | |
| 0.00 | 1.64 | 0.00 | 0.89 | -20.79 | 262.04 | -3.00 | 173.17 | 0.4130 | 978.0 | 867.5 | |
| 0.00 | 1.91 | 0.00 | 1.01 | -16.54 | 262.12 | -2.92 | 171.82 | 0.3446 | -540.0 | -369.1 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -20.72 | 261.87 | -3.16 | 172.78 | 0.4122 | 853.0 | 745.8 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -20.59 | 261.78 | -3.26 | 172.52 | 0.4103 | 895.0 | 763.0 | |
| 0.00 | 1.64 | 0.00 | 0.87 | -18.50 | 261.31 | -3.73 | 170.58 | 0.3783 | -701.0 | -603.3 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -24.53 | 260.91 | -4.13 | 172.02 | 0.4734 | -704.0 | -587.8 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -22.27 | 260.72 | -4.32 | 170.83 | 0.4391 | -871.0 | -682.2 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -20.16 | 260.10 | -4.94 | 168.53 | 0.4080 | -1011.0 | -787.8 | |
| 0.00 | 2.18 | 0.00 | 1.18 | -20.29 | 259.96 | -5.07 | 168.29 | 0.4105 | -627.0 | -605.7 | |
| 0.00 | 4.63 | 0.00 | 2.53 | -20.83 | 259.61 | -5.42 | 167.81 | 0.4200 | -806.0 | -715.9 | |
| 1.73 | 8.18 | 0.95 | 4.50 | -21.74 | 259.51 | -5.52 | 168.08 | 0.4343 | 959.3 | 681.1 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -19.53 | 259.37 | -5.67 | 166.52 | 0.4007 | -845.0 | -643.6 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -21.74 | 259.22 | -5.82 | 167.46 | 0.4353 | 856.0 | 698.9 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -25.69 | 257.64 | -7.40 | 166.53 | 0.5001 | -693.0 | -607.6 | |
| 8.54 | 19.44 | 4.74 | 10.79 | -22.13 | 256.58 | -8.46 | 162.39 | 0.4520 | -988.3 | -754.9 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -21.39 | 256.09 | -8.94 | 160.88 | 0.4435 | 650.0 | 442.2 | |
| 106.84 | 590.65 | 57.87 | 320.21 | -18.80 | 255.99 | -9.05 | 158.38 | 0.4059 | 1471.4 | 414.8 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -23.49 | 255.62 | -9.42 | 161.57 | 0.4766 | -715.0 | -576.8 | |
| 0.00 | 2.45 | 0.00 | 1.38 | -23.19 | 255.37 | -9.67 | 160.89 | 0.4734 | -837.0 | -713.0 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -22.88 | 255.39 | -9.64 | 160.70 | 0.4689 | -874.0 | -671.8 | |
| 0.45 | 1.45 | 0.25 | 0.81 | -22.34 | 255.37 | -9.67 | 160.23 | 0.4611 | -1041.4 | -848.5 | |
| 3.36 | -28.00 | 1.83 | -28.00 | -19.30 | 255.50 | -9.54 | 157.83 | 0.4161 | 761.2 | 999999 | |
| 0.00 | 1.73 | 0.00 | 0.95 | -21.13 | 255.38 | -9.65 | 159.26 | 0.4435 | 842.0 | 594.7 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -21.73 | 255.31 | -9.73 | 159.63 | 0.4527 | 469.0 | 395.6 | |
| 0.64 | 2.91 | 0.35 | 1.62 | -22.34 | 255.16 | -9.87 | 159.85 | 0.4622 | -910.1 | -729.5 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -22.88 | 255.02 | -10.01 | 160.03 | 0.4708 | -820.0 | -728.2 | |
| 0.00 | 2.73 | 0.00 | 1.52 | -22.45 | 254.82 | -10.21 | 159.30 | 0.4656 | -646.0 | -688.6 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -22.65 | 254.74 | -10.30 | 159.32 | 0.4690 | -796.0 | -678.4 | |
| 0.00 | 2.18 | 0.00 | 1.22 | -22.24 | 254.64 | -10.40 | 158.79 | 0.4637 | -178.0 | -210.7 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -21.10 | 254.52 | -10.51 | 157.57 | 0.4481 | 513.0 | 383.0 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -21.40 | 254.37 | -10.67 | 157.55 | 0.4533 | 626.0 | 511.0 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -20.37 | 254.24 | -10.79 | 156.35 | 0.4393 | 744.0 | 616.5 | |
| 0.00 | 1.73 | 0.00 | 0.93 | -17.80 | 254.02 | -11.01 | 153.15 | 0.4043 | -293.0 | -168.7 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -20.81 | 253.38 | -11.66 | 155.14 | 0.4511 | -785.0 | -641.9 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -18.79 | 253.17 | -11.87 | 152.58 | 0.4244 | 674.0 | 506.4 | |
| 0.00 | 1.64 | 0.00 | 0.89 | -17.74 | 253.11 | -11.92 | 151.22 | 0.4103 | -798.0 | -605.2 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -20.85 | 252.64 | -12.39 | 153.83 | 0.4567 | -751.0 | -562.8 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -20.65 | 252.63 | -12.41 | 153.59 | 0.4540 | -822.0 | -577.9 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -17.98 | 252.70 | -12.33 | 150.69 | 0.4167 | -892.0 | -778.2 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -17.62 | 252.57 | -12.47 | 149.97 | 0.4129 | -867.0 | -647.6 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -20.56 | 252.13 | -12.90 | 152.60 | 0.4562 | -620.0 | -486.4 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -19.93 | 251.99 | -13.05 | 151.64 | 0.4487 | -697.0 | -521.1 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -20.33 | 251.89 | -13.15 | 151.91 | 0.4549 | -671.0 | -478.2 | |
| 1.27 | 8.00 | 0.70 | 4.42 | -19.34 | 251.54 | -13.50 | 150.15 | 0.4442 | -951.6 | -756.5 | |
| 0.00 | 1.45 | 0.00 | 0.86 | -26.46 | 250.64 | -14.39 | 155.79 | 0.5448 | -641.0 | -445.0 | |
| 2.63 | 4.27 | 1.45 | 2.35 | -18.88 | 251.41 | -13.62 | 149.36 | 0.4391 | -1041.8 | -795.6 | |
| 0.00 | 1.73 | 0.00 | 0.96 | -18.80 | 250.19 | -14.85 | 147.08 | 0.4481 | -870.0 | -638.8 | |
| 0.00 | 1.91 | 0.00 | 1.11 | -24.57 | 249.07 | -15.97 | 151.76 | 0.5307 | -773.0 | -650.0 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -24.71 | 248.95 | -16.09 | 151.71 | 0.5333 | -728.0 | -657.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
