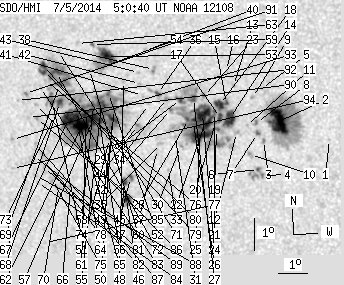

SDO HMI 2014-07-05 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 269.21 | 873.31 | 152.34 | 494.71 | -7.50 | 238.14 | -26.90 | 112.22 | 0.4858 | 38.6 | -86.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-05 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.54 | -8.10 | 244.12 | -20.92 | 118.77 | 0.4050 | -485.0 | -347.4 | |
| 34.25 | 141.28 | 18.73 | 77.15 | -7.57 | 242.45 | -22.58 | 115.86 | 0.4247 | 1247.9 | 535.8 | |
| 0.00 | 2.00 | 0.00 | 1.10 | -8.17 | 241.92 | -23.12 | 116.60 | 0.4364 | 798.0 | 569.5 | |
| 0.45 | 12.27 | 0.25 | 6.79 | -9.27 | 241.81 | -23.23 | 118.72 | 0.4456 | 865.2 | 704.3 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -6.56 | 241.94 | -23.09 | 113.19 | 0.4257 | 622.0 | 445.5 | |
| 0.82 | -4.00 | 0.45 | -4.00 | -9.08 | 241.69 | -23.35 | 118.22 | 0.4460 | 1043.6 | 999999 | |
| 1.18 | 2.27 | 0.65 | 1.25 | -7.96 | 241.73 | -23.31 | 115.97 | 0.4376 | 893.5 | 693.9 | |
| 0.45 | 2.27 | 0.25 | 1.25 | -7.62 | 241.72 | -23.32 | 115.25 | 0.4356 | 1017.8 | 856.8 | |
| 0.00 | 1.64 | 0.00 | 0.90 | -6.85 | 241.63 | -23.41 | 113.52 | 0.4320 | 733.0 | 537.2 | |
| 0.00 | 3.18 | 0.00 | 1.76 | -8.62 | 241.45 | -23.58 | 117.06 | 0.4460 | 830.0 | 663.5 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -7.72 | 241.37 | -23.66 | 115.14 | 0.4411 | 685.0 | 558.7 | |
| 0.00 | 2.73 | 0.00 | 1.51 | -7.94 | 241.02 | -24.01 | 115.28 | 0.4475 | 619.0 | 562.5 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -6.49 | 241.01 | -24.03 | 112.23 | 0.4388 | -427.0 | -341.2 | |
| 12.54 | 225.41 | 6.94 | 125.72 | -7.51 | 240.81 | -24.22 | 114.21 | 0.4478 | 1124.1 | 315.8 | |
| 1.00 | -14.00 | 0.55 | -14.00 | -7.05 | 240.74 | -24.29 | 113.19 | 0.4460 | 1086.4 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.40 | -6.03 | 240.80 | -24.24 | 111.07 | 0.4394 | 714.0 | 570.0 | |
| 3.73 | -14.00 | 2.07 | -14.00 | -7.49 | 240.51 | -24.52 | 113.90 | 0.4519 | 1137.8 | 999999 | |
| 6.72 | -14.00 | 3.73 | -14.00 | -7.09 | 240.50 | -24.53 | 113.06 | 0.4497 | 1127.8 | 999999 | |
| 1.64 | -14.00 | 0.91 | -14.00 | -7.87 | 240.35 | -24.68 | 114.52 | 0.4565 | 817.6 | 999999 | |
| 0.55 | -14.00 | 0.30 | -14.00 | -7.65 | 240.33 | -24.70 | 114.07 | 0.4555 | 982.8 | 999999 | |
| 1.82 | -14.00 | 1.01 | -14.00 | -7.34 | 240.32 | -24.72 | 113.42 | 0.4538 | 1102.3 | 999999 | |
| 13.17 | -14.00 | 7.35 | -14.00 | -7.72 | 239.95 | -25.08 | 113.89 | 0.4613 | 953.3 | 999999 | |
| 0.00 | 2.73 | 0.00 | 1.52 | -6.85 | 239.97 | -25.06 | 112.14 | 0.4559 | 950.0 | 627.4 | |
| 21.17 | -14.00 | 11.80 | -14.00 | -7.38 | 239.91 | -25.13 | 113.17 | 0.4599 | 993.1 | 999999 | |
| 23.71 | -14.00 | 13.26 | -14.00 | -8.04 | 239.76 | -25.27 | 114.36 | 0.4659 | 444.1 | 999999 | |
| 5.81 | -14.00 | 3.25 | -14.00 | -7.67 | 239.58 | -25.45 | 113.48 | 0.4662 | 370.5 | 999999 | |
| 3.00 | -14.00 | 1.67 | -14.00 | -6.92 | 239.63 | -25.40 | 112.02 | 0.4613 | 965.3 | 999999 | |
| 2.91 | -14.00 | 1.63 | -14.00 | -7.58 | 239.42 | -25.62 | 113.17 | 0.4680 | 382.1 | 999999 | |
| 3.09 | -14.00 | 1.73 | -14.00 | -6.96 | 239.18 | -25.85 | 111.76 | 0.4679 | 742.0 | 999999 | |
| 0.00 | 0.45 | 0.00 | 0.26 | -8.43 | 239.09 | -25.95 | 114.55 | 0.4778 | 506.0 | 433.4 | |
| 0.00 | 1.64 | 0.00 | 0.92 | -8.12 | 238.94 | -26.10 | 113.84 | 0.4780 | -808.0 | -499.1 | |
| 0.55 | -14.00 | 0.31 | -14.00 | -7.28 | 238.82 | -26.21 | 112.12 | 0.4748 | 661.3 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -9.19 | 238.61 | -26.42 | 115.61 | 0.4891 | -800.0 | -697.0 | |
| 0.00 | 2.91 | 0.00 | 1.63 | -6.95 | 238.71 | -26.33 | 111.36 | 0.4746 | 584.0 | 434.7 | |
| 0.00 | 2.54 | 0.00 | 1.44 | -8.35 | 238.40 | -26.63 | 113.86 | 0.4869 | -405.0 | -485.2 | |
| 1.91 | 6.36 | 1.07 | 3.58 | -6.80 | 238.41 | -26.63 | 110.85 | 0.4782 | 576.4 | 311.5 | |
| 0.00 | 0.64 | 0.00 | 0.36 | -8.54 | 238.29 | -26.75 | 114.12 | 0.4897 | -447.0 | -344.1 | |
| 0.00 | 2.82 | 0.00 | 1.58 | -6.06 | 238.31 | -26.72 | 109.32 | 0.4758 | 807.0 | 639.1 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -7.15 | 238.07 | -26.96 | 111.30 | 0.4848 | -210.0 | -193.0 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -5.48 | 238.07 | -26.97 | 108.00 | 0.4765 | 716.0 | 584.2 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -6.87 | 237.89 | -27.15 | 110.63 | 0.4860 | -458.0 | -440.5 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -6.50 | 237.80 | -27.23 | 109.86 | 0.4853 | 586.0 | 412.7 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -6.16 | 237.79 | -27.25 | 109.18 | 0.4838 | 544.0 | 386.1 | |
| 0.45 | 4.72 | 0.26 | 2.69 | -7.81 | 237.65 | -27.39 | 112.26 | 0.4944 | -673.8 | -363.5 | |
| 1.73 | 9.27 | 0.99 | 5.33 | -9.44 | 237.27 | -27.76 | 115.00 | 0.5090 | 787.4 | 481.1 | |
| 3.63 | 8.27 | 2.10 | 4.78 | -10.10 | 237.07 | -27.96 | 116.02 | 0.5158 | -1047.2 | -803.7 | |
| 3.09 | -45.00 | 1.78 | -45.00 | -9.57 | 237.05 | -27.98 | 115.06 | 0.5128 | 715.7 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -6.46 | 237.25 | -27.78 | 109.40 | 0.4930 | -243.0 | -221.4 | |
| 1.00 | 348.52 | 0.57 | 201.66 | -7.33 | 236.88 | -28.15 | 110.83 | 0.5027 | -927.8 | -582.2 | |
| 5.45 | -49.00 | 3.13 | -49.00 | -7.62 | 236.79 | -28.24 | 111.29 | 0.5054 | -1128.9 | 999999 | |
| 0.00 | 4.45 | 0.00 | 2.56 | -8.24 | 236.64 | -28.40 | 112.34 | 0.5109 | -415.0 | -450.3 | |
| 1.73 | -49.00 | 0.99 | -49.00 | -6.84 | 236.71 | -28.33 | 109.79 | 0.5027 | -966.7 | 999999 | |
| 15.54 | 35.34 | 8.86 | 20.18 | -5.70 | 236.71 | -28.33 | 107.60 | 0.4974 | 870.5 | 153.2 | |
| 1.09 | -53.00 | 0.62 | -53.00 | -6.01 | 236.58 | -28.45 | 108.13 | 0.5005 | 503.6 | 999999 | |
| 5.81 | -49.00 | 3.34 | -49.00 | -7.19 | 236.44 | -28.60 | 110.27 | 0.5082 | -1272.8 | 999999 | |
| 3.00 | -49.00 | 1.73 | -49.00 | -7.69 | 236.33 | -28.70 | 111.12 | 0.5123 | -1214.2 | 999999 | |
| 7.63 | -49.00 | 4.40 | -49.00 | -7.63 | 236.12 | -28.91 | 110.88 | 0.5149 | -1260.9 | 999999 | |
| 2.27 | -49.00 | 1.31 | -49.00 | -7.23 | 236.15 | -28.88 | 110.16 | 0.5124 | -1108.5 | 999999 | |
| 0.64 | 2.00 | 0.36 | 1.14 | -5.34 | 236.24 | -28.80 | 106.65 | 0.5026 | 593.4 | 450.7 | |
| 0.00 | 1.73 | 0.00 | 0.99 | -6.12 | 236.09 | -28.95 | 108.04 | 0.5081 | 112.0 | 93.8 | |
| 8.45 | -49.00 | 4.88 | -49.00 | -7.49 | 235.89 | -29.15 | 110.46 | 0.5174 | -1237.7 | 999999 | |
| 23.80 | -49.00 | 13.81 | -49.00 | -7.89 | 235.68 | -29.35 | 111.07 | 0.5224 | -1191.8 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.89 | -5.33 | 235.71 | -29.32 | 106.33 | 0.5101 | -589.0 | -558.4 | |
| 3.91 | -49.00 | 2.27 | -49.00 | -7.56 | 235.53 | -29.51 | 110.36 | 0.5228 | -1167.0 | 999999 | |
| 2.36 | -49.00 | 1.37 | -49.00 | -7.43 | 235.54 | -29.50 | 110.14 | 0.5221 | -1079.4 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -9.75 | 235.12 | -29.91 | 113.96 | 0.5399 | -941.0 | -808.2 | |
| 14.72 | -49.00 | 8.57 | -49.00 | -7.69 | 235.24 | -29.80 | 110.42 | 0.5276 | -922.5 | 999999 | |
| 3.91 | -49.00 | 2.28 | -49.00 | -7.17 | 234.96 | -30.08 | 109.31 | 0.5290 | -1090.2 | 999999 | |
| 2.09 | -49.00 | 1.22 | -49.00 | -6.61 | 235.00 | -30.04 | 108.33 | 0.5259 | -1134.4 | 999999 | |
| 0.00 | 3.00 | 0.00 | 1.77 | -9.82 | 234.68 | -30.35 | 113.79 | 0.5462 | -646.0 | -581.5 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -5.59 | 235.03 | -30.01 | 106.47 | 0.5211 | -827.0 | -584.6 | |
| 6.90 | -49.00 | 4.02 | -49.00 | -6.24 | 234.91 | -30.12 | 107.61 | 0.5254 | -1120.9 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -7.58 | 234.75 | -30.29 | 109.92 | 0.5338 | -694.0 | -512.4 | |
| 2.27 | -49.00 | 1.33 | -49.00 | -7.18 | 234.71 | -30.33 | 109.18 | 0.5325 | -878.8 | 999999 | |
| 0.00 | 3.18 | 0.00 | 1.88 | -9.58 | 234.49 | -30.54 | 113.25 | 0.5475 | -860.0 | -629.9 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -6.50 | 234.51 | -30.53 | 107.85 | 0.5323 | -517.0 | -463.3 | |
| 0.00 | 0.73 | 0.00 | 0.44 | -11.57 | 234.02 | -31.02 | 116.23 | 0.5650 | -474.0 | -291.5 | |
| 0.00 | 0.36 | 0.00 | 0.21 | -8.99 | 234.26 | -30.77 | 112.10 | 0.5475 | -683.0 | -664.2 | |
| 4.00 | -49.00 | 2.33 | -49.00 | -6.04 | 234.47 | -30.57 | 106.99 | 0.5309 | -911.5 | 999999 | |
| 3.27 | -49.00 | 1.91 | -49.00 | -6.23 | 234.45 | -30.58 | 107.33 | 0.5319 | -810.7 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -9.21 | 234.21 | -30.83 | 112.44 | 0.5494 | -977.0 | -760.2 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -8.93 | 234.16 | -30.87 | 111.93 | 0.5486 | -735.0 | -683.7 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -6.72 | 234.31 | -30.72 | 108.15 | 0.5360 | -468.0 | -364.6 | |
| 0.00 | 1.27 | 0.00 | 0.76 | -9.69 | 233.94 | -31.09 | 113.07 | 0.5554 | -573.0 | -429.6 | |
| 0.00 | 1.82 | 0.00 | 1.07 | -7.69 | 234.09 | -30.94 | 109.73 | 0.5434 | -841.0 | -633.0 | |
| 0.00 | 1.54 | 0.00 | 0.91 | -7.26 | 234.13 | -30.91 | 108.99 | 0.5409 | -775.0 | -626.5 | |
| 0.00 | 1.45 | 0.00 | 0.86 | -8.50 | 233.99 | -31.05 | 111.08 | 0.5488 | -807.0 | -670.1 | |
| 0.00 | 1.82 | 0.00 | 1.08 | -9.47 | 233.89 | -31.14 | 112.67 | 0.5550 | -490.0 | -473.8 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -8.88 | 233.88 | -31.16 | 111.66 | 0.5521 | -686.0 | -554.8 | |
| 0.00 | 1.64 | 0.00 | 0.97 | -7.67 | 233.81 | -31.23 | 109.53 | 0.5473 | -326.0 | -312.7 | |
| 0.00 | 1.73 | 0.00 | 1.02 | -6.93 | 233.76 | -31.28 | 108.20 | 0.5446 | -728.0 | -638.3 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -7.15 | 233.45 | -31.58 | 108.43 | 0.5499 | -562.0 | -437.1 | |
| 0.00 | 1.45 | 0.00 | 0.87 | -8.37 | 233.17 | -31.87 | 110.37 | 0.5593 | -777.0 | -606.6 | |
| 0.00 | 0.82 | 0.00 | 0.49 | -9.28 | 233.08 | -31.96 | 111.84 | 0.5649 | -588.0 | -416.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
