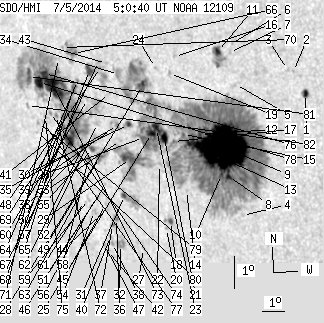

SDO HMI 2014-07-05 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 295.91 | 1585.95 | 215.45 | 1157.90 | -7.74 | 219.20 | -45.84 | 103.85 | 0.7334 | 279.7 | -4.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-05 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.36 | 5.27 | 2.19 | 3.44 | -6.27 | 225.54 | -39.49 | 103.64 | 0.6528 | 772.1 | 499.6 | |
| 0.00 | 0.45 | 0.00 | 0.30 | -5.61 | 225.12 | -39.91 | 102.51 | 0.6563 | 602.0 | 520.4 | |
| 0.00 | 1.09 | 0.00 | 0.72 | -5.55 | 224.89 | -40.15 | 102.36 | 0.6592 | 616.0 | 540.0 | |
| 0.00 | 1.54 | 0.00 | 1.07 | -10.18 | 222.46 | -42.58 | 108.16 | 0.7031 | 251.0 | 214.9 | |
| 0.00 | 0.91 | 0.00 | 0.62 | -6.10 | 222.71 | -42.32 | 102.51 | 0.6881 | 233.0 | 172.7 | |
| 0.00 | 0.73 | 0.00 | 0.49 | -4.84 | 222.66 | -42.38 | 100.69 | 0.6858 | -628.0 | -565.9 | |
| 0.00 | 1.36 | 0.00 | 0.93 | -5.12 | 222.55 | -42.48 | 101.07 | 0.6877 | -677.0 | -495.2 | |
| 2.73 | 1054.28 | 1.90 | 744.70 | -8.98 | 222.06 | -42.98 | 106.36 | 0.7040 | 763.2 | 222.2 | |
| 145.55 | -8.00 | 101.04 | -8.00 | -8.08 | 221.98 | -43.06 | 105.08 | 0.7024 | 1303.8 | 999999 | |
| 2.73 | -8.00 | 1.90 | -8.00 | -8.93 | 221.77 | -43.27 | 106.19 | 0.7073 | 623.6 | 999999 | |
| 4.45 | 18.53 | 3.05 | 12.72 | -5.11 | 222.05 | -42.98 | 100.92 | 0.6939 | -808.1 | -501.1 | |
| 0.27 | -8.00 | 0.19 | -8.00 | -7.71 | 221.04 | -43.99 | 104.28 | 0.7125 | 681.0 | 999999 | |
| 2.91 | -8.00 | 2.07 | -8.00 | -8.01 | 220.53 | -44.51 | 104.54 | 0.7194 | 577.6 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.65 | -9.49 | 220.17 | -44.87 | 106.42 | 0.7277 | -213.0 | -176.2 | |
| 0.91 | -8.00 | 0.65 | -8.00 | -7.74 | 220.31 | -44.73 | 104.10 | 0.7213 | 474.7 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.97 | -5.34 | 220.20 | -44.84 | 100.78 | 0.7170 | -524.0 | -449.9 | |
| 0.55 | -8.00 | 0.39 | -8.00 | -7.98 | 219.84 | -45.20 | 104.29 | 0.7274 | 627.7 | 999999 | |
| 1.73 | 4.91 | 1.27 | 3.61 | -10.50 | 219.28 | -45.76 | 107.46 | 0.7407 | 628.3 | 294.2 | |
| 0.00 | 1.36 | 0.00 | 0.97 | -5.87 | 219.92 | -45.11 | 101.45 | 0.7213 | 344.0 | 220.7 | |
| 0.00 | 1.18 | 0.00 | 0.87 | -10.73 | 219.06 | -45.98 | 107.69 | 0.7439 | 501.0 | 355.7 | |
| 6.18 | -8.00 | 4.47 | -8.00 | -7.87 | 219.46 | -45.58 | 104.03 | 0.7315 | 893.1 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.46 | -8.72 | 219.10 | -45.93 | 105.07 | 0.7378 | -326.0 | -307.5 | |
| 6.00 | -8.00 | 4.36 | -8.00 | -7.60 | 219.14 | -45.90 | 103.59 | 0.7345 | 863.7 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.72 | -5.71 | 219.33 | -45.71 | 101.08 | 0.7281 | -591.0 | -497.4 | |
| 5.54 | -8.00 | 4.05 | -8.00 | -7.77 | 218.89 | -46.14 | 103.74 | 0.7378 | 697.0 | 999999 | |
| 2.63 | -8.00 | 1.94 | -8.00 | -7.91 | 218.51 | -46.52 | 103.82 | 0.7424 | -166.3 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.10 | -11.40 | 217.87 | -47.17 | 108.17 | 0.7588 | -660.0 | -504.9 | |
| 6.90 | -8.00 | 5.04 | -8.00 | -6.29 | 218.69 | -46.35 | 101.71 | 0.7368 | 712.4 | 999999 | |
| 14.63 | -8.00 | 10.95 | -8.00 | -8.59 | 217.82 | -47.22 | 104.52 | 0.7519 | -787.8 | 999999 | |
| 2.45 | 5.72 | 1.83 | 4.26 | -7.53 | 217.89 | -47.14 | 103.16 | 0.7486 | 500.4 | 208.8 | |
| 2.09 | 18.17 | 1.59 | 13.74 | -9.77 | 217.33 | -47.70 | 105.90 | 0.7602 | -766.1 | -371.1 | |
| 0.00 | 5.91 | 0.00 | 4.56 | -11.32 | 216.82 | -48.22 | 107.73 | 0.7699 | -742.0 | -762.2 | |
| 0.00 | 1.18 | 0.00 | 0.89 | -8.05 | 217.45 | -47.59 | 103.72 | 0.7547 | -207.0 | -236.8 | |
| 0.00 | 9.90 | 0.00 | 7.37 | -6.00 | 217.64 | -47.39 | 101.07 | 0.7482 | -163.0 | -203.2 | |
| 1.00 | 5.81 | 0.75 | 4.38 | -7.59 | 217.38 | -47.65 | 103.10 | 0.7544 | 182.1 | -51.7 | |
| 0.73 | 6.27 | 0.56 | 4.84 | -10.51 | 216.81 | -48.22 | 106.70 | 0.7678 | -674.9 | -607.8 | |
| 0.73 | -36.00 | 0.56 | -36.00 | -10.71 | 216.58 | -48.45 | 106.88 | 0.7708 | -794.4 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.41 | -11.31 | 216.45 | -48.59 | 107.60 | 0.7738 | -659.0 | -561.8 | |
| 0.00 | 2.00 | 0.00 | 1.51 | -7.72 | 217.09 | -47.95 | 103.20 | 0.7580 | -250.0 | -168.3 | |
| 0.00 | 0.91 | 0.00 | 0.71 | -11.09 | 216.40 | -48.63 | 107.31 | 0.7737 | -780.0 | -664.6 | |
| 0.00 | 1.18 | 0.00 | 0.89 | -6.60 | 217.15 | -47.88 | 101.76 | 0.7549 | -450.0 | -459.5 | |
| 0.00 | 1.09 | 0.00 | 0.85 | -11.54 | 216.16 | -48.88 | 107.80 | 0.7775 | -456.0 | -409.6 | |
| 0.00 | 1.18 | 0.00 | 0.89 | -5.68 | 217.13 | -47.91 | 100.54 | 0.7534 | -244.0 | -207.9 | |
| 0.00 | 1.91 | 0.00 | 1.48 | -10.24 | 216.40 | -48.64 | 106.24 | 0.7715 | -611.0 | -492.0 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -10.09 | 216.38 | -48.65 | 106.04 | 0.7713 | -582.0 | -525.7 | |
| 0.00 | 0.82 | 0.00 | 0.63 | -9.46 | 216.51 | -48.53 | 105.28 | 0.7684 | -574.0 | -535.8 | |
| 0.00 | 1.27 | 0.00 | 1.00 | -11.36 | 216.06 | -48.98 | 107.54 | 0.7780 | -443.0 | -341.4 | |
| 0.00 | 2.36 | 0.00 | 1.78 | -5.82 | 216.84 | -48.20 | 100.65 | 0.7569 | -502.0 | -556.5 | |
| 3.45 | 18.81 | 2.66 | 14.47 | -8.62 | 216.38 | -48.66 | 104.17 | 0.7678 | -782.2 | -505.2 | |
| 0.00 | 2.09 | 0.00 | 1.58 | -5.63 | 216.76 | -48.27 | 100.40 | 0.7574 | -607.0 | -491.1 | |
| 0.00 | 0.91 | 0.00 | 0.71 | -9.85 | 216.05 | -48.98 | 105.65 | 0.7742 | -622.0 | -610.6 | |
| 0.00 | 3.45 | 0.00 | 2.64 | -7.56 | 216.46 | -48.57 | 102.83 | 0.7646 | 10.0 | -101.5 | |
| 0.00 | 6.45 | 0.00 | 4.97 | -8.04 | 216.24 | -48.79 | 103.39 | 0.7680 | -622.0 | -517.2 | |
| 0.00 | 2.63 | 0.00 | 2.07 | -10.33 | 215.81 | -49.23 | 106.19 | 0.7780 | -710.0 | -537.8 | |
| 2.27 | -49.00 | 1.76 | -49.00 | -8.36 | 216.10 | -48.94 | 103.76 | 0.7703 | -783.6 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.72 | -10.18 | 215.65 | -49.38 | 105.95 | 0.7793 | -309.0 | -323.5 | |
| 5.45 | 17.35 | 4.16 | 13.17 | -5.93 | 216.31 | -48.72 | 100.69 | 0.7630 | -863.2 | -540.4 | |
| 0.91 | 2.09 | 0.71 | 1.63 | -8.68 | 215.85 | -49.18 | 104.11 | 0.7737 | -595.2 | -460.2 | |
| 0.00 | 1.64 | 0.00 | 1.29 | -9.97 | 215.60 | -49.43 | 105.67 | 0.7793 | -486.0 | -458.4 | |
| 0.00 | 2.45 | 0.00 | 1.89 | -6.84 | 216.10 | -48.94 | 101.81 | 0.7671 | -487.0 | -471.9 | |
| 0.00 | 0.55 | 0.00 | 0.43 | -10.04 | 215.39 | -49.64 | 105.70 | 0.7817 | -147.0 | -160.7 | |
| 2.27 | 328.53 | 1.77 | 260.46 | -8.34 | 215.63 | -49.41 | 103.63 | 0.7753 | -699.7 | -428.9 | |
| 0.00 | 0.91 | 0.00 | 0.72 | -9.73 | 215.31 | -49.72 | 105.29 | 0.7818 | -290.0 | -236.7 | |
| 0.00 | 1.36 | 0.00 | 1.05 | -6.27 | 215.71 | -49.33 | 100.99 | 0.7703 | -623.0 | -519.5 | |
| 3.27 | -62.00 | 2.54 | -62.00 | -6.49 | 215.49 | -49.55 | 101.23 | 0.7731 | -855.6 | 999999 | |
| 2.09 | 17.63 | 1.61 | 13.66 | -5.44 | 215.62 | -49.42 | 99.91 | 0.7697 | -440.7 | -567.8 | |
| 15.26 | -62.00 | 12.03 | -62.00 | -8.06 | 215.15 | -49.89 | 103.14 | 0.7798 | -843.0 | 999999 | |
| 2.45 | -62.00 | 1.94 | -62.00 | -7.42 | 214.87 | -50.17 | 102.27 | 0.7815 | -877.9 | 999999 | |
| 1.54 | -62.00 | 1.22 | -62.00 | -7.76 | 214.81 | -50.22 | 102.69 | 0.7828 | -693.2 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.85 | -5.27 | 215.11 | -49.92 | 99.60 | 0.7750 | -525.0 | -468.2 | |
| 0.00 | 0.91 | 0.00 | 0.71 | -5.62 | 214.88 | -50.15 | 100.00 | 0.7781 | -514.0 | -434.3 | |
| 0.00 | 1.82 | 0.00 | 1.45 | -7.40 | 214.53 | -50.50 | 102.17 | 0.7850 | -727.0 | -566.3 | |
| 25.44 | -62.00 | 20.22 | -62.00 | -6.47 | 214.53 | -50.51 | 101.00 | 0.7834 | -923.8 | 999999 | |
| 0.00 | 1.64 | 0.00 | 1.31 | -7.32 | 214.25 | -50.78 | 102.01 | 0.7878 | -611.0 | -494.4 | |
| 0.00 | 1.27 | 0.00 | 1.02 | -7.46 | 213.99 | -51.05 | 102.12 | 0.7909 | -481.0 | -420.1 | |
| 3.63 | -62.00 | 2.91 | -62.00 | -6.12 | 214.14 | -50.90 | 100.48 | 0.7869 | -831.5 | 999999 | |
| 0.00 | 1.36 | 0.00 | 1.10 | -7.65 | 213.86 | -51.18 | 102.33 | 0.7926 | -261.0 | -248.5 | |
| 8.18 | -62.00 | 6.59 | -62.00 | -6.41 | 213.85 | -51.18 | 100.78 | 0.7904 | -615.1 | 999999 | |
| 0.00 | 1.36 | 0.00 | 1.11 | -7.66 | 213.56 | -51.48 | 102.28 | 0.7958 | -246.0 | -226.5 | |
| 0.00 | 0.73 | 0.00 | 0.59 | -7.97 | 213.50 | -51.53 | 102.66 | 0.7969 | -185.0 | -235.5 | |
| 5.63 | -62.00 | 4.58 | -62.00 | -6.25 | 213.33 | -51.70 | 100.48 | 0.7956 | -431.3 | 999999 | |
| 0.00 | 1.91 | 0.00 | 1.56 | -7.15 | 213.14 | -51.89 | 101.56 | 0.7991 | -268.0 | -182.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
