SDO HMI 2014-07-05 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.54 | 54.43 | 8.66 | 33.89 | -15.66 | 232.74 | -32.30 | 121.72 | 0.6059 | -86.3 | -88.8 | |
|
previous
or next observation for the same group /

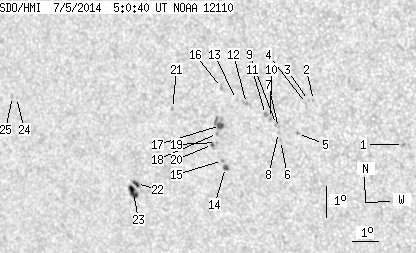

back to the solar disc SDO HMI 2014-07-05 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.64 | 0.00 | 0.95 | -15.55 | 239.98 | -25.06 | 127.94 | 0.5194 | 826.0 | 682.6 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -14.21 | 236.98 | -28.06 | 122.87 | 0.5449 | 631.0 | 574.0 | |
| 0.00 | 0.73 | 0.00 | 0.43 | -14.22 | 236.80 | -28.23 | 122.72 | 0.5472 | 669.0 | 521.2 | |
| 0.00 | 0.27 | 0.00 | 0.16 | -14.32 | 236.72 | -28.32 | 122.80 | 0.5489 | 400.0 | 494.0 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -15.29 | 236.25 | -28.79 | 123.91 | 0.5618 | 853.0 | 719.8 | |
| 0.00 | 1.36 | 0.00 | 0.82 | -15.53 | 235.60 | -29.44 | 123.71 | 0.5714 | 638.0 | 441.0 | |
| 0.00 | 0.91 | 0.00 | 0.55 | -15.12 | 235.59 | -29.45 | 123.07 | 0.5685 | 705.0 | 592.6 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -15.28 | 235.56 | -29.47 | 123.29 | 0.5699 | 554.0 | 471.9 | |
| 0.00 | 1.73 | 0.00 | 1.04 | -15.02 | 235.53 | -29.51 | 122.87 | 0.5685 | 834.0 | 671.9 | |
| 0.00 | 0.91 | 0.00 | 0.55 | -14.84 | 235.34 | -29.69 | 122.43 | 0.5695 | 851.0 | 748.5 | |
| 0.00 | 2.09 | 0.00 | 1.26 | -14.71 | 235.18 | -29.86 | 122.10 | 0.5706 | 816.0 | 733.4 | |
| 0.00 | 3.63 | 0.00 | 2.20 | -14.38 | 234.54 | -30.50 | 121.07 | 0.5761 | 801.0 | 589.4 | |
| 0.00 | 0.55 | 0.00 | 0.33 | -14.26 | 234.19 | -30.85 | 120.61 | 0.5796 | 610.0 | 501.5 | |
| 1.54 | 3.18 | 0.96 | 1.97 | -16.47 | 233.41 | -31.63 | 123.29 | 0.6039 | -812.5 | -606.9 | |
| 0.00 | 1.00 | 0.00 | 0.62 | -16.25 | 233.33 | -31.70 | 122.91 | 0.6032 | -788.0 | -656.8 | |
| 0.00 | 1.64 | 0.00 | 1.00 | -13.89 | 233.69 | -31.34 | 119.67 | 0.5833 | 590.0 | 518.0 | |
| 2.73 | 9.63 | 1.68 | 5.92 | -15.12 | 233.46 | -31.58 | 121.35 | 0.5941 | -1073.3 | -694.5 | |
| 0.00 | 1.54 | 0.00 | 0.95 | -15.38 | 233.30 | -31.73 | 121.61 | 0.5977 | -989.0 | -876.4 | |
| 0.00 | 1.18 | 0.00 | 0.73 | -15.67 | 233.21 | -31.82 | 121.98 | 0.6007 | -866.0 | -692.5 | |
| 0.64 | 2.45 | 0.39 | 1.52 | -15.74 | 233.05 | -31.98 | 121.96 | 0.6031 | -798.9 | -661.7 | |
| 0.00 | 1.27 | 0.00 | 0.80 | -14.62 | 231.75 | -33.29 | 119.37 | 0.6116 | -755.0 | -635.5 | |
| 2.18 | 13.17 | 1.42 | 8.58 | -17.10 | 229.88 | -35.16 | 121.61 | 0.6486 | -824.4 | -536.2 | |
| 6.45 | -22.00 | 4.21 | -22.00 | -17.40 | 229.69 | -35.34 | 121.90 | 0.6525 | -729.8 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.49 | -14.48 | 225.66 | -39.38 | 115.50 | 0.6829 | -608.0 | -466.1 | |
| 0.00 | 1.91 | 0.00 | 1.29 | -14.46 | 225.50 | -39.54 | 115.38 | 0.6846 | -394.0 | -416.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
