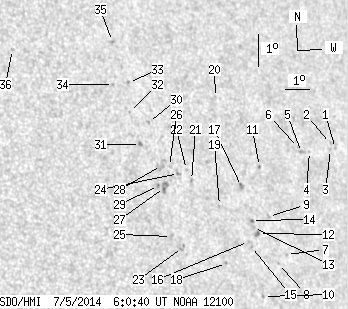

SDO HMI 2014-07-05 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.81 | 58.70 | 0.58 | 40.33 | 10.34 | 308.05 | 43.56 | 281.56 | 0.6939 | -75.3 | 53.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-05 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.69 | 11.08 | 313.82 | 49.33 | 281.75 | 0.7625 | -473.0 | -411.5 | |
| 0.00 | 1.09 | 0.00 | 0.83 | 11.25 | 313.62 | 49.13 | 281.99 | 0.7605 | -468.0 | -458.2 | |
| 0.00 | 1.09 | 0.00 | 0.83 | 11.06 | 313.57 | 49.08 | 281.76 | 0.7598 | -594.0 | -487.6 | |
| 0.00 | 0.91 | 0.00 | 0.68 | 11.05 | 312.58 | 48.09 | 281.85 | 0.7486 | -487.0 | -399.6 | |
| 0.00 | 2.45 | 0.00 | 1.81 | 11.03 | 312.20 | 47.71 | 281.88 | 0.7443 | -637.0 | -535.6 | |
| 0.00 | 0.82 | 0.00 | 0.60 | 11.19 | 312.10 | 47.61 | 282.11 | 0.7433 | -552.0 | -492.0 | |
| 0.00 | 1.00 | 0.00 | 0.72 | 7.94 | 310.95 | 46.47 | 277.81 | 0.7270 | -472.0 | -458.8 | |
| 0.00 | 0.73 | 0.00 | 0.52 | 7.68 | 310.56 | 46.07 | 277.47 | 0.7221 | -564.0 | -539.4 | |
| 0.00 | 1.45 | 0.00 | 1.04 | 9.14 | 310.34 | 45.85 | 279.51 | 0.7206 | -678.0 | -570.2 | |
| 0.00 | 1.27 | 0.00 | 0.89 | 6.70 | 309.77 | 45.28 | 276.15 | 0.7121 | -535.0 | -461.9 | |
| 0.00 | 1.27 | 0.00 | 0.91 | 10.68 | 310.22 | 45.73 | 281.67 | 0.7208 | -590.0 | -458.2 | |
| 0.45 | 2.73 | 0.32 | 1.92 | 8.64 | 309.81 | 45.33 | 278.86 | 0.7139 | -779.4 | -608.3 | |
| 0.00 | 1.27 | 0.00 | 0.89 | 8.83 | 309.62 | 45.14 | 279.15 | 0.7117 | -575.0 | -545.9 | |
| 0.36 | 1.45 | 0.26 | 1.02 | 9.05 | 309.57 | 45.08 | 279.46 | 0.7113 | -675.5 | -594.7 | |
| 0.00 | 1.09 | 0.00 | 0.76 | 8.25 | 309.45 | 44.96 | 278.36 | 0.7091 | -660.0 | -621.9 | |
| 0.00 | 1.09 | 0.00 | 0.76 | 8.41 | 309.34 | 44.85 | 278.59 | 0.7079 | -613.0 | -583.0 | |
| 0.00 | 2.82 | 0.00 | 1.97 | 10.10 | 309.31 | 44.83 | 280.98 | 0.7093 | -760.0 | -644.7 | |
| 0.00 | 1.09 | 0.00 | 0.75 | 7.78 | 308.30 | 43.81 | 277.78 | 0.6946 | 420.0 | 375.1 | |
| 0.00 | 0.73 | 0.00 | 0.50 | 9.56 | 308.27 | 43.78 | 280.35 | 0.6958 | -596.0 | -475.2 | |
| 0.00 | 1.09 | 0.00 | 0.76 | 12.88 | 308.74 | 44.25 | 284.99 | 0.7065 | -511.0 | -398.8 | |
| 0.00 | 1.27 | 0.00 | 0.86 | 10.37 | 307.21 | 42.72 | 281.67 | 0.6837 | 442.0 | 372.6 | |
| 0.00 | 1.27 | 0.00 | 0.86 | 10.72 | 307.06 | 42.57 | 282.20 | 0.6823 | 165.0 | 216.6 | |
| 0.00 | 2.63 | 0.00 | 1.76 | 8.34 | 306.52 | 42.03 | 278.77 | 0.6726 | 499.0 | 584.2 | |
| 0.00 | 2.00 | 0.00 | 1.34 | 10.61 | 306.70 | 42.21 | 282.10 | 0.6777 | 746.0 | 528.3 | |
| 0.00 | 2.00 | 0.00 | 1.33 | 8.69 | 306.11 | 41.62 | 279.35 | 0.6677 | 449.0 | 340.3 | |
| 0.00 | 0.91 | 0.00 | 0.61 | 10.84 | 306.36 | 41.87 | 282.50 | 0.6738 | 485.0 | 442.1 | |
| 0.00 | 5.72 | 0.00 | 3.81 | 10.20 | 306.05 | 41.56 | 281.61 | 0.6688 | 780.0 | 627.8 | |
| 0.00 | 6.91 | 0.00 | 4.59 | 10.88 | 306.04 | 41.55 | 282.62 | 0.6697 | 653.0 | 564.7 | |
| 0.00 | 1.18 | 0.00 | 0.78 | 10.27 | 305.81 | 41.32 | 281.76 | 0.6659 | 732.0 | 694.1 | |
| 0.00 | 1.09 | 0.00 | 0.72 | 12.22 | 305.74 | 41.25 | 284.68 | 0.6684 | 678.0 | 579.7 | |
| 0.00 | 1.91 | 0.00 | 1.26 | 11.56 | 305.29 | 40.80 | 283.79 | 0.6614 | 815.0 | 655.5 | |
| 0.00 | 0.64 | 0.00 | 0.42 | 12.59 | 305.02 | 40.54 | 285.39 | 0.6602 | 563.0 | 525.7 | |
| 0.00 | 1.18 | 0.00 | 0.78 | 13.49 | 305.16 | 40.67 | 286.70 | 0.6640 | 660.0 | 482.8 | |
| 0.00 | 1.09 | 0.00 | 0.71 | 13.45 | 304.54 | 40.05 | 286.81 | 0.6560 | 604.0 | 540.2 | |
| 0.00 | 1.64 | 0.00 | 1.08 | 14.78 | 304.78 | 40.29 | 288.72 | 0.6625 | 802.0 | 635.2 | |
| 0.00 | 0.91 | 0.00 | 0.57 | 14.67 | 300.73 | 36.24 | 289.96 | 0.6107 | -602.0 | -448.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
