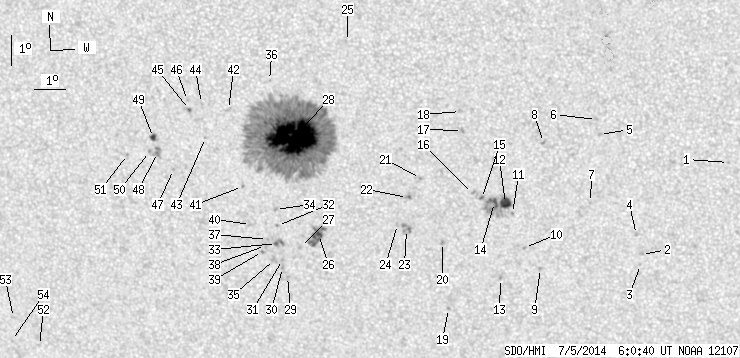

SDO HMI 2014-07-05 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 120.85 | 734.04 | 65.48 | 398.61 | -19.31 | 256.47 | -8.02 | 161.09 | 0.4095 | 714.6 | 307.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-05 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.44 | -19.64 | 270.06 | 5.58 | 193.21 | 0.4021 | 757.0 | 577.1 | |
| 0.00 | 0.73 | 0.00 | 0.40 | -22.71 | 267.29 | 2.81 | 185.88 | 0.4429 | 720.0 | 587.8 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -23.05 | 267.27 | 2.78 | 185.74 | 0.4482 | 604.0 | 357.5 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -22.03 | 267.12 | 2.63 | 185.67 | 0.4320 | 798.0 | 666.8 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -18.69 | 265.87 | 1.39 | 183.50 | 0.3771 | 736.0 | 549.8 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -18.20 | 265.77 | 1.29 | 183.33 | 0.3690 | 789.0 | 589.5 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -20.95 | 265.60 | 1.11 | 182.52 | 0.4132 | 599.0 | 547.5 | |
| 0.00 | 1.91 | 0.00 | 1.02 | -18.95 | 264.07 | -0.42 | 178.96 | 0.3807 | 871.0 | 752.0 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -23.18 | 263.95 | -0.53 | 178.90 | 0.4481 | 772.0 | 630.3 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -22.46 | 263.43 | -1.06 | 177.75 | 0.4371 | 860.0 | 730.1 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -21.32 | 263.05 | -1.44 | 176.78 | 0.4192 | 716.0 | 534.1 | |
| 8.18 | 35.98 | 4.45 | 19.59 | -20.98 | 262.82 | -1.67 | 176.23 | 0.4141 | 1101.9 | 348.1 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -23.52 | 262.62 | -1.87 | 176.22 | 0.4543 | -854.0 | -687.0 | |
| 3.36 | -12.00 | 1.83 | -12.00 | -20.95 | 262.46 | -2.02 | 175.41 | 0.4140 | 978.4 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.09 | -20.81 | 262.04 | -2.45 | 174.42 | 0.4125 | 819.0 | 744.4 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -20.65 | 261.75 | -2.74 | 173.72 | 0.4103 | 812.0 | 697.3 | |
| 0.00 | 2.36 | 0.00 | 1.26 | -18.56 | 261.47 | -3.02 | 172.36 | 0.3776 | -664.0 | -505.9 | |
| 0.00 | 1.91 | 0.00 | 1.02 | -17.94 | 261.41 | -3.07 | 171.99 | 0.3676 | 562.0 | 551.3 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -24.55 | 260.86 | -3.63 | 172.98 | 0.4728 | -772.0 | -606.1 | |
| 0.00 | 1.64 | 0.00 | 0.90 | -22.30 | 260.73 | -3.76 | 172.01 | 0.4383 | -894.0 | -703.9 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -20.15 | 260.07 | -4.42 | 169.70 | 0.4064 | -993.0 | -765.6 | |
| 0.00 | 2.73 | 0.00 | 1.48 | -20.79 | 259.62 | -4.86 | 169.01 | 0.4176 | -892.0 | -840.6 | |
| 0.00 | 8.36 | 0.00 | 4.59 | -21.86 | 259.55 | -4.94 | 169.37 | 0.4345 | 941.0 | 723.9 | |
| 0.00 | 1.73 | 0.00 | 0.95 | -21.69 | 259.26 | -5.23 | 168.68 | 0.4328 | 880.0 | 591.7 | |
| 0.00 | 0.45 | 0.00 | 0.24 | -15.68 | 257.86 | -6.63 | 161.14 | 0.3451 | -405.0 | -412.8 | |
| 2.36 | 21.62 | 1.31 | 11.98 | -22.05 | 256.63 | -7.85 | 163.51 | 0.4481 | -1091.5 | -780.3 | |
| 0.00 | 2.00 | 0.00 | 1.11 | -22.49 | 256.01 | -8.48 | 162.60 | 0.4575 | -740.0 | -527.7 | |
| 103.31 | 583.23 | 55.88 | 315.68 | -18.82 | 255.99 | -8.50 | 159.60 | 0.4031 | 1482.9 | 431.9 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -23.48 | 255.51 | -8.98 | 162.36 | 0.4744 | -708.0 | -666.5 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -23.18 | 255.36 | -9.13 | 161.87 | 0.4707 | -869.0 | -781.1 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -22.90 | 255.38 | -9.11 | 161.71 | 0.4666 | -716.0 | -576.1 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -21.75 | 255.29 | -9.20 | 160.66 | 0.4502 | 535.0 | 420.5 | |
| 0.82 | 6.27 | 0.46 | 3.49 | -22.36 | 255.21 | -9.27 | 161.00 | 0.4595 | -893.9 | -851.9 | |
| 0.00 | 2.09 | 0.00 | 1.15 | -21.22 | 255.26 | -9.23 | 160.17 | 0.4425 | 753.0 | 539.8 | |
| 0.00 | 4.27 | 0.00 | 2.39 | -22.91 | 255.11 | -9.38 | 161.21 | 0.4679 | -817.0 | -540.7 | |
| 0.00 | 0.55 | 0.00 | 0.29 | -16.96 | 255.31 | -9.18 | 156.19 | 0.3797 | -525.0 | -463.8 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -22.23 | 254.92 | -9.56 | 160.34 | 0.4591 | -552.0 | -407.7 | |
| 0.00 | 2.73 | 0.00 | 1.52 | -22.43 | 254.84 | -9.65 | 160.35 | 0.4625 | -761.0 | -608.2 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -22.64 | 254.73 | -9.76 | 160.30 | 0.4660 | -719.0 | -684.3 | |
| 0.00 | 1.91 | 0.00 | 1.06 | -21.73 | 254.39 | -10.10 | 158.92 | 0.4547 | 384.0 | 362.0 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -20.46 | 254.22 | -10.27 | 157.45 | 0.4374 | 735.0 | 464.0 | |
| 0.00 | 2.45 | 0.00 | 1.33 | -17.92 | 253.92 | -10.56 | 154.23 | 0.4029 | -13.0 | -95.1 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -18.84 | 253.11 | -11.38 | 153.60 | 0.4218 | 654.0 | 540.0 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -17.73 | 253.05 | -11.43 | 152.20 | 0.4065 | -687.0 | -526.3 | |
| 0.55 | 2.63 | 0.30 | 1.43 | -17.93 | 252.65 | -11.84 | 151.62 | 0.4124 | -812.7 | -629.2 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -17.64 | 252.60 | -11.89 | 151.17 | 0.4087 | -896.0 | -763.6 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -19.92 | 251.97 | -12.52 | 152.61 | 0.4447 | -819.0 | -604.4 | |
| 0.00 | 6.91 | 0.00 | 3.81 | -19.36 | 251.48 | -13.00 | 151.08 | 0.4407 | -909.0 | -713.1 | |
| 2.27 | 3.63 | 1.25 | 2.00 | -18.86 | 251.39 | -13.09 | 150.32 | 0.4348 | -1069.4 | -809.2 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -19.33 | 251.22 | -13.27 | 150.56 | 0.4423 | -941.0 | -775.5 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -19.44 | 250.48 | -14.01 | 149.35 | 0.4496 | -805.0 | -699.1 | |
| 0.00 | 1.54 | 0.00 | 0.92 | -25.98 | 246.66 | -17.83 | 150.52 | 0.5615 | -67.0 | -88.4 | |
| 0.00 | 1.27 | 0.00 | 0.76 | -25.02 | 245.88 | -18.60 | 148.51 | 0.5556 | -358.0 | -328.8 | |
| 0.00 | 0.64 | 0.00 | 0.38 | -25.83 | 245.68 | -18.81 | 149.07 | 0.5667 | -540.0 | -413.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
