SDO HMI 2014-07-05 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.17 | 0.00 | 3.75 | -13.22 | 256.47 | -8.02 | 154.90 | 0.3186 | 821.7 | 646.9 | |
|
previous
or next observation for the same group /

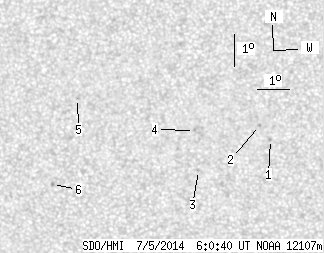

back to the solar disc SDO HMI 2014-07-05 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.61 | -13.11 | 259.67 | -4.82 | 163.86 | 0.2955 | 794.0 | 615.2 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -12.67 | 259.34 | -5.15 | 162.34 | 0.2901 | 878.0 | 677.5 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -14.11 | 257.37 | -7.11 | 158.12 | 0.3237 | 736.0 | 547.6 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -12.83 | 257.29 | -7.20 | 156.26 | 0.3048 | 872.0 | 735.4 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -11.85 | 253.63 | -10.86 | 144.73 | 0.3207 | 837.0 | 642.5 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -14.60 | 252.69 | -11.79 | 147.16 | 0.3663 | 813.0 | 684.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
