SDO HMI 2014-07-05 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 251.41 | 927.98 | 141.61 | 523.21 | -7.45 | 238.12 | -26.37 | 112.55 | 0.4781 | 41.0 | -87.0 | |
|
previous
or next observation for the same group /

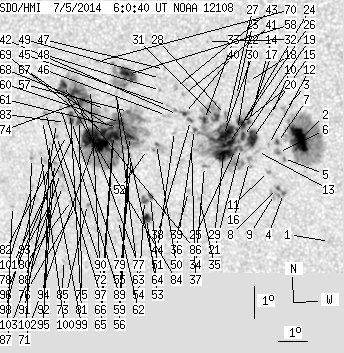

back to the solar disc SDO HMI 2014-07-05 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.73 | 0.00 | 0.95 | -10.72 | 243.26 | -21.23 | 123.87 | 0.4302 | 324.0 | 321.1 | |
| 28.26 | 147.28 | 15.39 | 80.10 | -7.55 | 242.47 | -22.02 | 116.40 | 0.4166 | 1290.1 | 553.9 | |
| 0.00 | 3.63 | 0.00 | 1.98 | -6.63 | 242.02 | -22.47 | 113.93 | 0.4170 | 677.0 | 606.5 | |
| 0.73 | 2.09 | 0.40 | 1.15 | -9.25 | 241.83 | -22.66 | 119.28 | 0.4377 | 873.2 | 693.9 | |
| 0.00 | 2.36 | 0.00 | 1.29 | -8.15 | 241.90 | -22.59 | 117.10 | 0.4288 | 906.0 | 609.2 | |
| 0.64 | 3.91 | 0.35 | 2.14 | -7.97 | 241.75 | -22.74 | 116.56 | 0.4298 | 856.3 | 669.1 | |
| 1.09 | 2.36 | 0.60 | 1.29 | -7.66 | 241.73 | -22.76 | 115.89 | 0.4279 | 1013.9 | 854.8 | |
| 1.00 | 2.36 | 0.55 | 1.30 | -9.09 | 241.64 | -22.85 | 118.77 | 0.4392 | 1051.7 | 840.0 | |
| 0.00 | 4.63 | 0.00 | 2.56 | -9.28 | 241.53 | -22.96 | 119.03 | 0.4421 | 744.0 | 610.9 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -6.80 | 241.58 | -22.91 | 113.88 | 0.4245 | 773.0 | 620.7 | |
| 0.00 | 1.64 | 0.00 | 0.90 | -8.57 | 241.37 | -23.11 | 117.43 | 0.4391 | 752.0 | 657.7 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -7.73 | 241.43 | -23.06 | 115.73 | 0.4327 | 672.0 | 510.7 | |
| 0.00 | 3.18 | 0.00 | 1.75 | -7.96 | 241.04 | -23.44 | 115.84 | 0.4396 | 686.0 | 486.2 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -6.47 | 241.03 | -23.46 | 112.68 | 0.4305 | -335.0 | -292.2 | |
| 12.63 | 226.24 | 6.96 | 125.56 | -7.56 | 240.90 | -23.59 | 114.87 | 0.4390 | 1129.1 | 285.6 | |
| 0.00 | 4.82 | 0.00 | 2.66 | -8.27 | 240.76 | -23.73 | 116.22 | 0.4458 | 599.0 | 580.0 | |
| 1.64 | -15.00 | 0.90 | -15.00 | -7.03 | 240.80 | -23.69 | 113.68 | 0.4372 | 1080.8 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -5.79 | 240.86 | -23.63 | 111.06 | 0.4291 | 762.0 | 601.7 | |
| 3.36 | -15.00 | 1.86 | -15.00 | -7.50 | 240.60 | -23.89 | 114.48 | 0.4429 | 1208.9 | 999999 | |
| 7.27 | -15.00 | 4.01 | -15.00 | -7.10 | 240.56 | -23.93 | 113.61 | 0.4411 | 1135.6 | 999999 | |
| 0.91 | -15.00 | 0.50 | -15.00 | -7.88 | 240.48 | -24.01 | 115.15 | 0.4471 | 771.6 | 999999 | |
| 1.00 | -15.00 | 0.55 | -15.00 | -7.29 | 240.41 | -24.08 | 113.87 | 0.4443 | 1056.5 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -6.23 | 240.44 | -24.05 | 111.67 | 0.4378 | 701.0 | 523.6 | |
| 1.09 | -15.00 | 0.60 | -15.00 | -7.44 | 240.34 | -24.15 | 114.13 | 0.4464 | 1208.4 | 999999 | |
| 1.82 | -15.00 | 1.01 | -15.00 | -7.91 | 240.31 | -24.18 | 115.06 | 0.4497 | 848.3 | 999999 | |
| 11.27 | -15.00 | 6.25 | -15.00 | -7.73 | 240.08 | -24.41 | 114.49 | 0.4518 | 1011.8 | 999999 | |
| 4.00 | -15.00 | 2.22 | -15.00 | -7.20 | 240.01 | -24.48 | 113.36 | 0.4496 | 825.0 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.26 | -6.83 | 240.03 | -24.45 | 112.60 | 0.4470 | 859.0 | 659.7 | |
| 20.17 | -15.00 | 11.22 | -15.00 | -8.04 | 239.89 | -24.60 | 114.96 | 0.4564 | 562.3 | 999999 | |
| 23.62 | -15.00 | 13.11 | -15.00 | -7.48 | 239.93 | -24.56 | 113.86 | 0.4525 | 927.3 | 999999 | |
| 4.27 | -15.00 | 2.37 | -15.00 | -6.93 | 239.69 | -24.80 | 112.53 | 0.4526 | 911.0 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.40 | -4.59 | 239.53 | -24.95 | 107.46 | 0.4427 | 660.0 | 522.2 | |
| 2.54 | -15.00 | 1.42 | -15.00 | -7.00 | 239.31 | -25.17 | 112.37 | 0.4584 | 750.7 | 999999 | |
| 0.45 | 2.54 | 0.25 | 1.42 | -8.46 | 239.22 | -25.27 | 115.21 | 0.4686 | 491.0 | 399.6 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -9.47 | 238.97 | -25.52 | 116.92 | 0.4785 | -815.0 | -657.0 | |
| 1.09 | -15.00 | 0.61 | -15.00 | -7.32 | 238.95 | -25.53 | 112.73 | 0.4654 | 618.9 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.41 | -7.82 | 238.82 | -25.67 | 113.61 | 0.4703 | -278.0 | -267.9 | |
| 1.27 | 10.72 | 0.71 | 6.00 | -7.05 | 238.83 | -25.65 | 112.08 | 0.4656 | 606.7 | 465.4 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -9.26 | 238.61 | -25.88 | 116.21 | 0.4821 | -880.0 | -725.1 | |
| 1.54 | -38.00 | 0.86 | -38.00 | -6.83 | 238.64 | -25.85 | 111.51 | 0.4671 | 719.2 | 999999 | |
| 0.00 | 1.64 | 0.00 | 0.91 | -6.25 | 238.64 | -25.85 | 110.32 | 0.4640 | 716.0 | 627.1 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -6.87 | 238.40 | -26.09 | 111.40 | 0.4708 | 57.0 | 166.4 | |
| 0.00 | 3.09 | 0.00 | 1.73 | -6.04 | 238.38 | -26.11 | 109.70 | 0.4667 | 768.0 | 640.9 | |
| 0.00 | 2.36 | 0.00 | 1.33 | -7.40 | 238.26 | -26.22 | 112.35 | 0.4757 | -7.0 | -91.6 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -6.60 | 238.07 | -26.41 | 110.62 | 0.4741 | 560.0 | 393.6 | |
| 0.00 | 3.36 | 0.00 | 1.89 | -6.91 | 238.02 | -26.47 | 111.20 | 0.4765 | -596.0 | -431.4 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -5.49 | 238.03 | -26.46 | 108.35 | 0.4691 | 745.0 | 607.0 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -6.14 | 237.86 | -26.63 | 109.56 | 0.4748 | 444.0 | 318.5 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -5.77 | 237.88 | -26.61 | 108.83 | 0.4727 | 636.0 | 472.1 | |
| 0.91 | 9.54 | 0.51 | 5.40 | -7.82 | 237.62 | -26.87 | 112.67 | 0.4872 | -886.9 | -405.7 | |
| 1.73 | 8.54 | 0.99 | 4.89 | -9.45 | 237.28 | -27.21 | 115.46 | 0.5015 | 808.3 | 576.5 | |
| 0.00 | 2.45 | 0.00 | 1.39 | -7.98 | 237.29 | -27.20 | 112.74 | 0.4927 | -795.0 | -427.0 | |
| 5.72 | 9.27 | 3.29 | 5.32 | -10.14 | 237.08 | -27.41 | 116.55 | 0.5086 | -976.2 | -519.3 | |
| 2.91 | -51.00 | 1.67 | -51.00 | -9.58 | 237.06 | -27.43 | 115.52 | 0.5053 | 802.2 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -8.25 | 236.72 | -27.77 | 112.81 | 0.5022 | -532.0 | -416.1 | |
| 4.72 | 360.89 | 2.70 | 207.73 | -7.60 | 236.70 | -27.79 | 111.58 | 0.4990 | -1242.7 | -595.5 | |
| 1.45 | -56.00 | 0.83 | -56.00 | -6.82 | 236.71 | -27.77 | 110.12 | 0.4947 | -990.5 | 999999 | |
| 14.26 | 41.70 | 8.09 | 23.70 | -5.68 | 236.75 | -27.74 | 107.92 | 0.4887 | 943.3 | 122.0 | |
| 0.00 | 0.64 | 0.00 | 0.36 | -8.31 | 236.57 | -27.92 | 112.83 | 0.5046 | -164.0 | -254.1 | |
| 3.82 | -56.00 | 2.18 | -56.00 | -7.17 | 236.41 | -28.08 | 110.58 | 0.5008 | -1293.7 | 999999 | |
| 1.00 | -56.00 | 0.57 | -56.00 | -7.33 | 236.33 | -28.16 | 110.82 | 0.5027 | -1157.4 | 999999 | |
| 0.00 | 0.64 | 0.00 | 0.37 | -10.23 | 236.08 | -28.40 | 115.92 | 0.5225 | -682.0 | -527.6 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -6.46 | 236.32 | -28.17 | 109.17 | 0.4986 | 57.0 | 76.3 | |
| 0.00 | 1.82 | 0.00 | 1.04 | -6.24 | 236.30 | -28.19 | 108.74 | 0.4979 | 376.0 | 235.6 | |
| 9.27 | -56.00 | 5.32 | -56.00 | -7.58 | 236.14 | -28.35 | 111.16 | 0.5067 | -1301.6 | 999999 | |
| 1.64 | -56.00 | 0.94 | -56.00 | -7.77 | 236.09 | -28.40 | 111.48 | 0.5084 | -1138.6 | 999999 | |
| 1.36 | -56.00 | 0.78 | -56.00 | -7.33 | 236.05 | -28.44 | 110.65 | 0.5067 | -1252.3 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.15 | -6.78 | 235.91 | -28.57 | 109.52 | 0.5059 | -433.0 | -446.6 | |
| 5.63 | -56.00 | 3.24 | -56.00 | -7.50 | 235.79 | -28.69 | 110.78 | 0.5112 | -1215.9 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.04 | -5.30 | 235.72 | -28.76 | 106.60 | 0.5020 | -785.0 | -558.7 | |
| 38.25 | -56.00 | 22.11 | -56.00 | -7.75 | 235.49 | -28.99 | 111.05 | 0.5167 | -1116.2 | 999999 | |
| 0.00 | 2.63 | 0.00 | 1.52 | -6.18 | 235.43 | -29.06 | 108.09 | 0.5100 | -376.0 | -372.9 | |
| 0.36 | 1.54 | 0.21 | 0.90 | -9.76 | 235.03 | -29.45 | 114.31 | 0.5338 | -913.5 | -777.5 | |
| 5.09 | -56.00 | 2.94 | -56.00 | -6.56 | 235.09 | -29.40 | 108.60 | 0.5166 | -1229.6 | 999999 | |
| 3.82 | -56.00 | 2.21 | -56.00 | -7.15 | 234.97 | -29.51 | 109.62 | 0.5210 | -1069.7 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -9.84 | 234.60 | -29.89 | 114.14 | 0.5401 | -693.0 | -618.4 | |
| 6.09 | -56.00 | 3.52 | -56.00 | -6.28 | 234.86 | -29.63 | 107.96 | 0.5187 | -1188.4 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -7.56 | 234.77 | -29.72 | 110.23 | 0.5258 | -555.0 | -479.2 | |
| 2.45 | -56.00 | 1.43 | -56.00 | -7.19 | 234.69 | -29.80 | 109.52 | 0.5252 | -853.7 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.07 | -9.65 | 234.47 | -30.01 | 113.73 | 0.5408 | -820.0 | -680.0 | |
| 1.91 | -56.00 | 1.11 | -56.00 | -6.94 | 234.67 | -29.82 | 109.06 | 0.5243 | -854.5 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -7.63 | 234.48 | -30.01 | 110.18 | 0.5302 | -589.0 | -477.2 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -7.22 | 234.47 | -30.02 | 109.46 | 0.5284 | -610.0 | -494.1 | |
| 1.73 | -56.00 | 1.00 | -56.00 | -6.26 | 234.47 | -30.02 | 107.71 | 0.5241 | -860.2 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -11.55 | 233.97 | -30.51 | 116.57 | 0.5583 | -718.0 | -583.8 | |
| 5.63 | -56.00 | 3.27 | -56.00 | -6.08 | 234.45 | -30.04 | 107.36 | 0.5236 | -872.6 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -9.22 | 234.19 | -30.29 | 112.81 | 0.5422 | -868.0 | -778.7 | |
| 0.00 | 3.36 | 0.00 | 1.98 | -8.82 | 234.16 | -30.33 | 112.08 | 0.5406 | -882.0 | -701.4 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -6.76 | 234.33 | -30.16 | 108.54 | 0.5283 | -571.0 | -407.0 | |
| 0.00 | 1.45 | 0.00 | 0.85 | -7.67 | 234.12 | -30.37 | 110.04 | 0.5354 | -835.0 | -640.9 | |
| 0.00 | 1.54 | 0.00 | 0.90 | -7.26 | 234.15 | -30.34 | 109.34 | 0.5331 | -724.0 | -609.9 | |
| 0.00 | 1.54 | 0.00 | 0.91 | -8.51 | 233.97 | -30.51 | 111.43 | 0.5415 | -791.0 | -694.2 | |
| 0.00 | 3.63 | 0.00 | 2.15 | -9.54 | 233.87 | -30.61 | 113.15 | 0.5483 | -528.0 | -445.0 | |
| 0.00 | 0.64 | 0.00 | 0.38 | -8.89 | 233.83 | -30.66 | 112.00 | 0.5454 | -746.0 | -637.0 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -7.89 | 233.85 | -30.64 | 110.27 | 0.5402 | -610.0 | -374.5 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -9.43 | 233.63 | -30.85 | 112.79 | 0.5509 | -501.0 | -391.9 | |
| 0.00 | 1.73 | 0.00 | 1.01 | -6.93 | 233.78 | -30.71 | 108.54 | 0.5367 | -736.0 | -623.5 | |
| 0.00 | 1.45 | 0.00 | 0.86 | -8.43 | 233.62 | -30.87 | 111.07 | 0.5459 | -660.0 | -576.0 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -7.19 | 233.65 | -30.83 | 108.91 | 0.5396 | -585.0 | -451.5 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -8.18 | 233.50 | -30.99 | 110.57 | 0.5464 | -664.0 | -516.5 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -9.22 | 233.11 | -31.37 | 112.11 | 0.5568 | -553.0 | -417.4 | |
| 0.00 | 1.36 | 0.00 | 0.81 | -8.38 | 233.16 | -31.33 | 110.71 | 0.5520 | -766.0 | -581.1 | |
| 0.00 | 0.82 | 0.00 | 0.49 | -9.90 | 232.31 | -32.18 | 112.75 | 0.5710 | -652.0 | -606.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
