SDO HMI 2014-07-05 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 275.31 | 1612.87 | 198.18 | 1164.25 | -7.71 | 219.36 | -45.13 | 104.03 | 0.7252 | 310.9 | 0.9 | |
|
previous
or next observation for the same group /

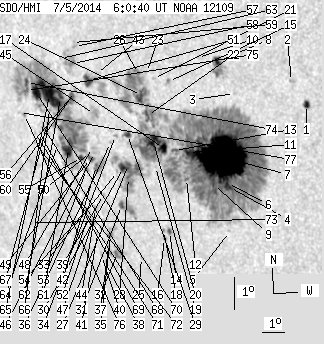

back to the solar disc SDO HMI 2014-07-05 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.27 | 5.09 | 2.12 | 3.29 | -6.30 | 225.58 | -38.90 | 103.90 | 0.6453 | 855.4 | 570.8 | |
| 0.00 | 2.36 | 0.00 | 1.54 | -5.61 | 225.05 | -39.44 | 102.68 | 0.6502 | 724.0 | 595.9 | |
| 0.00 | 0.82 | 0.00 | 0.55 | -6.07 | 222.70 | -41.79 | 102.64 | 0.6814 | 358.0 | 304.0 | |
| 0.27 | 1114.67 | 0.19 | 780.62 | -9.01 | 222.13 | -42.35 | 106.62 | 0.6967 | 793.3 | 214.7 | |
| 0.00 | 0.64 | 0.00 | 0.44 | -10.39 | 221.91 | -42.57 | 108.45 | 0.7038 | 440.0 | 383.1 | |
| 0.27 | -4.00 | 0.19 | -4.00 | -8.89 | 222.07 | -42.42 | 106.43 | 0.6971 | 829.7 | 999999 | |
| 141.01 | -4.00 | 97.02 | -4.00 | -8.08 | 221.97 | -42.52 | 105.27 | 0.6959 | 1294.7 | 999999 | |
| 4.09 | 18.26 | 2.78 | 12.42 | -5.11 | 222.08 | -42.40 | 101.08 | 0.6867 | -804.8 | -449.9 | |
| 0.27 | -4.00 | 0.19 | -4.00 | -8.94 | 221.47 | -43.02 | 106.30 | 0.7044 | 143.0 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.50 | -5.02 | 221.25 | -43.23 | 100.74 | 0.6968 | -389.0 | -289.9 | |
| 1.91 | -4.00 | 1.34 | -4.00 | -7.98 | 220.54 | -43.95 | 104.67 | 0.7127 | 631.2 | 999999 | |
| 0.91 | -4.00 | 0.64 | -4.00 | -8.80 | 220.34 | -44.15 | 105.73 | 0.7174 | 461.0 | 999999 | |
| 1.64 | -4.00 | 1.16 | -4.00 | -7.95 | 219.94 | -44.54 | 104.44 | 0.7197 | 630.3 | 999999 | |
| 1.45 | 2.91 | 1.06 | 2.11 | -10.50 | 219.30 | -45.18 | 107.66 | 0.7343 | 633.4 | 484.6 | |
| 0.00 | 2.63 | 0.00 | 1.86 | -5.81 | 219.94 | -44.55 | 101.51 | 0.7145 | 150.0 | 59.2 | |
| 0.36 | 1.54 | 0.27 | 1.13 | -10.73 | 219.04 | -45.45 | 107.87 | 0.7380 | 368.2 | 256.9 | |
| 6.00 | -4.00 | 4.30 | -4.00 | -7.90 | 219.47 | -45.02 | 104.24 | 0.7251 | 889.4 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.66 | -10.48 | 219.04 | -45.45 | 107.54 | 0.7372 | 279.0 | 221.9 | |
| 0.00 | 1.09 | 0.00 | 0.79 | -8.48 | 219.03 | -45.45 | 104.89 | 0.7317 | 210.0 | 110.9 | |
| 10.18 | -4.00 | 7.34 | -4.00 | -7.70 | 219.06 | -45.43 | 103.85 | 0.7294 | 821.5 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.58 | -5.74 | 219.30 | -45.19 | 101.26 | 0.7220 | -566.0 | -477.7 | |
| 3.63 | -4.00 | 2.62 | -4.00 | -6.90 | 218.90 | -45.59 | 102.73 | 0.7293 | 681.5 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.72 | -5.57 | 219.01 | -45.48 | 100.95 | 0.7251 | -224.0 | -253.9 | |
| 9.18 | -4.00 | 6.63 | -4.00 | -6.29 | 218.71 | -45.78 | 101.86 | 0.7301 | 661.8 | 999999 | |
| 0.00 | 0.64 | 0.00 | 0.48 | -11.37 | 217.87 | -46.62 | 108.32 | 0.7528 | -606.0 | -557.1 | |
| 0.82 | -4.00 | 0.59 | -4.00 | -5.62 | 218.65 | -45.83 | 100.93 | 0.7294 | -769.7 | 999999 | |
| 2.45 | -4.00 | 1.82 | -4.00 | -8.47 | 217.83 | -46.66 | 104.52 | 0.7454 | -826.7 | 999999 | |
| 1.09 | -4.00 | 0.81 | -4.00 | -8.88 | 217.76 | -46.72 | 105.04 | 0.7471 | -939.3 | 999999 | |
| 2.82 | 5.00 | 2.07 | 3.68 | -7.53 | 217.93 | -46.56 | 103.32 | 0.7420 | 514.9 | 231.5 | |
| 5.45 | -4.00 | 4.06 | -4.00 | -8.57 | 217.59 | -46.90 | 104.59 | 0.7483 | -955.8 | 999999 | |
| 2.73 | 16.81 | 2.05 | 12.58 | -9.77 | 217.28 | -47.20 | 106.06 | 0.7548 | -743.1 | -423.1 | |
| 0.00 | 12.36 | 0.00 | 9.45 | -11.26 | 216.79 | -47.69 | 107.83 | 0.7642 | -904.0 | -684.4 | |
| 0.00 | 1.45 | 0.00 | 1.09 | -8.71 | 217.29 | -47.20 | 104.69 | 0.7520 | -520.0 | -537.8 | |
| 0.00 | 1.45 | 0.00 | 1.08 | -7.59 | 217.38 | -47.11 | 103.24 | 0.7484 | 220.0 | 151.2 | |
| 1.27 | 7.09 | 0.97 | 5.42 | -10.74 | 216.58 | -47.91 | 107.09 | 0.7650 | -800.6 | -608.4 | |
| 0.00 | 1.00 | 0.00 | 0.75 | -7.82 | 217.12 | -47.37 | 103.47 | 0.7518 | 69.0 | 14.3 | |
| 0.00 | 1.09 | 0.00 | 0.84 | -11.09 | 216.41 | -48.08 | 107.49 | 0.7678 | -754.0 | -622.1 | |
| 0.00 | 1.00 | 0.00 | 0.78 | -11.61 | 216.15 | -48.33 | 108.06 | 0.7719 | -399.0 | -373.3 | |
| 0.00 | 1.36 | 0.00 | 1.04 | -9.46 | 216.51 | -47.97 | 105.44 | 0.7624 | -669.0 | -557.4 | |
| 0.00 | 0.64 | 0.00 | 0.49 | -11.39 | 216.02 | -48.47 | 107.74 | 0.7728 | -424.0 | -314.0 | |
| 0.00 | 1.18 | 0.00 | 0.92 | -10.70 | 215.98 | -48.51 | 106.86 | 0.7713 | -206.0 | -197.5 | |
| 0.82 | 11.27 | 0.62 | 8.56 | -8.56 | 216.35 | -48.14 | 104.24 | 0.7620 | -903.0 | -571.4 | |
| 0.00 | 1.27 | 0.00 | 0.95 | -5.70 | 216.76 | -47.73 | 100.61 | 0.7514 | -511.0 | -562.4 | |
| 0.00 | 1.91 | 0.00 | 1.47 | -9.92 | 216.05 | -48.44 | 105.89 | 0.7686 | -617.0 | -485.9 | |
| 0.00 | 11.54 | 0.00 | 8.71 | -6.97 | 216.50 | -47.98 | 102.22 | 0.7568 | -522.0 | -490.8 | |
| 0.00 | 1.00 | 0.00 | 0.76 | -8.16 | 216.33 | -48.16 | 103.71 | 0.7614 | -497.0 | -480.7 | |
| 0.00 | 2.54 | 0.00 | 1.98 | -10.37 | 215.82 | -48.67 | 106.39 | 0.7722 | -691.0 | -529.0 | |
| 0.00 | 1.54 | 0.00 | 1.18 | -8.01 | 216.26 | -48.23 | 103.50 | 0.7618 | -564.0 | -570.2 | |
| 2.54 | 308.65 | 1.95 | 242.09 | -8.36 | 216.11 | -48.38 | 103.91 | 0.7642 | -776.8 | -456.7 | |
| 0.00 | 1.73 | 0.00 | 1.32 | -8.17 | 216.14 | -48.35 | 103.67 | 0.7635 | -568.0 | -489.1 | |
| 7.00 | 22.99 | 5.28 | 17.25 | -5.93 | 216.36 | -48.13 | 100.82 | 0.7563 | -863.6 | -531.2 | |
| 0.00 | 0.82 | 0.00 | 0.64 | -10.22 | 215.61 | -48.87 | 106.14 | 0.7740 | -393.0 | -323.9 | |
| 0.91 | 2.36 | 0.70 | 1.82 | -8.71 | 215.86 | -48.63 | 104.30 | 0.7677 | -601.9 | -475.3 | |
| 0.00 | 1.73 | 0.00 | 1.34 | -9.97 | 215.62 | -48.87 | 105.83 | 0.7733 | -593.0 | -506.7 | |
| 2.27 | -49.00 | 1.75 | -49.00 | -8.34 | 215.69 | -48.80 | 103.78 | 0.7688 | -700.3 | 999999 | |
| 0.00 | 2.36 | 0.00 | 1.81 | -6.30 | 215.71 | -48.77 | 101.16 | 0.7642 | -730.0 | -558.4 | |
| 0.00 | 1.91 | 0.00 | 1.45 | -4.90 | 215.83 | -48.66 | 99.37 | 0.7605 | -645.0 | -493.3 | |
| 1.64 | 17.54 | 1.25 | 13.43 | -5.43 | 215.68 | -48.81 | 100.03 | 0.7631 | -465.2 | -583.7 | |
| 0.00 | 0.91 | 0.00 | 0.69 | -4.79 | 215.74 | -48.74 | 99.20 | 0.7612 | -581.0 | -610.4 | |
| 3.45 | -49.00 | 2.65 | -49.00 | -6.46 | 215.50 | -48.98 | 101.32 | 0.7669 | -842.6 | 999999 | |
| 12.36 | -49.00 | 9.64 | -49.00 | -8.09 | 215.12 | -49.37 | 103.31 | 0.7744 | -849.0 | 999999 | |
| 0.27 | -49.00 | 0.21 | -49.00 | -6.52 | 214.98 | -49.51 | 101.28 | 0.7727 | -1006.3 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.56 | -5.30 | 215.13 | -49.36 | 99.75 | 0.7689 | -556.0 | -511.9 | |
| 0.00 | 1.18 | 0.00 | 0.93 | -8.02 | 214.60 | -49.88 | 103.10 | 0.7797 | -345.0 | -285.5 | |
| 30.35 | -49.00 | 23.83 | -49.00 | -6.45 | 214.46 | -50.03 | 101.07 | 0.7782 | -937.9 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.93 | -6.91 | 214.39 | -50.09 | 101.65 | 0.7798 | -505.0 | -500.8 | |
| 0.00 | 1.45 | 0.00 | 1.15 | -7.32 | 214.24 | -50.25 | 102.13 | 0.7823 | -640.0 | -523.4 | |
| 0.00 | 4.63 | 0.00 | 3.68 | -7.52 | 214.06 | -50.43 | 102.34 | 0.7845 | -446.0 | -389.7 | |
| 0.00 | 0.73 | 0.00 | 0.58 | -7.65 | 213.79 | -50.69 | 102.45 | 0.7876 | -326.0 | -299.5 | |
| 8.27 | -49.00 | 6.58 | -49.00 | -6.41 | 213.84 | -50.65 | 100.90 | 0.7848 | -642.1 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.95 | -7.69 | 213.59 | -50.90 | 102.45 | 0.7898 | -341.0 | -237.3 | |
| 0.00 | 1.09 | 0.00 | 0.88 | -7.94 | 213.50 | -50.99 | 102.75 | 0.7912 | -241.0 | -193.3 | |
| 0.00 | 0.64 | 0.00 | 0.53 | -10.50 | 212.77 | -51.72 | 105.72 | 0.8040 | -206.0 | -259.7 | |
| 2.18 | -49.00 | 1.75 | -49.00 | -6.12 | 213.39 | -51.10 | 100.45 | 0.7891 | -390.6 | 999999 | |
| 2.18 | -49.00 | 1.75 | -49.00 | -6.37 | 213.35 | -51.13 | 100.75 | 0.7898 | -399.6 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.25 | -7.12 | 213.14 | -51.35 | 101.65 | 0.7934 | -259.0 | -212.0 | |
| 0.00 | 1.91 | 0.00 | 1.55 | -7.07 | 212.90 | -51.59 | 101.53 | 0.7958 | 182.0 | 78.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
