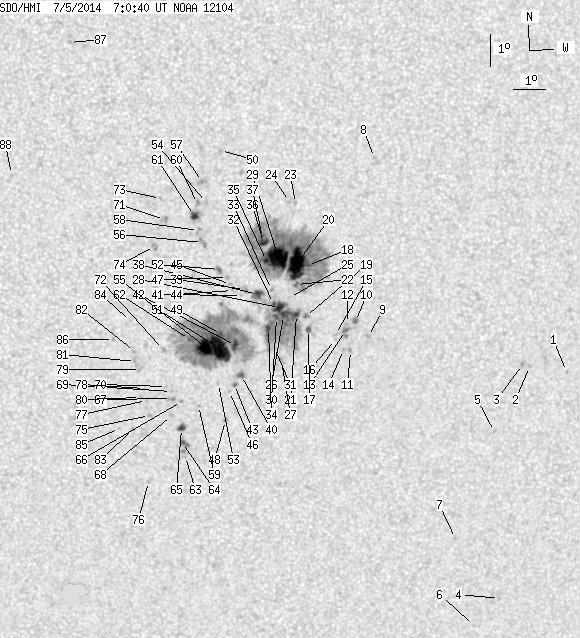

SDO HMI 2014-07-05 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 178.10 | 1029.38 | 91.65 | 530.04 | -11.77 | 268.31 | 4.37 | 196.14 | 0.2732 | 263.7 | 96.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-05 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.63 | -13.96 | 278.30 | 14.36 | 219.17 | 0.3826 | 634.0 | 618.4 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -13.78 | 277.09 | 13.15 | 217.05 | 0.3683 | 775.0 | 680.5 | |
| 0.00 | 1.91 | 0.00 | 1.01 | -13.71 | 276.86 | 12.92 | 216.68 | 0.3652 | 968.0 | 808.7 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -21.35 | 276.65 | 12.71 | 206.21 | 0.4657 | 626.0 | 443.9 | |
| 0.00 | 1.73 | 0.00 | 0.93 | -15.85 | 276.08 | 12.14 | 211.72 | 0.3863 | 699.0 | 582.0 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -22.25 | 275.85 | 11.91 | 203.93 | 0.4729 | 470.0 | 438.8 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -19.33 | 275.03 | 11.09 | 205.29 | 0.4266 | 635.0 | 555.9 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -7.16 | 271.97 | 8.03 | 217.39 | 0.2293 | 824.0 | 643.4 | |
| 0.00 | 1.91 | 0.00 | 0.99 | -12.76 | 271.91 | 7.97 | 206.07 | 0.3092 | 905.0 | 765.9 | |
| 0.91 | 3.54 | 0.47 | 1.84 | -12.28 | 271.49 | 7.55 | 205.55 | 0.2990 | 1039.7 | 840.1 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -13.20 | 271.36 | 7.42 | 203.88 | 0.3119 | 896.0 | 709.9 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -12.35 | 271.24 | 7.30 | 204.72 | 0.2981 | 685.0 | 655.6 | |
| 0.82 | 6.18 | 0.42 | 3.21 | -12.57 | 271.18 | 7.24 | 204.24 | 0.3011 | 1146.6 | 841.8 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -13.17 | 271.14 | 7.20 | 203.29 | 0.3100 | 873.0 | 722.0 | |
| 0.00 | 1.73 | 0.00 | 0.90 | -12.69 | 270.87 | 6.93 | 203.14 | 0.3009 | 719.0 | 547.9 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -12.85 | 270.88 | 6.94 | 202.94 | 0.3034 | 626.0 | 515.5 | |
| 1.91 | 4.27 | 0.99 | 2.21 | -12.53 | 270.02 | 6.08 | 200.76 | 0.2930 | 852.3 | 690.7 | |
| 0.27 | 387.98 | 0.14 | 198.57 | -10.51 | 269.95 | 6.01 | 203.31 | 0.2611 | 1014.7 | 486.4 | |
| 0.55 | 3.45 | 0.28 | 1.78 | -12.11 | 269.92 | 5.98 | 200.95 | 0.2860 | 977.0 | 741.6 | |
| 36.89 | -18.00 | 18.91 | -18.00 | -10.44 | 269.60 | 5.66 | 202.21 | 0.2579 | 1356.4 | 999999 | |
| 2.73 | 152.92 | 1.41 | 79.01 | -12.05 | 269.63 | 5.69 | 200.12 | 0.2833 | 1065.3 | 357.4 | |
| 1.00 | -18.00 | 0.51 | -18.00 | -11.10 | 269.61 | 5.67 | 201.30 | 0.2683 | 877.9 | 999999 | |
| 0.00 | 1.91 | 0.00 | 0.97 | -8.56 | 269.54 | 5.60 | 205.14 | 0.2283 | 20.0 | -59.1 | |
| 0.00 | 0.64 | 0.00 | 0.32 | -8.50 | 269.36 | 5.42 | 204.52 | 0.2260 | -471.0 | -261.1 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -11.51 | 269.40 | 5.46 | 200.04 | 0.2734 | 785.0 | 578.5 | |
| 3.73 | -21.00 | 1.92 | -21.00 | -12.08 | 269.23 | 5.29 | 198.76 | 0.2814 | 1016.8 | 999999 | |
| 0.00 | 2.73 | 0.00 | 1.42 | -13.50 | 269.19 | 5.25 | 197.10 | 0.3040 | -920.0 | -806.3 | |
| 6.36 | -21.00 | 3.28 | -21.00 | -11.82 | 269.10 | 5.16 | 198.62 | 0.2767 | 1252.9 | 999999 | |
| 35.07 | -18.00 | 17.95 | -18.00 | -10.25 | 269.04 | 5.10 | 200.46 | 0.2514 | 1464.1 | 999999 | |
| 2.36 | -21.00 | 1.22 | -21.00 | -12.14 | 269.01 | 5.07 | 197.96 | 0.2813 | 866.7 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -13.09 | 268.96 | 5.02 | 196.81 | 0.2963 | -148.0 | -125.5 | |
| 1.36 | -21.00 | 0.70 | -21.00 | -11.70 | 268.91 | 4.97 | 198.13 | 0.2737 | 1233.0 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -11.25 | 268.84 | 4.90 | 198.41 | 0.2662 | 971.0 | 891.2 | |
| 3.09 | -21.00 | 1.60 | -21.00 | -12.48 | 268.76 | 4.82 | 196.78 | 0.2856 | 712.7 | 999999 | |
| 2.54 | -18.00 | 1.30 | -18.00 | -10.34 | 268.67 | 4.73 | 198.96 | 0.2507 | 1270.2 | 999999 | |
| 5.18 | -18.00 | 2.64 | -18.00 | -9.78 | 268.57 | 4.63 | 199.34 | 0.2411 | 1364.1 | 999999 | |
| 0.27 | -18.00 | 0.14 | -18.00 | -9.62 | 268.53 | 4.59 | 199.43 | 0.2384 | 1322.7 | 999999 | |
| 5.27 | -21.00 | 2.71 | -21.00 | -11.41 | 268.40 | 4.46 | 196.71 | 0.2665 | 1071.6 | 999999 | |
| 0.00 | 5.18 | 0.00 | 2.66 | -11.25 | 268.00 | 4.06 | 195.42 | 0.2620 | 772.0 | 705.3 | |
| 2.09 | 4.18 | 1.09 | 2.17 | -13.97 | 267.94 | 4.00 | 192.83 | 0.3062 | -1046.9 | -822.7 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -11.44 | 267.90 | 3.96 | 194.90 | 0.2647 | 711.0 | 464.6 | |
| 5.09 | 336.56 | 2.63 | 173.87 | -13.02 | 267.74 | 3.80 | 192.92 | 0.2898 | -1284.0 | -491.0 | |
| 0.55 | 1.73 | 0.28 | 0.90 | -14.26 | 267.73 | 3.79 | 191.96 | 0.3101 | -995.3 | -796.8 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -11.28 | 267.62 | 3.68 | 194.03 | 0.2609 | 442.0 | 300.2 | |
| 0.00 | 1.64 | 0.00 | 0.84 | -11.09 | 267.56 | 3.62 | 193.98 | 0.2575 | 878.0 | 642.7 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -14.48 | 267.57 | 3.63 | 191.34 | 0.3132 | -884.0 | -734.1 | |
| 0.00 | 2.00 | 0.00 | 1.02 | -10.87 | 267.46 | 3.52 | 193.83 | 0.2535 | 778.0 | 680.4 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -15.42 | 267.46 | 3.52 | 190.44 | 0.3280 | 860.0 | 699.2 | |
| 0.27 | -42.00 | 0.14 | -42.00 | -12.67 | 267.30 | 3.36 | 191.71 | 0.2825 | -1296.0 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -6.91 | 267.21 | 3.27 | 197.71 | 0.1872 | 918.0 | 664.2 | |
| 31.98 | -42.00 | 16.55 | -42.00 | -13.11 | 267.24 | 3.30 | 191.20 | 0.2896 | -1400.1 | 999999 | |
| 0.55 | 3.54 | 0.28 | 1.81 | -10.62 | 267.21 | 3.27 | 193.11 | 0.2484 | 1144.5 | 903.2 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -14.23 | 267.22 | 3.28 | 190.43 | 0.3079 | -736.0 | -497.3 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -8.52 | 266.79 | 2.85 | 193.49 | 0.2119 | 916.0 | 741.2 | |
| 18.08 | -42.00 | 9.35 | -42.00 | -13.08 | 266.80 | 2.86 | 189.76 | 0.2877 | -1352.6 | 999999 | |
| 0.00 | 5.63 | 0.00 | 2.87 | -9.77 | 266.68 | 2.74 | 191.74 | 0.2323 | 878.0 | 831.4 | |
| 0.00 | 4.54 | 0.00 | 2.30 | -7.86 | 266.66 | 2.72 | 193.65 | 0.2005 | 1044.0 | 825.3 | |
| 0.00 | 3.18 | 0.00 | 1.62 | -9.39 | 266.55 | 2.61 | 191.54 | 0.2256 | 786.0 | 771.9 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -14.93 | 266.60 | 2.66 | 188.15 | 0.3177 | -568.0 | -614.8 | |
| 0.00 | 2.45 | 0.00 | 1.24 | -8.55 | 266.51 | 2.57 | 192.19 | 0.2114 | 1154.0 | 972.2 | |
| 4.18 | 8.81 | 2.12 | 4.47 | -8.92 | 266.42 | 2.48 | 191.41 | 0.2173 | 1183.1 | 794.9 | |
| 0.64 | -42.00 | 0.33 | -42.00 | -12.82 | 266.30 | 2.36 | 188.20 | 0.2822 | -874.0 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.38 | -16.57 | 266.20 | 2.26 | 186.35 | 0.3439 | -690.0 | -637.6 | |
| 1.27 | 8.27 | 0.67 | 4.35 | -16.12 | 266.11 | 2.16 | 186.22 | 0.3363 | -1058.1 | -821.0 | |
| 3.09 | 5.27 | 1.62 | 2.76 | -15.67 | 266.07 | 2.13 | 186.27 | 0.3288 | -1052.3 | -713.1 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -14.80 | 266.06 | 2.12 | 186.56 | 0.3144 | -875.0 | -732.1 | |
| 0.00 | 3.63 | 0.00 | 1.89 | -14.70 | 265.75 | 1.80 | 185.62 | 0.3123 | -861.0 | -787.9 | |
| 0.00 | 1.82 | 0.00 | 0.95 | -15.25 | 265.75 | 1.81 | 185.46 | 0.3213 | -914.0 | -692.0 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -14.48 | 265.74 | 1.80 | 185.69 | 0.3086 | -971.0 | -800.0 | |
| 0.00 | 0.55 | 0.00 | 0.28 | -14.32 | 265.59 | 1.64 | 185.24 | 0.3056 | -775.0 | -636.3 | |
| 0.00 | 4.27 | 0.00 | 2.17 | -9.04 | 265.50 | 1.56 | 187.15 | 0.2168 | 766.0 | 758.5 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -13.14 | 265.48 | 1.54 | 185.29 | 0.2858 | -849.0 | -601.5 | |
| 0.00 | 0.45 | 0.00 | 0.23 | -8.39 | 265.37 | 1.43 | 186.95 | 0.2054 | 728.0 | 570.8 | |
| 0.00 | 3.91 | 0.00 | 1.99 | -9.89 | 265.19 | 1.25 | 185.38 | 0.2306 | 859.0 | 814.7 | |
| 0.00 | 2.00 | 0.00 | 1.05 | -15.25 | 265.05 | 1.11 | 183.37 | 0.3204 | -815.0 | -636.1 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -17.38 | 265.03 | 1.09 | 182.94 | 0.3556 | -871.0 | -620.0 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -14.76 | 264.96 | 1.02 | 183.16 | 0.3123 | -804.0 | -649.6 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -14.38 | 264.89 | 0.95 | 183.03 | 0.3058 | -792.0 | -607.5 | |
| 0.00 | 2.82 | 0.00 | 1.46 | -13.77 | 264.77 | 0.83 | 182.73 | 0.2956 | -784.0 | -633.3 | |
| 0.00 | 0.64 | 0.00 | 0.33 | -14.67 | 264.77 | 0.83 | 182.59 | 0.3105 | -623.0 | -567.7 | |
| 0.00 | 4.82 | 0.00 | 2.49 | -13.52 | 264.61 | 0.67 | 182.24 | 0.2912 | -687.0 | -612.8 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -13.20 | 264.58 | 0.64 | 182.18 | 0.2858 | -1033.0 | -843.9 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -15.66 | 264.55 | 0.61 | 181.80 | 0.3269 | -830.0 | -686.8 | |
| 0.00 | 0.82 | 0.00 | 0.42 | -12.25 | 264.45 | 0.51 | 181.86 | 0.2698 | -822.0 | -646.7 | |
| 0.00 | 0.82 | 0.00 | 0.43 | -15.66 | 264.11 | 0.17 | 180.49 | 0.3268 | -671.0 | -504.8 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -12.82 | 263.92 | -0.02 | 179.93 | 0.2792 | -780.0 | -622.5 | |
| 0.00 | 1.64 | 0.00 | 0.82 | -3.57 | 262.59 | -1.35 | 168.89 | 0.1228 | 906.0 | 691.8 | |
| 0.00 | 0.73 | 0.00 | 0.37 | -7.64 | 260.79 | -3.15 | 164.01 | 0.1987 | -616.0 | -568.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
