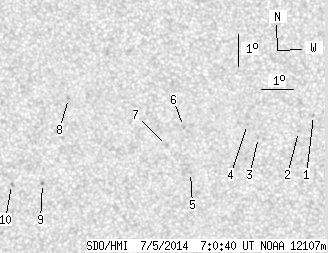

SDO HMI 2014-07-05 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.63 | 0.00 | 6.07 | -13.30 | 256.78 | -7.16 | 157.78 | 0.3152 | 491.7 | 393.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-05 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.51 | -12.40 | 261.39 | -2.55 | 170.90 | 0.2757 | -818.0 | -636.1 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -12.91 | 260.92 | -3.02 | 169.58 | 0.2855 | 752.0 | 642.1 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -13.11 | 259.66 | -4.28 | 165.58 | 0.2932 | 741.0 | 585.9 | |
| 0.00 | 0.82 | 0.00 | 0.42 | -12.69 | 259.32 | -4.62 | 164.10 | 0.2880 | 846.0 | 676.9 | |
| 0.00 | 0.73 | 0.00 | 0.38 | -14.23 | 257.49 | -6.45 | 160.13 | 0.3217 | 768.0 | 512.0 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -12.77 | 257.31 | -6.63 | 157.87 | 0.3001 | 885.0 | 773.0 | |
| 0.00 | 1.64 | 0.00 | 0.85 | -13.37 | 256.76 | -7.18 | 157.02 | 0.3130 | 805.0 | 643.7 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -11.91 | 253.71 | -10.23 | 146.43 | 0.3156 | 794.0 | 616.2 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -14.62 | 252.76 | -11.18 | 148.57 | 0.3614 | 856.0 | 672.4 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -14.66 | 251.76 | -12.18 | 146.43 | 0.3707 | -712.0 | -560.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
