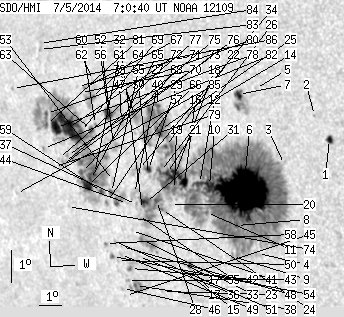

SDO HMI 2014-07-05 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 302.19 | 1589.79 | 214.95 | 1137.11 | -7.70 | 219.23 | -44.71 | 104.14 | 0.7202 | 309.8 | -17.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-05 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.73 | 5.54 | 2.39 | 3.56 | -6.35 | 225.63 | -38.31 | 104.17 | 0.6378 | 805.2 | 506.0 | |
| 0.00 | 1.00 | 0.00 | 0.64 | -5.62 | 225.10 | -38.84 | 102.88 | 0.6425 | 683.0 | 598.5 | |
| 0.00 | 0.36 | 0.00 | 0.24 | -7.19 | 223.75 | -40.19 | 104.78 | 0.6644 | 305.0 | 274.5 | |
| 0.00 | 4.27 | 0.00 | 2.92 | -10.01 | 222.27 | -41.67 | 108.28 | 0.6918 | 210.0 | 213.8 | |
| 0.00 | 0.27 | 0.00 | 0.18 | -4.88 | 222.79 | -41.15 | 101.08 | 0.6704 | -588.0 | -452.0 | |
| 155.01 | 1000.40 | 105.68 | 691.22 | -8.09 | 221.97 | -41.97 | 105.47 | 0.6893 | 1280.0 | 268.0 | |
| 5.18 | 24.17 | 3.49 | 16.27 | -5.09 | 222.08 | -41.86 | 101.20 | 0.6799 | -716.9 | -423.2 | |
| 1.09 | -6.00 | 0.75 | -6.00 | -9.17 | 221.52 | -42.42 | 106.82 | 0.6980 | 237.8 | 999999 | |
| 0.00 | 2.54 | 0.00 | 1.77 | -10.15 | 221.20 | -42.74 | 108.06 | 0.7050 | -200.0 | -120.5 | |
| 5.72 | -6.00 | 3.99 | -6.00 | -7.96 | 220.55 | -43.39 | 104.82 | 0.7060 | 632.9 | 999999 | |
| 0.82 | -6.00 | 0.57 | -6.00 | -8.81 | 220.30 | -43.64 | 105.91 | 0.7114 | 481.9 | 999999 | |
| 4.18 | -6.00 | 2.93 | -6.00 | -7.92 | 220.13 | -43.81 | 104.63 | 0.7109 | 574.2 | 999999 | |
| 1.64 | 3.09 | 1.18 | 2.23 | -10.51 | 219.28 | -44.66 | 107.86 | 0.7283 | 667.7 | 474.3 | |
| 0.00 | 2.36 | 0.00 | 1.65 | -5.82 | 219.87 | -44.07 | 101.65 | 0.7088 | 81.0 | 87.7 | |
| 0.00 | 1.18 | 0.00 | 0.86 | -10.74 | 219.07 | -44.88 | 108.08 | 0.7315 | 383.0 | 324.5 | |
| 5.63 | -6.00 | 4.00 | -6.00 | -7.91 | 219.49 | -44.45 | 104.42 | 0.7185 | 836.2 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.79 | -10.46 | 218.99 | -44.95 | 107.69 | 0.7316 | 243.0 | 199.1 | |
| 8.90 | -6.00 | 6.36 | -6.00 | -7.71 | 219.08 | -44.86 | 104.03 | 0.7228 | 883.6 | 999999 | |
| 2.09 | -6.00 | 1.50 | -6.00 | -8.15 | 219.02 | -44.92 | 104.61 | 0.7246 | -300.2 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.92 | -8.62 | 218.77 | -45.17 | 105.17 | 0.7288 | -296.0 | -275.1 | |
| 2.45 | -6.00 | 1.76 | -6.00 | -7.66 | 218.74 | -45.20 | 103.87 | 0.7267 | 550.9 | 999999 | |
| 1.36 | -6.00 | 0.98 | -6.00 | -6.82 | 218.80 | -45.14 | 102.75 | 0.7238 | 706.7 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.61 | -11.38 | 217.91 | -46.03 | 108.53 | 0.7464 | -588.0 | -497.6 | |
| 0.91 | 54.06 | 0.66 | 39.62 | -8.80 | 218.35 | -45.59 | 105.27 | 0.7341 | -726.7 | -586.6 | |
| 8.54 | -6.00 | 6.12 | -6.00 | -6.30 | 218.65 | -45.29 | 102.00 | 0.7245 | 692.8 | 999999 | |
| 1.18 | -6.00 | 0.85 | -6.00 | -7.61 | 218.48 | -45.46 | 103.73 | 0.7295 | 351.5 | 999999 | |
| 1.73 | -6.00 | 1.23 | -6.00 | -5.57 | 218.60 | -45.34 | 100.98 | 0.7235 | -793.7 | 999999 | |
| 2.36 | -24.00 | 1.72 | -24.00 | -8.52 | 218.17 | -45.77 | 104.86 | 0.7354 | -523.3 | 999999 | |
| 3.18 | 6.00 | 2.32 | 4.37 | -7.57 | 217.96 | -45.98 | 103.53 | 0.7355 | 465.0 | 181.4 | |
| 0.00 | 1.45 | 0.00 | 1.06 | -7.73 | 217.93 | -46.01 | 103.73 | 0.7361 | 72.0 | -85.4 | |
| 6.09 | -24.00 | 4.48 | -24.00 | -8.61 | 217.67 | -46.27 | 104.82 | 0.7414 | -1002.8 | 999999 | |
| 0.00 | 0.45 | 0.00 | 0.34 | -8.83 | 217.50 | -46.44 | 105.07 | 0.7439 | -537.0 | -607.4 | |
| 1.09 | 18.54 | 0.81 | 13.73 | -9.78 | 217.28 | -46.66 | 106.24 | 0.7488 | -768.8 | -447.7 | |
| 0.55 | 5.82 | 0.40 | 4.28 | -7.59 | 217.51 | -46.43 | 103.43 | 0.7407 | 252.8 | -73.9 | |
| 0.00 | 0.82 | 0.00 | 0.61 | -9.03 | 217.28 | -46.66 | 105.26 | 0.7468 | -653.0 | -594.9 | |
| 0.00 | 1.64 | 0.00 | 1.23 | -10.32 | 217.04 | -46.90 | 106.87 | 0.7529 | -301.0 | -265.8 | |
| 0.00 | 1.18 | 0.00 | 0.88 | -8.69 | 217.25 | -46.69 | 104.81 | 0.7463 | -733.0 | -604.2 | |
| 1.18 | 12.63 | 0.90 | 9.56 | -11.24 | 216.71 | -47.23 | 107.95 | 0.7591 | -835.1 | -695.5 | |
| 0.00 | 10.54 | 0.00 | 7.69 | -5.95 | 217.58 | -46.36 | 101.26 | 0.7362 | -149.0 | -186.7 | |
| 0.00 | 7.54 | 0.00 | 5.59 | -8.35 | 217.21 | -46.73 | 104.35 | 0.7458 | -639.0 | -593.9 | |
| 0.00 | 0.55 | 0.00 | 0.41 | -9.51 | 216.88 | -47.06 | 105.78 | 0.7526 | -527.0 | -445.2 | |
| 1.36 | 5.72 | 1.03 | 4.33 | -10.72 | 216.60 | -47.34 | 107.24 | 0.7589 | -818.2 | -647.2 | |
| 0.00 | 1.54 | 0.00 | 1.18 | -11.10 | 216.38 | -47.56 | 107.66 | 0.7623 | -718.0 | -584.9 | |
| 0.00 | 0.91 | 0.00 | 0.68 | -8.67 | 216.84 | -47.10 | 104.67 | 0.7508 | -625.0 | -552.8 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -11.58 | 216.18 | -47.76 | 108.21 | 0.7658 | -383.0 | -372.3 | |
| 0.00 | 1.27 | 0.00 | 0.98 | -11.37 | 216.09 | -47.85 | 107.91 | 0.7662 | -417.0 | -349.7 | |
| 0.00 | 4.54 | 0.00 | 3.35 | -6.13 | 216.93 | -47.01 | 101.34 | 0.7440 | -501.0 | -465.9 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -10.04 | 216.32 | -47.62 | 106.29 | 0.7601 | -667.0 | -630.7 | |
| 0.00 | 1.82 | 0.00 | 1.38 | -10.29 | 216.22 | -47.72 | 106.58 | 0.7618 | -616.0 | -541.5 | |
| 0.00 | 0.36 | 0.00 | 0.28 | -10.49 | 216.04 | -47.90 | 106.78 | 0.7642 | -387.0 | -397.2 | |
| 0.00 | 1.64 | 0.00 | 1.25 | -9.89 | 216.02 | -47.92 | 106.01 | 0.7629 | -655.0 | -555.8 | |
| 0.00 | 10.99 | 0.00 | 8.22 | -6.86 | 216.48 | -47.46 | 102.20 | 0.7507 | -604.0 | -533.7 | |
| 0.00 | 3.54 | 0.00 | 2.67 | -7.98 | 216.32 | -47.62 | 103.63 | 0.7550 | -481.0 | -508.0 | |
| 0.91 | 2.82 | 0.70 | 2.16 | -10.37 | 215.83 | -48.11 | 106.57 | 0.7662 | -603.4 | -481.4 | |
| 2.00 | 16.81 | 1.51 | 12.65 | -8.36 | 216.16 | -47.78 | 104.08 | 0.7576 | -789.1 | -585.8 | |
| 6.63 | 14.90 | 4.95 | 11.09 | -5.94 | 216.37 | -47.57 | 100.96 | 0.7501 | -873.6 | -667.3 | |
| 0.45 | 2.00 | 0.35 | 1.52 | -8.68 | 215.88 | -48.06 | 104.42 | 0.7615 | -621.0 | -480.9 | |
| 0.36 | 1.36 | 0.28 | 1.05 | -9.98 | 215.59 | -48.35 | 105.99 | 0.7678 | -575.8 | -502.2 | |
| 2.09 | 313.20 | 1.59 | 242.67 | -8.35 | 215.70 | -48.24 | 103.94 | 0.7627 | -718.9 | -452.6 | |
| 0.00 | 1.54 | 0.00 | 1.17 | -6.27 | 215.73 | -48.21 | 101.26 | 0.7580 | -790.0 | -655.8 | |
| 2.45 | -59.00 | 1.88 | -59.00 | -7.80 | 215.47 | -48.48 | 103.17 | 0.7640 | -1029.2 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.62 | -4.91 | 215.79 | -48.15 | 99.49 | 0.7547 | -614.0 | -557.8 | |
| 2.91 | -59.00 | 2.21 | -59.00 | -6.47 | 215.52 | -48.42 | 101.46 | 0.7607 | -840.8 | 999999 | |
| 2.64 | 14.81 | 1.99 | 11.21 | -5.44 | 215.64 | -48.30 | 100.15 | 0.7574 | -517.6 | -533.5 | |
| 2.18 | -59.00 | 1.68 | -59.00 | -8.00 | 215.25 | -48.69 | 103.37 | 0.7669 | -895.8 | 999999 | |
| 7.63 | -59.00 | 5.89 | -59.00 | -8.19 | 215.07 | -48.87 | 103.57 | 0.7692 | -778.1 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.10 | -5.15 | 215.35 | -48.59 | 99.71 | 0.7601 | -649.0 | -621.2 | |
| 1.82 | -59.00 | 1.41 | -59.00 | -7.80 | 214.86 | -49.08 | 103.02 | 0.7707 | -692.0 | 999999 | |
| 2.45 | -59.00 | 1.88 | -59.00 | -6.52 | 215.00 | -48.94 | 101.41 | 0.7665 | -982.6 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.69 | -5.31 | 215.14 | -48.80 | 99.88 | 0.7627 | -589.0 | -514.6 | |
| 0.00 | 1.00 | 0.00 | 0.76 | -5.13 | 215.02 | -48.92 | 99.62 | 0.7637 | -344.0 | -286.5 | |
| 28.71 | -59.00 | 22.29 | -59.00 | -6.42 | 214.44 | -49.50 | 101.16 | 0.7724 | -951.6 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.21 | -7.30 | 214.27 | -49.67 | 102.24 | 0.7760 | -688.0 | -578.6 | |
| 0.00 | 0.64 | 0.00 | 0.50 | -8.89 | 214.00 | -49.94 | 104.19 | 0.7822 | -203.0 | -256.6 | |
| 0.00 | 4.63 | 0.00 | 3.64 | -7.52 | 214.09 | -49.85 | 102.48 | 0.7784 | -493.0 | -418.0 | |
| 0.00 | 0.82 | 0.00 | 0.65 | -7.65 | 213.88 | -50.06 | 102.60 | 0.7809 | -310.0 | -300.9 | |
| 0.00 | 0.64 | 0.00 | 0.50 | -7.41 | 213.82 | -50.12 | 102.28 | 0.7810 | -310.0 | -272.9 | |
| 10.36 | -59.00 | 8.15 | -59.00 | -6.45 | 213.87 | -50.07 | 101.07 | 0.7787 | -582.3 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.72 | -7.67 | 213.59 | -50.35 | 102.55 | 0.7840 | -251.0 | -233.2 | |
| 1.27 | -59.00 | 1.01 | -59.00 | -6.03 | 213.44 | -50.50 | 100.46 | 0.7825 | -377.7 | 999999 | |
| 1.36 | -59.00 | 1.08 | -59.00 | -6.38 | 213.39 | -50.55 | 100.88 | 0.7836 | -395.5 | 999999 | |
| 0.00 | 1.64 | 0.00 | 1.31 | -7.13 | 213.14 | -50.80 | 101.77 | 0.7877 | -246.0 | -192.2 | |
| 0.00 | 1.73 | 0.00 | 1.36 | -4.07 | 213.32 | -50.62 | 97.94 | 0.7807 | -517.0 | -395.1 | |
| 0.00 | 1.36 | 0.00 | 1.07 | -3.88 | 213.33 | -50.61 | 97.71 | 0.7803 | -381.0 | -228.1 | |
| 0.00 | 0.27 | 0.00 | 0.23 | -8.60 | 211.53 | -52.41 | 103.23 | 0.8071 | -475.0 | -491.3 | |
| 0.00 | 1.54 | 0.00 | 1.26 | -5.33 | 211.85 | -52.09 | 99.28 | 0.7981 | -454.0 | -357.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
