SDO HMI 2014-07-05 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.89 | 121.40 | 25.75 | 121.46 | 6.17 | 203.53 | -60.41 | 84.78 | 0.8700 | -608.6 | -130.9 | |
|
previous
or next observation for the same group /

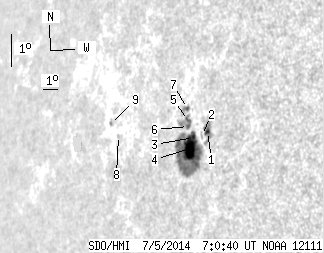

back to the solar disc SDO HMI 2014-07-05 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.36 | 13.63 | 2.29 | 13.18 | 6.51 | 204.57 | -59.37 | 84.40 | 0.8610 | -786.1 | -535.2 | |
| 0.00 | 2.00 | 0.00 | 1.95 | 6.37 | 204.23 | -59.71 | 84.56 | 0.8640 | -532.0 | -476.6 | |
| 2.91 | 86.68 | 2.88 | 86.57 | 6.29 | 203.76 | -60.18 | 84.65 | 0.8681 | -595.9 | -107.8 | |
| 17.26 | -3.00 | 17.20 | -3.00 | 5.94 | 203.57 | -60.37 | 85.05 | 0.8698 | -739.4 | 999999 | |
| 1.36 | 12.36 | 1.37 | 12.47 | 6.79 | 203.34 | -60.60 | 84.08 | 0.8717 | -444.2 | 30.6 | |
| 1.09 | -5.00 | 1.09 | -5.00 | 6.61 | 203.38 | -60.56 | 84.29 | 0.8714 | -386.1 | 999999 | |
| 0.91 | 4.00 | 0.92 | 4.04 | 7.15 | 203.20 | -60.74 | 83.66 | 0.8729 | -331.9 | 18.9 | |
| 0.00 | 1.09 | 0.00 | 1.28 | 6.10 | 198.73 | -65.21 | 84.82 | 0.9082 | 281.0 | 338.9 | |
| 0.00 | 1.64 | 0.00 | 1.97 | 6.43 | 198.05 | -65.89 | 84.44 | 0.9130 | 321.0 | 303.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
