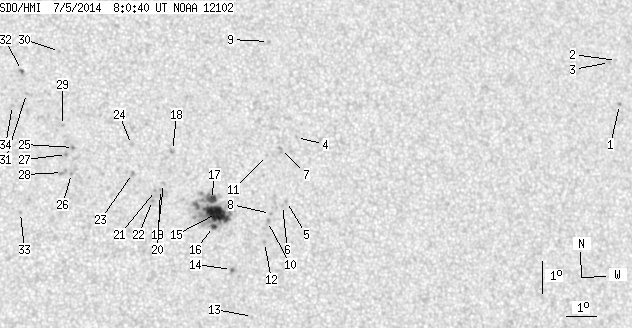

SDO HMI 2014-07-05 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.80 | 133.72 | 17.62 | 69.85 | 11.59 | 279.77 | 16.38 | 298.31 | 0.3149 | -569.2 | -463.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-05 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.85 | 14.02 | 293.97 | 30.58 | 291.39 | 0.5321 | -776.0 | -638.6 | |
| 0.00 | 0.82 | 0.00 | 0.48 | 15.39 | 294.07 | 30.68 | 293.77 | 0.5397 | -673.0 | -579.2 | |
| 0.00 | 1.18 | 0.00 | 0.69 | 15.33 | 293.81 | 30.42 | 293.83 | 0.5358 | -649.0 | -586.6 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 13.27 | 282.68 | 19.29 | 298.68 | 0.3680 | -539.0 | -522.1 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 11.31 | 282.20 | 18.81 | 294.16 | 0.3480 | -740.0 | -593.2 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 11.19 | 282.06 | 18.67 | 293.99 | 0.3451 | -662.0 | -521.4 | |
| 0.00 | 3.18 | 0.00 | 1.69 | 12.91 | 282.12 | 18.73 | 298.44 | 0.3574 | -643.0 | -657.3 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 10.95 | 281.65 | 18.26 | 293.77 | 0.3376 | -897.0 | -714.4 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 16.28 | 282.02 | 18.63 | 306.51 | 0.3831 | -832.0 | -693.4 | |
| 0.00 | 2.73 | 0.00 | 1.43 | 10.70 | 281.54 | 18.14 | 293.21 | 0.3344 | -812.0 | -746.2 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 12.74 | 281.65 | 18.25 | 298.56 | 0.3493 | -709.0 | -534.7 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 10.06 | 281.40 | 18.01 | 291.52 | 0.3286 | -835.0 | -693.5 | |
| 0.00 | 0.45 | 0.00 | 0.24 | 7.80 | 280.89 | 17.50 | 285.15 | 0.3100 | -585.0 | -470.2 | |
| 0.36 | 1.91 | 0.19 | 0.99 | 9.25 | 280.29 | 16.89 | 290.23 | 0.3070 | -1170.0 | -955.4 | |
| 25.99 | 86.59 | 13.54 | 45.09 | 10.98 | 279.90 | 16.50 | 295.91 | 0.3114 | -1174.5 | -675.1 | |
| 2.09 | -15.00 | 1.09 | -15.00 | 10.58 | 279.77 | 16.38 | 294.88 | 0.3069 | -1089.7 | 999999 | |
| 5.00 | -15.00 | 2.61 | -15.00 | 11.41 | 279.76 | 16.37 | 297.36 | 0.3124 | -964.9 | 999999 | |
| 0.00 | 2.73 | 0.00 | 1.42 | 12.94 | 278.59 | 15.20 | 303.49 | 0.3077 | -697.0 | -609.9 | |
| 0.00 | 2.00 | 0.00 | 1.04 | 11.93 | 278.24 | 14.85 | 301.14 | 0.2942 | -632.0 | -533.2 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 11.75 | 278.13 | 14.74 | 300.77 | 0.2911 | -869.0 | -712.6 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 11.72 | 277.97 | 14.58 | 300.95 | 0.2886 | -913.0 | -685.6 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 11.41 | 277.86 | 14.46 | 300.19 | 0.2845 | -1055.0 | -811.5 | |
| 0.00 | 2.27 | 0.00 | 1.17 | 12.25 | 277.26 | 13.87 | 303.81 | 0.2831 | -747.0 | -631.9 | |
| 0.00 | 2.00 | 0.00 | 1.04 | 13.15 | 277.28 | 13.88 | 306.39 | 0.2916 | 298.0 | 345.0 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 13.08 | 275.41 | 12.02 | 310.08 | 0.2663 | 948.0 | 799.9 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 12.28 | 275.31 | 11.91 | 307.86 | 0.2567 | 898.0 | 729.8 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 12.87 | 275.18 | 11.78 | 309.98 | 0.2610 | 1145.0 | 935.5 | |
| 0.00 | 3.63 | 0.00 | 1.86 | 12.32 | 275.02 | 11.63 | 308.63 | 0.2532 | 955.0 | 767.0 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 13.77 | 275.09 | 11.70 | 312.80 | 0.2696 | 635.0 | 483.6 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 16.07 | 275.13 | 11.74 | 318.61 | 0.2969 | -819.0 | -618.5 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 14.78 | 273.99 | 10.60 | 318.27 | 0.2684 | 800.0 | 596.7 | |
| 0.36 | 1.54 | 0.19 | 0.80 | 15.49 | 273.87 | 10.48 | 320.38 | 0.2760 | 873.8 | 760.5 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 11.10 | 273.64 | 10.25 | 307.95 | 0.2224 | 881.0 | 684.7 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 14.41 | 273.53 | 10.13 | 318.57 | 0.2586 | 808.0 | 731.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
