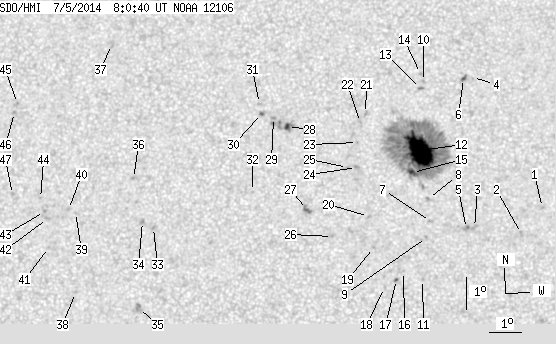

SDO HMI 2014-07-05 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.78 | 392.15 | 30.30 | 199.07 | 15.13 | 260.79 | -2.61 | 348.02 | 0.2155 | -504.5 | -239.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-05 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.64 | 13.60 | 265.69 | 2.30 | 347.67 | 0.1833 | -814.0 | -666.6 | |
| 0.00 | 2.27 | 0.00 | 1.14 | 12.79 | 265.03 | 1.63 | 350.41 | 0.1676 | -845.0 | -721.4 | |
| 0.00 | 2.64 | 0.00 | 1.32 | 12.98 | 263.56 | 0.17 | 359.04 | 0.1685 | -1006.0 | -785.6 | |
| 0.00 | 0.36 | 0.00 | 0.19 | 17.66 | 263.50 | 0.11 | 359.57 | 0.2486 | -686.0 | -576.8 | |
| 0.00 | 2.73 | 0.00 | 1.37 | 12.95 | 263.31 | -0.09 | 0.50 | 0.1680 | -1037.0 | -911.9 | |
| 0.91 | 2.54 | 0.46 | 1.30 | 17.63 | 263.22 | -0.18 | 0.68 | 0.2481 | -973.9 | -768.3 | |
| 0.00 | 2.27 | 0.00 | 1.14 | 13.17 | 262.18 | -1.21 | 6.87 | 0.1730 | -929.0 | -644.5 | |
| 0.00 | 1.64 | 0.00 | 0.82 | 13.88 | 262.12 | -1.28 | 6.74 | 0.1853 | -962.0 | -762.6 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 12.67 | 262.06 | -1.33 | 7.97 | 0.1648 | -1069.0 | -843.1 | |
| 0.00 | 1.91 | 0.00 | 0.98 | 17.53 | 261.94 | -1.46 | 5.64 | 0.2477 | 748.0 | 548.7 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 11.38 | 261.94 | -1.45 | 10.07 | 0.1429 | -488.0 | -343.5 | |
| 52.43 | 300.39 | 26.57 | 152.29 | 15.37 | 261.86 | -1.54 | 7.06 | 0.2113 | -1481.0 | -394.4 | |
| 0.00 | 2.00 | 0.00 | 1.02 | 17.31 | 261.84 | -1.55 | 6.10 | 0.2442 | 952.0 | 757.0 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 17.79 | 261.84 | -1.55 | 5.90 | 0.2521 | 746.0 | 471.8 | |
| 3.36 | -12.00 | 1.70 | -12.00 | 14.69 | 261.61 | -1.79 | 8.70 | 0.2002 | -1132.4 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 11.63 | 261.35 | -2.05 | 13.62 | 0.1492 | -675.0 | -480.2 | |
| 0.45 | 1.36 | 0.23 | 0.68 | 11.38 | 261.13 | -2.26 | 15.44 | 0.1460 | -809.2 | -671.2 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 11.13 | 260.76 | -2.63 | 18.36 | 0.1438 | -689.0 | -499.0 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 12.36 | 260.40 | -2.99 | 17.96 | 0.1659 | -1013.0 | -803.1 | |
| 0.00 | 1.64 | 0.00 | 0.82 | 13.32 | 260.24 | -3.16 | 17.14 | 0.1825 | -828.0 | -580.5 | |
| 0.00 | 2.09 | 0.00 | 1.07 | 16.53 | 260.10 | -3.29 | 13.56 | 0.2360 | 785.0 | 565.9 | |
| 0.00 | 0.55 | 0.00 | 0.28 | 16.25 | 259.94 | -3.45 | 14.48 | 0.2320 | 741.0 | 625.0 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 15.62 | 259.86 | -3.53 | 15.57 | 0.2221 | 866.0 | 714.5 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 14.84 | 259.84 | -3.55 | 16.70 | 0.2094 | -959.0 | -847.5 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 14.84 | 259.55 | -3.84 | 17.95 | 0.2109 | -805.0 | -544.6 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 12.70 | 259.12 | -4.28 | 24.04 | 0.1793 | -834.0 | -675.4 | |
| 0.00 | 4.82 | 0.00 | 2.43 | 13.53 | 258.32 | -5.08 | 25.86 | 0.1980 | -1210.0 | -899.0 | |
| 2.18 | 14.08 | 1.11 | 7.19 | 16.11 | 257.62 | -5.77 | 23.55 | 0.2428 | 1080.0 | 865.3 | |
| 0.00 | 2.18 | 0.00 | 1.12 | 16.39 | 257.17 | -6.23 | 24.68 | 0.2502 | 1034.0 | 805.8 | |
| 0.45 | 1.82 | 0.23 | 0.93 | 16.52 | 256.78 | -6.61 | 25.79 | 0.2549 | 895.4 | 748.6 | |
| 0.00 | 1.73 | 0.00 | 0.89 | 16.83 | 256.70 | -6.69 | 25.49 | 0.2602 | 845.0 | 549.5 | |
| 0.00 | 0.73 | 0.00 | 0.37 | 14.08 | 256.57 | -6.82 | 31.64 | 0.2207 | -582.0 | -370.8 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 12.95 | 253.47 | -9.92 | 45.00 | 0.2386 | 904.0 | 750.9 | |
| 0.00 | 3.09 | 0.00 | 1.58 | 13.13 | 253.11 | -10.28 | 45.44 | 0.2450 | 992.0 | 779.7 | |
| 0.00 | 5.54 | 0.00 | 2.81 | 10.45 | 253.09 | -10.31 | 54.64 | 0.2167 | 853.0 | 787.1 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 14.46 | 252.77 | -10.63 | 42.62 | 0.2648 | 1055.0 | 869.1 | |
| 0.00 | 3.82 | 0.00 | 2.00 | 18.65 | 251.81 | -11.58 | 35.63 | 0.3279 | 642.0 | 666.5 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 10.92 | 251.08 | -12.32 | 57.51 | 0.2495 | 810.0 | 633.2 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 13.39 | 250.96 | -12.43 | 49.96 | 0.2747 | 883.0 | 688.6 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 13.48 | 250.73 | -12.66 | 50.20 | 0.2786 | 692.0 | 620.6 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 12.29 | 250.15 | -13.24 | 54.89 | 0.2748 | 746.0 | 543.8 | |
| 0.00 | 2.09 | 0.00 | 1.08 | 13.19 | 250.07 | -13.32 | 52.39 | 0.2844 | 976.0 | 736.1 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 13.41 | 249.96 | -13.43 | 52.00 | 0.2880 | 984.0 | 813.5 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 13.81 | 249.81 | -13.58 | 51.18 | 0.2940 | 663.0 | 527.2 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 16.76 | 248.86 | -14.53 | 45.75 | 0.3368 | 798.0 | 644.0 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 16.47 | 248.79 | -14.61 | 46.53 | 0.3346 | 872.0 | 757.0 | |
| 0.00 | 1.82 | 0.00 | 0.95 | 13.92 | 248.90 | -14.49 | 52.62 | 0.3071 | 756.0 | 579.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
