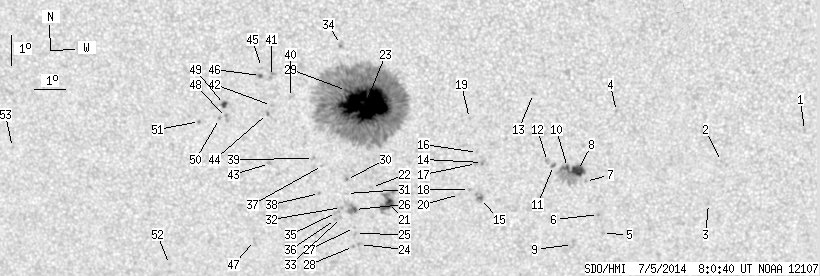

SDO HMI 2014-07-05 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 121.40 | 727.68 | 65.70 | 394.09 | -19.27 | 256.42 | -6.98 | 163.33 | 0.4039 | 666.7 | 334.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-05 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 0.84 | -19.68 | 270.17 | 6.78 | 195.90 | 0.4077 | 715.0 | 582.5 | |
| 0.00 | 0.82 | 0.00 | 0.44 | -20.69 | 267.50 | 4.11 | 189.35 | 0.4141 | 813.0 | 663.3 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -22.10 | 267.11 | 3.72 | 187.97 | 0.4353 | 779.0 | 659.5 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -19.02 | 264.07 | 0.68 | 181.68 | 0.3820 | 860.0 | 576.5 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -23.11 | 263.62 | 0.23 | 180.47 | 0.4470 | 772.0 | 641.2 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -22.46 | 263.49 | 0.10 | 180.20 | 0.4369 | 954.0 | 815.4 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -21.35 | 263.06 | -0.33 | 179.27 | 0.4193 | 563.0 | 421.1 | |
| 9.09 | 37.16 | 4.94 | 20.22 | -20.98 | 262.80 | -0.59 | 178.66 | 0.4135 | 1043.1 | 392.3 | |
| 0.00 | 4.45 | 0.00 | 2.47 | -23.48 | 262.62 | -0.77 | 178.44 | 0.4530 | -756.0 | -641.9 | |
| 1.27 | -8.00 | 0.69 | -8.00 | -20.88 | 262.48 | -0.92 | 177.92 | 0.4120 | 1032.1 | 999999 | |
| 0.55 | 2.36 | 0.30 | 1.28 | -20.81 | 262.02 | -1.37 | 176.87 | 0.4113 | 807.5 | 629.7 | |
| 0.00 | 3.09 | 0.00 | 1.68 | -20.68 | 261.83 | -1.57 | 176.40 | 0.4093 | 809.0 | 715.9 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -18.43 | 261.40 | -1.99 | 174.92 | 0.3736 | -697.0 | -615.1 | |
| 0.00 | 2.00 | 0.00 | 1.09 | -20.71 | 259.71 | -3.69 | 171.60 | 0.4134 | -1097.0 | -892.4 | |
| 0.82 | 6.18 | 0.45 | 3.39 | -21.92 | 259.61 | -3.78 | 171.83 | 0.4326 | 800.0 | 698.4 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -20.38 | 259.55 | -3.84 | 171.12 | 0.4086 | -749.0 | -455.6 | |
| 0.00 | 2.00 | 0.00 | 1.09 | -20.75 | 259.51 | -3.88 | 171.17 | 0.4144 | -913.0 | -642.3 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -21.62 | 259.25 | -4.14 | 170.96 | 0.4287 | 766.0 | 604.8 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -19.25 | 259.32 | -4.07 | 170.09 | 0.3913 | -788.0 | -614.8 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -21.79 | 258.92 | -4.47 | 170.32 | 0.4322 | 708.0 | 517.5 | |
| 8.81 | 21.26 | 4.87 | 11.74 | -22.11 | 256.53 | -6.86 | 165.53 | 0.4450 | -986.9 | -604.4 | |
| 0.00 | 1.91 | 0.00 | 1.05 | -21.57 | 256.03 | -7.37 | 164.17 | 0.4389 | 697.0 | 552.9 | |
| 96.32 | 579.25 | 51.95 | 312.62 | -18.78 | 255.97 | -7.43 | 161.97 | 0.3969 | 1507.9 | 444.8 | |
| 0.00 | 2.18 | 0.00 | 1.22 | -23.51 | 255.52 | -7.88 | 164.43 | 0.4700 | -754.0 | -654.6 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -23.13 | 255.41 | -7.99 | 163.98 | 0.4649 | -778.0 | -612.2 | |
| 1.45 | 9.09 | 0.81 | 5.04 | -22.32 | 255.42 | -7.97 | 163.47 | 0.4527 | -1094.1 | -758.0 | |
| 0.00 | 0.73 | 0.00 | 0.41 | -22.93 | 255.38 | -8.01 | 163.81 | 0.4620 | -704.0 | -573.0 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -23.58 | 255.31 | -8.08 | 164.09 | 0.4719 | -712.0 | -640.7 | |
| 0.27 | -23.00 | 0.15 | -23.00 | -18.35 | 255.37 | -8.02 | 160.25 | 0.3936 | 1219.7 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -21.31 | 255.21 | -8.18 | 162.34 | 0.4387 | 729.0 | 615.1 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -21.78 | 255.19 | -8.21 | 162.63 | 0.4458 | 376.0 | 313.5 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -22.25 | 254.99 | -8.40 | 162.59 | 0.4537 | -595.0 | -449.5 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -22.59 | 254.97 | -8.42 | 162.79 | 0.4588 | -649.0 | -462.0 | |
| 0.00 | 2.45 | 0.00 | 1.31 | -16.85 | 255.25 | -8.15 | 158.51 | 0.3717 | -523.0 | -411.6 | |
| 0.00 | 2.54 | 0.00 | 1.42 | -22.42 | 254.82 | -8.58 | 162.37 | 0.4571 | -626.0 | -568.8 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -22.66 | 254.77 | -8.63 | 162.45 | 0.4608 | -846.0 | -656.2 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -20.84 | 254.45 | -8.94 | 160.44 | 0.4357 | 363.0 | 301.7 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -21.78 | 254.29 | -9.10 | 160.88 | 0.4503 | 743.0 | 594.8 | |
| 0.00 | 1.82 | 0.00 | 1.00 | -20.61 | 254.17 | -9.23 | 159.67 | 0.4338 | 706.0 | 470.2 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -18.60 | 253.54 | -9.86 | 156.47 | 0.4081 | 737.0 | 549.3 | |
| 0.00 | 4.36 | 0.00 | 2.36 | -17.91 | 252.96 | -10.44 | 154.50 | 0.4021 | -692.0 | -602.2 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -18.87 | 252.90 | -10.50 | 155.42 | 0.4161 | 610.0 | 444.9 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -20.79 | 252.70 | -10.69 | 156.95 | 0.4449 | -801.0 | -696.5 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -19.13 | 252.75 | -10.64 | 155.40 | 0.4209 | -797.0 | -623.2 | |
| 0.00 | 0.27 | 0.00 | 0.15 | -17.62 | 252.65 | -10.74 | 153.52 | 0.4001 | -715.0 | -757.3 | |
| 0.55 | 1.73 | 0.30 | 0.93 | -17.89 | 252.60 | -10.79 | 153.72 | 0.4042 | -839.5 | -699.1 | |
| 0.00 | 2.45 | 0.00 | 1.39 | -23.40 | 251.98 | -11.41 | 157.97 | 0.4860 | -687.0 | -516.7 | |
| 0.00 | 3.00 | 0.00 | 1.65 | -19.28 | 251.39 | -12.00 | 152.87 | 0.4324 | -752.0 | -717.8 | |
| 2.27 | 3.63 | 1.24 | 1.99 | -18.85 | 251.35 | -12.04 | 152.32 | 0.4267 | -1025.6 | -729.5 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -19.31 | 251.15 | -12.24 | 152.47 | 0.4345 | -833.0 | -754.9 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -19.42 | 250.48 | -12.91 | 151.33 | 0.4410 | -798.0 | -676.2 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -24.26 | 248.99 | -14.40 | 153.83 | 0.5162 | -729.0 | -615.2 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -20.39 | 244.06 | -19.33 | 142.14 | 0.5075 | 675.0 | 488.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
