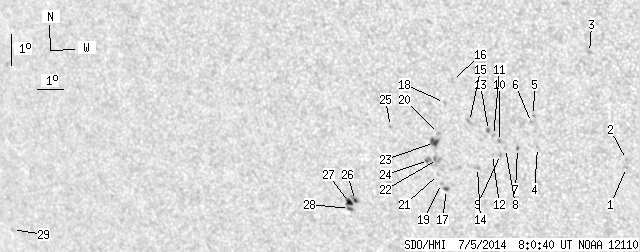

SDO HMI 2014-07-05 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.08 | 57.23 | 6.31 | 34.93 | -15.64 | 233.10 | -30.30 | 123.39 | 0.5811 | -1.5 | -15.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-05 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.73 | 0.00 | 0.99 | -15.79 | 239.97 | -23.42 | 130.17 | 0.5026 | 791.0 | 618.2 | |
| 0.00 | 0.73 | 0.00 | 0.42 | -15.53 | 240.00 | -23.39 | 129.79 | 0.4999 | 780.0 | 719.8 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -12.14 | 239.10 | -24.29 | 123.05 | 0.4817 | 889.0 | 517.6 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -15.22 | 236.93 | -26.46 | 125.99 | 0.5334 | -555.0 | -367.2 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -14.20 | 236.93 | -26.46 | 124.34 | 0.5253 | 839.0 | 691.4 | |
| 0.00 | 2.09 | 0.00 | 1.22 | -14.42 | 236.83 | -26.56 | 124.61 | 0.5283 | 649.0 | 589.8 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -15.27 | 236.22 | -27.18 | 125.37 | 0.5424 | 922.0 | 809.6 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -15.28 | 235.79 | -27.60 | 124.98 | 0.5476 | 795.0 | 537.3 | |
| 0.00 | 1.27 | 0.00 | 0.75 | -15.48 | 235.58 | -27.81 | 125.09 | 0.5517 | 750.0 | 594.8 | |
| 0.00 | 2.00 | 0.00 | 1.18 | -15.06 | 235.61 | -27.79 | 124.47 | 0.5481 | 877.0 | 774.0 | |
| 0.00 | 1.45 | 0.00 | 0.86 | -14.88 | 235.42 | -27.97 | 124.00 | 0.5490 | 896.0 | 633.2 | |
| 0.00 | 0.64 | 0.00 | 0.38 | -15.49 | 235.29 | -28.10 | 124.84 | 0.5552 | 491.0 | 434.4 | |
| 0.00 | 1.73 | 0.00 | 1.02 | -14.72 | 235.26 | -28.13 | 123.62 | 0.5497 | 884.0 | 749.3 | |
| 0.00 | 2.54 | 0.00 | 1.53 | -15.92 | 234.68 | -28.71 | 124.95 | 0.5657 | 527.0 | 309.0 | |
| 0.00 | 2.45 | 0.00 | 1.46 | -14.45 | 234.62 | -28.77 | 122.62 | 0.5556 | 568.0 | 620.5 | |
| 0.00 | 1.82 | 0.00 | 1.08 | -13.15 | 234.19 | -29.21 | 120.20 | 0.5519 | 522.0 | 564.5 | |
| 0.73 | 2.00 | 0.44 | 1.22 | -16.67 | 233.43 | -29.96 | 124.96 | 0.5860 | -903.4 | -797.4 | |
| 0.00 | 1.45 | 0.00 | 0.87 | -13.87 | 233.80 | -29.59 | 121.02 | 0.5615 | 609.0 | 488.7 | |
| 0.00 | 1.00 | 0.00 | 0.61 | -16.48 | 233.28 | -30.12 | 124.56 | 0.5864 | -863.0 | -722.8 | |
| 0.00 | 1.18 | 0.00 | 0.71 | -14.87 | 233.43 | -29.96 | 122.27 | 0.5730 | -813.0 | -651.0 | |
| 0.00 | 0.82 | 0.00 | 0.50 | -16.19 | 233.22 | -30.18 | 124.08 | 0.5850 | -772.0 | -656.2 | |
| 0.00 | 3.63 | 0.00 | 2.21 | -15.71 | 233.26 | -30.13 | 123.40 | 0.5810 | -595.0 | -661.5 | |
| 3.54 | 5.82 | 2.15 | 3.52 | -15.16 | 233.24 | -30.15 | 122.56 | 0.5774 | -1044.5 | -809.2 | |
| 0.00 | 4.00 | 0.00 | 2.44 | -15.75 | 232.92 | -30.47 | 123.18 | 0.5853 | -882.0 | -790.5 | |
| 0.00 | 1.09 | 0.00 | 0.67 | -14.69 | 231.70 | -31.70 | 120.64 | 0.5929 | -560.0 | -514.1 | |
| 1.36 | 7.81 | 0.87 | 4.98 | -17.14 | 229.92 | -33.47 | 122.86 | 0.6296 | -872.5 | -631.6 | |
| 3.36 | -26.00 | 2.15 | -26.00 | -17.21 | 229.68 | -33.71 | 122.79 | 0.6329 | -666.2 | 999999 | |
| 1.09 | 2.36 | 0.70 | 1.51 | -17.41 | 229.64 | -33.76 | 123.03 | 0.6346 | -696.9 | -579.6 | |
| 0.00 | 1.54 | 0.00 | 1.26 | -18.67 | 214.84 | -48.56 | 116.62 | 0.7966 | -569.0 | -434.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
