SDO HMI 2014-07-05 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.91 | 44.90 | 1.37 | 31.75 | 10.56 | 308.06 | 45.21 | 281.64 | 0.7143 | 39.2 | 79.8 | |
|
previous
or next observation for the same group /

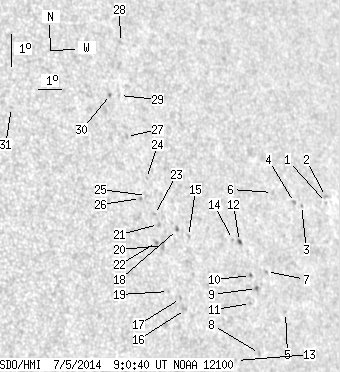

back to the solar disc SDO HMI 2014-07-05 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.73 | 0.00 | 0.57 | 11.11 | 313.74 | 50.89 | 281.61 | 0.7796 | -622.0 | -567.5 | |
| 0.00 | 1.73 | 0.00 | 1.36 | 11.30 | 313.74 | 50.89 | 281.85 | 0.7797 | -595.0 | -443.4 | |
| 0.00 | 1.18 | 0.00 | 0.91 | 11.07 | 312.51 | 49.66 | 281.69 | 0.7662 | -478.0 | -398.4 | |
| 0.00 | 1.64 | 0.00 | 1.25 | 11.18 | 312.20 | 49.35 | 281.87 | 0.7628 | -625.0 | -544.8 | |
| 0.00 | 1.18 | 0.00 | 0.88 | 7.84 | 311.12 | 48.28 | 277.54 | 0.7481 | -628.0 | -517.6 | |
| 0.00 | 1.64 | 0.00 | 1.23 | 11.53 | 311.23 | 48.39 | 282.45 | 0.7525 | -100.0 | -140.1 | |
| 0.00 | 0.91 | 0.00 | 0.67 | 9.13 | 310.46 | 47.62 | 279.32 | 0.7413 | -593.0 | -454.0 | |
| 0.00 | 1.73 | 0.00 | 1.25 | 6.64 | 309.76 | 46.92 | 275.98 | 0.7317 | -584.0 | -458.9 | |
| 0.55 | 2.09 | 0.40 | 1.52 | 8.63 | 309.92 | 47.07 | 278.69 | 0.7346 | -742.7 | -625.6 | |
| 0.00 | 1.36 | 0.00 | 0.99 | 9.03 | 309.71 | 46.87 | 279.26 | 0.7325 | -662.0 | -622.6 | |
| 0.00 | 1.00 | 0.00 | 0.72 | 8.18 | 309.57 | 46.73 | 278.10 | 0.7303 | -704.0 | -589.6 | |
| 1.00 | 2.36 | 0.72 | 1.71 | 10.09 | 309.41 | 46.56 | 280.74 | 0.7299 | -642.1 | -496.5 | |
| 0.00 | 0.64 | 0.00 | 0.45 | 6.47 | 308.71 | 45.87 | 275.79 | 0.7191 | -379.0 | -312.9 | |
| 0.00 | 1.00 | 0.00 | 0.72 | 10.17 | 309.11 | 46.26 | 280.88 | 0.7265 | -637.0 | -547.5 | |
| 0.00 | 1.54 | 0.00 | 1.07 | 10.34 | 307.19 | 44.35 | 281.37 | 0.7037 | 383.0 | 370.5 | |
| 0.00 | 1.82 | 0.00 | 1.25 | 8.12 | 306.71 | 43.86 | 278.25 | 0.6954 | 634.0 | 504.2 | |
| 0.00 | 1.27 | 0.00 | 0.87 | 8.46 | 306.54 | 43.70 | 278.76 | 0.6937 | 675.0 | 589.5 | |
| 0.36 | 2.00 | 0.25 | 1.38 | 10.57 | 306.76 | 43.91 | 281.77 | 0.6987 | 619.5 | 464.9 | |
| 0.00 | 0.91 | 0.00 | 0.62 | 8.69 | 306.06 | 43.22 | 279.15 | 0.6879 | 446.0 | 387.7 | |
| 0.00 | 4.00 | 0.00 | 2.73 | 10.11 | 306.07 | 43.23 | 281.20 | 0.6897 | 713.0 | 608.4 | |
| 0.00 | 1.73 | 0.00 | 1.18 | 10.76 | 305.97 | 43.13 | 282.16 | 0.6893 | 744.0 | 654.4 | |
| 0.00 | 1.64 | 0.00 | 1.11 | 10.21 | 305.79 | 42.95 | 281.40 | 0.6863 | 763.0 | 608.4 | |
| 0.00 | 1.18 | 0.00 | 0.80 | 11.07 | 305.86 | 43.02 | 282.63 | 0.6884 | 635.0 | 590.6 | |
| 0.00 | 0.45 | 0.00 | 0.31 | 12.19 | 305.74 | 42.89 | 284.27 | 0.6887 | 473.0 | 458.8 | |
| 0.00 | 1.27 | 0.00 | 0.86 | 11.67 | 305.63 | 42.79 | 283.54 | 0.6865 | 676.0 | 542.6 | |
| 0.00 | 1.27 | 0.00 | 0.86 | 11.59 | 305.36 | 42.52 | 283.47 | 0.6831 | 777.0 | 663.2 | |
| 0.00 | 2.18 | 0.00 | 1.48 | 13.52 | 305.17 | 42.32 | 286.32 | 0.6844 | 430.0 | 417.4 | |
| 0.00 | 1.27 | 0.00 | 0.88 | 16.44 | 305.63 | 42.79 | 290.35 | 0.6972 | 510.0 | 407.4 | |
| 0.00 | 1.00 | 0.00 | 0.68 | 14.80 | 305.16 | 42.32 | 288.16 | 0.6873 | 595.0 | 458.1 | |
| 0.00 | 1.36 | 0.00 | 0.92 | 14.84 | 304.79 | 41.95 | 288.32 | 0.6829 | 728.0 | 625.2 | |
| 0.00 | 0.82 | 0.00 | 0.52 | 14.59 | 300.66 | 37.81 | 289.24 | 0.6306 | -619.0 | -509.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
