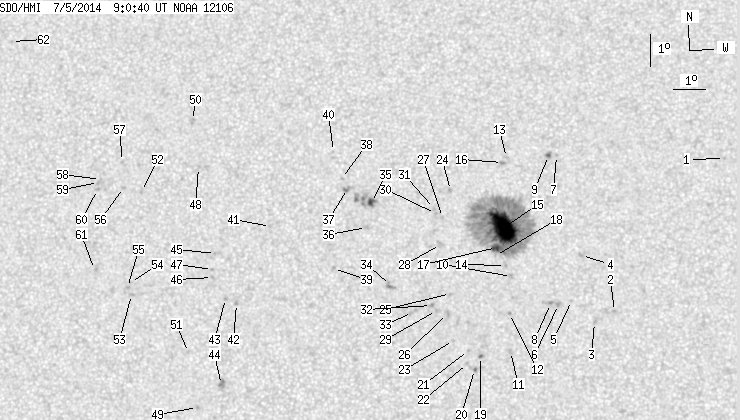

SDO HMI 2014-07-05 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.96 | 414.49 | 29.88 | 210.40 | 15.08 | 260.54 | -2.31 | 344.74 | 0.2142 | -387.5 | -231.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-05 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.61 | 17.48 | 268.91 | 6.07 | 337.62 | 0.2659 | -828.0 | -549.8 | |
| 0.00 | 1.64 | 0.00 | 0.82 | 12.73 | 265.32 | 2.48 | 345.53 | 0.1695 | -911.0 | -819.0 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 12.40 | 264.70 | 1.85 | 348.68 | 0.1614 | -778.0 | -692.7 | |
| 0.00 | 2.27 | 0.00 | 1.15 | 14.47 | 264.30 | 1.46 | 352.73 | 0.1957 | -891.0 | -604.2 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 13.08 | 263.98 | 1.14 | 353.49 | 0.1712 | -866.0 | -645.3 | |
| 0.00 | 2.63 | 0.00 | 1.32 | 12.95 | 263.57 | 0.73 | 355.76 | 0.1684 | -1041.0 | -837.1 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 17.60 | 263.53 | 0.69 | 357.34 | 0.2478 | -706.0 | -558.4 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 12.99 | 263.32 | 0.48 | 357.22 | 0.1687 | -1129.0 | -963.4 | |
| 0.91 | 2.00 | 0.46 | 1.02 | 17.60 | 263.28 | 0.43 | 358.33 | 0.2477 | -1066.0 | -873.2 | |
| 0.00 | 2.63 | 0.00 | 1.33 | 13.82 | 262.10 | -0.74 | 3.95 | 0.1834 | -980.0 | -719.3 | |
| 0.00 | 2.54 | 0.00 | 1.27 | 11.51 | 262.08 | -0.77 | 5.29 | 0.1435 | -863.0 | -767.6 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 12.68 | 262.04 | -0.80 | 4.81 | 0.1637 | -991.0 | -841.0 | |
| 0.00 | 1.64 | 0.00 | 0.84 | 17.54 | 261.93 | -0.91 | 3.54 | 0.2470 | 631.0 | 482.2 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 14.16 | 261.91 | -0.93 | 4.79 | 0.1895 | -646.0 | -605.9 | |
| 48.79 | 290.94 | 24.72 | 147.45 | 15.35 | 261.85 | -1.00 | 4.61 | 0.2098 | -1489.2 | -411.5 | |
| 0.00 | 2.36 | 0.00 | 1.21 | 17.38 | 261.81 | -1.04 | 4.07 | 0.2445 | 950.0 | 753.3 | |
| 5.18 | -15.00 | 2.62 | -15.00 | 14.72 | 261.63 | -1.22 | 5.94 | 0.1995 | -1028.6 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 14.47 | 261.60 | -1.25 | 6.22 | 0.1953 | -288.0 | -298.9 | |
| 0.45 | 2.00 | 0.23 | 1.00 | 11.35 | 261.14 | -1.70 | 11.78 | 0.1432 | -836.2 | -557.9 | |
| 0.36 | 1.45 | 0.18 | 0.73 | 10.95 | 260.96 | -1.89 | 13.69 | 0.1372 | 999.5 | 782.5 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 11.54 | 260.77 | -2.08 | 13.96 | 0.1478 | -795.0 | -653.9 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 11.14 | 260.74 | -2.10 | 14.86 | 0.1412 | -746.0 | -553.7 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 11.84 | 260.30 | -2.55 | 16.36 | 0.1550 | -857.0 | -649.1 | |
| 0.00 | 2.18 | 0.00 | 1.11 | 16.50 | 260.16 | -2.69 | 11.16 | 0.2333 | 786.0 | 560.8 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 13.30 | 260.19 | -2.65 | 14.58 | 0.1797 | -755.0 | -506.8 | |
| 0.00 | 3.45 | 0.00 | 1.74 | 12.68 | 260.10 | -2.74 | 16.02 | 0.1698 | -804.0 | -635.1 | |
| 0.00 | 0.82 | 0.00 | 0.42 | 15.66 | 259.91 | -2.93 | 12.99 | 0.2201 | 777.0 | 628.9 | |
| 0.00 | 4.00 | 0.00 | 2.02 | 14.81 | 259.86 | -2.98 | 14.18 | 0.2064 | -897.0 | -621.7 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 12.77 | 259.76 | -3.09 | 17.74 | 0.1730 | -942.0 | -780.0 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 15.78 | 259.69 | -3.15 | 13.80 | 0.2231 | 893.0 | 705.9 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 15.94 | 259.66 | -3.19 | 13.77 | 0.2258 | 791.0 | 669.5 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 12.92 | 259.60 | -3.24 | 18.30 | 0.1764 | -759.0 | -652.5 | |
| 0.00 | 4.18 | 0.00 | 2.10 | 12.71 | 259.01 | -3.84 | 21.82 | 0.1764 | -639.0 | -586.8 | |
| 0.00 | 4.18 | 0.00 | 2.11 | 13.54 | 258.31 | -4.54 | 23.45 | 0.1942 | -925.0 | -886.2 | |
| 3.27 | 19.35 | 1.67 | 9.88 | 16.12 | 257.65 | -5.20 | 21.44 | 0.2391 | 1035.5 | 786.0 | |
| 0.00 | 2.91 | 0.00 | 1.48 | 15.34 | 257.51 | -5.34 | 23.29 | 0.2278 | 507.0 | 421.3 | |
| 0.00 | 4.27 | 0.00 | 2.18 | 16.55 | 256.87 | -5.97 | 23.54 | 0.2509 | 884.0 | 710.8 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 16.87 | 256.67 | -6.18 | 23.71 | 0.2571 | 673.0 | 508.9 | |
| 0.00 | 2.09 | 0.00 | 1.06 | 14.06 | 256.50 | -6.35 | 29.90 | 0.2161 | -507.0 | -280.9 | |
| 0.00 | 0.82 | 0.00 | 0.42 | 17.71 | 256.38 | -6.46 | 23.31 | 0.2720 | 649.0 | 518.6 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 15.35 | 254.45 | -8.39 | 33.97 | 0.2530 | -727.0 | -611.3 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 12.95 | 253.46 | -9.38 | 43.41 | 0.2322 | 947.0 | 742.8 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 13.11 | 253.11 | -9.74 | 44.00 | 0.2382 | 1013.0 | 832.8 | |
| 0.00 | 5.82 | 0.00 | 2.95 | 10.45 | 253.07 | -9.77 | 53.20 | 0.2094 | 1051.0 | 792.9 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 14.50 | 252.73 | -10.11 | 41.15 | 0.2595 | 979.0 | 828.4 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 13.75 | 252.67 | -10.18 | 43.35 | 0.2511 | 960.0 | 769.4 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 14.00 | 252.66 | -10.19 | 42.69 | 0.2542 | 976.0 | 790.1 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 17.18 | 252.05 | -10.80 | 36.68 | 0.3010 | 394.0 | 427.5 | |
| 0.00 | 1.73 | 0.00 | 0.88 | 9.74 | 252.34 | -10.50 | 57.92 | 0.2130 | 945.0 | 675.3 | |
| 0.00 | 3.36 | 0.00 | 1.76 | 18.66 | 251.76 | -11.09 | 34.47 | 0.3232 | 595.0 | 665.4 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 11.43 | 252.00 | -10.85 | 52.43 | 0.2337 | 760.0 | 639.9 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 16.41 | 250.24 | -12.61 | 42.61 | 0.3106 | 711.0 | 565.8 | |
| 0.00 | 1.82 | 0.00 | 0.94 | 13.20 | 250.10 | -12.74 | 51.18 | 0.2768 | 964.0 | 699.8 | |
| 0.00 | 0.73 | 0.00 | 0.38 | 13.57 | 250.05 | -12.79 | 50.22 | 0.2813 | 768.0 | 531.2 | |
| 0.00 | 1.64 | 0.00 | 0.84 | 13.41 | 249.96 | -12.88 | 50.85 | 0.2808 | 992.0 | 790.1 | |
| 0.00 | 1.82 | 0.00 | 0.95 | 16.52 | 249.64 | -13.20 | 43.62 | 0.3187 | 855.0 | 596.8 | |
| 0.00 | 1.64 | 0.00 | 0.86 | 17.34 | 249.55 | -13.29 | 42.02 | 0.3293 | 803.0 | 549.2 | |
| 0.00 | 0.27 | 0.00 | 0.14 | 16.77 | 248.87 | -13.97 | 44.65 | 0.3304 | 767.0 | 752.0 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 16.67 | 248.82 | -14.03 | 44.98 | 0.3300 | 783.0 | 702.9 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 16.45 | 248.80 | -14.05 | 45.51 | 0.3277 | 909.0 | 696.2 | |
| 0.00 | 0.64 | 0.00 | 0.33 | 13.96 | 248.87 | -13.98 | 51.55 | 0.3006 | 641.0 | 688.9 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 21.09 | 245.48 | -17.36 | 42.16 | 0.4166 | 665.0 | 528.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
