SDO HMI 2014-07-05 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 128.57 | 736.25 | 69.55 | 398.23 | -19.28 | 256.44 | -6.40 | 164.60 | 0.4015 | 615.8 | 328.6 | |
|
previous
or next observation for the same group /

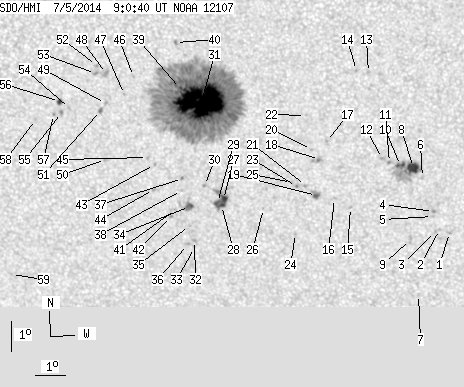

back to the solar disc SDO HMI 2014-07-05 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.73 | 0.00 | 1.51 | -23.17 | 264.00 | 1.16 | 182.38 | 0.4485 | 564.0 | 438.6 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -23.07 | 263.67 | 0.83 | 181.71 | 0.4467 | 747.0 | 619.5 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -23.14 | 263.54 | 0.69 | 181.43 | 0.4477 | 633.0 | 546.5 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -22.46 | 263.47 | 0.62 | 181.33 | 0.4370 | 959.0 | 820.5 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -22.63 | 263.44 | 0.59 | 181.25 | 0.4396 | 469.0 | 450.0 | |
| 0.00 | 1.73 | 0.00 | 0.94 | -21.31 | 263.11 | 0.26 | 180.58 | 0.4187 | 659.0 | 403.6 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -25.31 | 262.97 | 0.13 | 180.24 | 0.4812 | 21.0 | 108.2 | |
| 9.09 | 37.53 | 4.94 | 20.42 | -20.98 | 262.81 | -0.03 | 179.93 | 0.4133 | 1049.8 | 353.0 | |
| 0.00 | 3.09 | 0.00 | 1.71 | -23.41 | 262.71 | -0.14 | 179.72 | 0.4518 | -843.0 | -624.6 | |
| 2.45 | -8.00 | 1.33 | -8.00 | -20.91 | 262.39 | -0.46 | 178.96 | 0.4123 | 997.0 | 999999 | |
| 0.00 | 1.91 | 0.00 | 1.04 | -20.81 | 262.03 | -0.82 | 178.14 | 0.4109 | 872.0 | 684.9 | |
| 0.00 | 1.82 | 0.00 | 0.99 | -20.67 | 261.80 | -1.04 | 177.60 | 0.4089 | 800.0 | 698.7 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -17.83 | 261.37 | -1.47 | 176.13 | 0.3634 | 643.0 | 545.8 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -17.77 | 260.99 | -1.85 | 175.11 | 0.3628 | 766.0 | 578.5 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -22.32 | 260.73 | -2.11 | 175.50 | 0.4360 | -844.0 | -703.2 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -22.02 | 260.21 | -2.63 | 174.32 | 0.4320 | -678.0 | -488.4 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -20.11 | 259.99 | -2.86 | 173.29 | 0.4021 | -980.0 | -792.2 | |
| 0.00 | 2.73 | 0.00 | 1.48 | -20.71 | 259.75 | -3.10 | 172.93 | 0.4121 | -954.0 | -751.6 | |
| 1.64 | 6.36 | 0.90 | 3.49 | -21.92 | 259.62 | -3.22 | 173.03 | 0.4314 | 813.2 | 680.6 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -20.38 | 259.49 | -3.35 | 172.24 | 0.4074 | -695.0 | -509.6 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -21.58 | 259.27 | -3.58 | 172.16 | 0.4269 | 581.0 | 452.8 | |
| 0.00 | 0.82 | 0.00 | 0.44 | -19.25 | 259.32 | -3.52 | 171.41 | 0.3899 | -748.0 | -619.4 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -21.62 | 258.97 | -3.87 | 171.53 | 0.4281 | 826.0 | 679.5 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -23.21 | 258.89 | -3.95 | 171.93 | 0.4530 | -781.0 | -561.4 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -21.48 | 258.81 | -4.03 | 171.13 | 0.4264 | 806.0 | 652.8 | |
| 0.00 | 0.73 | 0.00 | 0.40 | -22.36 | 257.86 | -4.99 | 169.49 | 0.4426 | -662.0 | -520.8 | |
| 4.27 | 19.63 | 2.36 | 10.83 | -22.07 | 256.55 | -6.30 | 166.66 | 0.4423 | -1072.0 | -479.8 | |
| 2.91 | -27.00 | 1.61 | -27.00 | -22.27 | 256.47 | -6.37 | 166.62 | 0.4456 | -987.3 | 999999 | |
| 2.36 | -27.00 | 1.31 | -27.00 | -22.17 | 256.34 | -6.50 | 166.30 | 0.4446 | -1006.2 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -21.60 | 255.94 | -6.90 | 165.14 | 0.4375 | 753.0 | 583.8 | |
| 100.58 | 587.69 | 54.20 | 316.81 | -18.80 | 255.97 | -6.87 | 163.25 | 0.3947 | 1482.7 | 430.8 | |
| 0.00 | 1.91 | 0.00 | 1.07 | -23.46 | 255.51 | -7.34 | 165.42 | 0.4672 | -879.0 | -723.3 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -23.70 | 255.50 | -7.35 | 165.54 | 0.4709 | -576.0 | -490.4 | |
| 2.73 | 9.90 | 1.51 | 5.49 | -22.31 | 255.41 | -7.44 | 164.51 | 0.4504 | -1025.3 | -671.0 | |
| 0.00 | 0.55 | 0.00 | 0.30 | -22.95 | 255.37 | -7.47 | 164.85 | 0.4602 | -789.0 | -614.7 | |
| 0.00 | 2.09 | 0.00 | 1.17 | -23.60 | 255.27 | -7.58 | 165.05 | 0.4703 | -777.0 | -494.0 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -21.37 | 255.23 | -7.62 | 163.52 | 0.4370 | 750.0 | 582.1 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -21.77 | 255.17 | -7.67 | 163.69 | 0.4433 | 441.0 | 350.2 | |
| 0.27 | -31.00 | 0.15 | -31.00 | -18.38 | 255.31 | -7.54 | 161.38 | 0.3915 | 1198.7 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -16.88 | 255.21 | -7.63 | 159.78 | 0.3692 | -814.0 | -677.6 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -22.41 | 254.94 | -7.91 | 163.66 | 0.4540 | -732.0 | -592.2 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -22.65 | 254.79 | -8.06 | 163.53 | 0.4582 | -754.0 | -648.1 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -20.90 | 254.33 | -8.52 | 161.35 | 0.4344 | 501.0 | 352.5 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -21.74 | 254.24 | -8.60 | 161.83 | 0.4472 | 659.0 | 504.8 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -20.67 | 254.11 | -8.73 | 160.72 | 0.4321 | 677.0 | 494.8 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -18.00 | 253.80 | -9.04 | 157.62 | 0.3942 | -662.0 | -477.5 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -18.59 | 253.48 | -9.37 | 157.51 | 0.4049 | 623.0 | 523.8 | |
| 0.00 | 3.82 | 0.00 | 2.06 | -17.91 | 252.93 | -9.91 | 155.62 | 0.3985 | -858.0 | -697.4 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -18.89 | 252.84 | -10.00 | 156.46 | 0.4133 | 558.0 | 425.5 | |
| 0.00 | 2.09 | 0.00 | 1.15 | -20.75 | 252.72 | -10.13 | 158.01 | 0.4409 | -757.0 | -660.7 | |
| 0.45 | 2.54 | 0.25 | 1.39 | -19.12 | 252.66 | -10.18 | 156.33 | 0.4178 | -913.0 | -663.0 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -17.65 | 252.62 | -10.22 | 154.66 | 0.3968 | -826.0 | -708.0 | |
| 0.00 | 2.27 | 0.00 | 1.23 | -17.91 | 252.57 | -10.27 | 154.85 | 0.4009 | -948.0 | -694.2 | |
| 0.00 | 1.73 | 0.00 | 0.94 | -19.07 | 251.65 | -11.20 | 154.22 | 0.4238 | -710.0 | -573.5 | |
| 0.00 | 1.82 | 0.00 | 1.00 | -19.20 | 251.37 | -11.47 | 153.83 | 0.4276 | -882.0 | -677.9 | |
| 1.82 | 3.36 | 0.99 | 1.84 | -18.84 | 251.33 | -11.51 | 153.35 | 0.4228 | -986.0 | -794.7 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -19.27 | 251.11 | -11.74 | 153.38 | 0.4304 | -873.0 | -680.4 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -19.45 | 250.50 | -12.35 | 152.41 | 0.4372 | -821.0 | -650.1 | |
| 0.00 | 0.73 | 0.00 | 0.42 | -24.70 | 249.19 | -13.66 | 155.39 | 0.5172 | -722.0 | -556.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
