SDO HMI 2014-07-05 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.36 | 22.53 | 0.19 | 11.79 | -13.64 | 254.98 | -7.87 | 156.07 | 0.3244 | 653.5 | 330.3 | |
|
previous
or next observation for the same group /

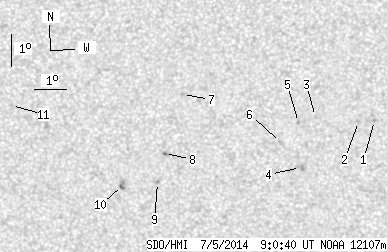

back to the solar disc SDO HMI 2014-07-05 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.47 | -12.69 | 259.79 | -3.05 | 169.33 | 0.2819 | 840.0 | 714.8 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -12.72 | 259.29 | -3.55 | 167.65 | 0.2841 | 945.0 | 737.4 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -12.56 | 257.95 | -4.90 | 163.06 | 0.2873 | 640.0 | 462.5 | |
| 0.00 | 4.09 | 0.00 | 2.13 | -14.19 | 257.44 | -5.41 | 163.10 | 0.3157 | 646.0 | 649.8 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -12.76 | 257.41 | -5.44 | 161.54 | 0.2931 | 975.0 | 730.8 | |
| 0.00 | 2.27 | 0.00 | 1.18 | -13.39 | 256.83 | -6.02 | 160.47 | 0.3064 | 743.0 | 573.2 | |
| 0.00 | 2.00 | 0.00 | 1.04 | -11.89 | 253.78 | -9.06 | 149.53 | 0.3052 | 813.0 | 551.4 | |
| 0.36 | 2.45 | 0.19 | 1.29 | -13.77 | 253.14 | -9.70 | 150.83 | 0.3373 | 748.2 | 617.5 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -14.70 | 252.87 | -9.97 | 151.52 | 0.3527 | 836.0 | 699.2 | |
| 0.00 | 4.91 | 0.00 | 2.61 | -14.81 | 251.75 | -11.10 | 149.05 | 0.3633 | -711.0 | -686.6 | |
| 0.00 | 0.82 | 0.00 | 0.43 | -12.30 | 248.32 | -14.53 | 137.52 | 0.3645 | 695.0 | 505.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
