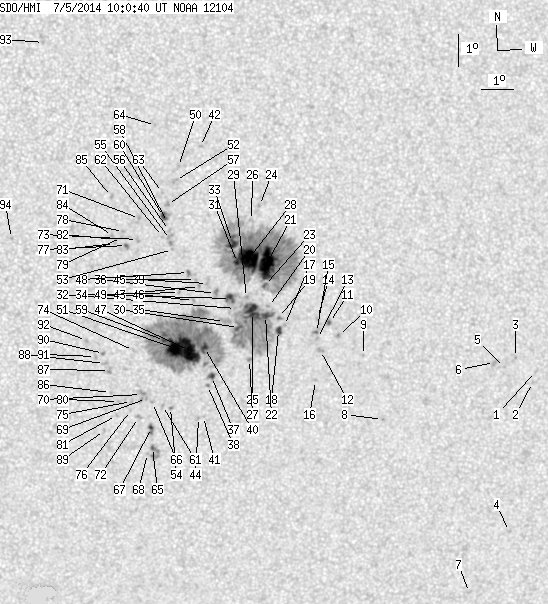

SDO HMI 2014-07-05 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 181.07 | 1076.07 | 93.44 | 555.64 | -11.77 | 268.32 | 6.03 | 201.66 | 0.2824 | 324.9 | 84.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-05 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.59 | -13.95 | 278.31 | 16.02 | 222.24 | 0.4000 | 770.0 | 581.9 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -14.30 | 278.24 | 15.94 | 221.51 | 0.4033 | 610.0 | 514.3 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -13.49 | 277.63 | 15.33 | 221.82 | 0.3873 | 829.0 | 743.4 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -19.13 | 277.88 | 15.59 | 213.75 | 0.4589 | 821.0 | 595.6 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -13.80 | 277.29 | 15.00 | 220.65 | 0.3874 | 733.0 | 621.2 | |
| 0.00 | 4.09 | 0.00 | 2.19 | -13.64 | 276.96 | 14.66 | 220.30 | 0.3819 | 967.0 | 725.8 | |
| 0.00 | 1.91 | 0.00 | 1.07 | -21.14 | 276.74 | 14.44 | 209.42 | 0.4754 | 753.0 | 542.1 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -15.41 | 273.44 | 11.15 | 210.19 | 0.3721 | 647.0 | 554.0 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -13.36 | 272.73 | 10.44 | 211.63 | 0.3376 | 797.0 | 628.9 | |
| 0.00 | 1.73 | 0.00 | 0.90 | -12.71 | 271.91 | 9.62 | 210.60 | 0.3215 | 934.0 | 819.8 | |
| 0.73 | 2.27 | 0.38 | 1.18 | -12.30 | 271.61 | 9.32 | 210.50 | 0.3131 | 1039.6 | 903.3 | |
| 0.00 | 3.54 | 0.00 | 1.85 | -13.18 | 271.36 | 9.06 | 208.42 | 0.3238 | 823.0 | 636.0 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -12.80 | 271.25 | 8.96 | 208.71 | 0.3174 | 844.0 | 674.9 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -12.16 | 271.23 | 8.93 | 209.67 | 0.3081 | 788.0 | 665.5 | |
| 0.45 | 3.45 | 0.24 | 1.80 | -12.61 | 271.21 | 8.92 | 208.91 | 0.3143 | 1163.6 | 924.5 | |
| 0.00 | 1.64 | 0.00 | 0.86 | -14.14 | 271.24 | 8.94 | 206.72 | 0.3367 | 858.0 | 579.8 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -12.38 | 270.20 | 7.90 | 206.42 | 0.3030 | 920.0 | 692.1 | |
| 3.09 | 158.91 | 1.61 | 82.44 | -12.53 | 270.01 | 7.72 | 205.66 | 0.3040 | 692.9 | 246.6 | |
| 0.36 | 2.45 | 0.19 | 1.27 | -12.12 | 270.00 | 7.70 | 206.24 | 0.2978 | 931.5 | 713.5 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -11.77 | 269.68 | 7.38 | 205.81 | 0.2902 | 788.0 | 701.0 | |
| 31.44 | 401.23 | 16.17 | 206.01 | -10.42 | 269.58 | 7.29 | 207.74 | 0.2692 | 1358.5 | 458.0 | |
| 4.00 | -18.00 | 2.07 | -18.00 | -12.05 | 269.59 | 7.29 | 205.12 | 0.2938 | 1003.0 | 999999 | |
| 1.36 | -21.00 | 0.70 | -21.00 | -11.11 | 269.54 | 7.24 | 206.42 | 0.2791 | 877.9 | 999999 | |
| 0.00 | 1.64 | 0.00 | 0.83 | -8.60 | 269.33 | 7.03 | 210.40 | 0.2403 | 782.0 | 515.2 | |
| 18.26 | -18.00 | 9.45 | -18.00 | -11.96 | 269.18 | 6.88 | 204.01 | 0.2895 | 1084.6 | 999999 | |
| 0.00 | 2.18 | 0.00 | 1.11 | -9.07 | 269.09 | 6.79 | 208.59 | 0.2451 | 339.0 | 225.9 | |
| 0.00 | 1.91 | 0.00 | 0.99 | -13.45 | 269.12 | 6.83 | 201.86 | 0.3119 | -1025.0 | -833.2 | |
| 33.80 | -21.00 | 17.35 | -21.00 | -10.25 | 269.02 | 6.72 | 206.15 | 0.2624 | 1450.4 | 999999 | |
| 0.00 | 1.91 | 0.00 | 0.98 | -11.48 | 268.98 | 6.68 | 204.08 | 0.2808 | 992.0 | 862.7 | |
| 2.45 | -18.00 | 1.27 | -18.00 | -12.43 | 268.75 | 6.46 | 202.04 | 0.2939 | 714.3 | 999999 | |
| 3.45 | -21.00 | 1.77 | -21.00 | -10.38 | 268.68 | 6.38 | 204.79 | 0.2618 | 1256.6 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -11.82 | 268.64 | 6.35 | 202.51 | 0.2839 | 457.0 | 368.8 | |
| 9.54 | -21.00 | 4.88 | -21.00 | -9.75 | 268.51 | 6.21 | 205.26 | 0.2510 | 1283.6 | 999999 | |
| 4.54 | 13.54 | 2.34 | 6.98 | -11.51 | 268.48 | 6.18 | 202.42 | 0.2779 | 1064.7 | 665.0 | |
| 0.00 | 8.63 | 0.00 | 4.46 | -12.23 | 268.31 | 6.01 | 200.90 | 0.2882 | -285.0 | -200.2 | |
| 0.00 | 4.82 | 0.00 | 2.48 | -11.35 | 268.01 | 5.71 | 201.08 | 0.2725 | 619.0 | 431.5 | |
| 2.45 | 5.91 | 1.28 | 3.08 | -13.98 | 267.94 | 5.64 | 197.79 | 0.3136 | -1012.3 | -764.4 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -14.27 | 267.82 | 5.52 | 197.16 | 0.3175 | -986.0 | -817.2 | |
| 0.00 | 0.82 | 0.00 | 0.42 | -11.03 | 267.75 | 5.46 | 200.64 | 0.2660 | 764.0 | 709.0 | |
| 5.54 | 332.45 | 2.88 | 172.14 | -13.05 | 267.70 | 5.40 | 198.02 | 0.2977 | -1186.8 | -482.6 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -15.26 | 267.72 | 5.42 | 195.96 | 0.3328 | 685.0 | 507.4 | |
| 0.00 | 1.73 | 0.00 | 0.87 | -6.75 | 267.48 | 5.18 | 207.15 | 0.1974 | 906.0 | 706.3 | |
| 0.00 | 1.64 | 0.00 | 0.84 | -11.12 | 267.50 | 5.21 | 199.66 | 0.2660 | 752.0 | 633.7 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -15.29 | 267.56 | 5.26 | 195.50 | 0.3326 | 695.0 | 601.4 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -10.90 | 267.38 | 5.08 | 199.49 | 0.2617 | 791.0 | 697.4 | |
| 0.00 | 1.73 | 0.00 | 0.89 | -11.56 | 267.32 | 5.03 | 198.49 | 0.2720 | -829.0 | -616.7 | |
| 28.71 | -40.00 | 14.89 | -40.00 | -13.15 | 267.23 | 4.93 | 196.46 | 0.2968 | -1391.7 | 999999 | |
| 0.55 | 3.00 | 0.28 | 1.54 | -10.68 | 267.15 | 4.86 | 198.98 | 0.2570 | 1104.2 | 825.5 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -11.31 | 266.88 | 4.59 | 197.25 | 0.2656 | 745.0 | 506.6 | |
| 0.00 | 1.91 | 0.00 | 0.97 | -7.37 | 266.81 | 4.51 | 202.80 | 0.2022 | 841.0 | 546.0 | |
| 23.08 | -40.00 | 11.96 | -40.00 | -13.08 | 266.79 | 4.49 | 195.12 | 0.2938 | -1353.5 | 999999 | |
| 0.00 | 2.82 | 0.00 | 1.43 | -7.80 | 266.72 | 4.42 | 201.59 | 0.2085 | 934.0 | 824.1 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -9.96 | 266.65 | 4.35 | 198.02 | 0.2426 | 916.0 | 693.0 | |
| 0.00 | 1.64 | 0.00 | 0.86 | -14.96 | 266.66 | 4.37 | 193.20 | 0.3237 | -403.0 | -418.3 | |
| 0.00 | 5.00 | 0.00 | 2.55 | -9.64 | 266.58 | 4.29 | 198.18 | 0.2372 | 797.0 | 843.3 | |
| 0.00 | 1.91 | 0.00 | 0.97 | -9.36 | 266.55 | 4.25 | 198.43 | 0.2325 | 973.0 | 712.5 | |
| 0.00 | 2.73 | 0.00 | 1.38 | -8.55 | 266.48 | 4.18 | 199.31 | 0.2190 | 1103.0 | 937.8 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -9.11 | 266.48 | 4.19 | 198.51 | 0.2281 | 309.0 | 579.7 | |
| 1.45 | -40.00 | 0.75 | -40.00 | -12.82 | 266.44 | 4.14 | 194.21 | 0.2881 | -1121.8 | 999999 | |
| 3.00 | 7.36 | 1.52 | 3.74 | -8.92 | 266.36 | 4.06 | 198.26 | 0.2244 | 1229.6 | 913.6 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -14.90 | 266.41 | 4.11 | 192.50 | 0.3217 | -778.0 | -609.1 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -9.55 | 266.33 | 4.04 | 197.31 | 0.2344 | 850.0 | 748.4 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -8.17 | 266.32 | 4.02 | 199.21 | 0.2120 | 876.0 | 661.0 | |
| 0.00 | 1.00 | 0.00 | 0.50 | -6.10 | 266.09 | 3.79 | 201.89 | 0.1772 | 741.0 | 641.2 | |
| 0.73 | 9.36 | 0.38 | 4.94 | -16.25 | 266.12 | 3.82 | 190.81 | 0.3426 | -1106.5 | -789.6 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -14.80 | 266.09 | 3.80 | 191.63 | 0.3190 | -934.0 | -706.2 | |
| 1.45 | 4.82 | 0.76 | 2.53 | -15.60 | 266.07 | 3.78 | 191.07 | 0.3320 | -1069.7 | -798.3 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -16.44 | 265.96 | 3.67 | 190.27 | 0.3452 | -652.0 | -503.8 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -14.67 | 265.90 | 3.60 | 191.14 | 0.3162 | -985.0 | -794.1 | |
| 0.00 | 4.82 | 0.00 | 2.51 | -14.54 | 265.74 | 3.44 | 190.73 | 0.3136 | -794.0 | -821.1 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -8.98 | 265.62 | 3.32 | 195.02 | 0.2217 | 1104.0 | 883.3 | |
| 0.00 | 2.82 | 0.00 | 1.47 | -15.28 | 265.66 | 3.36 | 190.05 | 0.3254 | -708.0 | -602.5 | |
| 0.00 | 2.18 | 0.00 | 1.11 | -9.64 | 265.56 | 3.26 | 194.05 | 0.2323 | 795.0 | 759.8 | |
| 0.00 | 1.91 | 0.00 | 0.99 | -13.14 | 265.47 | 3.17 | 190.77 | 0.2897 | -865.0 | -638.4 | |
| 0.00 | 2.09 | 0.00 | 1.09 | -14.76 | 265.43 | 3.13 | 189.66 | 0.3164 | -812.0 | -611.9 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -15.05 | 265.40 | 3.10 | 189.42 | 0.3210 | -715.0 | -597.8 | |
| 0.64 | 2.36 | 0.32 | 1.20 | -9.82 | 265.22 | 2.92 | 192.46 | 0.2340 | 1072.3 | 847.3 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -9.38 | 265.12 | 2.83 | 192.47 | 0.2264 | 936.0 | 683.5 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -9.57 | 265.06 | 2.77 | 192.04 | 0.2293 | 854.0 | 676.2 | |
| 0.00 | 1.64 | 0.00 | 0.85 | -14.76 | 265.02 | 2.72 | 188.41 | 0.3153 | -909.0 | -656.2 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -15.21 | 264.96 | 2.66 | 188.03 | 0.3225 | -799.0 | -585.5 | |
| 0.00 | 0.82 | 0.00 | 0.42 | -9.63 | 264.91 | 2.61 | 191.33 | 0.2298 | 805.0 | 610.0 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -9.76 | 264.85 | 2.55 | 190.97 | 0.2317 | 723.0 | 572.9 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -9.51 | 264.79 | 2.49 | 190.91 | 0.2273 | 910.0 | 646.1 | |
| 0.00 | 2.18 | 0.00 | 1.10 | -8.29 | 264.75 | 2.45 | 191.86 | 0.2068 | 937.0 | 757.0 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -14.47 | 264.76 | 2.47 | 187.76 | 0.3099 | -662.0 | -583.4 | |
| 0.00 | 2.91 | 0.00 | 1.51 | -13.77 | 264.72 | 2.43 | 187.97 | 0.2982 | -816.0 | -720.3 | |
| 0.00 | 2.36 | 0.00 | 1.22 | -13.55 | 264.57 | 2.27 | 187.55 | 0.2941 | -897.0 | -756.8 | |
| 0.00 | 1.64 | 0.00 | 0.86 | -15.69 | 264.59 | 2.29 | 186.73 | 0.3296 | -865.0 | -604.3 | |
| 0.00 | 1.82 | 0.00 | 0.94 | -13.23 | 264.53 | 2.24 | 187.59 | 0.2887 | -1041.0 | -830.6 | |
| 0.00 | 2.00 | 0.00 | 1.03 | -13.32 | 264.28 | 1.99 | 186.71 | 0.2898 | -766.0 | -602.0 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -12.81 | 264.00 | 1.70 | 185.94 | 0.2808 | -896.0 | -704.1 | |
| 0.00 | 1.18 | 0.00 | 0.59 | -3.53 | 262.66 | 0.36 | 183.00 | 0.1202 | 943.0 | 709.6 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -9.60 | 261.66 | -0.63 | 177.21 | 0.2250 | -907.0 | -691.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
