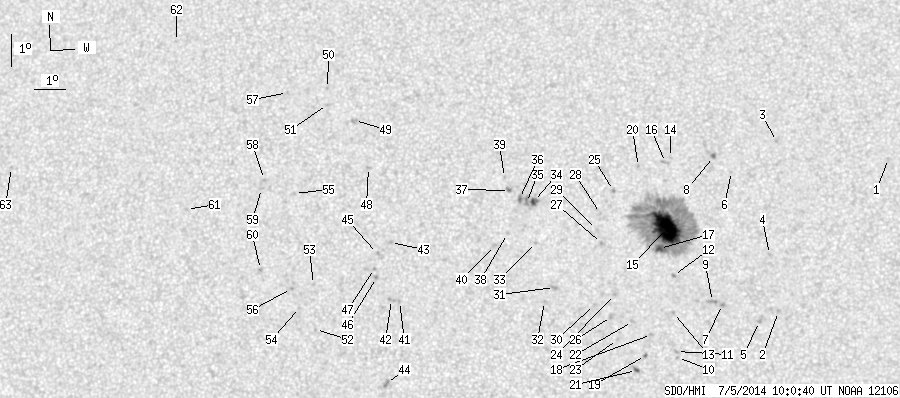

SDO HMI 2014-07-05 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62.69 | 395.57 | 31.76 | 200.80 | 15.13 | 260.61 | -1.69 | 345.32 | 0.2137 | -351.9 | -237.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-05 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.56 | 17.48 | 268.94 | 6.65 | 335.72 | 0.2697 | -862.0 | -653.8 | |
| 0.00 | 1.73 | 0.00 | 0.87 | 12.73 | 265.34 | 3.04 | 342.41 | 0.1722 | -946.0 | -813.4 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 18.03 | 265.36 | 3.07 | 348.67 | 0.2600 | -807.0 | -637.0 | |
| 0.00 | 1.64 | 0.00 | 0.83 | 14.50 | 265.08 | 2.79 | 346.35 | 0.2003 | -919.0 | -645.1 | |
| 0.00 | 1.64 | 0.00 | 0.82 | 12.43 | 264.74 | 2.45 | 345.23 | 0.1642 | -916.0 | -763.2 | |
| 0.00 | 0.55 | 0.00 | 0.28 | 17.09 | 263.91 | 1.61 | 353.55 | 0.2405 | -683.0 | -492.5 | |
| 0.00 | 2.18 | 0.00 | 1.10 | 12.95 | 263.59 | 1.30 | 352.49 | 0.1694 | -1057.0 | -850.5 | |
| 0.82 | 2.36 | 0.42 | 1.21 | 17.57 | 263.34 | 1.04 | 355.97 | 0.2476 | -1025.9 | -805.2 | |
| 0.00 | 3.45 | 0.00 | 1.74 | 13.05 | 263.28 | 0.98 | 354.34 | 0.1704 | -1050.0 | -907.3 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 11.32 | 262.18 | -0.11 | 0.80 | 0.1397 | -960.0 | -692.9 | |
| 0.00 | 2.00 | 0.00 | 1.00 | 11.51 | 262.15 | -0.14 | 0.99 | 0.1429 | -1030.0 | -809.0 | |
| 0.00 | 1.91 | 0.00 | 0.96 | 13.86 | 262.06 | -0.24 | 1.26 | 0.1835 | -1053.0 | -813.0 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 12.71 | 262.06 | -0.24 | 1.42 | 0.1637 | -1008.0 | -763.1 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 17.54 | 261.96 | -0.33 | 1.29 | 0.2466 | 654.0 | 450.0 | |
| 53.61 | 289.38 | 27.15 | 146.65 | 15.32 | 261.84 | -0.46 | 2.13 | 0.2087 | -1444.0 | -398.6 | |
| 0.00 | 3.27 | 0.00 | 1.67 | 17.38 | 261.80 | -0.49 | 1.93 | 0.2440 | 846.0 | 646.9 | |
| 3.45 | -15.00 | 1.74 | -15.00 | 14.69 | 261.62 | -0.68 | 3.32 | 0.1982 | -1127.7 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 12.03 | 261.37 | -0.92 | 5.95 | 0.1528 | -959.0 | -825.8 | |
| 0.45 | 1.73 | 0.23 | 0.86 | 11.38 | 261.19 | -1.11 | 7.71 | 0.1420 | -784.6 | -642.1 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 17.26 | 260.94 | -1.35 | 5.36 | 0.2428 | 647.0 | 473.8 | |
| 1.09 | 3.36 | 0.55 | 1.68 | 10.92 | 260.91 | -1.39 | 10.19 | 0.1348 | 971.1 | 659.6 | |
| 0.00 | 1.82 | 0.00 | 0.91 | 12.43 | 260.78 | -1.52 | 9.28 | 0.1610 | -875.0 | -757.5 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 11.88 | 260.31 | -1.98 | 12.83 | 0.1531 | -754.0 | -611.6 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 13.27 | 260.21 | -2.08 | 11.60 | 0.1769 | -876.0 | -721.6 | |
| 0.00 | 1.73 | 0.00 | 0.88 | 16.50 | 260.15 | -2.14 | 8.95 | 0.2317 | 826.0 | 569.2 | |
| 0.00 | 3.63 | 0.00 | 1.83 | 12.59 | 260.12 | -2.17 | 12.96 | 0.1658 | -915.0 | -716.3 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 14.85 | 259.79 | -2.51 | 11.96 | 0.2050 | -989.0 | -816.8 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 15.78 | 259.75 | -2.55 | 11.23 | 0.2208 | 852.0 | 645.7 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 15.28 | 259.63 | -2.67 | 12.24 | 0.2129 | -672.0 | -573.8 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 12.96 | 259.59 | -2.71 | 15.39 | 0.1743 | -715.0 | -632.7 | |
| 0.00 | 3.00 | 0.00 | 1.51 | 13.48 | 258.33 | -3.97 | 20.89 | 0.1896 | -1124.0 | -844.8 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 13.05 | 258.02 | -4.28 | 23.27 | 0.1847 | -893.0 | -722.5 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 14.87 | 257.70 | -4.59 | 21.13 | 0.2157 | 885.0 | 684.2 | |
| 2.82 | 5.00 | 1.44 | 2.55 | 16.15 | 257.61 | -4.68 | 19.45 | 0.2366 | 1043.6 | 801.0 | |
| 0.00 | 2.82 | 0.00 | 1.44 | 16.12 | 257.39 | -4.91 | 20.34 | 0.2374 | 1242.0 | 1007.5 | |
| 0.00 | 2.73 | 0.00 | 1.39 | 16.25 | 257.16 | -5.13 | 21.00 | 0.2407 | 910.0 | 869.2 | |
| 0.45 | 2.63 | 0.23 | 1.35 | 16.49 | 256.84 | -5.46 | 21.80 | 0.2466 | 990.6 | 778.5 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 15.15 | 256.81 | -5.49 | 24.23 | 0.2259 | 739.0 | 648.6 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 16.90 | 256.67 | -5.63 | 21.78 | 0.2541 | 748.0 | 536.6 | |
| 0.00 | 2.18 | 0.00 | 1.11 | 14.78 | 256.41 | -5.89 | 26.53 | 0.2231 | 676.0 | 609.2 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 13.02 | 253.45 | -8.84 | 41.55 | 0.2268 | 913.0 | 701.5 | |
| 0.00 | 2.54 | 0.00 | 1.29 | 13.08 | 253.20 | -9.10 | 42.17 | 0.2305 | 820.0 | 808.1 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 14.85 | 253.10 | -9.20 | 37.64 | 0.2542 | 880.0 | 719.1 | |
| 0.00 | 3.27 | 0.00 | 1.65 | 10.49 | 253.12 | -9.17 | 51.34 | 0.2016 | 1099.0 | 932.6 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 14.50 | 252.70 | -9.60 | 39.69 | 0.2539 | 992.0 | 809.9 | |
| 0.00 | 1.73 | 0.00 | 0.88 | 13.76 | 252.70 | -9.60 | 41.71 | 0.2446 | 980.0 | 799.5 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 14.04 | 252.62 | -9.68 | 41.15 | 0.2489 | 1015.0 | 704.0 | |
| 0.00 | 1.82 | 0.00 | 0.94 | 17.19 | 252.28 | -10.02 | 34.67 | 0.2934 | 899.0 | 644.7 | |
| 0.00 | 3.27 | 0.00 | 1.71 | 18.66 | 251.74 | -10.56 | 33.20 | 0.3184 | 812.0 | 732.1 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 19.67 | 250.78 | -11.51 | 33.65 | 0.3407 | 751.0 | 594.2 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 19.16 | 250.82 | -11.48 | 34.46 | 0.3336 | 864.0 | 671.6 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 12.13 | 250.82 | -11.47 | 51.60 | 0.2493 | 884.0 | 664.9 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 13.52 | 250.70 | -11.60 | 47.67 | 0.2656 | 846.0 | 610.3 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 12.81 | 250.28 | -12.01 | 50.74 | 0.2633 | 647.0 | 551.8 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 16.35 | 249.93 | -12.37 | 42.22 | 0.3072 | 629.0 | 485.3 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 13.39 | 250.00 | -12.30 | 49.66 | 0.2731 | 1082.0 | 906.2 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 19.53 | 249.47 | -12.83 | 36.74 | 0.3513 | 608.0 | 464.1 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 16.78 | 248.92 | -13.38 | 43.43 | 0.3236 | 799.0 | 660.4 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 16.49 | 248.84 | -13.46 | 44.23 | 0.3213 | 915.0 | 740.9 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 13.97 | 248.97 | -13.33 | 50.24 | 0.2923 | 832.0 | 707.5 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 15.80 | 246.43 | -15.87 | 50.34 | 0.3432 | 761.0 | 571.1 | |
| 0.00 | 1.00 | 0.00 | 0.54 | 21.10 | 245.58 | -16.71 | 41.10 | 0.4098 | 670.0 | 558.2 | |
| 0.00 | 1.00 | 0.00 | 0.55 | 17.02 | 240.43 | -21.87 | 55.96 | 0.4316 | 732.0 | 542.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
